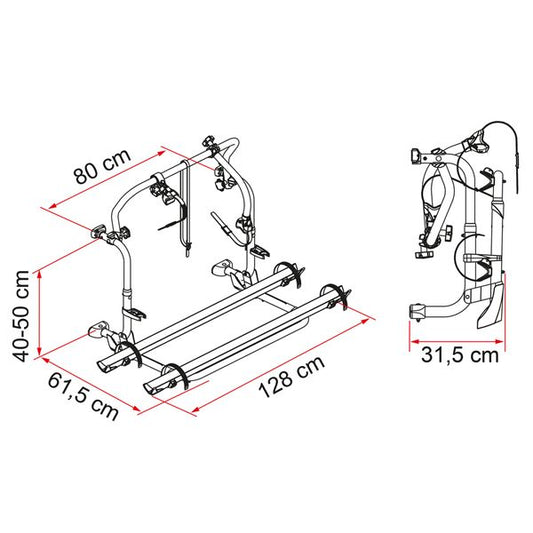

Can be installed under the rear window of the motorhome whilst allowing it to open. It is the most compact carrier in the range.
Highly adjustable upper structure for better stability. The rounded tube structure is easily adjustable from 40cm to 50cm in height to fit different installation requirements.
• Colour: Black
• Max load: 60kg
• Weight: 9.9kg
Supplied with,
• Premium Rail x 2
• Bike Block Pro S 1 and Pro S 2
• Straps and Brackets
Brand
Fiamma
Type
E-Bike Carriers
Weight
9.9kg
Colour
Aluminium
Maximum Load Description
60kg
Approvals
TÜV
Application
Motorhome
Capacity Description
2 E-Bikes
Supplied With
Bike Block Pro S1 and S2. Security Strap.
Optional Extras
N/A
Downloads
User Manual
The strongest, quickest and safest blocking system for bikes. The quick front clasp with its large non-scratch base fits round and oval bike tubes with diameters from 25mm to 80mm. Suitable for all Carry-Bike models. 24cm to 28cm reach. Available in Red, Blue, Black and Grey.
Brand
Fiamma
Type
Bike Blocks
Colour
Red
In addition to the classic version of Bike-Block Pro, Fiamma offer the Bike-Block Pro S. Available only in black with red inserts, this bike-block rotates 360 degrees and can cope with tube diameters ranging from 25mm to 100mm.
Brand
Fiamma
Type
Bike Blocks
Colour
Black
In addition to the classic version of Bike-Block Pro, Fiamma now offers the new 'Bike-Block Pro S'. Available only in black with red inserts this bike-block rotates 360 degrees and can cope with tube diameters ranging from 25mm to 100mm.
Brand
Fiamma
Type
Bike Blocks
Colour
Black
Telescopic rail that can be adjusted to the desired extension, supplied with 2 Quick-Safe straps. Ideal to limit rail overhang. Black.
Brand
Fiamma
Type
Rail Quick
Length
101cm to 167cm
Weight
1.2kg
Colour
Black
Hooking Type
Quick Safe
Rail Quick Pro Black comes as standard with the very popular Pro range of bike racks. Easy to install on the Carry-Bike thanks to the pre-drilled holes on the rail support base. Comes with 2 standard sliding straps Quick-Safe.
Brand
Fiamma
Type
Rail Quick Pro
Length
128cm
Weight
1kg
Colour
Black
Hooking Type
Quick Safe
Handy anti-theft cable made of black plastic-coated steel with incorporated padlock. Standard delivered with 2 keys. 2.5M Long.
Brand
Fiamma
Type
Bike Locks
A Fiamma bike carrier for use on Fiat Ducato III-IV Series, Citroen Jumper II-III Series and Peugeot Boxer II-III Series (≥2006 - H2/H3) van conversions with double rear doors.
Characterised by its solid stainless steel supporting structure, this bike carrier holds three bikes and is installed using the standard attachment points on the vehicle.
This Frame Ducato model carrier is designed for installation on the right door, leaving the left door free for optional installation of a ladder to access the roof of the vehicle.
The bike rail support bases can be mounted in three positions: standard, middle or a lowered position. If the support rail covers the vehicle's rear lights in the middle and lowered positions, a Fiamma license plate bar with lights must be used, see product codes 14786 (alloy version) or 14787 (Deep Black version).
The product can be installed on:
- Standard original vehicles (not modified)
- Campervans with a rear window with a protrusion of less than 9mm
- Campervans with a rear window with a protrusion of more than 9mm and distance from the edges of the tailgate greater than 100mm
Please note, this bike carrier is not suitable for vehicles with 270° hinge system.
- Carrier colour: Aluminium
- Mounting: Rear double door
- Vertical wheelbase: 136cm
- Dimensions: 128 x 60 x 136cm
- Rail type: Rail Quick Pro
- Bike Block: Pro S 2/ Pro S 3
- Distance between rails: 15cm
- Licence plate carrier: Optional (must be used when rail supports cover the vehicle's rear lights)
Key Features
Suitable for three bikes
Stainless steel rail support base to withstand load stress
Supporting structure made of stainless steel for maximum fastening
Safe installation using vehicle's hinge system
Right hand door installation leaves left door free for optional ladder
Rack Holder safety carrier lock
Quick Lock for quick and safe locking of the wheel to the rail
Replaces
13383
Brand
Fiamma
Type
Ducato Bike Carriers
Weight
21kg
Colour
Aluminium
Primary Construction
Aluminium
Maximum Load Description
50kg
Application
Van Conversions
Position
Rear Double Door
Capacity Description
3 Bikes
Supplied With
Bike Block Pro S 2, Bike Block Pro S 3, 3 x Rail Quick Pro, Brackets
Optional Extras
Licence Plate Carrier
Country of Origin
Italy
Downloads
Installation Guide Fiamma Frame Ducato 3 Bikes
A Fiamma bike carrier for use on Volkswagen Crafter II series and MAN TGE (≥ 2017 - H3) vehicles.
Characterised by its solid stainless steel supporting structure, this bike carrier holds three bikes and is installed using the vehicle’s standard mounting points.
This Frame Sprinter model carrier is designed for installation on the right door, leaving the left door free for optional installation of a ladder to access the roof of the vehicle.
The bike rail support bases can be mounted in three positions: standard, middle or a lowered position. If the support rail covers the vehicle's rear lights in the middle and lowered positions, a Fiamma license plate bar with lights must be used, see product codes 14786 (alloy version) or 14787 (Deep Black version).
- Carrier colour: Deep Black
- Mounting: Rear double door
- Vertical wheelbase: 168cm
- Dimensions: 133 x 73 x 168cm
- Rail type: Rail Quick Pro
- Bike Block: Pro S 1 / Pro S 2 / Pro S 3
- Distance between rails: 15cm
- Licence plate carrier: Optional (must be used when rail supports cover the vehicle's rear lights)
Please note, this bike carrier is not suitable for vehicles with 270° hinge system.
Key Features
Suitable for three bikes
Stainless steel AISI 304 rail support base
Vehicle rear door opens even with bikes mounted
Optional ladder can be mounted on the left door
Brand
Fiamma
Type
Crafter Bike Carriers
Weight
17.6kg
Colour
Black
Primary Construction
Aluminium
Maximum Load Description
50kg
Application
Van Conversions
Position
Rear Double Door
Capacity Description
3 Bikes
Supplied With
Bike-Block Pro S1, Bike-Block Pro S2, Bike-Block Pro S3, 3 x Rail Quick Pro, Brackets
Optional Extras
Licence Plate Carrier
Country of Origin
Italy
Downloads
Installation Guide Fiamma Frame Crafter 3 Bikes
Fiamma Rail Plus XL bike rails offer high resistance against torsion and bend due to their improved geometry and material distribution (compared to older rails).
In addition to improved shape and materials, these rails have a larger section for transporting different types of bicycles and fit all Carry-Bike models.
This XL bike rail has an anodised/deep black finish and is 139cm in length.
Key Features
Restyled 2023 model
Deep black finish
138cm in length
Left-right sliding
Brand
Fiamma
Type
Rail Plus
Length
139cm
Weight
1.1kg
Colour
Black
Hooking Type
Quick Safe
