Fiamma Carry-Bike Frame Crafter 3 Bikes Deep Black
Fiamma Carry-Bike Frame Crafter 3 Bikes Deep Black
Couldn't load pickup availability
A Fiamma bike carrier for use on Volkswagen Crafter II series and MAN TGE (≥ 2017 - H3) vehicles.

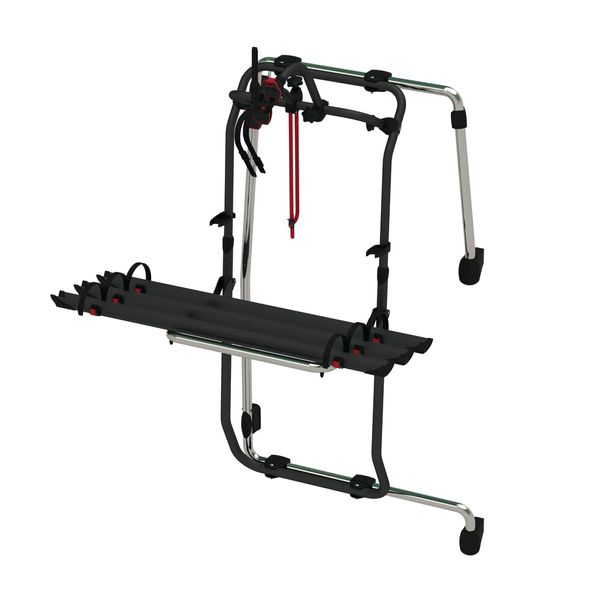

Characterised by its solid stainless steel supporting structure, this bike carrier holds three bikes and is installed using the vehicle’s standard mounting points.
This Frame Sprinter model carrier is designed for installation on the right door, leaving the left door free for optional installation of a ladder to access the roof of the vehicle.

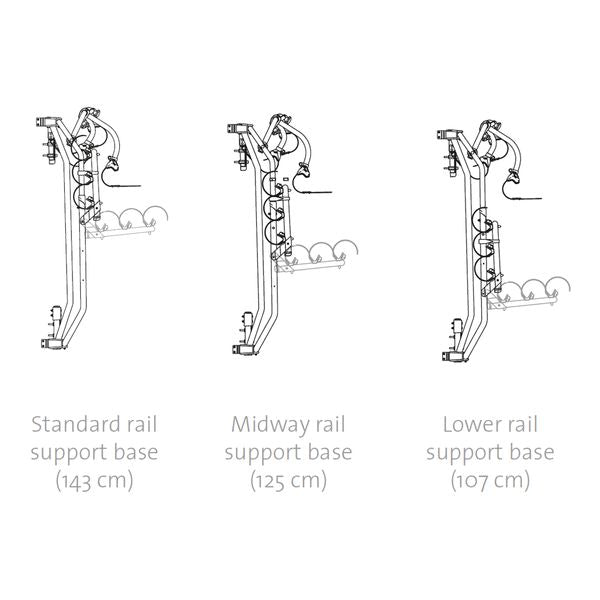

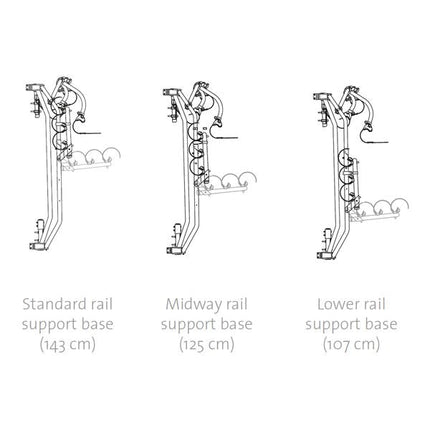

The bike rail support bases can be mounted in three positions: standard, middle or a lowered position. If the support rail covers the vehicle's rear lights in the middle and lowered positions, a Fiamma license plate bar with lights must be used, see product codes 14786 (alloy version) or 14787 (Deep Black version).
- Carrier colour: Deep Black
- Mounting: Rear double door
- Vertical wheelbase: 168cm

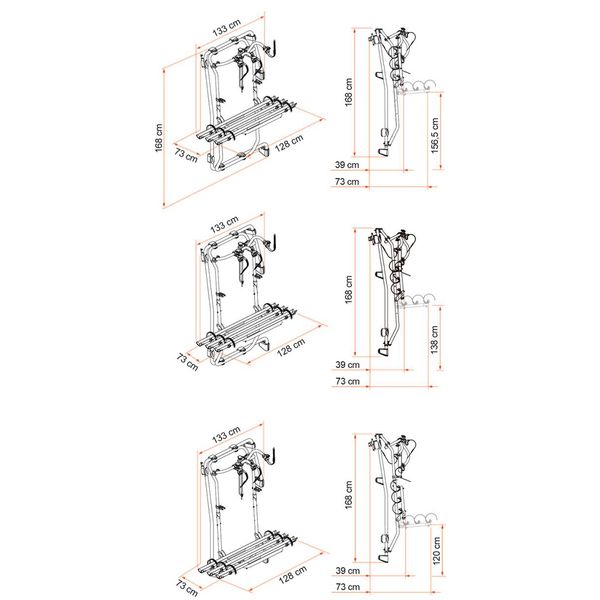

- Dimensions: 133 x 73 x 168cm
- Rail type: Rail Quick Pro
- Bike Block: Pro S 1 / Pro S 2 / Pro S 3
- Distance between rails: 15cm
- Licence plate carrier: Optional (must be used when rail supports cover the vehicle's rear lights)
Please note, this bike carrier is not suitable for vehicles with 270° hinge system.
Key Features
Suitable for three bikes
Stainless steel AISI 304 rail support base
Vehicle rear door opens even with bikes mounted
Optional ladder can be mounted on the left door
| Brand | Fiamma |
| Type | Crafter Bike Carriers |
| Weight | 17.6kg |
| Colour | Black |
| Primary Construction | Aluminium |
| Maximum Load Description | 50kg |
| Application | Van Conversions |
| Position | Rear Double Door |
| Capacity Description | 3 Bikes |
| Supplied With | Bike-Block Pro S1, Bike-Block Pro S2, Bike-Block Pro S3, 3 x Rail Quick Pro, Brackets |
| Optional Extras | Licence Plate Carrier |
| Country of Origin | Italy |
