The AVON brand is synonymous with Quality, Durability, High Performance and Value. By sourcing AVON products from the world’s leading factories, and manufacturing them to our exact specifications, we can ensure a Reliable Stockholding, a Premium Quality Alternative and Exceptional Value.
CATEGORIES:
Electric Vehicles
Forklift
Leisure
Marine
Mobility /Stairlift
Solar Panel Equipment
DIMENSIONS: 260 x 168 x 210
Easy Crimp Fuse holder moulded from black thermoplastic (includes a mini blade fuse of your choice)
Suitable for cable: 2mm² to 4mm² (10-14 AWG)
Fuse Selection
5A
10A
15A
20A
Our professional 4mm single-core solar cable is specifically designed for connecting photovoltaic system components permanently and comes fitted with one pair of solar connectors of your choice.
This cable is made of electron-beam cross-linked insulation and coating which gives a high resistance against heat, cold, oil, abrasion, ozone, UV and the weather. In case of fire the cable omits low levels of smoke is halogen free and flame retardant. It is flexible, easy to strip and has a space saving outer diameter.
"extremely mechanically robust cable, designed to last"

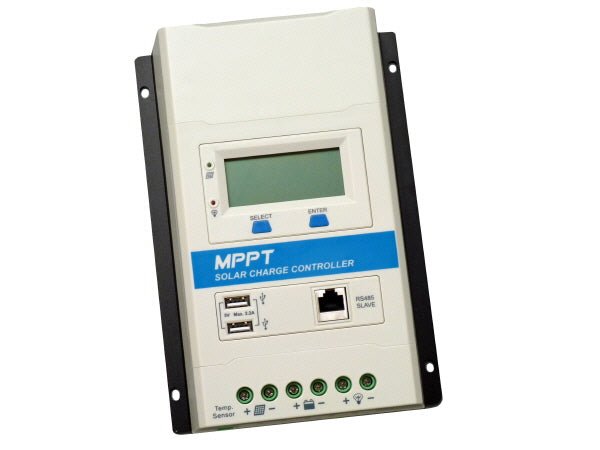

MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
This series of controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance and gives all-round electronic protection, including overcharging and over-discharge protection to minimise damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system.
Features
MPPT function
Compatible with lead acid & lithium-ion batteries
5VDC dual USB outputs
Built in display
Optional 2m wired remote display
Microprocessor controller pulse width modulation (PWM) charging
Overload protection
Overcharge protection
Short circuit protection
Lightning protection
Reverse discharge protection
Reverse polarity connection protection
Under voltage protection
Rated battery voltage 12/24vdc
RJ45 communication port for optional remote meter
Specifications
Max Rated Charging Current: 20 amps
Max Rated Load Current: 20 amps
Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
Max. PV Array Power: 780W / 12V - 1560W/24V
Max Input Voltage: 100Vdc
MPPT Efficiency: 99.5%
Self Consumption: ≤14mA/12V - ≤15mA/12V
System Voltage: 12V/24V Auto-set
Working Temperature: -35° to +55°
Battery Selection: Gel, Sealed, Flooded, Lithium-ion
Enclosure: IP30
Temperature Compensation: -30mV/°C/12V @ 25°C
Control Mode: MPPT Charging
Max PV Wire Size: 6mm²
Dimensions: 150mm x 216mm x 56.7mm
Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.
Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances.FEATURES
Single AC Outlet
Battery Connection Cables
USB Socket
Croc Clips & Cigar Plug
Over-temperature protection
Low battery voltage alarm
Low battery voltage shutdown
High battery voltage shutdown
Overload protection, short circuit protection, polarity reverse connection protection
Specifications

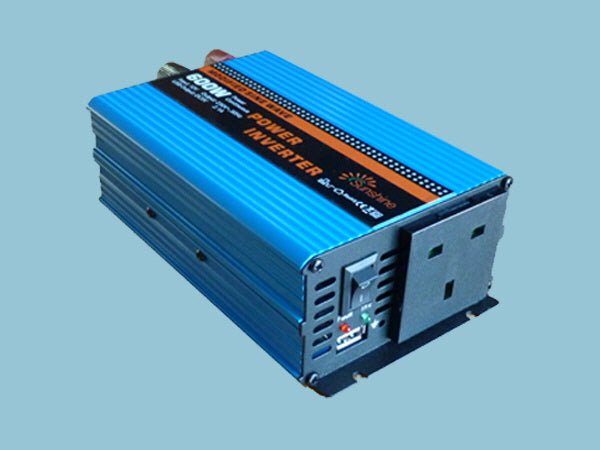

600W Modified sine wave power inverter
Output waveform: Modified sine wave inverter
Continuous power: 600watt
Surge power: 1200Watt
Input volt: 10-15V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >86%
Dimension (L*W*H): 180*105*55mm
Weight: 0.75KG
Sunshine Pure Sine Wave Inverters are suited for sensitive electronic equipment, allowing motors to run faster, quieter, and cooler, preventing computer crashes, noises & glitches in monitors, TV, game consoles, etc. Convert DC power from your battery into AC power enabling the use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
Fitted with an RCD Compatibility Switch.
Description
Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances.FEATURES
Soft Start
USB Port
RCD Compatibility - Switchable
Dual AC outlets
Over-temperature protection
Low battery voltage alarm
Low battery voltage shutdown
High battery voltage shutdown
Overload protection, short circuit protection, polarity reverse connection protection
*Optional Extra - Remote On/Off Switch*
Specifications
4000W pure sine wave power inverter
Output waveform: pure sine wave inverter
Continuous power: 4000 Watt
Surge power: 8000 Watt
Input voltage: 10-15V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >85%
Dimension (L*W*H): 453*220*150mm
Weight: 8.23KG
Sunshine Pure Sine Wave Inverters are suited for sensitive electronic equipment, allowing motors to run faster, quieter, and cooler, preventing computer crashes, noises & glitches in monitors, TV, game consoles, etc. Convert DC power from your battery into AC power enabling the use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
Fitted with an RCD Compatibility Switch.
Sunshine inverters are a very high grade and this product is supplied with heavy-duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off-grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck, or boat the Sunshine range of inverters gives you a 230V power supply wherever you need it.Sunshine power inverters have the advantages of being compact, lightweight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances.FEATURES
Soft Start
USB socket
Single AC Universal outlet
Battery Cables - 700mm Long
Over-temperature protection
Low battery voltage alarm
Low battery voltage shutdown
High battery voltage shutdown
Overload protection, short circuit protection, polarity reverse connection protection
Optional Remote On/Off Switch (available below)
Specifications
600W pure sine wave power inverter
Output waveform: pure sine wave inverter
Continuous power: 600watt
Surge power: 1200Watt
Input voltage: 10-15V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >85%
Dimension (L*W*H): 235*150*70mm
Weight: 1.77KG
Convert DC power from your battery into AC power enabling use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
This Sunshine C-Series Power Inverter carries the e-Mark, this European conformity mark issued by the transport sector, indicates that this power inverter complies with relevant laws and regulations or directives.
Sunshine Inverters are supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.The Sunshine C-Series Power Inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances. FEATURES
Soft Start
RCD Compatibility - Switchable
USB Port
Single AC outlets
Over-temperature protection
Low battery voltage alarm 10.5V
Low battery voltage shutdown 11.5V
Over voltage shutdown 15.5V
Overload protection, short circuit protection, polarity reverse connection protection
*Optional Extra - Remote On/Off Switch*
Specifications
600W pure sine wave power inverter
Output waveform: pure sine wave inverter
Continuous power: 600 Watt
Surge power: 1200 Watt
Input voltage: 10-15.5V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >90%
Dimension (L*W*H): 26*15*7.77cm
Weight: 2.2KG

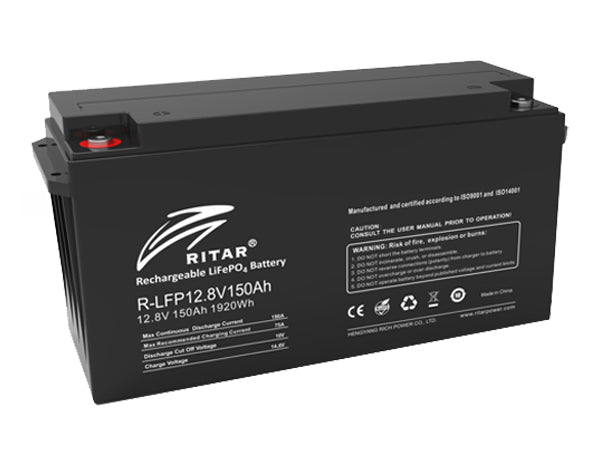

The RI_LFP12150 lithium battery utilises lithium iron phosphate technology which produces a significantly better depth of discharge and number of cycles than conventional lead acid batteries. It is also up to 50% lighter than lead acid batteries, completely maintenance free and has built in protection against overcharging, high current and high temperature.
Specifications
Voltage
12.8 Volts
Technology
Lithium
Capacity (C20)
150 Ah
Length
483 mm
Width
170 mm
Height inc. terms
241 mm
Weight
20 kg
Features
Using the technology of lithium iron phosphate cell, superior safety, over 3000 cycles @ 80% DOD, under normal conditions
Built-in automatic protection for over-charge, over discharge, over current and over temperature
Free of maintenance
Internal cell balancing
Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
Applications
Caravan/Motorhome & Leisure
UPS Systems
Solar & Wind Power System
Golf Cart
Electric Vehicle
Lighting
SAFETY
LiFePO4 cells, high consistency, long cycle life and much safer.
UN38.3, CE certification.
DESIGN
ABS case.
Fast charge performance. l -20~+55° C widely temperature range.
Maintenance free.
BATTERY MANAGEMENT SYSTEM
Integrated hardware BMS inside.
Independent protection for charge and discharge.
Over voltage, low voltage, over temperature and short circuit protection.
PRODUCT CODE: RI_LFP12150
RI_LFP12150 lithium battery Data sheet

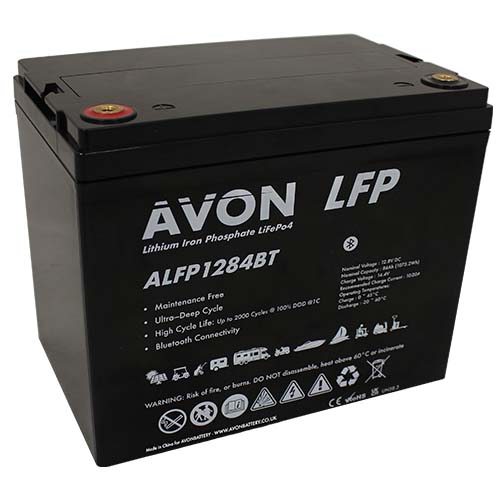

The AVON brand is synonymous with Quality, Durability, High Performance and Value. By sourcing AVON products from the world’s leading factories, and manufacturing them to our exact specifications, we can ensure a Reliable Stockholding, a Premium Quality Alternative and Exceptional Value.
Weight
10 kg
Dimensions
260 × 168 × 218 mm
Brand
AVON
Length (mm)
260
Height (mm)
218
Width (mm)
168
Weight (KG)
10
Capacity (Ah): 20hr
84
Voltage (V)
12
Cycles
2000
Terminal Layout
1
Terminal Type
M8
Technology
LIPO4
Export Commodity Code
85076000
Country of Origin
China
The AVON brand is synonymous with Quality, Durability, High Performance and Value. By sourcing AVON products from the world?s leading factories, and manufacturing them to our exact specifications, we can ensure a Reliable Stockholding, a Premium Quality Alternative and Exceptional Value
Weight
30 kg
Dimensions
520 × 269 × 220 mm
Brand
AVON
Length (mm)
520
Height (mm)
220
Width (mm)
269
Weight (KG)
30
Capacity (Ah): 20hr
300
Terminal Layout
3
Terminal Type
M8
Export Commodity Code
85076000
Country of Origin
China
