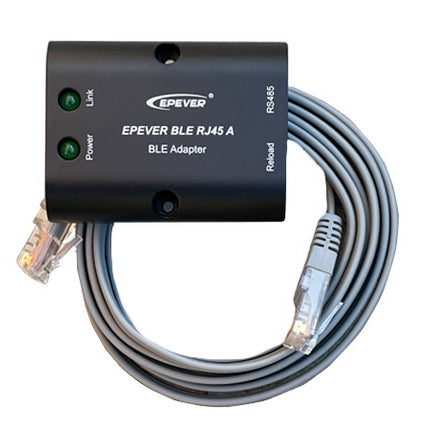

eBox-Bluetooth Adapter

eBox-BLE-01 is a kind of serial adapter that can make certain compatible solar controllers and inverters function via Bluetooth communication for wireless monitoring, and parameter settings with a mobile phone APP.

Features

• Realize the wireless monitoring function of solar controller and inverter
• Support mobile phone APP, plug and play, simple and convenient to set
• Use high-performance, ultra-low power consumption Bluetooth dedicated chip
• Adopt Bluetooth 4.0 and BLE technology
• Fast communication, strong anti-interference ability
• No need for an external power supply
• Communication distance up to 10m
• Master reset adapter

 Technical Specifications

• Input voltage eBox-BLE-01: 5VDC (Direct powered by RS485 port)
• Standby power consumption: 0.04W
• Operation power consumption: 0.05W
• Communication distance: ≤10m
• Port baud rate 2400 ~115200bps (Default115200bps)
• Communication: RS485 to BLE
• Interface type: RJ45
• Connecting cable: Standard network cable (Parallel cable)
• Overall dimension: 51 x 67 x 24.5mm
• Mounting dimension: 41.2mm
• Mounting hole size: Φ3.2mm
• Working temperature:  -20~70℃
• Enclosure: IP30
• Net weight: 37g
