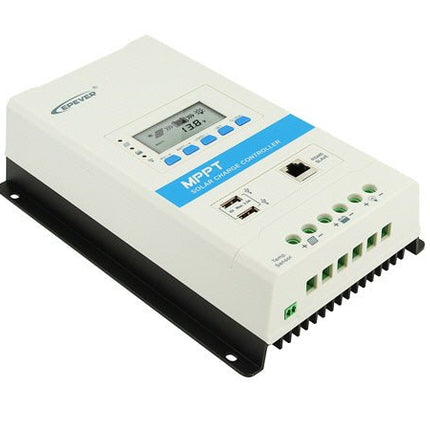

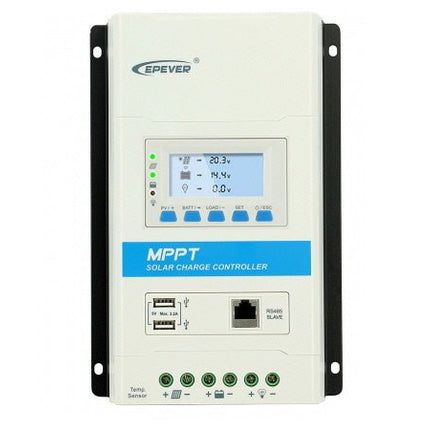

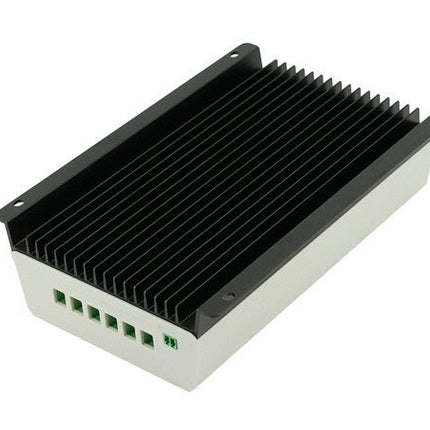

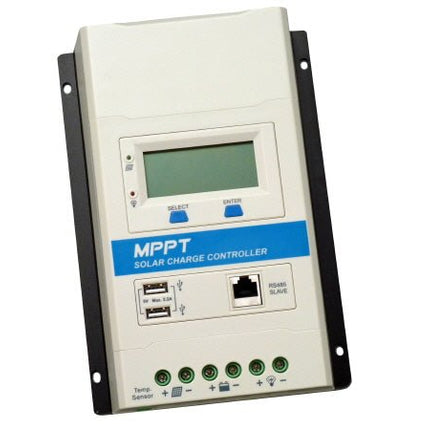

20A MPPT Charge Controller Triron Series

MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.

This series of controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance and gives all-round electronic protection, including overcharging and over-discharge protection to minimise damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system.

Features

• MPPT function
• Compatible with lead acid & lithium-ion batteries
• 5VDC dual USB outputs
• Built in display
• Optional 2m wired remote display
• Microprocessor controller pulse width modulation (PWM) charging
• Overload protection
• Overcharge protection
• Short circuit protection
• Lightning protection
• Reverse discharge protection
• Reverse polarity connection protection
• Under voltage protection
• Rated battery voltage 12/24vdc
• RJ45 communication port for optional remote meter

Specifications

• Max Rated Charging Current: 20 amps
• Max Rated Load Current: 20 amps
• Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
• Max. PV Array Power: 780W / 12V - 1560W/24V
• Max Input Voltage: 100Vdc
• MPPT Efficiency: 99.5%
• Self Consumption: ≤14mA/12V - ≤15mA/12V
• System Voltage: 12V/24V Auto-set
• Working Temperature: -35° to +55°
• Battery Selection: Gel, Sealed, Flooded, Lithium-ion
• Enclosure: IP30
• Temperature Compensation: -30mV/°C/12V @ 25°C
• Control Mode: MPPT Charging
• Max PV Wire Size: 6mm²

Dimensions: 150mm x 216mm x 56.7mm
