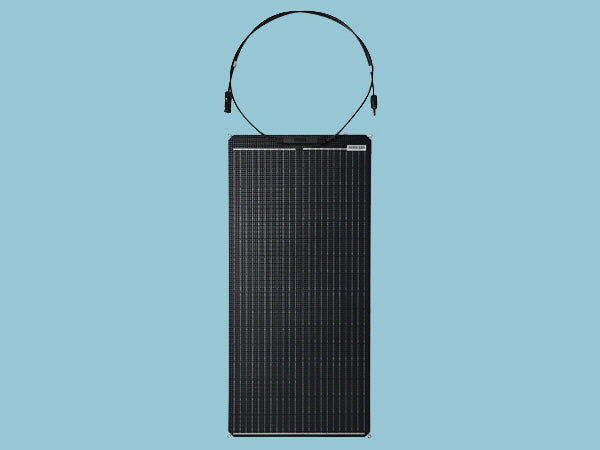

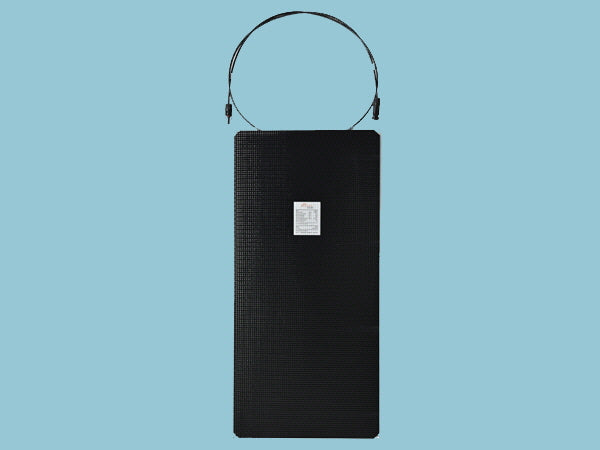

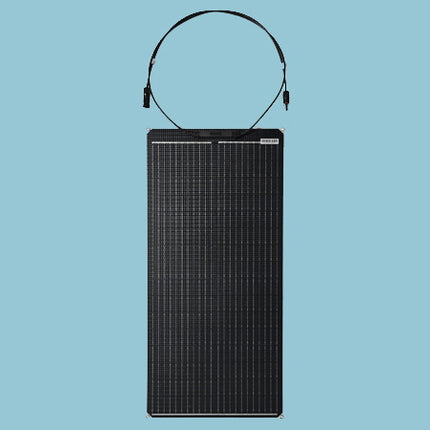

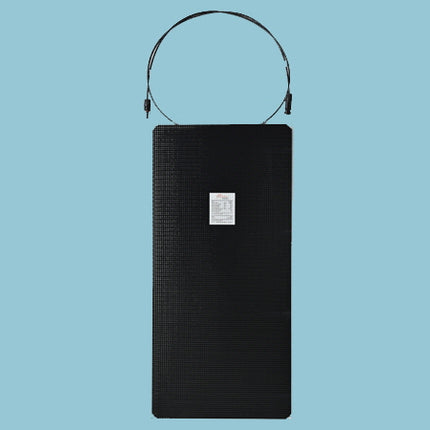

The Sunshine Solar Marine Flexi Panels are encapsulated in an ETFE coating, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.
The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a 120W Marine Flexi - Sunshine Solar Panel you could expect to generate around 40 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
- Maximum Power (Pmax): 120W
- Maximum Power Current (Ipm): 6.29A
- Maximum Power Voltage (Vpm): 19.1V
- Short Circuit Current (Isc): .6.60A
- Open Circuit Voltage (Voc): 22.3V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC200V
- Size: 1120 x 580 x 4mm
- Weight: 3.9kg
Features
- Four fixing eyelets
- ETFE rough scratch-resistant surface which can be walked on in deck shoes.
- Highly efficient monocrystalline cells
- Can be conveniently placed on slightly curved solid surfaces
- Can be easily bonded using Fixing Adhesive (no need for drilling)

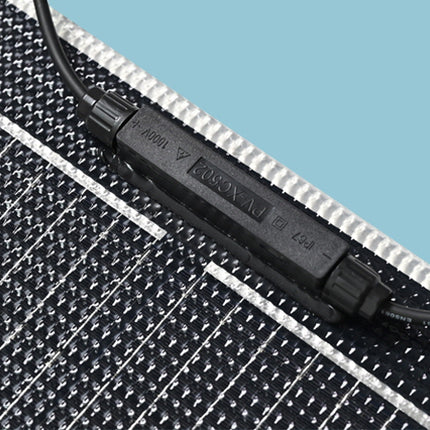

- 4mm Single Core Cable fitted with type MC4 Connectors
- Three Year Manufacturers Warranty
For more info, please view the docs below
