Our stand alone 100W off-grid solar power kit would typically be used for small off grid applications such as, summer houses, sheds, caravans, motorhomes, boats, stables etc. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 300W Sunshine Power Inverter to provide a pure sine wave AC 230V supply from the DC batteries supplied.
Description
Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 33Ah on a 12V system per day during the summer months. With the 300W Power Inverter supplied with this kit you could expect to run 230V AC appliances such as a TV, Laptop, Sound System, Tablet & Mobile Charges, Horse Clippers, Low Energy Lighting and much more.Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, Macbooks and other devices, using the optional Bluetooth or WiFi Adapter
Solar Panel Specifications
Product Code. SSP100MS
Max Power. 100W ± 3%
Max Power Voltage. 17.8V
Max Power Current. 5.62A
Open Circuit Voltage. 21.3V
Short Circuit Current. 6.07A
Normal Operating Cell Temp. -45 to 80°C
Max System Voltage. DC1000V
Weight. 7.3 Kg
Dimensions. 540 x 1200 x 35mm
Solar Panel - Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Data Sheet

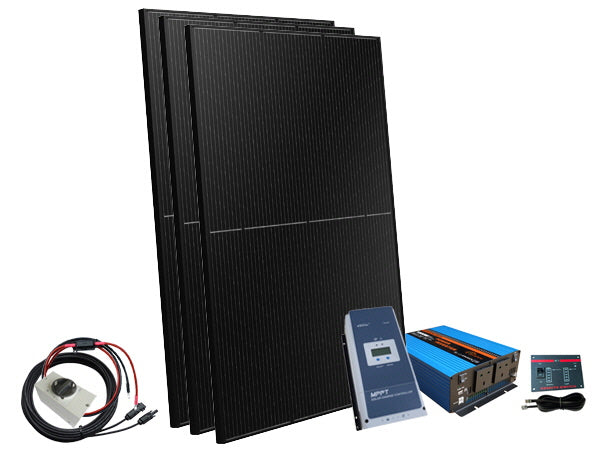

Our stand alone 1260W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
Description
The 1260W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 12V pure sine wave power inverter as standard, this can be upgraded for an additional cost.
Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.
The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".
Discover what happens when innovation meets technology.
Solar Panel Specifications
Power Class: 420W
Maximum Power Current: (Ipm): 13.17A
Maximum Power Voltage: (Vpm): 31.89V
Short Circuit Current (Isc): 13.9A
Power Output Tolerance (Pmax): 0/+5
Open Circuit Voltage (Voc): 37.87V
Nominal Operating Cell Temp. (NOCT): -40 to +85°C
Maximum System Voltage: 1500V DC
Cells: 108 M10 Half Cells PERC
Frame Colour: Black
Module Efficiency (%): 22.51
Connector Type: MC4 or compatible connector
Length (mm): 1722
Width (mm): 1134
Thickness (mm): 30
Product Weight (Kg): 21.5
Guaranteed Performance
30 Year Linear Power Warranty
25 Year Product Warranty
Engineered in Italy
Data Sheet
Our stand alone 1260W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
Description
The 1260W Off Grid Solar Kit comes complete with all the essential cables, switches. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
The solar power is harnessed with high efficient, Italian Made Peimar solar panels with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 210Ah on a 24V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 24V System - 210Ah per day
Data Sheet
Our stand alone 160W off-grid solar power kit would typically be used for small off grid applications such as, summer houses, sheds, caravans, motorhomes, boats, stables etc. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 300W Sunshine Power Inverter to provide a pure sine wave AC 230V supply from the DC batteries supplied (inverter upgrade options available).
Description
Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 53Ah on a 12V system per day during the summer months.
With the 300W Power Inverter supplied with this kit you could expect to run 230V AC appliances such as a TV, Laptop, Sound System, Tablet & Mobile Charges, Horse Clippers, Low Energy Lighting and much more, (inverter upgrade options available).Monitoring of the system can be made easy with an Apple Android smartphones, tablets, MacBook's and other devices, using the solar controllers built in Bluetooth function.
With a Sunshine 160W solar panel you could expect to generate around 44 amps per day when used in conjunction with a PWM solar charge controller and around 53 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
Product Code. SSP160P
Max Power. 160W ± 5%
Max Power Voltage. 18.10V
Max Power Current. 8.84A
Open Circuit Voltage. 22.40V
Short Circuit Current. 9.15A
Normal Operating Cell Temp. -45 to 80°C
Max System Voltage. DC1000V
Weight. 10.3Kgs
Dimensions. 664 x 1470 x 35mm
Features
900mm of 4mm single-core cable fitted with MC Type 4 Connectors
Latest High Performance Crystalline Cells
Factory fitted aluminium frame with pre-drilled mounting holes
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
wer Output
Data Sheet
Our stand alone 1680W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors.
Description
The 1680W Off Grid Solar Kit comes complete with all the essential cables, switches. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
The solar power is harnessed with high efficient, Italian Made Peimar solar panels with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 280Ah on a 24V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 24V System - 280Ah per day
Data Sheet
Our stand alone 2520W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and includes all cables and connectors.
Description
The 2520W Off Grid Solar Kit comes complete with all the essential cables, switches. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
The solar power is harnessed with high efficient, Italian Made Peimar solar panels with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 420Ah on a 24V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 24V System - 420Ah per day
Data Sheet
Our stand alone 420W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost).
The 420W Off Grid Solar Kit comes complete with all the essential cables, switches and an AGM battery.
AGM Batteries are renowned for having a longer lifespan than traditional flooded lead acid batteries, with the added advantage of being spill proof and they also respond better to loading making them a good choice for running power inverters.
The solar power is harnessed with a high efficient, Italian Made Peimar solar panel with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 140Ah on a 12V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 12V System - 140Ah per day
For more info please view the Document below
Data Sheet
Our stand alone 1260W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
Description
The 420W Off-Grid Solar Kit comes complete with all the essential cables and switches, plus a 1500W 24V pure sine wave power inverter as standard; this can be upgraded for an additional cost.
The solar power is harnessed with a high efficient, Italian Made Peimar solar panel with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 70Ah on a 24V system per day during the summer months.
Monitoring the system can be made easy with Apple Android smartphones, tablets, MacBooks, and other devices using the solar controllers' built-in Bluetooth function.
Kit Performance - Summertime
MPPT Controller: 24V System - 70Ah per day
Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.
Solar Panel Specifications
Power Class: 420W
Maximum Power Current: (Ipm): 13.17A
Maximum Power Voltage: (Vpm): 31.89V
Short Circuit Current (Isc): 13.9A
Power Output Tolerance (Pmax): 0/+5
Open Circuit Voltage (Voc): 37.87V
Nominal Operating Cell Temp. (NOCT): -40 to +85°C
Maximum System Voltage: 1500V DC
Cells: 108 M10 Half Cells PERC
Frame Colour: Black
Module Efficiency (%): 22.51
Connector Type: MC4 or compatible connector
Length (mm): 1722
Width (mm): 1134
Thickness (mm): 30
Product Weight (Kg): 21.5
Guaranteed Performance
30 Year Linear Power Warranty
25 Year Product Warranty
Engineered in Italy
PRODUCT CODE: OR10H420M
Kit. Solar Panel
Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.
The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".
Discover what happens when innovation meets technology.
Solar Panel Specifications
Power Class: 420W
Maximum Power Current: (Ipm): 13.17A
Maximum Power Voltage: (Vpm): 31.89V
Short Circuit Current (Isc): 13.9A
Power Output Tolerance (Pmax): 0/+5
Open Circuit Voltage (Voc): 37.87V
Nominal Operating Cell Temp. (NOCT): -40 to +85°C
Maximum System Voltage: 1500V DC
Cells: 108 M10 Half Cells PERC
Frame Colour: Black
Module Efficiency (%): 22.51
Connector Type: MC4 or compatible connector
Length (mm): 1722
Width (mm): 1134
Thickness (mm): 30
Product Weight (Kg): 21.5
Guaranteed Performance
30 Year Linear Power Warranty
25 Year Product Warranty
Engineered in Italy
PRODUCT CODE: OR10H420M
Kit. Solar Regulator
XTRA-N G3 BLE series controllers are based on a new design concept, featuring a Bluetooth module which allows you to read and write parameters via Apple and Android Smartphones. The controllers adopt the advanced MPPT control algorithm, improving the maximum power point (MPP) tracking and acting speed. By minimizing the MPP loss rate and time, the controllers can track the MPP quickly to obtain the maximum energy under any conditions.
Independent voltage regulation, namely, the battery terminal of the controller can be connected to loads directly when there is no battery, this is a new added function. The Xtra Series are lithium batteries friendly, avoiding the instability output voltage caused by the internal protection of the lithium batteries.
Low self-consumption design significantly reduces the static power consumption and extends system standby time.
The Xtra Series perform well under the high temperature ensuring system stability. IP33 Ingress protection and isolated RS485 com port design improves the controller’s reliability to meet different application requirements. XTRA-N G3 BLE series adopts a three-stage charging mode, which effectively prolongs the battery's lifespan and improves performance. Comprehensive electronic protections, such as overcharge, over-discharge, PV & battery reverse polarity, etc., helps to protect the solar system components. This controller are widely used for RVs, Motorhomes, Caravans, Boats household systems, etc.
Features：
High quality and low failure rate components of ST or IR to ensure the service life
Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
Advanced MPPT control algorithm to minimize the lost rate and lost time
Accurate recognizing and tracking of multi-peaks maximum power point
Wider MPP(maximum power point) running voltage to optimize PV utilization
Support multi battery types including lithium batteries
Equipped with a stable self-activation function for the lithium battery
Set the battery voltage parameters on the LCD
Battery temperature compensation
Limit the charging power & charging current to no higher than the rated value
Real-time energy statistics function
Charging power reduction automatically for over-temperature
Built-in Bluetooth to adjust settings through EPEVER APP
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Setting parameters via the PC software, APP, or remote meter
Constant voltage output function
Comprehensive electronic protections
Multiple load work modes
Dustproof and waterproof design with IP33 enclosure
Low self-consumption, lower than 10mA
Operation at full load without charging power being reduced in the working temperature range
Kit. Power Inverter
Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 24V battery bank, you get 230V AC directly from the power inverters universal output sockets giving you a stable power supply for running your electrical appliances.FEATURES
Soft Start
USB Port
Dual AC Universal Outlets
Over-temperature protection
Low battery voltage alarm
Low battery voltage shutdown
High battery voltage shutdown
Overload protection, short circuit protection, polarity reverse connection protection
Remote On/Off Switch
Specifications
1500W pure sine wave power inverter
Output waveform: pure sine wave inverter
Continuous power: 1500 Watt
Surge power: 3000 Watt
Input voltage: 20-30V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >85%
Cables Supplied: 2 x 700mm - 6mm²
Dimension (L*W*H): 330*220*90mm
Weight: 4.1KG
Certification CE-EMC/LCD RoHS E-Mark
PRODUCT CODE: VP150024
Data Sheet
Our stand-alone 520W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home offices, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and includes all cables and connectors along with a 1000W Sunshine Power Inverter to provide a pure sine wave AC 230V supply from the DC batteries supplied.
Description
The 520W Off Grid Solar Kit comes complete with all the essential cables, switches and AGM batteries.
AGM Batteries are renowned for having a longer lifespan than traditional flooded lead acid batteries, with the added advantage of being spill proof and they also respond better to loading making them a good choice for running the kits 1000W pure sine wave power inverter (upgrade options available).
Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 173Ah on a 12V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, Macbook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 12V System - 173Ah per day
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
25 Years Warranty 80% Power Output
Data Sheet
Our stand-alone 520W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home offices, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and includes all cables and connectors along with a 1000W Sunshine Power Inverter to provide a pure sine wave AC 230V supply from the DC batteries supplied.
Description
The 780W Off Grid Solar Kit comes complete with all the essential cables, switches and AGM batteries.
AGM Batteries are renowned for having a longer lifespan than traditional flooded lead acid batteries, with the added advantage of being spill proof and they also respond better to loading making them a good choice for running the kits 1000W pure sine wave power inverter (upgrade options available).
Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 260Ah on a 12V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 12V System - 260Ah per day
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
25 Years Warranty 80% Power Output
Data Sheet
Our stand alone 840W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
Description
The 840W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 12V pure sine wave power inverter as standard, this can be upgraded for an additional cost.
The solar power is harnessed with high efficient, Italian Made Peimar solar panels, with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 280Ah on a 12V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 12V System - 280Ah per day
Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.
Solar Panel Specifications
Power Class: 420W
Maximum Power Current: (Ipm): 13.17A
Maximum Power Voltage: (Vpm): 31.89V
Short Circuit Current (Isc): 13.9A
Power Output Tolerance (Pmax): 0/+5
Open Circuit Voltage (Voc): 37.87V
Nominal Operating Cell Temp. (NOCT): -40 to +85°C
Maximum System Voltage: 1500V DC
Cells: 108 M10 Half Cells PERC
Frame Colour: Black
Module Efficiency (%): 22.51
Connector Type: MC4 or compatible connector
Length (mm): 1722
Width (mm): 1134
Thickness (mm): 30
Product Weight (Kg): 21.5
Guaranteed Performance
30 Year Linear Power Warranty
25 Year Product Warranty
Engineered in Italy
Please View Data Sheet Below For More Info
Doc
Our stand alone 1260W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
Description
The 840W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 24V pure sine wave power inverter as standard, this can be upgraded for an additional cost.
The solar power is harnessed with high efficient, Italian Made Peimar solar panels, with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 140Ah on a 24V system per day during the summer months.
Monitoring of the system can be made easy with an Apple Android smartphones, tablets, MacBook's and other devices, using the solar controllers built in Bluetooth function.
Kit Performance - Summertime
MPPT Controller: 24V System - 140Ah per day
Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.
PRODUCT CODE: KITPK8401524NB
Data Sheet
