420W - 24V Off Grid Solar Kit - Power Inverter
420W - 24V Off Grid Solar Kit - Power Inverter
Couldn't load pickup availability

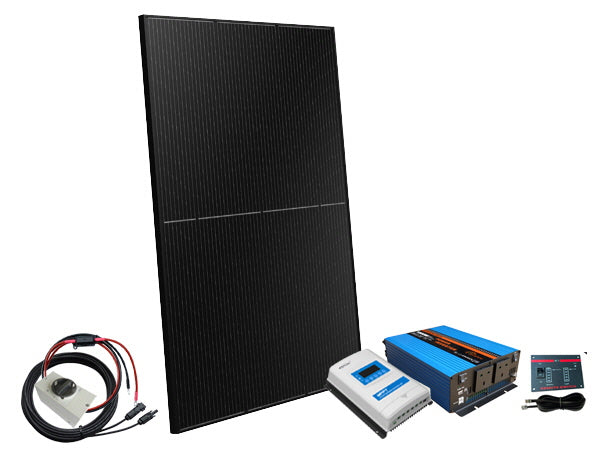

Our stand alone 1260W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)

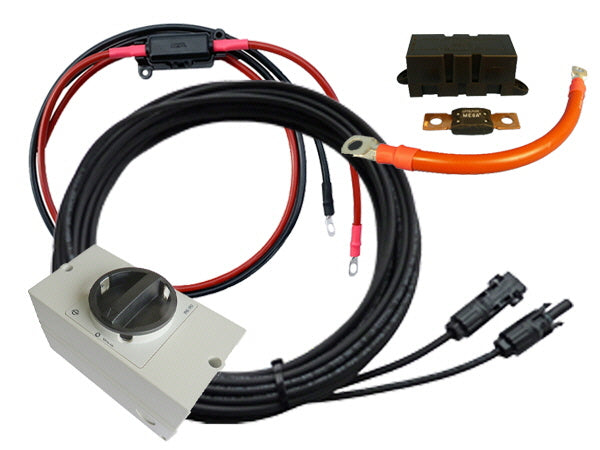

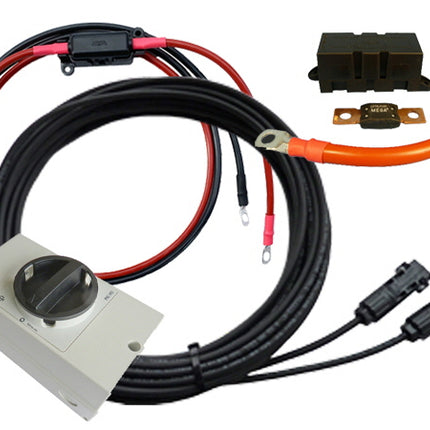

The 420W Off-Grid Solar Kit comes complete with all the essential cables and switches, plus a 1500W 24V pure sine wave power inverter as standard; this can be upgraded for an additional cost.
The solar power is harnessed with a high efficient, Italian Made Peimar solar panel with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 70Ah on a 24V system per day during the summer months.
Monitoring the system can be made easy with Apple Android smartphones, tablets, MacBooks, and other devices using the solar controllers' built-in Bluetooth function.
Kit Performance - Summertime
MPPT Controller: 24V System - 70Ah per day
Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.
Solar Panel Specifications
- Power Class: 420W
- Maximum Power Current: (Ipm): 13.17A
- Maximum Power Voltage: (Vpm): 31.89V
- Short Circuit Current (Isc): 13.9A
- Power Output Tolerance (Pmax): 0/+5
- Open Circuit Voltage (Voc): 37.87V
- Nominal Operating Cell Temp. (NOCT): -40 to +85°C
- Maximum System Voltage: 1500V DC
- Cells: 108 M10 Half Cells PERC
- Frame Colour: Black
- Module Efficiency (%): 22.51
- Connector Type: MC4 or compatible connector
- Length (mm): 1722
- Width (mm): 1134
- Thickness (mm): 30
- Product Weight (Kg): 21.5
Guaranteed Performance
- 30 Year Linear Power Warranty
- 25 Year Product Warranty
- Engineered in Italy
PRODUCT CODE: OR10H420M
Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.
The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".
Discover what happens when innovation meets technology.
Solar Panel Specifications
- Power Class: 420W
- Maximum Power Current: (Ipm): 13.17A
- Maximum Power Voltage: (Vpm): 31.89V
- Short Circuit Current (Isc): 13.9A
- Power Output Tolerance (Pmax): 0/+5
- Open Circuit Voltage (Voc): 37.87V
- Nominal Operating Cell Temp. (NOCT): -40 to +85°C
- Maximum System Voltage: 1500V DC
- Cells: 108 M10 Half Cells PERC
- Frame Colour: Black
- Module Efficiency (%): 22.51
- Connector Type: MC4 or compatible connector
- Length (mm): 1722
- Width (mm): 1134
- Thickness (mm): 30
- Product Weight (Kg): 21.5
Guaranteed Performance
- 30 Year Linear Power Warranty
- 25 Year Product Warranty
- Engineered in Italy
PRODUCT CODE: OR10H420M

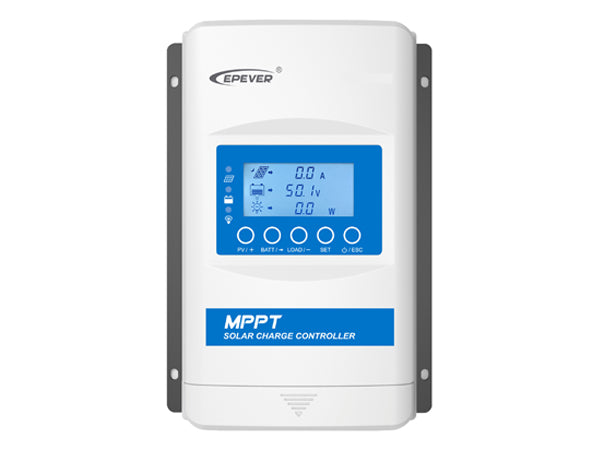

XTRA-N G3 BLE series controllers are based on a new design concept, featuring a Bluetooth module which allows you to read and write parameters via Apple and Android Smartphones. The controllers adopt the advanced MPPT control algorithm, improving the maximum power point (MPP) tracking and acting speed. By minimizing the MPP loss rate and time, the controllers can track the MPP quickly to obtain the maximum energy under any conditions.
Independent voltage regulation, namely, the battery terminal of the controller can be connected to loads directly when there is no battery, this is a new added function. The Xtra Series are lithium batteries friendly, avoiding the instability output voltage caused by the internal protection of the lithium batteries.
Low self-consumption design significantly reduces the static power consumption and extends system standby time.
The Xtra Series perform well under the high temperature ensuring system stability. IP33 Ingress protection and isolated RS485 com port design improves the controller’s reliability to meet different application requirements. XTRA-N G3 BLE series adopts a three-stage charging mode, which effectively prolongs the battery's lifespan and improves performance. Comprehensive electronic protections, such as overcharge, over-discharge, PV & battery reverse polarity, etc., helps to protect the solar system components. This controller are widely used for RVs, Motorhomes, Caravans, Boats household systems, etc.
Features：
- High quality and low failure rate components of ST or IR to ensure the service life
- Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
- Advanced MPPT control algorithm to minimize the lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power point
- Wider MPP(maximum power point) running voltage to optimize PV utilization
- Support multi battery types including lithium batteries
- Equipped with a stable self-activation function for the lithium battery
- Set the battery voltage parameters on the LCD
- Battery temperature compensation
- Limit the charging power & charging current to no higher than the rated value
- Real-time energy statistics function
- Charging power reduction automatically for over-temperature
- Built-in Bluetooth to adjust settings through EPEVER APP
- RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
- Setting parameters via the PC software, APP, or remote meter
- Constant voltage output function
- Comprehensive electronic protections
- Multiple load work modes
- Dustproof and waterproof design with IP33 enclosure
- Low self-consumption, lower than 10mA
- Operation at full load without charging power being reduced in the working temperature range

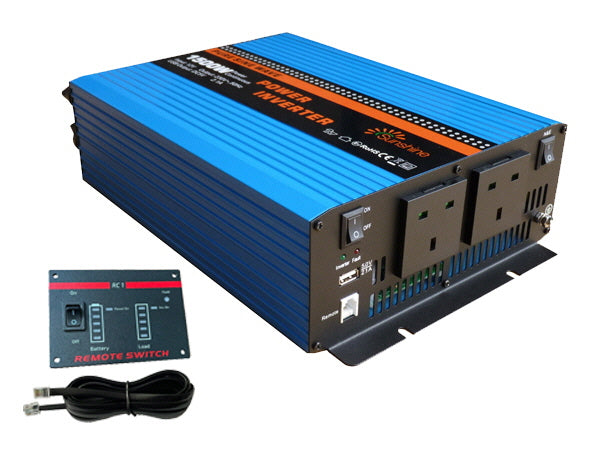

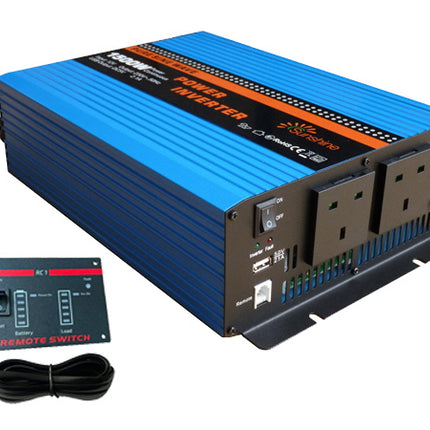

Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.
Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 24V battery bank, you get 230V AC directly from the power inverters universal output sockets giving you a stable power supply for running your electrical appliances.
FEATURES
- Soft Start
- USB Port
- Dual AC Universal Outlets
- Over-temperature protection
- Low battery voltage alarm
- Low battery voltage shutdown
- High battery voltage shutdown
- Overload protection, short circuit protection, polarity reverse connection protection
- Remote On/Off Switch
Specifications
- 1500W pure sine wave power inverter
- Output waveform: pure sine wave inverter
- Continuous power: 1500 Watt
- Surge power: 3000 Watt
- Input voltage: 20-30V DC
- Output volt: 230
- Frequency: 50Hz
- Efficiency: >85%
- Cables Supplied: 2 x 700mm - 6mm²
- Dimension (L*W*H): 330*220*90mm
- Weight: 4.1KG
Certification CE-EMC/LCD RoHS E-Mark
PRODUCT CODE: VP150024
