840W - 12V Off Grid Solar Kit - Power Inverter (Excluding Batteries)
840W - 12V Off Grid Solar Kit - Power Inverter (Excluding Batteries)
Couldn't load pickup availability
Our stand alone 840W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)

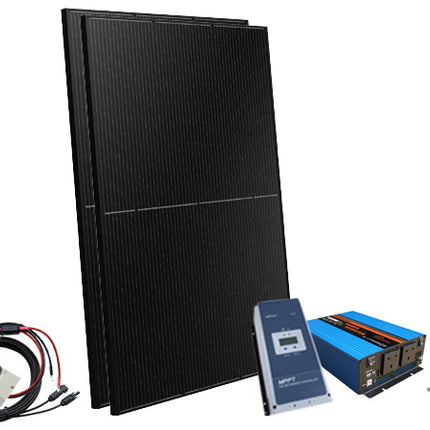

The 840W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 12V pure sine wave power inverter as standard, this can be upgraded for an additional cost.
The solar power is harnessed with high efficient, Italian Made Peimar solar panels, with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 280Ah on a 12V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 12V System - 280Ah per day
Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.
Solar Panel Specifications
- Power Class: 420W
- Maximum Power Current: (Ipm): 13.17A
- Maximum Power Voltage: (Vpm): 31.89V
- Short Circuit Current (Isc): 13.9A
- Power Output Tolerance (Pmax): 0/+5
- Open Circuit Voltage (Voc): 37.87V
- Nominal Operating Cell Temp. (NOCT): -40 to +85°C
- Maximum System Voltage: 1500V DC
- Cells: 108 M10 Half Cells PERC
- Frame Colour: Black
- Module Efficiency (%): 22.51
- Connector Type: MC4 or compatible connector
- Length (mm): 1722
- Width (mm): 1134
- Thickness (mm): 30
- Product Weight (Kg): 21.5
Guaranteed Performance
- 30 Year Linear Power Warranty
- 25 Year Product Warranty
- Engineered in Italy
Please View Data Sheet Below For More Info
