160W - 12V Off Grid Solar Kit - Power Inverter (Including Batteries)

Description

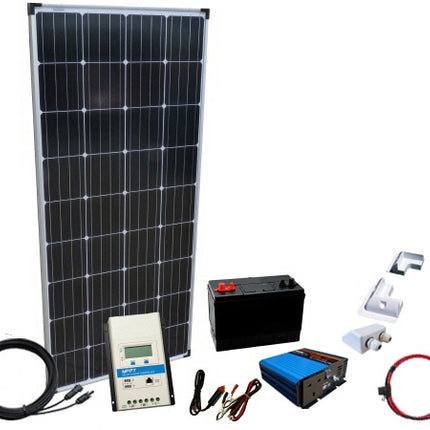

Our stand alone 160W off-grid solar power kit would typically be used for small off grid applications such as, summer houses, sheds, caravans, motorhomes, boats, stables etc. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 300W Sunshine Power Inverter to provide a pure sine wave AC 230V supply from the DC batteries supplied (inverter upgrade options available).

Description

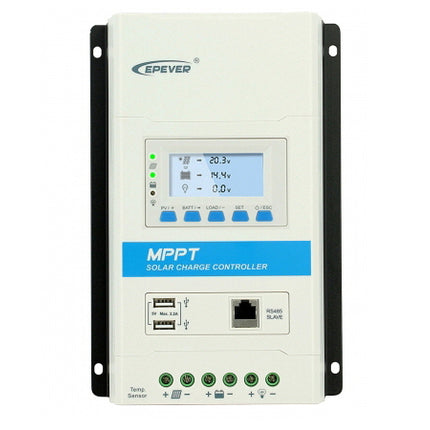

Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 53Ah on a 12V system per day during the summer months.

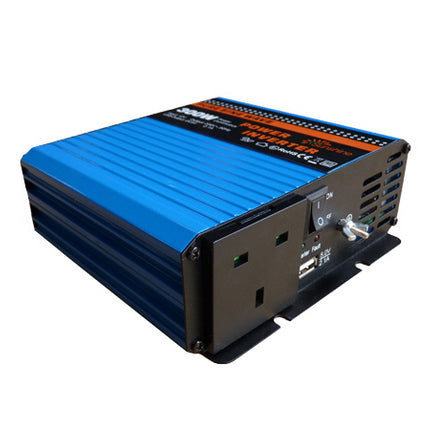

With the 300W Power Inverter supplied with this kit you could expect to run 230V AC appliances such as a TV, Laptop, Sound System, Tablet & Mobile Charges, Horse Clippers, Low Energy Lighting and much more, (inverter upgrade options available).

Monitoring of the system can be made easy with an Apple Android smartphones, tablets, MacBook's and other devices, using the solar controllers built in Bluetooth function.

      • With a Sunshine 160W solar panel you could expect to generate around 44 amps per day when used in conjunction with a PWM solar charge controller and around 53 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.


        Specifications

        • Product Code. SSP160P
        • Max Power. 160W ± 5%
        • Max Power Voltage. 18.10V
        • Max Power Current. 8.84A
        • Open Circuit Voltage. 22.40V
        • Short Circuit Current. 9.15A
        • Normal Operating Cell Temp. -45 to 80°C
        • Max System Voltage. DC1000V
        • Weight. 10.3Kgs
        • Dimensions. 664 x 1470 x 35mm

        Features

        • 900mm of 4mm single-core cable fitted with MC Type 4 Connectors
        • Latest High Performance Crystalline Cells
        • Factory fitted aluminium frame with pre-drilled mounting holes
        • Multiple pieces can be connected to acquire higher power
        • Suitable for charging all types of 12 volt batteries
        • Fitted with bypass diodes to minimise the effect of shading
        • Completely weatherproof

        Guaranteed Performance

        • 5 Years Manufacturers Warranty
        • 10 Years Warranty 90% Power Output
        • 20 Years Warranty 80% Power Output
        wer Output

      Data Sheet

      160W - 12V Off Grid Solar Kit - Power Inverter (Including Batteries)

      Product form

      £480.60 Incl. VAT
