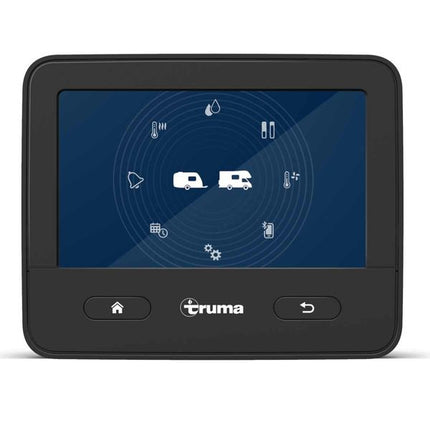

Truma iNet X Panel Central Control Unit for Appliances
Truma iNet X Panel Central Control Unit for Appliances
The Truma iNet X Panel serves as a centralised control hub, overseeing heating, hot water, and air conditioning systems using one operating system.

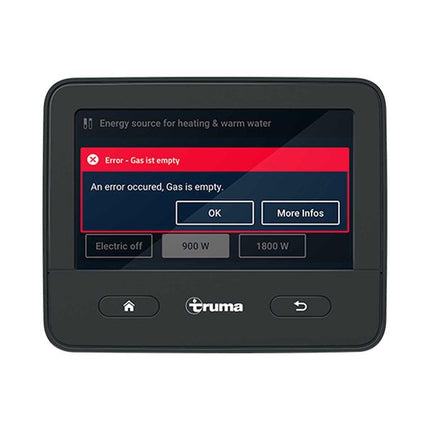

The 4.3” colour panel has a touchscreen interface allowing onboard functions to be controlled effortlessly through the well-organised menu.

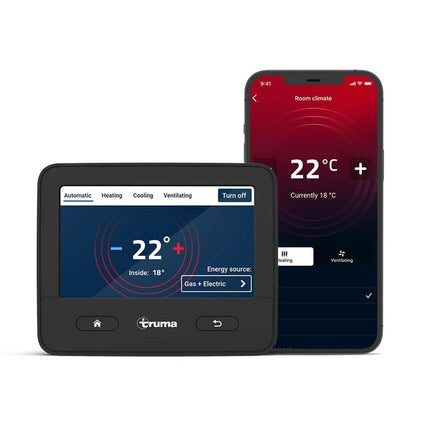

The panel can also be operated remotely via Bluetooth technology and a dedicated smartphone app.
You can also upgrade your current Truma CP+ panel to this new iNet X Panel in any caravan or motorhome manufactured since the 2019, either through your local dealer or a Truma mobile engineer.
The Truma iNet X Panel is ideal for Truma CP plus and Truma CP classic owners, allowing an easy transition from the static iNet System to the advanced iNet X System.
Built-in Bluetooth connectivity eliminates the need for a separate iNet Box as in the previous system.
You can keep your operating system up-to-date effortlessly via the Truma iNet X App to ensure continuous improvement and smarter features.
Key Features
Manages heating, hot water, and air conditioning systems from one interface
User-friendly control with a touchscreen display
Control via Bluetooth and a dedicated smartphone app
Adjust temperature, schedule heating cycles, and monitor status
Manage water temperature and availability
Set cooling settings and fan speeds
Can replace existing Truma CP+ panels
IP Rating: Front: IP20, Back: IP00
Brand | Truma |
Type | Control Panels |
Voltage Description | 12V DC (8V - 16V DC) |

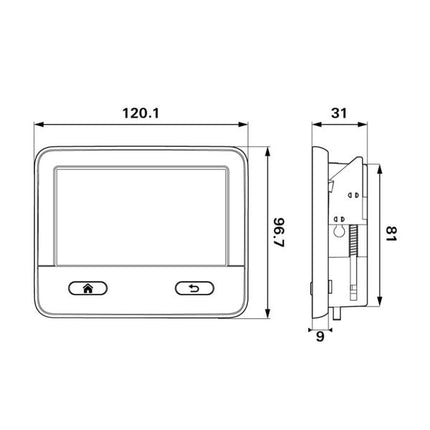

Height Description | 97.6mm |
Width | 120.1mm |
Depth | 31mm |
Weight | 150g (approx.) |
Approvals | Class III |
Consumption | 1.5W (approx. 130 mA) |
Operating Temperature | -30°C to + 60°C |
Screen Size | 4" |
Country of Origin | Germany |
