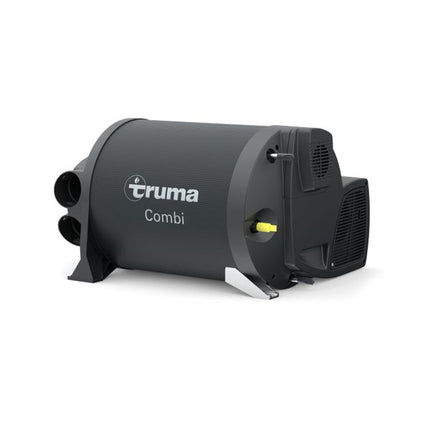

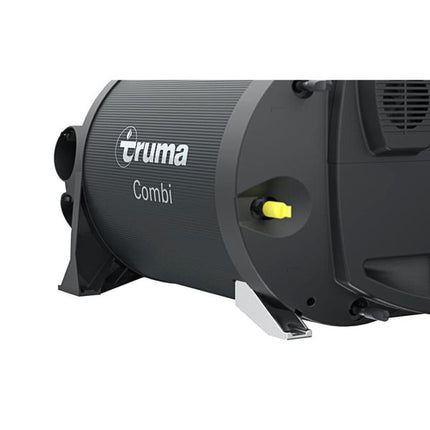

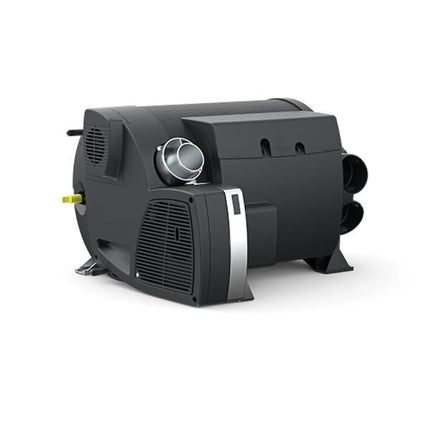

Truma Combi D 4E-iNet X Heater (Diesel, Electrical, Hot Water)
Truma Combi D 4E-iNet X Heater (Diesel, Electrical, Hot Water)
Couldn't load pickup availability

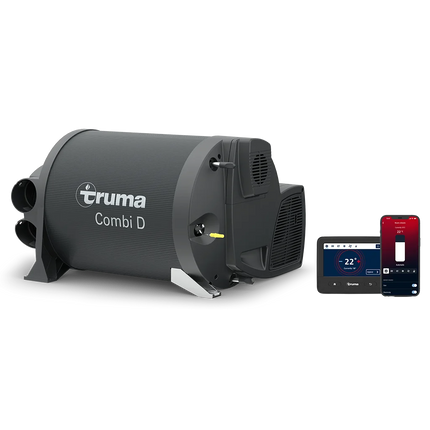

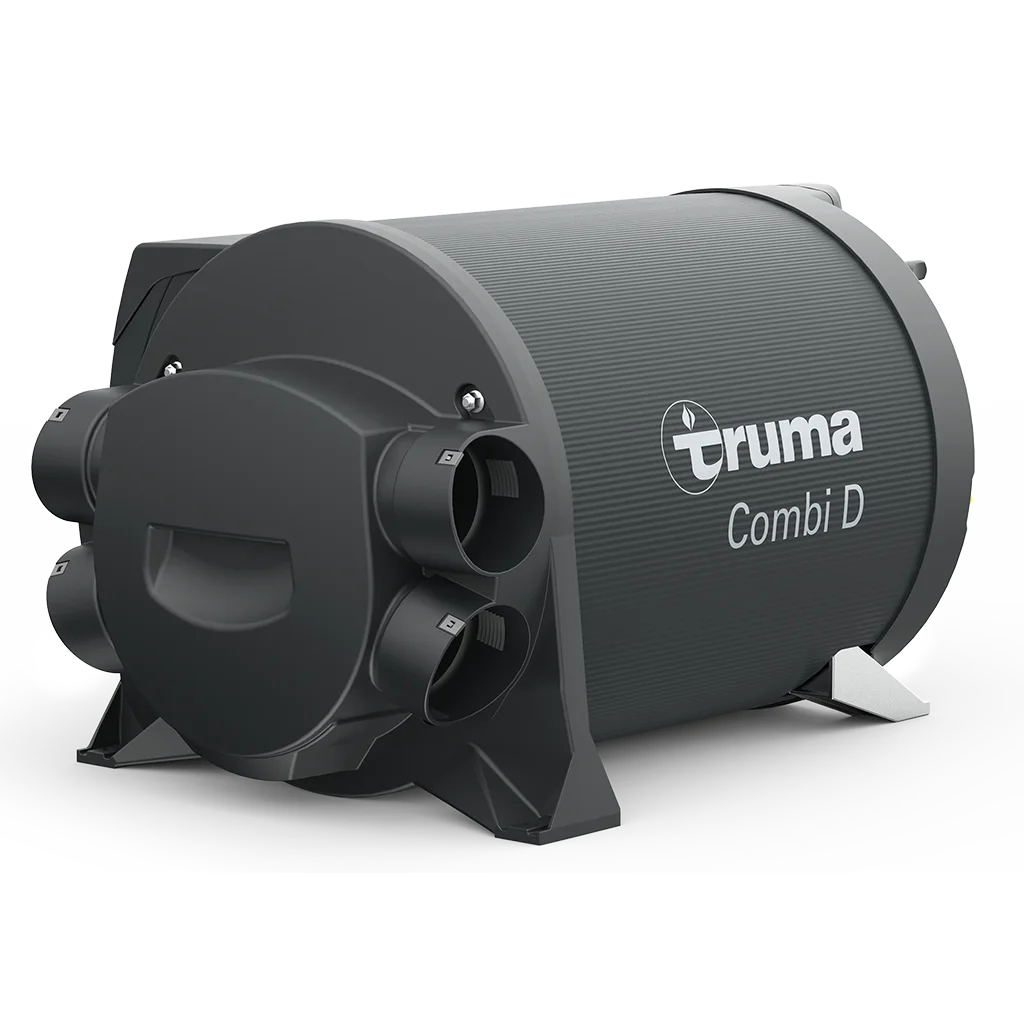

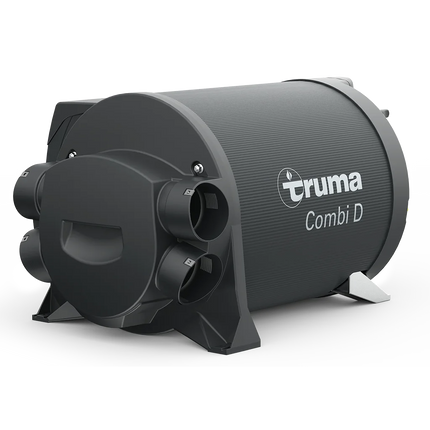

The Combi D 4 E is structurally identical to the Combi D 4, the only difference being the integrated electric heating elements. The diesel version is equipped with a high-quality burner and therefore reliably heats the vehicle while driving.
At the camp site, simply switch over to electrical mode and run the heater with 230 V, with no need for the vehicle battery. Depending on the required output, choose between diesel, electric or mixed mode: in milder weather, set the appliance to electrical mode, on colder days to diesel mode and in extremely cold weather use mixed mode – diesel and electrical mode. Through four air outlets, the warm air flows into the vehicle where it is distributed optimally.
The powerful Combi D 4 E heats small and medium-sized vehicles within a short time. The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required. This means that you do not need an additional water heater, which saves space and weight. The Combi heater is also very compact and offers many different installation options.

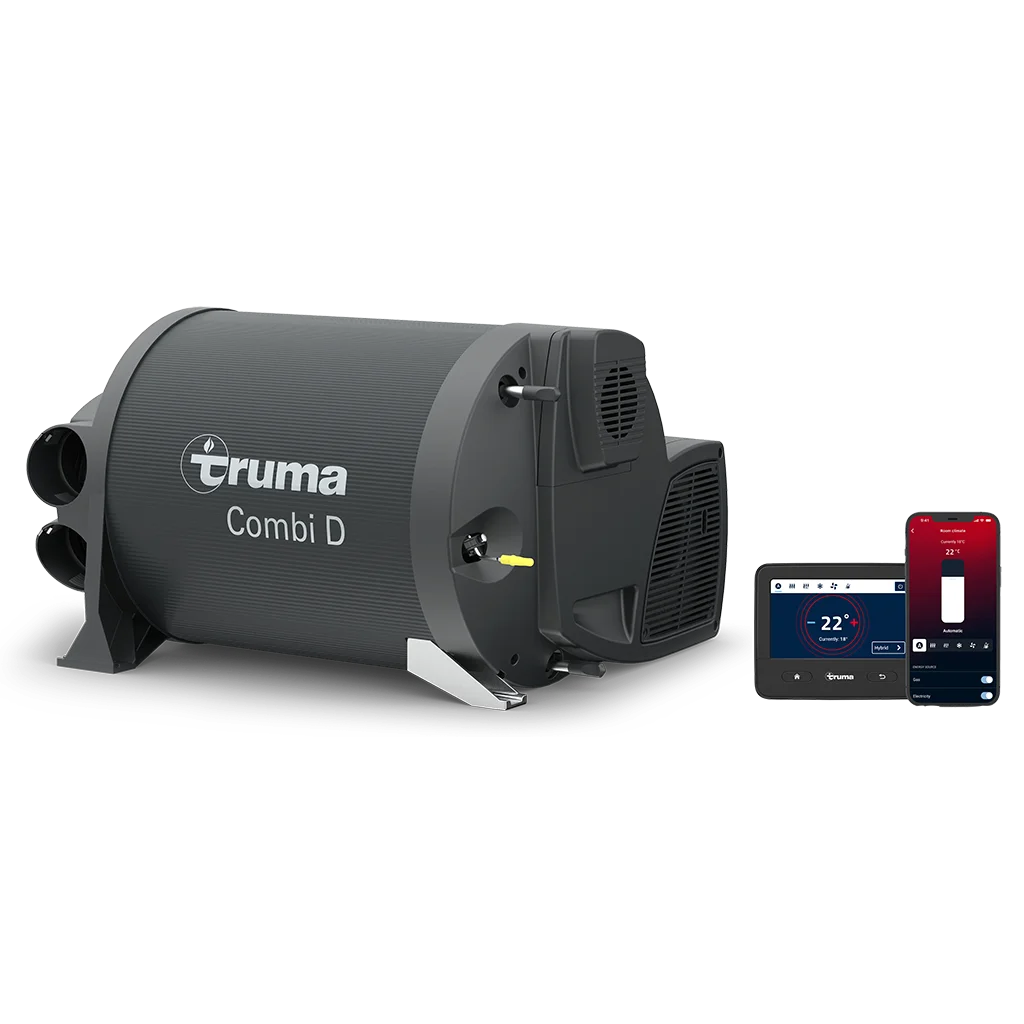

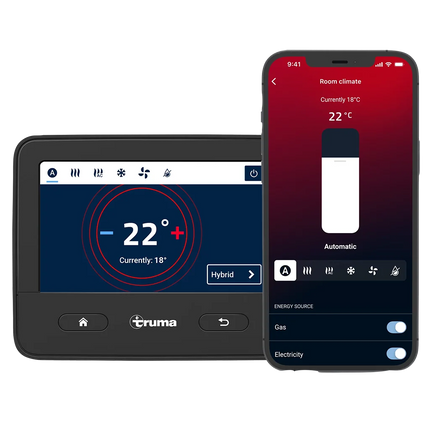

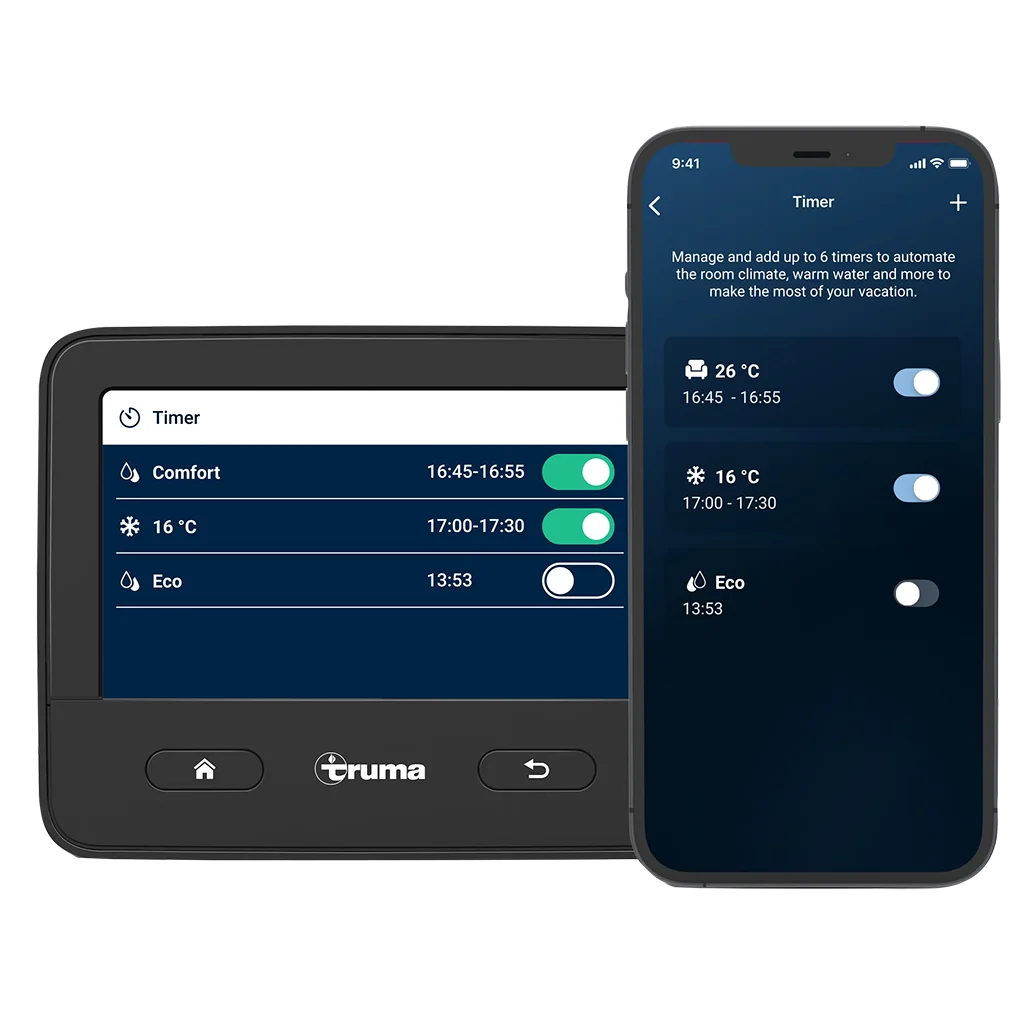

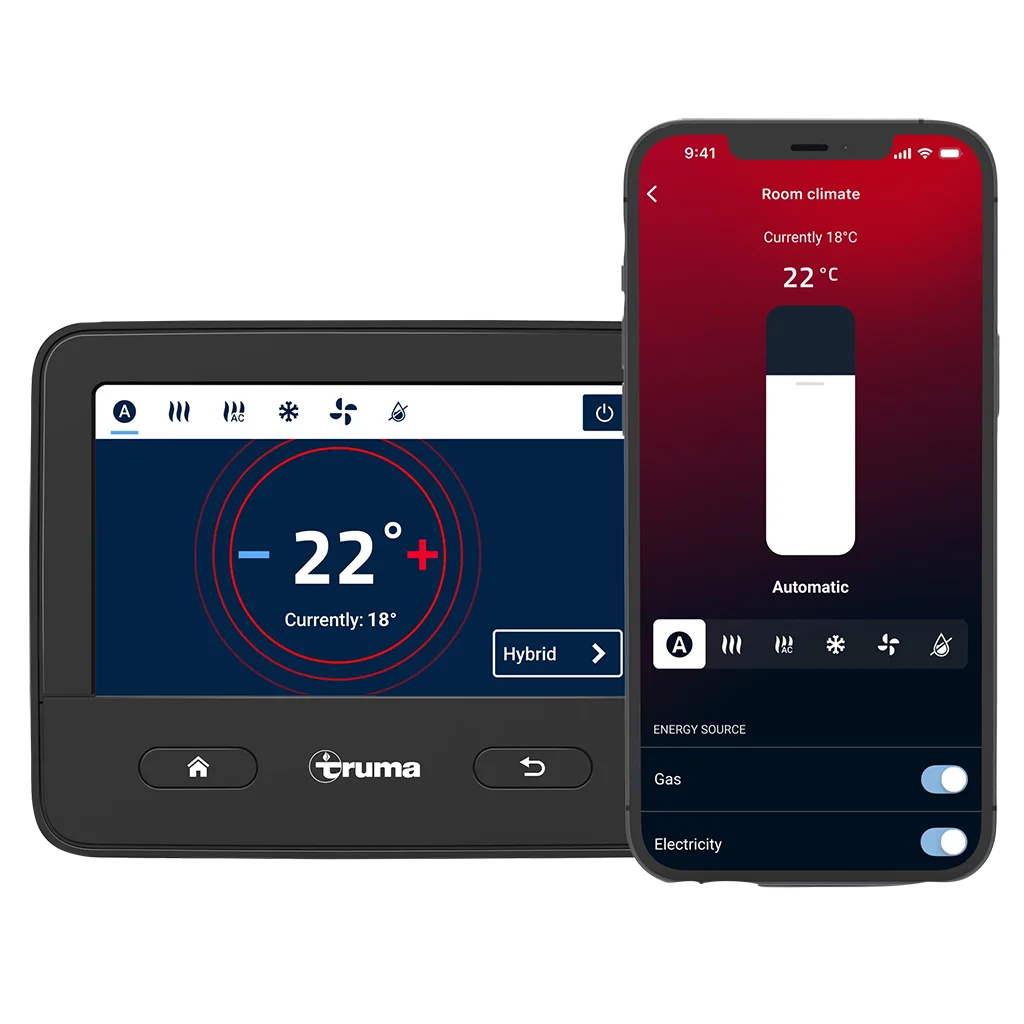

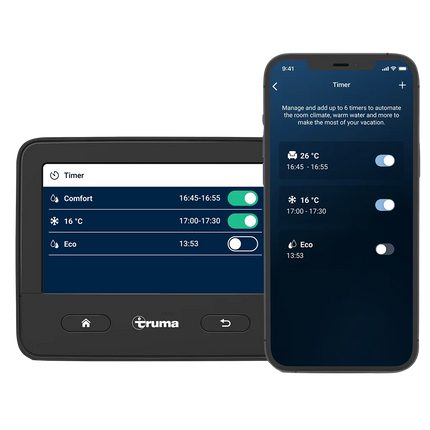

The Combi D 4 E is controlled and monitored with the digital Truma CP plus (iNet ready) control panel or via the iNet X System.

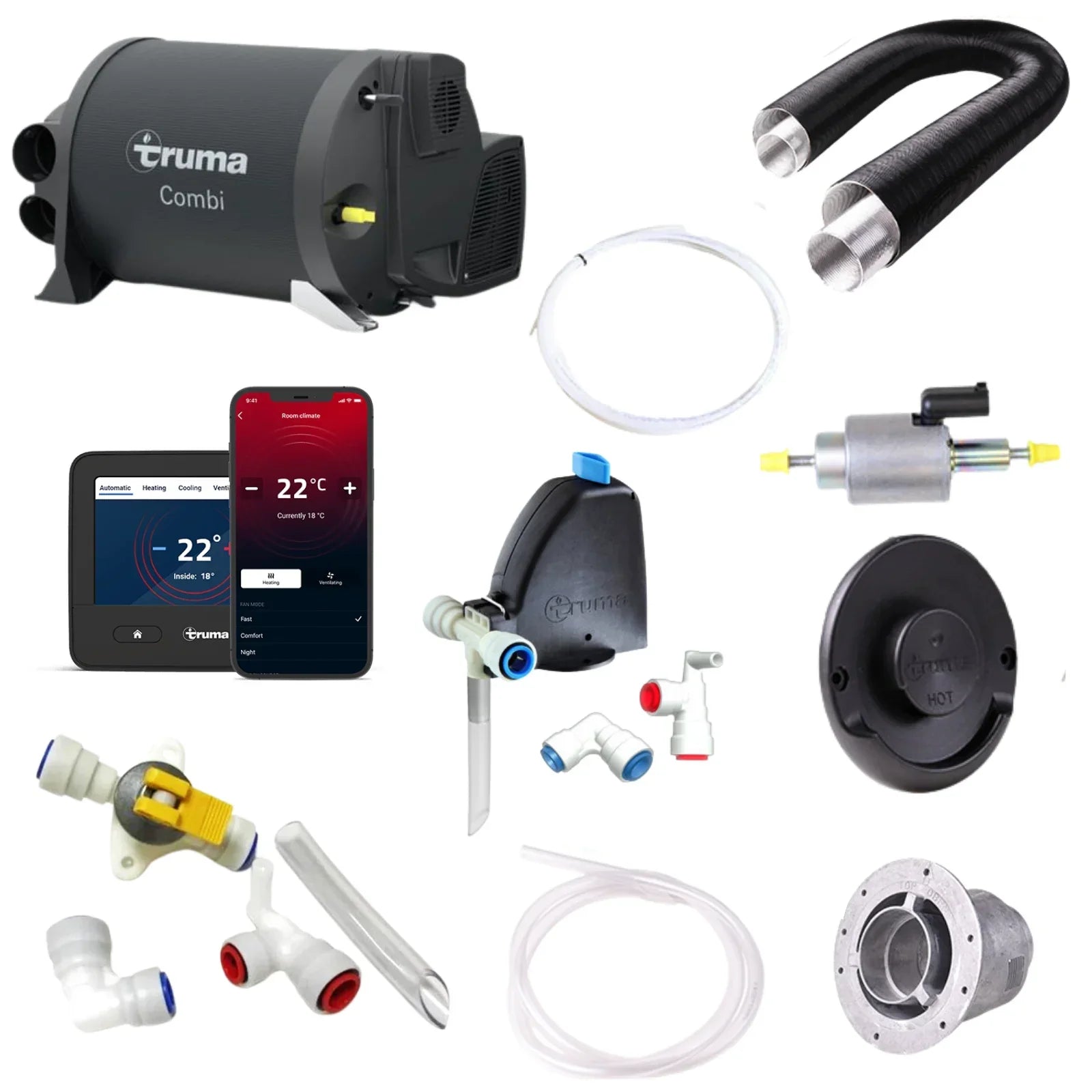

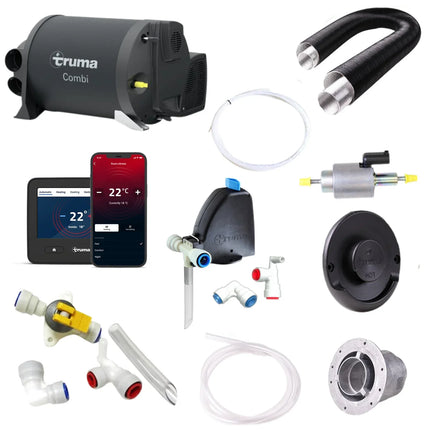

Product contents:32368
Combi D 4 E (33416-78)
Combi frost control JG assy (36100-52)

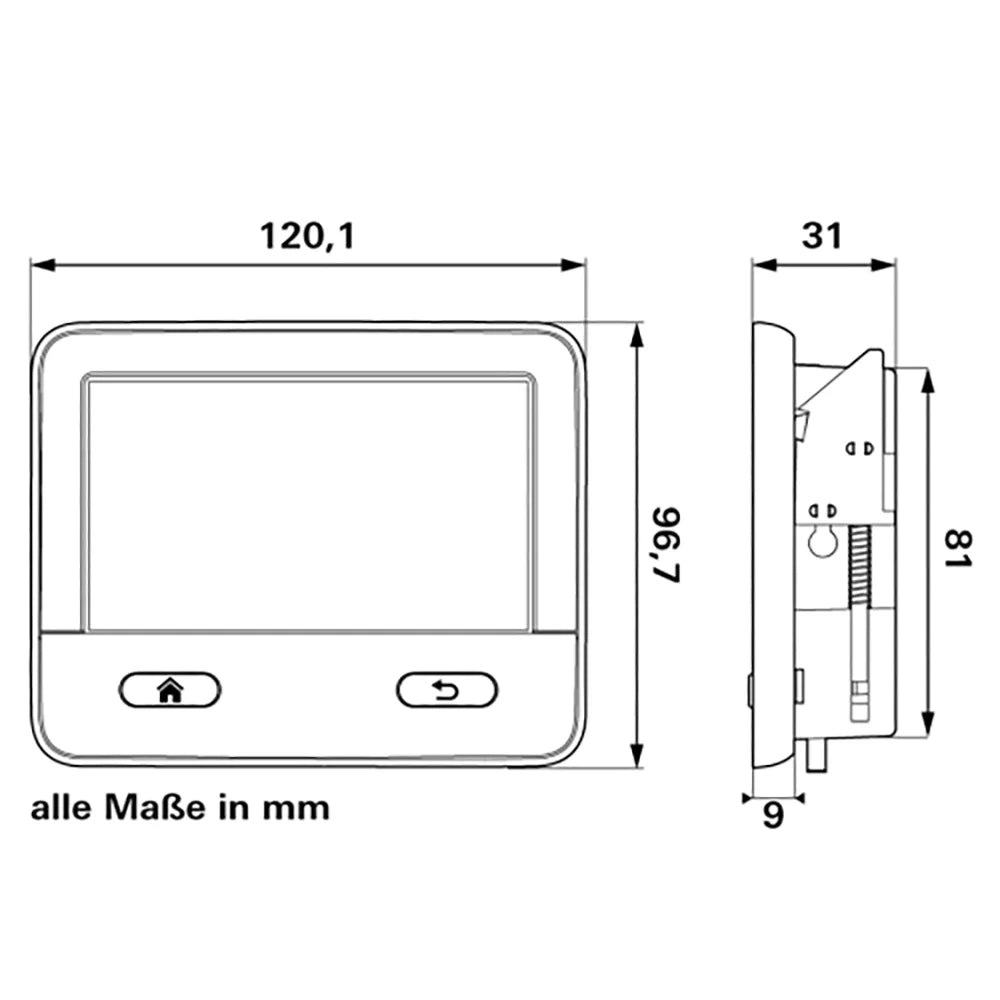

Truma iNet X Panel Bulk Pack (36411-51)
6 Metre control cable (36110-52)
Duct kit Combi D 1.0M BPK12 (34502-73)
Wall Cowl Inner Part (36140-51)
Cowl outer part black ZR80 (36151-59)
Cable 4 metre for room sensor (34000-71900)
Fuel line 5x1.5mm BPK 100M (34020-01315)
Caravan Heater Pack FTG 820x1070 (358710)
Caravan Heater Pack Top FTG 580x480x30 (358713)
Caravan Heater Pack Outer 587x487x440 (358707)
Can also be operated with an empty water tank
FrostControl drain valve is installed
Simple operation with the digital Truma CP plus (iNet ready) control panel or via iNet X System

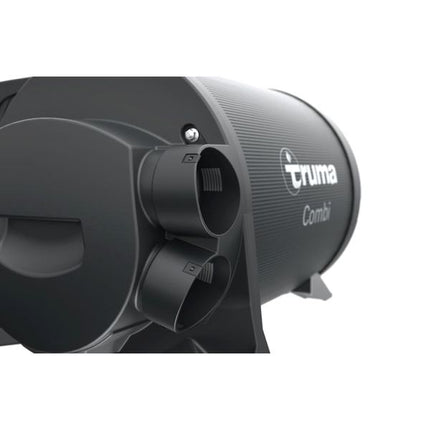

Optimum warm air distribution via four air outlets
10-litre stainless steel water tank
Compact and space-saving, various installation options
Heats the vehicle and water very quickly
Uses little energy
Integrated pressure sensor automatically controls the combustion air infeed
Long service life thanks to efficient combustion control
Automatic climate control possible in combination with a Truma air conditioner
Key Features
Heat Hybrid: integrated electric heating elements for additional electrical power
2 in 1: heats your vehicle and heats water at the same time
For small and medium-sized vehicles
| Brand | Truma |
| Type | 12 & 230 Volt |
| Voltage Description | 12 / 230V |
| Model | Combi D4 E |
| Height Description | 300mm |
| Width | 450mm |
| Length | 510mm |
| Weight | 16.8g |
| Flow Rate Description | Air: max. 287 m³/h |
| Operating Pressure | 30 mbar |
| Consumption | Fuel: 0,1 – 0,4 l/h |
| Application | Caravans, Motorhomes |
| Capacity Description | 10 Litres (2.6 US Gallons) |
| Heat Output |
Diesel Mode: 1000 W/2000 W/3000 W/4000W Electric Mode 900 W/1800 W Mixed Mode: max. 3800 W |
| Contents | Combi D 4 E, Combi frost control JG assy, Truma iNet X Panel Bulk Pack, 6 Metre control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4 Metre cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440 |
