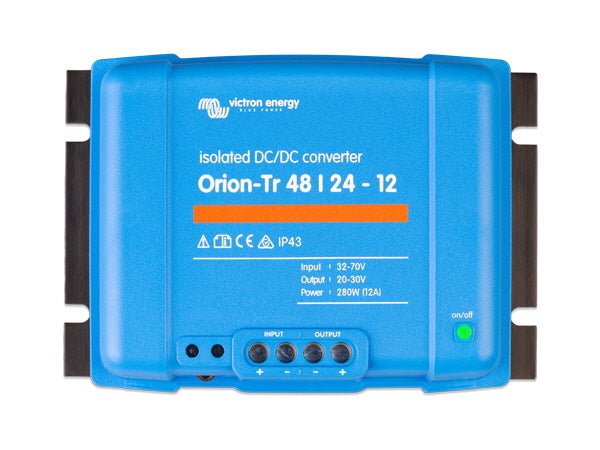

Features of the - Victron Orion-Tr 48/24V 12A (280W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 32-70V
Under voltage shut down: 28V
Under voltage restart: 30V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 25°C: 12A
Maximum output current (10 s) at nominal output voltage: 15A
Short circuit output current: 30A
Cont. output power at 25°C: 280W
Efficiency: 89%
Off load current: < 80mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 130 x 186 x 70 mm
Weight: 1.6 kg
For More Information Please Click the Link Below:
Orion-Tr 48/24V 12A (280W) Isolated DC-DC Convert

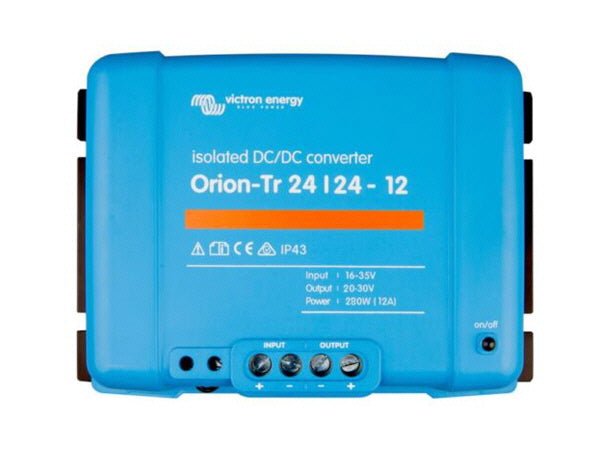

Features of the - Victron Orion -Tr 24/24V-12A (280W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 40°C: 12A
Maximum output current (10 s) at nominal output voltage: 15A
Short circuit output current: 30A
Cont. output power at 25°C: 320W
Efficiency: 89%
Off load current: < 100mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 130 x 186 x 70 mm
Weight: 1.3 kg
For more information, please click the link below:
Orion -Tr 24/24V-12A (280W) Isolated DC-DC Converter Additional Information

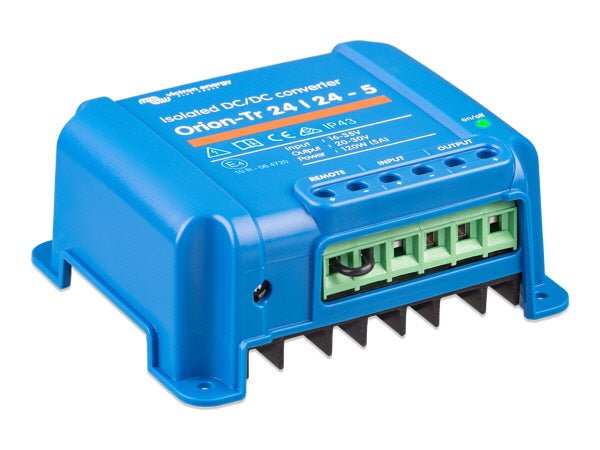

Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 25°C: 5A
Maximum output current (10 s) at nominal output voltage: 6.3A
Short circuit output current: 30A
Cont. output power at 25°C: 120W
Efficiency: 87%
Off load current: < 60mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 100 x 113 x 47 mm
Weight: 0.42 kg
For more information, please click the link below:

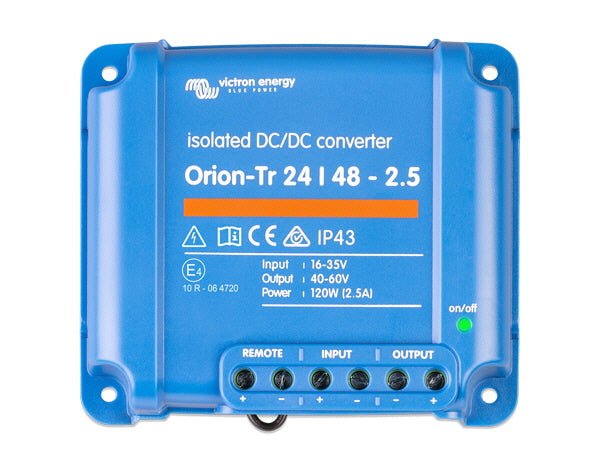

Orion -Tr 24/48V-2.5A (120W) Isolated DC-DC Converter
Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 25°C: 5A
Maximum output current (10 s) at nominal output voltage: 6.3A
Short circuit output current: 30A
Cont. output power at 25°C: 120W
Efficiency: 87%
Off load current: < 60mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 100 x 113 x 47 mm
Weight: 0.42 kg
For more info,Please Click The Link Below:
Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter Additional Informaiton
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 12,2V
Output voltage adjust range: 10-15V
Cont. output current at nominal output voltage and 25°C: 9A
Maximum output current (10 s) at nominal output voltage: 12.5A
Short circuit output current: 39A
Cont. output power at 25°C: 110W
Efficiency: 85%
Off load current: < 40mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions hxwxd: 100 x 113 x 47 mm
Weight: 0.42 kg
PRODUCT CODE: ORI241210110
For more information, please click the link below:

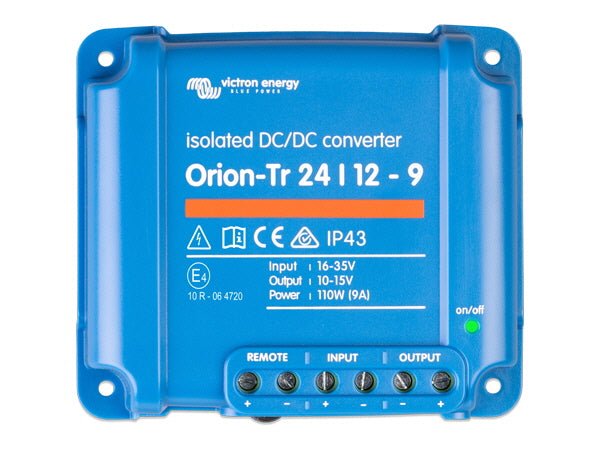

Orion-Tr 24/12V-9A (110W) Isolated DC-DC converter

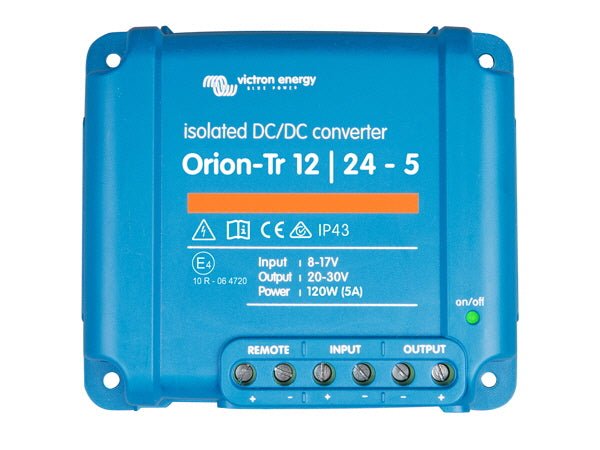

Victron Orion-Tr 12/24V-5A Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.
IP43 protectionWhen installed with the screw terminals oriented downwards.
Screw terminalsNo special tools needed for installation.
Input fuseOn 12V and 24V input models only.
For more information Please Click The Link Below:
Orion-Tr 12/24V-5A Isolated DC-DC Converter Additional Information
Completely encapsulated: waterproof, shockproof and ignition protected. Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

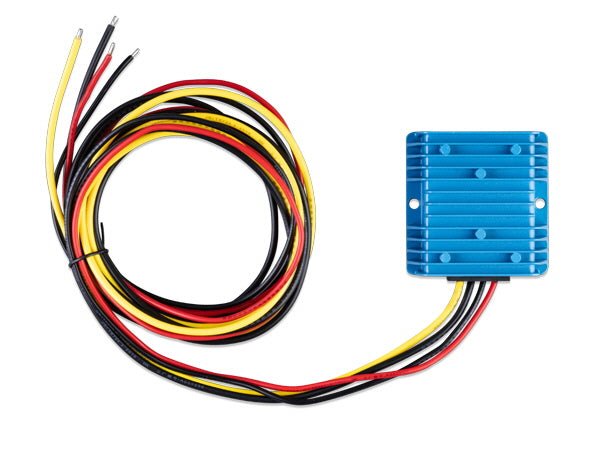

Features of the - Victron Orion IP67 24/12V-20A (120W) DC to DC Converter
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Extra-long input and output cables
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating
It can be used in a hot environment such as a machine room.
For more information please click the link below:
Orion IP67 24/12V-20A (240W) DC to DC ConverterAdditional Information

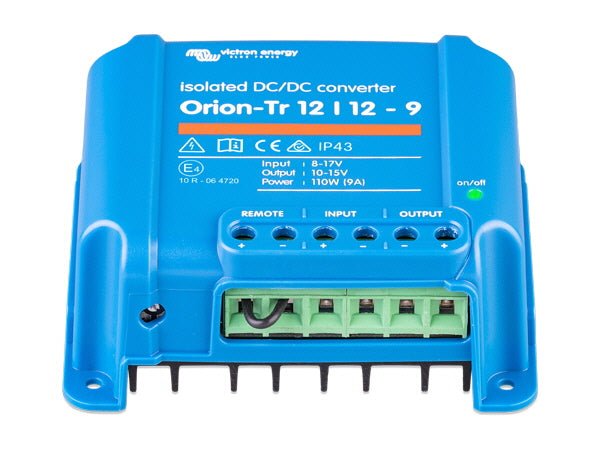

Victron Orion-Tr 12/12V-9A (110W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.
IP43 protectionWhen installed with the screw terminals oriented downwards.
Screw terminalsNo special tools needed for installation.
Input fuseOn 12V and 24V input models only.
For more information Please click the link below:
Orion-Tr 12/12V-9A Isolated DC-DC Converter Additional Information
The Victron Orion-TR is a non-isolated DC-DC converter intended for power conditioning. Its gives a constant output, isolating the loads from power fluctuations.
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Features of the - Victron Orion-Tr 24/12V-20A Non-Isolated DC-DC Converter
This is an non-isolated DC-DC converter.
The nominal input voltage is 24 volts and the output voltage is 12.5 volts.
Input voltage range 18-35 Volts DC
Fixed output voltage 12.5 Volts DC
Rated Power 240 Watts Datasheet Dimensions 73 x 94 x 45
Also available in an isolated version with a remote switch and an adjustable output.
ORI241210260 - Completely encapsulated: waterproof, shockproof and ignition protected. Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

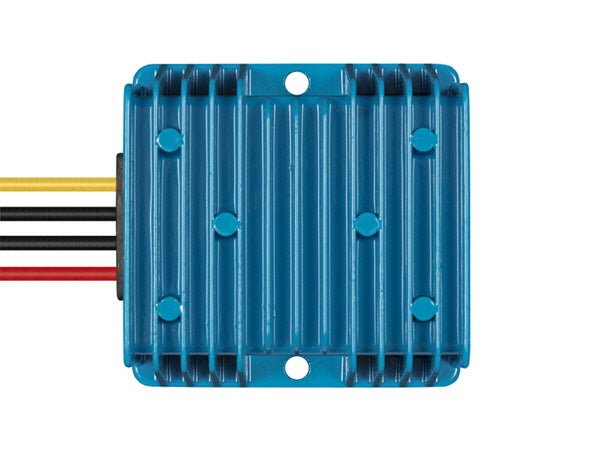

Features of the - Victron Orion IP67 24/12V-10A (120W) DC to DC Converter
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Extra-long input and output cables
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating
It can be used in a hot environment such as a machine room.
For more information please click the link below:
Orion IP67 24/12V-10A (120W) DC to DC Converter Additional Information
The Victron Orion-TR voltage dropper is designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output for use on most electrical items on board boats, motorhomes and other automotive applications. The converter is protected to IP43 and is easy to install with no special tools needed. They are very efficient, running above 95% efficiency due to the use of active rectification (also known as synchronous rectification).
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
For more information Please Click the link Below:

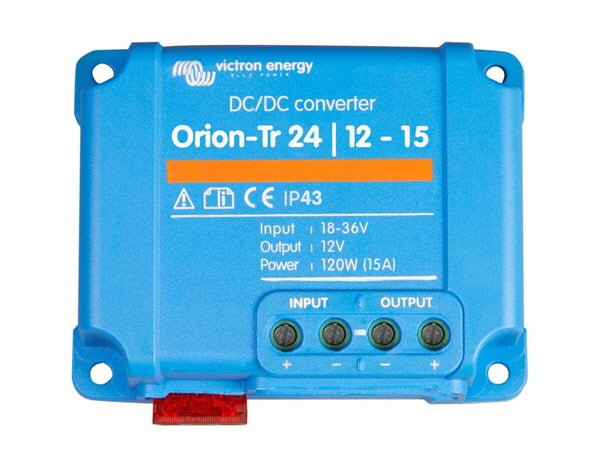

Orion-Tr 24/12V-15A Non-Isolated DC-DC Converter
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
PRODUCT CODE: ORI241210200
