DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines).
The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge current and input current limiter
The output current is determined by the following factors: - The maximum charge current setting. - The maximum input current setting. - The maximum operating temperature limit of the converter.
Input status indication (LED)
Green: converter on. Yellow: input voltage below threshold, converter off. Red: over temperature, converter off. Blue, quick flash: engine running, converter will start after preset delay. Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage. Output status indication (LED) Green: converter off, battery voltage normal. Yellow: converter off, battery voltage low. Red: converter off, battery
PRODUCT CODE: ORI303100000
For More information Please click the link below:

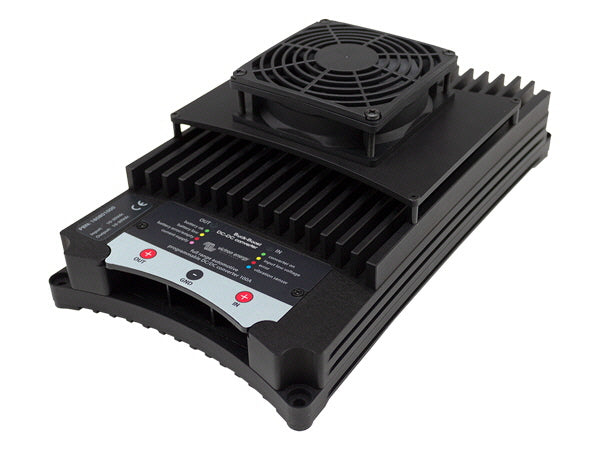

Victron Energy 100A Buck-Boost DC/DC converter Additional Information
DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines).
The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge current and input current limiter
The output current is determined by the following factors: - The maximum charge current setting. - The maximum input current setting. - The maximum operating temperature limit of the converter.
Input status indication (LED)
Green: converter on. Yellow: input voltage below threshold, converter off. Red: over temperature, converter off. Blue, quick flash: engine running, converter will start after preset delay. Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage. Output status indication (LED) Green: converter off, battery voltage normal. Yellow: converter off, battery voltage low. Red: converter off, battery
PRODUCT CODE: ORI303050000

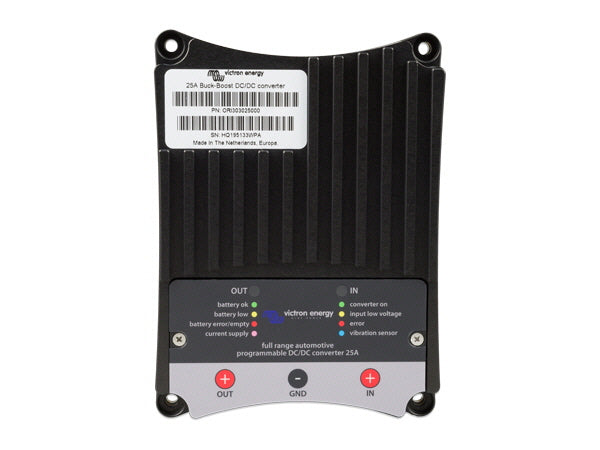

DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines) The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines).
The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
Charge current and input current limiter
The output current is determined by the following factors: - The maximum charge current setting. - The maximum input current setting. - The maximum operating temperature limit of the converter.
Input status indication (LED)
Green: converter on. Yellow: input voltage below threshold, converter off. Red: over temperature, converter off. Blue, quick flash: engine running, converter will start after preset delay. Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage. Output status indication (LED) Green: converter off, battery voltage normal. Yellow: converter off, battery voltage low. Red: converter off, battery
Completely encapsulated: waterproof, shockproof and ignition protected. Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
For More Information Please Click the Link Below:

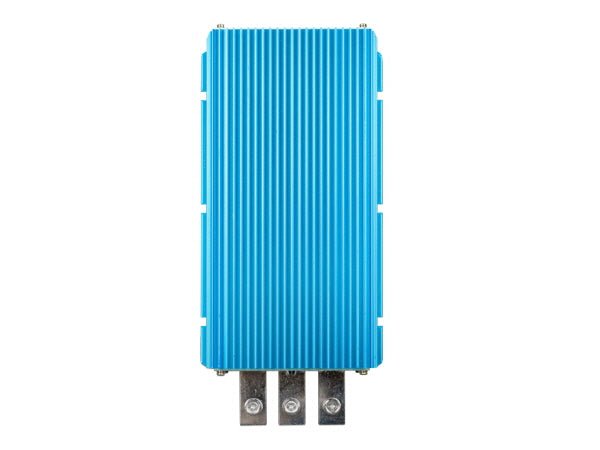

Orion DC-DC Converter IP67 24/12V 100A (1200W) Additional Information

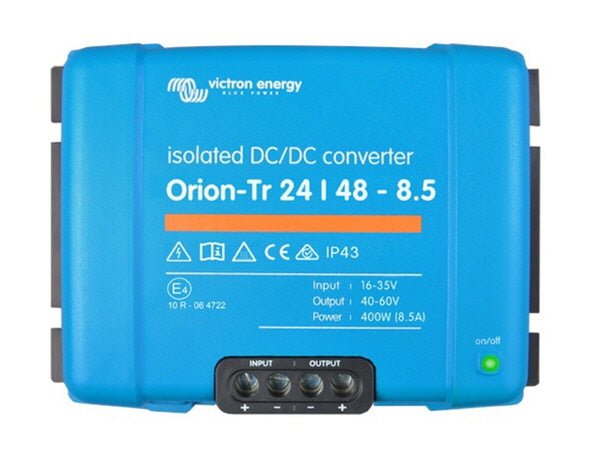

Features of the - Victron Orion -Tr 24/48V-8.5A (120W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 20-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 48,2V
Output voltage adjust range: 40-60V
Cont. output current at nominal output voltage and 40°C: 8.5A
Maximum output current (10 s) at nominal output voltage: 15A
Short circuit output current: 25A
Cont. output power at 25°C: 480W
Efficiency: 89%
Off load current: < 120mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions: 130 x 186 x 70 mm
Weight: 1.6 kg
For more information Please Click The Link Below:
Orion -Tr 24/48V-8.5A (400W) Isolated DC-DC Converter Additional Information

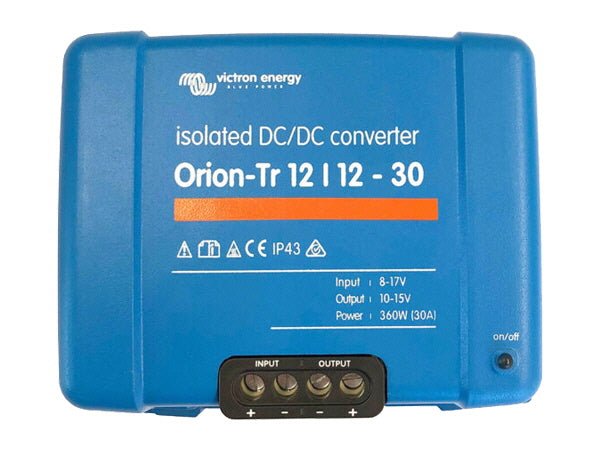

Features of the - Victron Orion-Tr 12/12V-30A Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.
IP43 protectionWhen installed with the screw terminals oriented downwards.
Screw terminalsNo special tools needed for installation.
Input fuseOn 12V and 24V input models only.
For more info please download this link>>Pdf

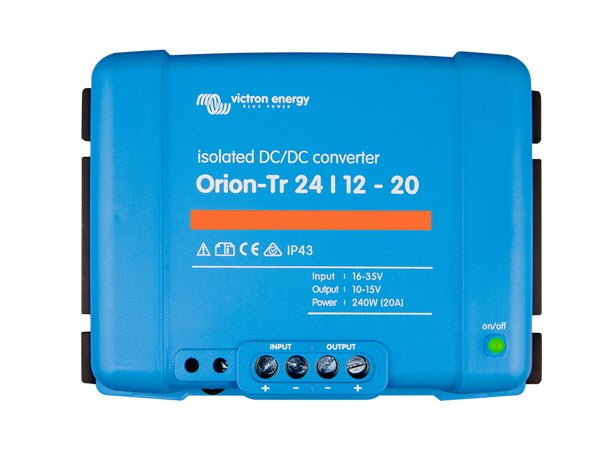

Features of the - Victron Orion-Tr 24/12V-20A (240W) Isolated DC-DC converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools are needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 12,2V
Output voltage adjust range: 10-15V
Cont. output current at nominal output voltage and 40°C: 20A
Maximum output current (10 s) at nominal output voltage: 25A
Short circuit output current: 50A
Cont. output power at 25°C: 300W
Efficiency: 88%
Off load current: < 100mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm² AWG6
Dimensions: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
For more information Please Click The link Below:
Additional Information
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 12,2V
Output voltage adjust range: 10-15V
Cont. output current at nominal output voltage and 40°C: 20A
Maximum output current (10 s) at nominal output voltage: 25A
Short circuit output current: 50A
Cont. output power at 25°C: 300W
Efficiency: 88%
Off load current: < 100mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm² AWG6
Dimensions H x w x d: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Weight: 1,3 kg (3 lb)
PRODUCT CODE: ORI241224110
For more information please click the link below:
Orion-Tr 24/12V-20A (240W) Isolated DC-DC converter Additional Information

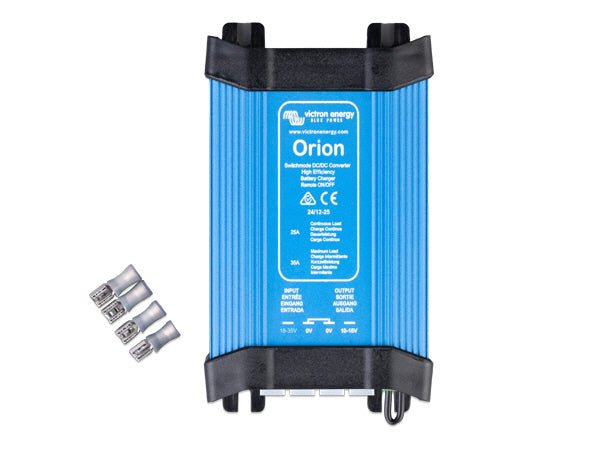

Victron Orion voltage dropper designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output.
The output voltage of this model can be adjusted between 10 volts and 15 volts DC. This voltage converter is suitable for use on most electrical items on board boats, motorhomes and other automotive applications, including charging a 12V battery on a 24V system.
The converter features a remote on-off connector switch enabling it to be operated with a low power switch or by the engine run/stop switch. It can also be connected in parallel with up to 4 other Orion converters to increase the output current.
These droppers are easy to install with no special tools needed. Victron Energy Orion 24/12-25 DC-DC converters are very efficient, running at 96% efficiency due to the use of active rectification (also known as synchronous rectification).
Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).
For more information please click the link below:
Additional Information

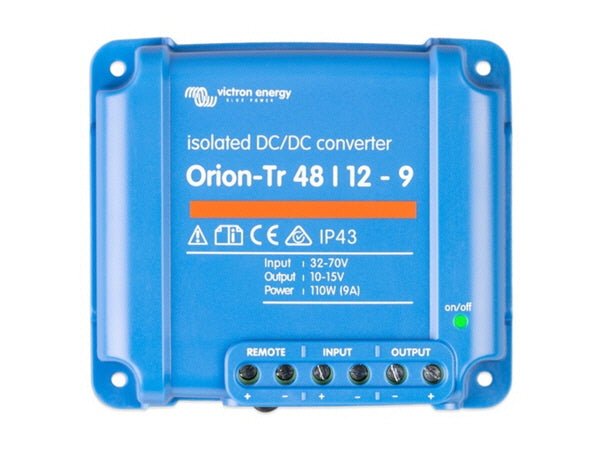

Features of the - Victron Orion-Tr 48/12V 9A (110W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 32-70V
Under voltage shut down: 28V
Under voltage restart: 30V
Nominal output voltage: 12,2V
Output voltage adjust range: 12-15V
Cont. output current at nominal output voltage and 40°C: 9A
Maximum output current (10 s) at nominal output voltage: 12.5A
Short circuit output current: 27A
Cont. output power at 25°C: 110W
Efficiency: 87%
Off load current: < 50mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions hxwxd: 100 x 113 x 47 mm
Weight: 0.42 kg
PRODUCT CODE: ORI481210110
For more information please click the link below:
Additional Information

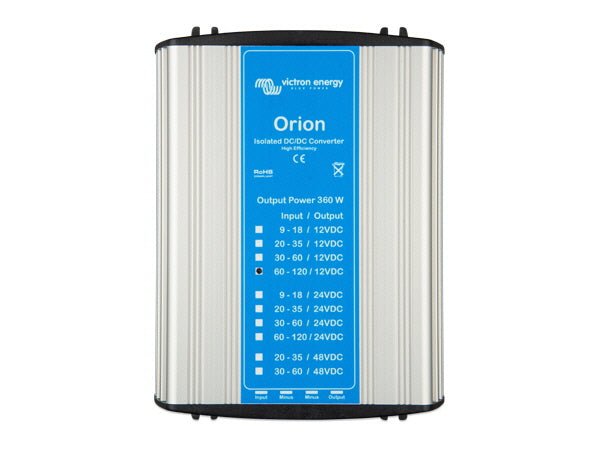

Features of the - Victron Orion 110/12V 30A (360W) Isolated DC-DC Converter
Remote on-off connector on the high power models.
The remote on-off eliminates the need for a high current switch in the input wiring.
The remote on-off can be operated with a low power switch or by the engine run/stop switch.
All models with adjustable output can also be used as a battery charger.
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 Volt system.
All models with adjustable output can be paralleled to increase output current. Up to five units can be connected in parallel.
Specifications
Voltage: 110V
Cont. output current: 30A
Efficiency: 85%
Bluetooth Enabled: No
Dimensions h-w-d: 82 x 132 x 190 mm
Weight: 1.4 kg
For more Information Please click The Link Below:
Additional Information

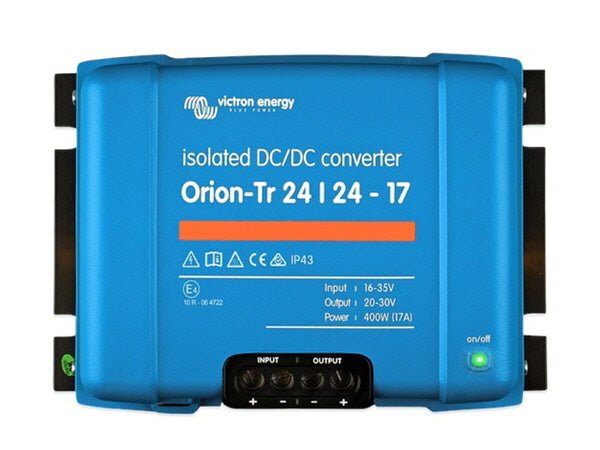

Features of the - Victron Orion -Tr 24/24V-17A (400W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 20-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 40°C: 17A
Maximum output current (10 s) at nominal output voltage: 25A
Short circuit output current: 40A
Cont. output power at 25°C: 480W
Efficiency: 89%
Off load current: < 80mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 130 x 186 x 70 mm
Weight: 1.6 kg
PRODUCT CODE: ORI242441110
For more information please click the link below:
Additional Information
