Victron Energy DC-DC Converters

Features of the - Victron Energy Orion-Tr 48/12V 30A (360W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  40-70V Under voltage shut down:  28V Under voltage restart:  30V Nominal output voltage:  12,2V Output voltage adjust range:  10-15V Cont. output current at nominal output voltage and 40°C:  30A Maximum output current (10 s) at nominal output voltage:  40A  Short circuit output current:  60A Cont. output power at 25°C:  430W  Efficiency:  87% Off load current:   < 80mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   130 x 186 x 70 mm  Weight:   1.6 kg

Read more less

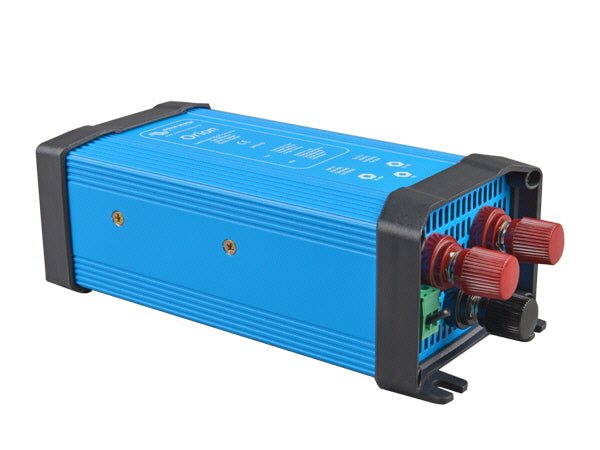

Features of the - Victron Orion 24/12V-70A DC-DC Converter IP20 with Binding Posts Victron Orion voltage dropper designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output.  The output voltage of this model can be adjusted between 10 volts and 15 volts DC. This voltage converter is suitable for use on most electrical items on board boats, motorhomes and other automotive applications, including charging a 12V battery on a 24V system.  The converter features a remote on-off connector switch enabling it to be operated with a low power switch or by the engine run/stop switch. It can also be connected in parallel with up to 4 other Orion converters to increase the output current.  These droppers are easy to install with no special tools needed. Victron Energy Orion 24/12-25 DC-DC converters are very efficient, running at 96% efficiency due to the use of active rectification (also known as synchronous rectification). Remote on-off connector  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).  All models with adjustable output can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models with adjustable output can be paralleled to increase output current  Up to five units can be connected in parallel.  Easy to install  Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). For more information Please Click the Link Below For Additional Information:  Orion-Tr 12/24V-15A Isolated Additional Information

Read more less

Features of the - Victron Orion 24/12V-70A DC-DC Converter IP20 with Binding Posts Victron Orion voltage dropper designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output. The output voltage of this model can be adjusted between 10 volts and 15 volts DC. This voltage converter is suitable for use on most electrical items on board boats, motorhomes and other automotive applications, including charging a 12V battery on a 24V system. The converter features a remote on-off connector switch enabling it to be operated with a low power switch or by the engine run/stop switch. It can also be connected in parallel with up to 4 other Orion converters to increase the output current. These droppers are easy to install with no special tools needed. Victron Energy Orion 24/12-25 DC-DC converters are very efficient, running at 96% efficiency due to the use of active rectification (also known as synchronous rectification). Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). PRODUCT CODE: ORI241270030 For more information Please click the link below: Additional Information

Read more less

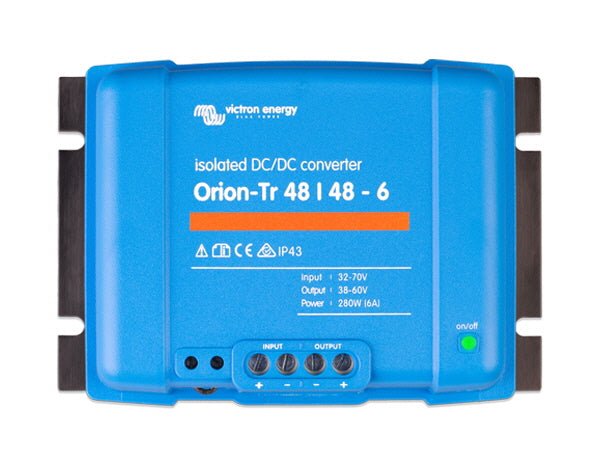

 Victron Orion-Tr 48/48V-6A (280W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  32-70V Under voltage shut down:  28V Under voltage restart:  30V Nominal output voltage:  48,2V Output voltage adjust range:  40-60V Cont. output current at nominal output voltage and 40°C:  6A Maximum output current (10 s) at nominal output voltage:  8A  Short circuit output current:  25A Cont. output power at 25°C:  320W  Efficiency:  89% Off load current:   < 80mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   130 x 186 x 70 mm Weight:  1.6 kg  For More Information Please Click the Link Below: Orion-Tr 48/48V-6A (280W) Isolated Additional Information

Read more less

Features of the - Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  16-35V Under voltage shut down:  14V Under voltage restart:  15V Nominal output voltage:  24,2V Output voltage adjust range:  20-30V Cont. output current at nominal output voltage and 25°C:  5A Maximum output current (10 s) at nominal output voltage:  6.3A  Short circuit output current:  30A Cont. output power at 25°C:  120W  Efficiency:  87% Off load current:   < 60mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   100 x 113 x 47 mm  Weight:   0.42 kg  For More information please click the link below: Orion-Tr 12/12V-18A Isolated DC-DC Converter Additional Information

Read more less

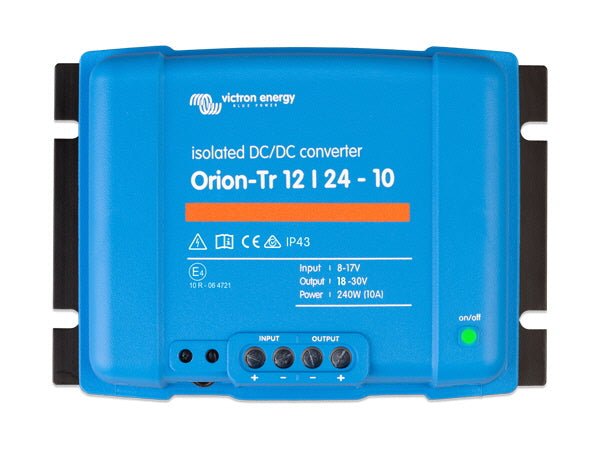

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel. IP43 protectionWhen installed with the screw terminals oriented downwards. Screw terminalsNo special tools needed for installation. Input fuseOn 12V and 24V input models only PRODUCT CODE: ORI122424110 For more information please click the link below: Orion-Tr 12/24V-10A Isolated DC-DC Converter Additional Information

Read more less

 Victron Orion DC-DC Converter IP67 12/24V 50A (1200W) Completely encapsulated: waterproof, shockproof and ignition protected  Water, oil or dirt will not damage the Orion IP67 DC-DC Converter.  The casing is made of cast aluminium and the electronics are moulded in resin.  For more information Please click the link below:  Victron Orion DC-DC Converter IP67 12/24V 50A (1200W) ADDITIONAL INFORMATION

Read more less

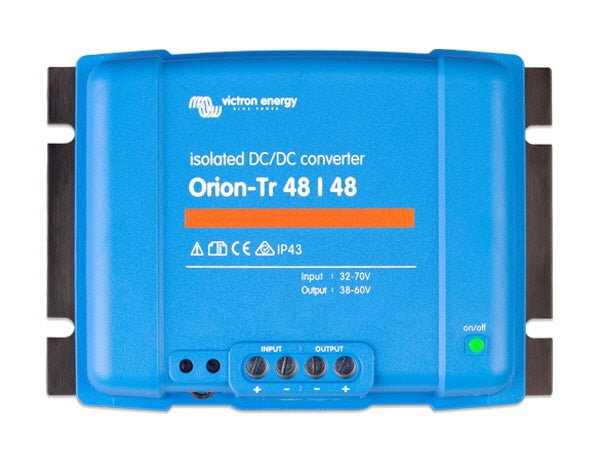

  Victron Orion-Tr 48/48V-8A (380W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  32-70V Under voltage shut down:  28V Under voltage restart:  30V Nominal output voltage:  48,2V Output voltage adjust range:  40-60V Cont. output current at nominal output voltage and 40°C:  8A Maximum output current (10 s) at nominal output voltage:  15A  Short circuit output current:  25A Cont. output power at 25°C:  430W  Efficiency:  89% Off load current:   < 80mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   130 x 186 x 70 mm Weight:  1.6 kg  For More Information Please Click The Link Below:  Orion-Tr 48/48V-8A (380W) Isolated DC-DC Converter ADDITIONAL INFORMATION

Read more less

Features of the - Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  16-35V Under voltage shut down:  14V Under voltage restart:  15V Nominal output voltage:  24,2V Output voltage adjust range:  20-30V Cont. output current at nominal output voltage and 25°C:  5A Maximum output current (10 s) at nominal output voltage:  6.3A  Short circuit output current:  30A Cont. output power at 25°C:  120W  Efficiency:  87% Off load current:   < 60mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   100 x 113 x 47 mm  Weight:   0.42 kg  For more information, please click the link below: Orion-Tr 48/24V 5A (120W) Isolated DC-DC Converter Additional Information

Read more less

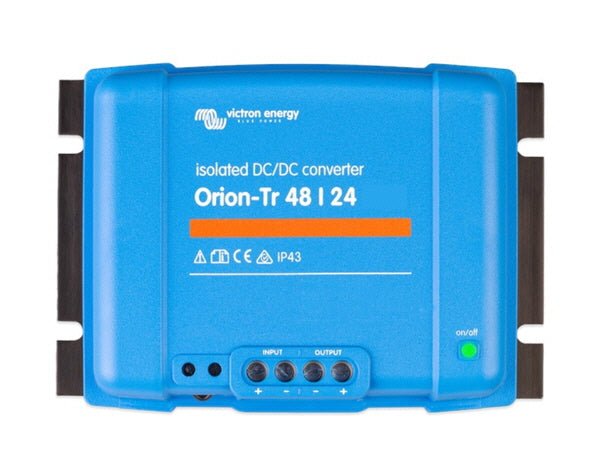

Features of the - Victron Orion-Tr 48/24V 16A (380W) Isolated DC-DC Converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  40-70V Under voltage shut down:  28V Under voltage restart:  30V Nominal output voltage:  24,2V Output voltage adjust range:  20-30V Cont. output current at nominal output voltage and 40°C:  16A Maximum output current (10 s) at nominal output voltage:  25A  Short circuit output current:  40A Cont. output power at 25°C:  430W  Efficiency:  89% Off load current:   < 80mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions h-w-d:   130 x 186 x 70 mm  Weight:   1.6 kg For more Additional Information Please Click The Link Below: Orion-Tr 48/24V 16A (380W) Isolated DC-DC Converter

Read more less

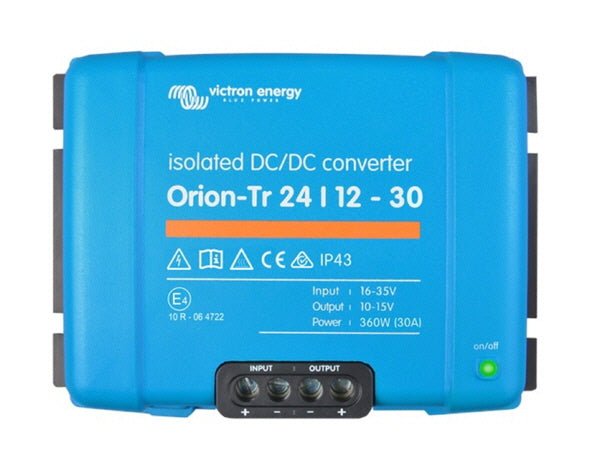

Victron Orion-Tr 24/12V-30A (360W) Isolated DC-DC converter Remote on-off  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).  Adjustable output voltage: can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models are short circuit proof and can be paralleled to increase output current  An unlimited number of units can be connected in parallel.  High temperature protected  The output current will reduce at high ambient temperature.  IP43 protection  When installed with the screw terminals oriented downwards.   Screw terminals  No special tools needed for installation.  Input fuse (not replaceable)  On 12V and 24V input models only Specifications Input voltage range (1):  20-35V Under voltage shut down:  14V Under voltage restart:  15V Nominal output voltage:  12,2V Output voltage adjust range:  10-15V Cont. output current at nominal output voltage and 25°C:  30A Maximum output current (10 s) at nominal output voltage:  45A  Short circuit output current:  60A Cont. output power at 25°C:  430W  Efficiency:  88% Off load current:   < 100mA Operating temperature range:   -20 to +55°C (derate 3% per °C above 40°C) DC connection:  Screw terminals Maximum cable cross-section:   16 mm²  Dimensions hxwxd:   130 x 186 x 70 mm  Weight:   1.6 kg  For more information Please Click the Link Below: Orion-Tr 24/12V-30A (360W) Isolated DC-DC converter Additional Information

Read more less

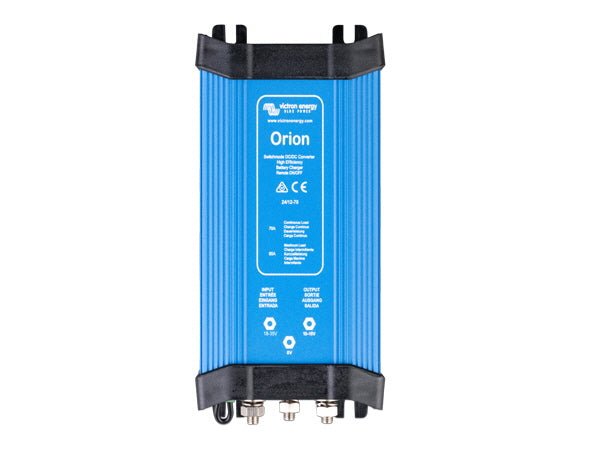

Victron Orion 24/12V-70A DC-DC Converter IP20 Victron Orion voltage dropper designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output.  The output voltage of this model can be adjusted between 10 volts and 15 volts DC. This voltage converter is suitable for use on most electrical items on board boats, motorhomes and other automotive applications, including charging a 12V battery on a 24V system.  The converter features a remote on-off connector switch enabling it to be operated with a low power switch or by the engine run/stop switch. It can also be connected in parallel with up to 4 other Orion converters to increase the output current.  These droppers are easy to install with no special tools needed. Victron Energy Orion 24/12-25 DC-DC converters are very efficient, running at 96% efficiency due to the use of active rectification (also known as synchronous rectification). Remote on-off connector  The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).  All models with adjustable output can also be used as a battery charger  For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.  All models with adjustable output can be paralleled to increase output current  Up to five units can be connected in parallel.  Easy to install  Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

Read more less
