Thetford Topline 169 hob unit
• Flame failure device
• Rattle free, 3x metal cast burners
• 2 x 1.5 kw, 1 x 2.5 kw burners
• Black glass lid
• Height 105mm x Width 546mm x Depth 482mm
• Weight 10.7kg
• 12V ignition
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Specification
Brand
Thetford
Type
Hob Unit
Model
Topline 169
Shape Description
Rectangular
Height Description
105mm (4.1")
Width
546mm
Depth
482mm
Weight
10.5kg
Material
Stainless Steel and Glass
Colour
Black
Cut Out
514 x 450mm
Gas Burners
3
Ignition
12V
Knobs
Matt Nickle
Total Input
5.5kW
Wattage
2.5 kW (x1), 1.5 kW (x2)

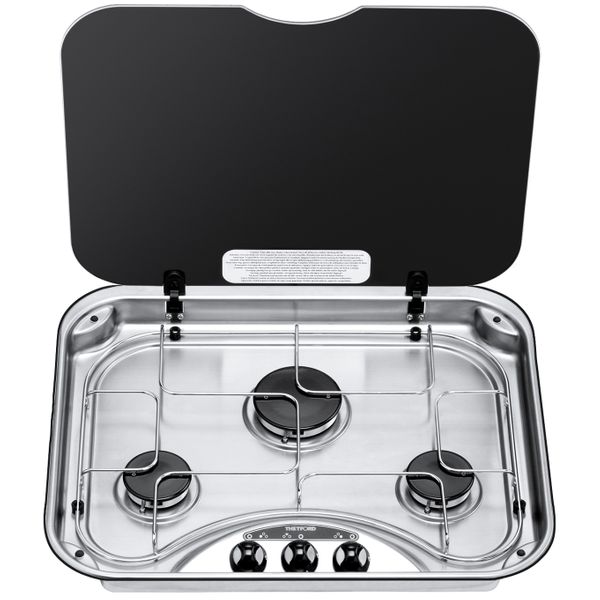

Thetford Series 345 Rectangular Hob Unit with 12V ignition
• Dimensions: Height 100mm x Width 540mm x Depth 445mm
• Worktop Cut-Out: Width 527mm x Depth 429mm
• Glass Lid
• Surface mounted
• Total Heat Input (kw): 5.5
• Burners: 2 x 1.5 kw, 1 x rapid burner 2.5 kw
• Ignition: 12V
• Weight: 6.0kg
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Specification
Brand
Thetford
Type
Hob Unit
Model
Series 345
Shape Description
Rectangular
Height Description
100mm (3.9")
Width
540mm
Depth
445mm (17-1/2")
Weight
6.0kg
Material
Stainless Steel and Glass
Colour
Black and Silver
Cut Out
527 x 429mm
Gas Burners
3
Ignition
12V
Knobs
Matt Nickle
Total Input
5.5kW
Wattage
2.5 kW (x1), 1.5 kW (x2)
Thetford Series 330 triangular right hand hob in stainless steel, with rear hinged black glass lid.
• 12v Ignition
• Dimensions: Height 100mm x Width 480mm x Depth 480mm
• Worktop Cut-Out: Width 453mm x Depth 460mm
• Stainless Steel
• Glass Lid
• Fixation: Surface mounted
• Total Heat Input (kw): 4.5
• Burners: 3 x 1.5 kw
• Weight: 4.5kg
• Right Hand
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Specification
Brand
Thetford
Type
Hob Unit
Model
Series 330
Shape Description
Triangular
Height Description
100mm (3.9")
Width
540mm
Depth
445mm (17-1/2")
Weight
6.0kg
Material
Stainless Steel and Glass
Colour
Black and Silver
Cut Out
527 x 429mm
Gas Burners
3
Ignition
12V
Knobs
Matt Nickle
Total Input
5.5kW
Wattage
2.5 kW (x1), 1.5 kW (x2)
New addition to the Thetford chemical range, Grey Water Fresh prevents nasty grey water smells coming from drains. It works to reduce deposit formation in the grey water tank and keeps the grey water fresh for longer.
Key Features
Reduces deposit formation in the grey water tank
Outstanding grey water odour control
Keeps the grey water longer fresh and clean
Odour free discharging of your grey water tank
Brand
Thetford
Type
Toilet Chemicals
Size
800ml
Application
Waste Tank
Downloads
F255 1 grey water fresh concentrated safety data sheet

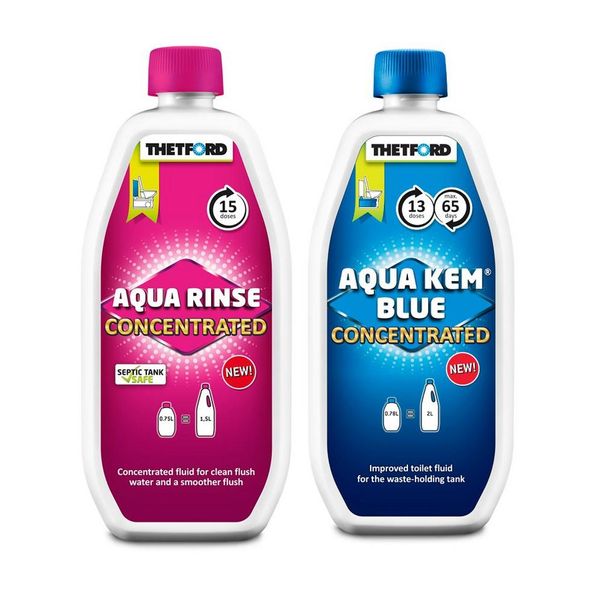

This Thetford Duo Pack Concentrate contains 1 x 0.75L Aqua Rinse Concentrate and 1 x 0.78L Aquakem Blue Concentrate. The bottles are double the strength of the traditional versions.
Key Features
Eliminates unpleasant smells.
Reduces gas build up.
Stimulates the break down of waste matter and toilet paper.
Leaves a protective layer in the toilet bowl.
Prevents scale and keep water fresh.
Brand
Thetford
Type
Toilet Chemicals
Application
Waste & Flush Tank

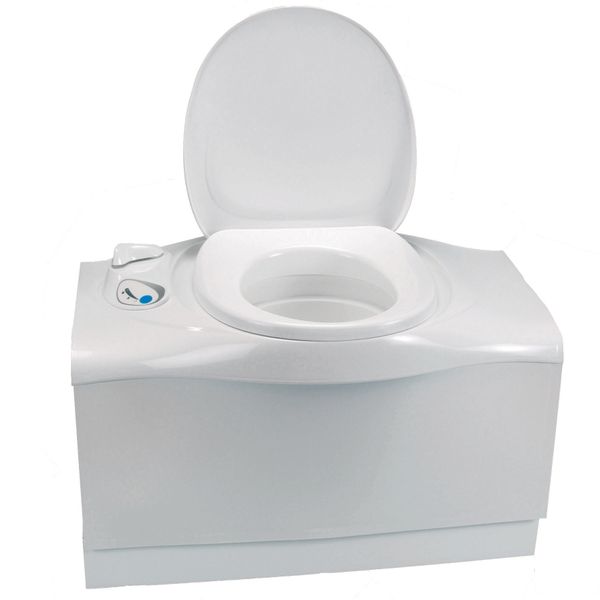

The C400 series of cassette toilets have several unique features, including a waste-holding tank with wheels and a retractable handle to allow ease of handling. In addition, the working mechanism in the waste holding tank is removable, making the tank easy to clean and maintain, while a level indicator display shows the levels in the waste tank and flush-water tank. Available in left and right hand versions.
Capacity of waste-holding tank: 19.3ltr
Main dimensions: (h x w x d) 506 x 670 x 400 mm
Waste-holding tank on wheels: Yes
Weight: 8.8kg
Bowl material: Plastic
Flushing system: Electric
Type: Integrated flush tank
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Integrated Flush Water Tank
Height Description
506mm, Seating: 473mm
Width
670mm
Depth
400mm (15-3/4")
Weight
8.8kg
Material
Plastic Bowl
Flush System
12V
Position
Portrait
Capacity Description
Waste: 19.3L
Tank With Wheels
Yes
Water Fill Required
No
Downloads
Installation Manual
User Manual
Spare Parts List
The C400 cassette toilets have several unique features, including a waste-holding tank with wheels and a retractable handle to allow easy handling. In addition, the working mechanism in the waste holding tank is removable, making the inside of the tank easy to clean and maintain, while a level indicator displays the levels in the waste tank. The C403 is designed to drawn its flushing water from an onboard water tank.
Capacity of waste-holding tank: 19.3 litres
Main dimensions: Height 506mm x Width 670mm x Depth 400mm
Waste-holding tank on wheels: Yes
Weight: 8.1kg
Bowl material: Plastic
Flushing system: Electric
Type: Plumbed into water system
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Plumbed In Flush Water Supply
Height Description
506mm, Seating: 473mm
Width
670mm
Depth
400mm (15-3/4")
Weight
8.1kg
Material
Plastic Bowl
Flush System
12V
Position
Portrait
Capacity Description
Waste: 19.3L
Tank With Wheels
Yes
Water Fill Required
Yes
Downloads
Installation Manual
User Manual
Spare Parts List
The C400 cassette toilets have several unique features, including a waste-holding tank with wheels and a retractable handle to allow easy handling. In addition, the working mechanism in the waste holding tank is removable, making the inside of the tank easy to clean and maintain, while a level indicator displays the levels in the waste tank. The C403 is designed to drawn its flushing water from an onboard water tank.
Capacity of waste-holding tank: 19.3ltr
Main dimensions: (h x w x d) 506 x 670 x 400 mm
Waste-holding tank on wheels: Yes
Weight: 8.1kg
Bowl material: Plastic
Flushing system: Electric
Type: Plumbed into water system
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Plumbed In Flush Water Supply
Height Description
506mm, Seating: 473mm
Width
670mm
Depth
400mm (15-3/4")
Weight
8.1kg
Material
Plastic Bowl
Flush System
12V
Position
Portrait
Capacity Description
Waste: 19.3L
Tank With Wheels
Yes
Water Fill Required
Yes
Downloads
Installation Manual
User Manual
Spare Parts List

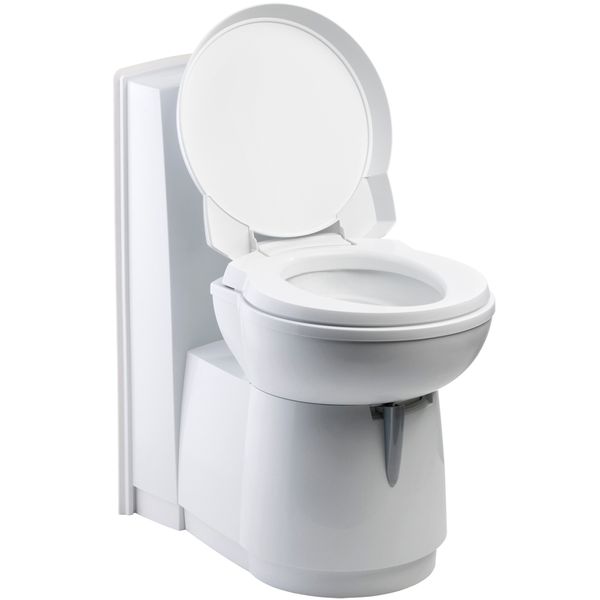

For maximum comfort without losing space, the toilet bowl revolves 180 degrees on the base; simply press down on the seat and the bowl locks into place. The C263 model can be installed as a freestanding unit against any wall with suitable access to the waste tank. Designed to drawn its flushing water from an onboard water tank. Please note this toilet is no longer supplied with a service door.
Capacity of waste-holding tank: 17.5ltr
Main dimensions: (h x w x d) 750 x 417 x 603 mm
Waste-holding tank on wheels: Yes
Weight: 8kg
Bowl material: Plastic
Flushing system: Electric
Type: Plumbed into water system
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Plumbed In Flush Water Supply
Height Description
750mm
Width
417mm
Depth
603mm
Weight
8.1kg
Material
Plastic Bowl
Colour
White
Flush System
12V
Position
Portrait
Capacity Description
Waste: 17.5L
Downloads
Installation Manual
User Manual
Spare Parts Guide

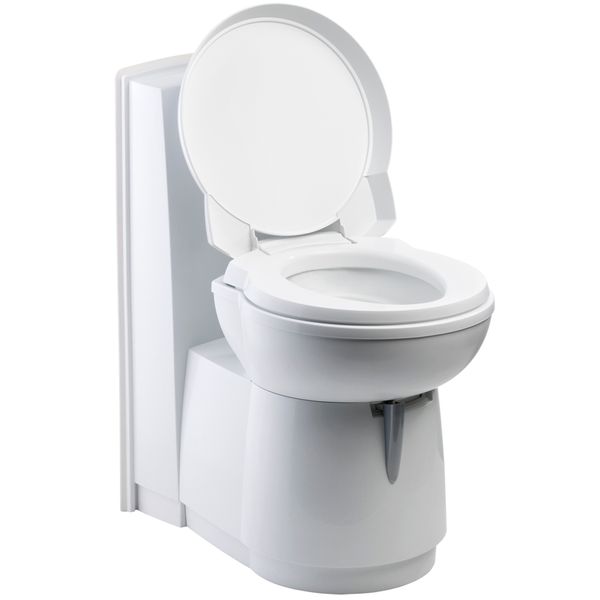

For maximum comfort without losing space, the toilet bowl revolves 180 degrees on the base; simply press down on the seat and the bowl locks into place. The C263 model can be installed as a freestanding unit against any wall with suitable access to the waste tank. Designed to drawn its flushing water from an onboard water tank. Please note this toilet is no longer supplied with a service door.
Capacity of waste-holding tank: 17.5ltr
Main dimensions: (h x w x d) 750 x 417 x 603 mm
Waste-holding tank on wheels: Yes
Weight: 17.1kg
Bowl material: Ceramic
Flushing system: Electric 12v
Type: Plumbed into water system
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Plumbed In Flush Water Supply
Height Description
750mm
Width
417mm
Depth
603mm
Weight
17.1kg
Material
Ceramic Bowl
Colour
White
Flush System
12V
Position
Portrait
Capacity Description
Waste: 17.5L
Downloads
Installation Manual
User Manual
Spare Parts Guide
The built-in Cassette Toilet consists of two parts: a permanently installed toilet and a removable waste-holding tank. A clever indicator lets you know when the tank needs to be emptied, and you can access and remove the tank through a small door on the outside of the vehicle. The C223-CS is designed to draw its flushing water from an on board water tank.
Capacity of waste-holding tank: 18ltr
Main dimensions: (h x w x d) 534 x 394 x 580 mm
Waste-holding tank on wheels: Yes
Weight: 7.2kg
Bowl material: Plastic
Flushing system: Electric
Type: Plumbed into water system
Cassette door for toilet: F203/C
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Plumbed In Flush Water Supply
Voltage Description
12V DC
Height Description
534mm
Width
394mm
Depth
580mm
Weight
7.2kg
Material
Plastic Bowl
Colour
White
Flush System
12V
Position
Portrait
Capacity Description
Waste: 18L

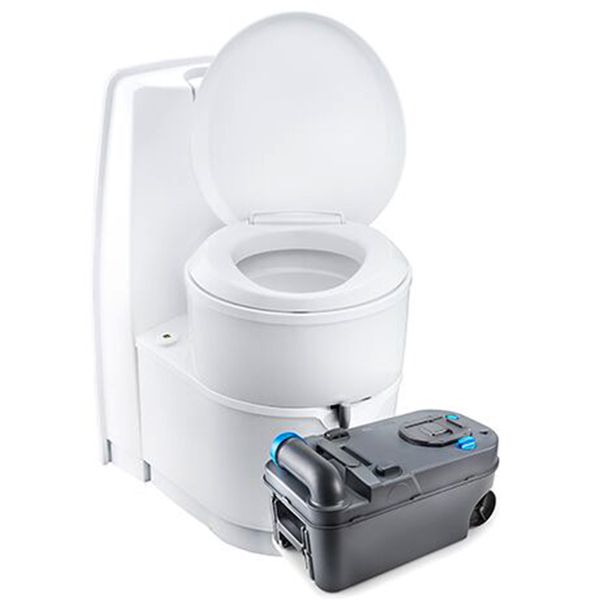

The built-in Cassette Toilet consists of two parts: a permanently installed toilet and a removable waste-holding tank. A clever indicator lets you know when the tank needs to be emptied. The C224-CW is a totally self contained toilet with its own integrated flush water tank.
Capacity of waste-holding tank: 18ltr
Main dimensions: (h x w x d) 727 x 394 x 580 mm
Waste-holding tank on wheels: Yes
Weight: 8kg
Bowl material: Plastic
Flushing system: Manual
Type: Integrated flush tank
Cassette door for toilet: F203/C
Integrated flush tank door not included (TP-084)
Key Features
Highest level of seating comfort on the market
Lightweight, high-quality, durable plastic
Quiet yet powerful flushing system with full bowl coverage
Easy and convenient emptying
Brand
Thetford
Type
Integrated Flush Water Tank
Height Description
727mm
Width
394mm
Depth
580mm
Weight
8kg
Material
Plastic Bowl
Colour
White
Flush System
Manual
Position
Portrait
Capacity Description
Waste: 18L, Water: 9L
