The Qube 145 is a basic model portable toilet with a natural seating height and a high capacity waste-holding tank.
Dimensions: Height 330mm x Width 383mm x Depth 427mm
Waste Tank Capacity: 12 L
Seating Height: 324mm
Flush Water Tank Level Indicator: No
Flushing System: Bellow
Flush Water Tank Capacity: 15 L
Waste Tank Level Indicator: No
Net Weight: 3.6 Kg
Brand
Thetford
Type
Portable Toilets
Height Description
33cm, Seating: 32.4cm
Width
38.3cm
Depth
42.7cm
Weight
3.6kg
Colour
White
Flush System
Bellow
Capacity Description
Waste: 12L, Water: 15L
Level Indicator
No
Downloads
User Manual
Spare Parts Guide

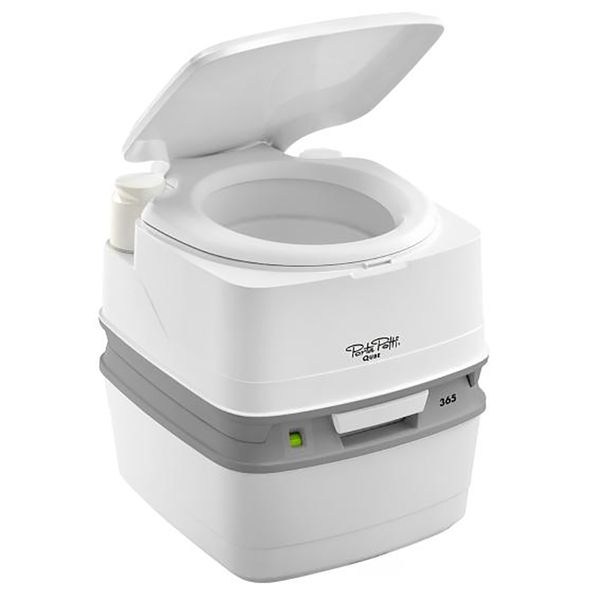

The Qube 365 is a family size portable toilet with a high capacity waste holding tank and a natural seating height.
Dimensions HxWxD: 414 x 383 x 427mm
Waste Tank Capacity: 21L
Seating Height: 408mm
Flush Water Tank Level Indicator: No
Flushing System: Piston
Flush Water Tank Capacity: 15L
Waste Tank Level Indicator: Yes
Net Weight: 3.8Kg
Brand
Thetford
Type
Portable Toilets
Height Description
41.4cm, Seating: 40.8cm
Width
38.3cm
Depth
42.7cm
Weight
4kg
Colour
White
Flush System
Piston
Capacity Description
Waste: 21L, Water: 15L
Level Indicator
Waste Tank
Downloads
User Manual
Spare Parts Guide

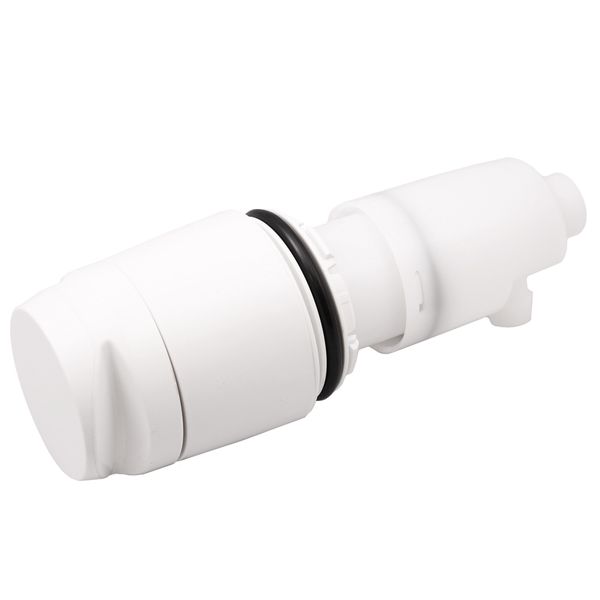

Replacement bellows pump or piston pump. Light and easy to use, ensuring a strong flush. Installation instructions included. This piston pump fits Qube Porta Potti (2011 onwards) models 345 and 365. Thetford Part Number: 25818-68 (68 denotes colour - grey white).
Brand
Thetford
Type
Pumps
Application
Porta Potti

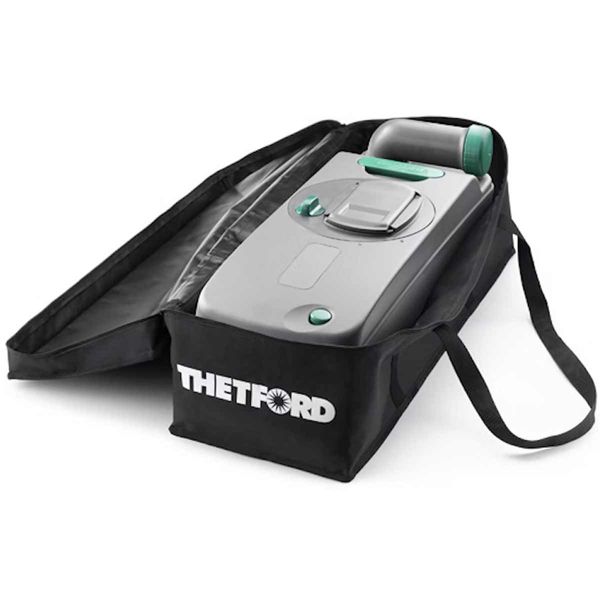

Protect your cassette waste-holding tank in the Thetford bag 299991 for easy storage, transportation and carrying. Avoid scratches or damage to the tank during transport if stored unprotected in the luggage compartment. No need to store your spare cassette tank in the original carton box. This large carry bag is suitable for the biggest Thetford cassette tank models: C2, C3, C4, C400, C500 and iNDUS Mobile Tanks.
A small carry bag is also available, see part number: F326 if you have C200, C220 or C250/C260 cassettes.
Key Features
Strong PVC material
Solid zipper for easy opening & closing of the carry bag
Strong carry handles on the bag
Interior material has a glaze finish for easy cleaning
Easy to clean the bag without shrinking (washable max 40 degrees)
Makes transportation & storage of the cassette tank discrete
No need to keep the original & less handy carton box
Brand
Thetford
Type
Portable Toilet Spares
Application
Cassette
Description
A large 141-litre double door absorption fridge from Thetford with a 23-litre freezer compartment.
This three-way absorption fridge operates on three different power sources - vehicle battery, gas connection or mains. The fridge automatically selects the best power source available, or alternatively the user can select the desired source using the LED control panel.
This N4145E+ model has a flat framed matt black door (10mm in depth) with left hand hinging, which can easily be converted to the right side if desired. The secure closing door ensures the fridge remains closed when the vehicle is moving.
The fridge features three flexible inner door balconies, three flexible shelves and two salad crisper compartments.
- Control panel: LED
- Dimensions: 1245(H) x 525(W) x 543mm(D)
- Door shape: Flat framed 10mm
- Door type hinging: Left (but can be converted to right)
- Energy consumption*: 4.0 kWh/24h
- Energy consumption gas*: 420g/24h
- Energy selection (or power source selection): Automatic
* Average energy consumption at an ambient temperature of 25°C.
Specifications
Brand
Thetford
Type
Absorption Fridges
Model
N4145E+
Height Description
1245mm
Width
525mm
Depth
543mm
Weight
37kg
Colour
Black
Control
LED Display
Ignition
Battery
Consumption
4.0 kWh/24h
Series
N4000
Capacity Description
Gross: 141 Litres
Energy Supply
12V DC, 230V AC, LPG
Gas Consumption
420g/24h
Country of Origin
Netherlands
Thetford Midi Prima 4 twin cavity built in LPG oven and grill.
PLEASE NOTE: This appliance requires a 12 volt power supply.
• Full flame failure devices
• Oven 1.6KW
• 12V ignition
• Grill 1.6KW
• Dimensions: Height 640mm x Width 495mm x Depth 460mm
• Oven capacity: 37 Litres
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Key Features
12 Volt ignition
Charcoal Black
Full flame failure devices
Brand
Thetford
Type
Ovens & Grills
Model
Midi Prima Mk4
Oven Burner
1.6kW
Height Description
640mm
Width
495mm
Depth
460mm
Weight
16.5kg
Material
Glass Doors
Colour
Black
Gas Burners
N/A
Lid
N/A
Grill Burner
1.6kW
Ignition
12V
Knobs
Nickle
Total Input
3.2kW
Capacity Description
37 Litres
Connections Description
5/16" Spigot
Brochure
Installation Instructions
Manual
Thetford half Midi Prima Mk3 twin cavity built in LPG oven and grill.
PLEASE NOTE: This appliance requires a 12 volt power supply.
See install manual below
Brochure
• Full flame failure devices
• Oven 1.6kw
• 12V ignition
• Grill 1.5kw
• Charcoal Black
• Oven capacity 36Ltr
• Grill capacity 13Ltr
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Key Features
High-quality materials and components
Contemporary, home-like design
Optimal use of space
Superior cooking performance
Brand
Thetford
Type
Ovens & Grills
Voltage Description
12V DC
Model
Midi Prima Mk3
Oven Burner
1.6kW
Height Description
644mm
Width
444mm
Depth
450mm (17.7")
Weight
18kg
Material
Glass Doors
Colour
Black
Gas Burners
N/A
Lid
N/A
Grill Burner
1.5kW
Ignition
12v
Knobs
Nickle
Total Input
3.1kW
Capacity Description
36 Litres
Connections Description
5/16" Spigot
Brochure
Duplex high-quality 12v combined oven and grill made with a contemporary design and superior cooking performance. An oven and grill combination in black that looks great and cooks beautifully too. Features include a double burner (one for the oven, one for the grill), reliable and simple controls, high quality components, simple to install.
Gas inlet connection - 5/16” spigot.
Key Features
Flame failure device on valves
Oven shelf
Multifunctional pan
Detachable handle and pan trivet
High-quality materials and components
Optimal use of space
Superior cooking performance
Brand
Thetford
Type
Ovens & Grills
Voltage Description
12V DC
Model
Duplex 12V
Oven Burner
1.5kW
Height Description
438mm
Width
445mm
Depth
490mm
Weight
13.5 Kg
Colour
Black
Grill Burner
1.6kW
Ignition
12V
Knobs
Nickel
Capacity Description
36 Litres
Input
3.1 kW
OVEN GRILL IM AM 700 and 520 Series EN
Spare Part List N435.B
