TBB Power eRAY IH400L HF compact and efficient pure sinewave inverter to power your appliances from 12V battery. Designed to provide 230V AC from 12V leisure battery the IH 400W inverter is rich in features. Pure sinewave 230V output enables compatibility with most appliances including those more sensitive and inductive loads. High efficiency of up to 90% ensures effective use of the battery energy. 200% surge capability (1 second) and built in protection ensures the IH range are easy to install and safe to use. Integrated LED lights display status of inverter and battery voltage along with fault indication. All products in the series feature a remote terminal which provides on/off via ignition or via separately installed switch if required. The new IH range are ideal for in vehicle use including leisure and commercial vehicles as well as marine. Please call for advice if you are ensure of the inverter rating required. Please Note: DC input cables are NOT included. DC Input Nominal input voltage: 12V DC Input voltage range: 10.5V to 16V DC No load current: 0.5A Current when power off: <3mA AC Output Continuous output power @ 35°C: 400W Maximum output power (1 min): 440W Surge power (1 Sec): 800W Output voltage: 230V AC (+/-5%) Output frequency: 50Hz Output waveform: Pure Sinewave THD: <3% Efficiency: 90% Protection: Overload, short circuit, reverse polarity (internal fuse), over temperature Approvals: E mark certified Dimensions: 222mm x 166mm x 64mm Weight: 1.2kg Warranty: 2 years Specification Brand TBB Power Voltage Description 12V DC Height Description 222mm Width 166mm Depth 64mm Weight 1.2kg Wattage 400W Application Power tool charging, Lighting, Charging laptops & mobile devices, Computers, Any loads <400W Download eray inverter datasheet

Read more less

TBB Power eRAY IH1000L HF compact and efficient pure sinewave inverter to power your appliances from 12V battery. Designed to provide 230V AC from 12V leisure battery the IH 1000W inverter is rich in features. Pure sinewave 230V output enables compatibility with most appliances including those more sensitive and inductive loads. High efficiency of up to 90% ensures effective use of the battery energy. 200% surge capability (1 second) and built in protection ensures the IH range are easy to install and safe to use. Integrated LED lights display status of inverter and battery voltage along with fault indication. The 1000W model benefits from a remote control port (used with RIH remote) and USB output (2A) enabling the charging of mobile devices without having to use the 230V AC socket. This inverter also has a comms port (RS485) to allow connection and reporting to the TBB ecosystem. All products in the series feature a remote terminal which provides on/off via ignition or via separately installed switch if required. The new IH range are ideal for in vehicle use including leisure and commercial vehicles as well as marine. Please call for advice if you are ensure of the inverter rating required. Please Note: DC input cables are NOT included. DC Input Nominal input voltage: 12V DC Input voltage range: 10.5V to 16V DC No load current: <1.0A Current when power off: <3mA AC Output Continuous output power @ 35°C: 1000W Maximum output power (1 min): 1150W Surge power (1 Sec): 2000W Output voltage: 230V AC (+/-5%) Output frequency: 50Hz Output waveform: Pure Sinewave THD: <3% Efficiency: 90% DC Output USB max output current: 2A Protection: Overload, short circuit, reverse polarity (internal fuse), over temperature Approvals: E mark certified Dimensions: 313mm x 187mm x 96mm Weight: 2.4kg Warranty: 2 years Specification Brand TBB Power Voltage Description 12V DC Height Description 313mm Width 187mm Depth 96mm Weight 2.4kg Wattage 1000W Application Power tool charging, Lighting, Charging laptops & mobile devices, Computers, Small kitchen applicances (eg toaster & travel kettle), Any loads <1000W Download eray inverter datasheet

Read more less

TBB Power 12V 400Ah lithium module is designed for in vehicle applications. The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market. The M12-400/H supports a high continuous discharge current of 300A which makes it perfect to handle heavy duty appliances like air-compressors or coffee machines. Using LiFePO4 cells, each module provides a massive 5120 Watt Hour (WH) of energy with capability to parallel up to 8 units – delivering a monumental total of 40,9600wh of energy storage if required. Each module weighs just under 42KG which makes them them far lighter than any conventional AGM battery bank of a similar capacity. 200A (0.5C) charging and 0.75C discharging capability even under parallel configuration ensures the lithium modules can be fast charged and provide high discharge current to the inverter. Meaning with just 1 module you can discharge at 300A, and with 8 connected in parallel 2400A! The integrated shunt even provides real time state of charge (SOC). As an example the Kinergier Mobile CM3.0L with integrated 180A charger can fully charge a single module (5120Wh) in 150 minutes. CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle – this allows 100% depth of discharge (DOD) without compromising battery and system life. Nominal Voltage: 12V DC Nominal capacity: 400AH Energy: 5.12 KWh Charging voltage @ 25°C: 14.2V Max. Charging current @ 25°C: 200A per module (200A Recommended) Discharge cut off voltage @ 25°C: 11.2V Max. discharge current @ 25°C: 300A Continuous (500A for 10 seconds) Operating temperature: Charging and discharging: 0°C to +55°C Cycle Life: > 3000 at 100% DOD @ 25°C Parallel capability: 8pcs (Call for advice on application >2) Weight: 42.5Kg Comms: CAN and RS485 Certification: CE & UN38.3 Dimensions: 462mm x 237mm x 320.5mm Specification Unit of Sale Single Unit Brand TBB Power Voltage Description 12V DC Height Description 320.5mm Width 462mm Depth 237mm Weight 42.5kg Application Utility vehicles, Telecom service vehicles, Catering vehicles, Mobile tyre fitting vehicles, Mobile pet grooming vehicles Capacity Description 400 Ah Style Lithium-Ion Download m12 battery datasheet

Read more less

TBB Power 12V 100Ah lithium module is designed for in vehicle applications. The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market. The M12-100/H supports a high continuous discharge current of 150A which makes it perfect to handle heavy duty appliances like air-compressors or coffee machines. Using LiFePO4 cells, each module provides 1280 Watt Hour (WH) of energy with capability to parallel up to 8 units – delivering a total of 10240wh of energy storage if required. Each module weighs just under 12kg which makes them far lighter than a conventional AGM battery bank. 1.5C charging and discharging capability even under parallel configuration ensures the lithium modules can be fast charged and provide high discharge current to the inverter (1500W for every lithium module installed). The integrated shunt provides real time state of charge (SOC). As an example the Kinergier Mobile CM3.0L with integrated 180A charger can fully charge 4 modules (5120Wh) in a 150 minutes. CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle – this allows 100% depth of discharge (DOD) without compromising battery and system life. Nominal Voltage: 12V DC Nominal capacity: 100AH Energy: 1.28KWh Charging voltage @ 25°C: 14.2V Max. Charging current @ 25°C: 100A per module (50A Recommended) Discharge cut off voltage @ 25°C: 11.2V Max. discharge current @ 25°C: 100A Continuous (150A for 30 Minutes) Continuous discharge current @ 25°C: 100A Operating temperature: Charging and discharging: 0°C to +55°C Cycle Life: > 3000 at 100% DOD @ 25°C Parallel capability: 8pcs (Call for advice on application >4) Weight: 11.5kg Comms: CAN and RS485 Certification: CE & UN38.3 Dimensions: 310mm x 165mm x 187mm Specifications Unit of Sale Single Unit Brand TBB Power Voltage Description 12V DC Height Description 187mm Width 310mm Depth 165mm Weight 11.5kg Application Utility vehicles, Telecom service vehicles, Catering vehicles, Mobile tyre fitting vehicles, Mobile pet grooming vehicles Capacity Description 105 Ah Style Lithium-Ion Download m12 battery datasheet

Read more less

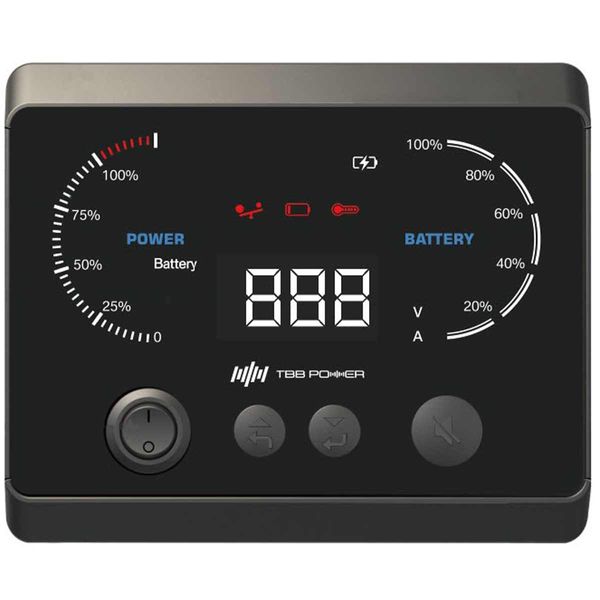

TBB Power remote display is suitable for use with for M12 batteries MEH-B with Bluetooth (our part numbers PPT-7084 and PPT-7085). Specifications Brand TBB Power Voltage Description 12V DC Application M12 Batteries

Read more less

TBB Power remote battery switch is suitable for use with for M12 batteries (our part numbers PPT-7084 and PPT-7085). This master switch will isolate M12-400 and M12-200 battery modules. It can be connected to the battery by a communication cable and can be installed at any location with easy access. Specifications Brand TBB Power Voltage Description 12V DC Application M12 Batteries

Read more less

TBB Power SolarMate SP100-20 MPPT solar controller is a high efficiency 20A controller to maximise solar charging. Intelligent and easy to use 20A controller expertly designed with maximum efficiency of up to 99%. Complete with informative and easy to use Bluetooth App. Compatible with 12, 24 and 48V battery systems and PV arrays for optimal charging. MPPT solar controllers maximise the charging current to batteries by changing their power output to match the output of the solar panel. MPPT controllers therefore outperform conventional PWM solar controllers in terms of efficiency and actual charging current to a battery bank / power to a load. The SolarMate range has a wide solar input voltage range, allowing the use of series and parallel configurations in 12, 24 or even 48V to maximise solar input, providing flexibility in your choice of solar panel. The SolarMate SP100-20 can accept input voltage up to 100V. The maximum combined input solar power allowed for this controller is 294W for a 12V battery system, 588W for a 24V system and 1176W for a 48V system. In particular, the SolarMate SP100-20 MPPT controller will significantly increase efficiency of a solar array or system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel). This controller also features advanced communication technology, which offers the user the opportunity to monitor and program parameters for the solar charge controller and load settings from the TBB SolarMate app or by PC update via the RS485 port. Multiple mounting holes for ease of installation. This solar controller comes complete with a two year warranty. Maximum solar panel voltage: 95V Maximum solar panel power based on battery bank voltage: 294W (12V) / 588W (24V) / 1176W (48V) Battery Voltage: Fully automated operation 12V / 24V / 48V selection Communication port: RS485/RJ45 interface Grounding: negative common ground Current limiting function: 20A Self-consumption: <1mA (12V), <3mA (24V), <5mA (48V) Working temperature: -25°C to +60°C Size: 205mm x 160mm x 65mm Weight: 1.4kg Protection Rating: IP31 Multiple mounting holes for ease of installation Two year warranty Bluetooth App 16mm terminals E-Mark Approved Specifications Brand TBB Power Voltage Description 12V, 24V & 48V DC (100V Maximum) Height Description 205mm Width 160mm Depth 65mm Weight 1.4kg Wattage 294W (12V), 588W (24V) & 1176W (48V) Application Caravans and motorhomes, Boats, Off Grid sites & remote power applications such as CCTV & lighting, Glamping pods and tents, Industrial applications when used with the Energy Hub, Professional solutions as part of the Pro Energy Pack Amps Description 20A Download solar mate sp solar charger controller datasheet 20 40

Read more less

TBB Power SolarMate SP100-40 MPPT solar controller is a high efficiency 40A controller to maximise solar charging. Intelligent and easy to use 40A controller expertly designed with maximum efficiency of up to 99%. Complete with informative and easy to use Bluetooth App. Compatible with 12, 24 and 48V battery systems and PV arrays for optimal charging. MPPT solar controllers maximise the charging current to batteries by changing their power output to match the output of the solar panel. MPPT controllers therefore outperform conventional PWM solar controllers in terms of efficiency and actual charging current to a battery bank / power to a load. The SolarMate range has a wide solar input voltage range, allowing the use of series and parallel configurations in 12, 24 or even 48V to maximise solar input, providing flexibility in your choice of solar panel. The SolarMate SP100-40 can accept input voltage up to 100V. The maximum combined input solar power allowed for this controller is 588W for a 12V battery system, 1176W for a 24V system and 2352W for a 48V system. In particular, the SolarMate SP100-40 MPPT controller will significantly increase efficiency of a solar array or system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel). This controller also features advanced communication technology, which offers the user the opportunity to monitor and program parameters for the solar charge controller and load settings from the TBB SolarMate app or by PC update via the RS485 port. Multiple mounting holes for ease of installation. This solar controller comes complete with a two year warranty. Maximum solar panel voltage: 100V Maximum solar panel power based on battery bank voltage: 588W (12V) / 1176W (24V) / 2352W (48V) Battery Voltage: Fully automated operation 12V / 24V / 48V selection Communication port: RS485/RJ45 interface Grounding: negative common ground Current limiting function: 40A Self-consumption: <1mA (12V), <3mA (24V), <5mA (48V) Working temperature: -25°C to +60°C Size: 205mm x 160mm x 65mm Weight: 1.4kg Protection Rating: IP31 Multiple mounting holes for ease of installation Two year warranty Bluetooth App 16mm terminals E-Mark Approved Specifications Brand TBB Power Voltage Description 12V, 24V & 48V DC (100V Maximum) Height Description 205mm Width 160mm Depth 65mm Weight 1.4kg Wattage 588W (12V), 1176W (24V) & 2352W (48V) Application Caravans and motorhomes, Boats, Off Grid sites & remote power applications such as CCTV & lighting, Glamping pods and tents, Industrial applications when used with the Energy Hub, Professional solutions as part of the Pro Energy Pack Amps Description 40A Download solar mate sp solar charger controller datasheet 20 40

Read more less

TBB Power SolarMate SF100-30 solar charge controller with MPPT technology enables maximum energy tracking for solar charging. This technology allows the controller to track the maximum power point of an array quickly and accurately in any environment, obtain the maximum energy of solar panel in real time, and charge the battery at maximum current. The SF100 series controller has a built-in multi-stage battery charging algorithm, along with an MPPT algorithm that allows for wide voltage input ranges. This makes this controller suitable for charging various types of batteries, including Gel, AGM, Lithium, and traditional Lead-acid batteries. It has built in RS485 and CAN communication capabilities for system integration, as well as built in Bluetooth transmitter for monitoring and controlling from a smartphone or tablet via the Solar Mate app. The controller will also store data regarding historical events, daily power generation, monthly power generation, and total power generation. Maximum solar panel voltage: 100V Maximum solar panel power based on battery bank voltage: 500W (12V) / 1000W (24V) Battery Voltage: Fully automated operation 12V / 24V Communication port: RS485/RJ45 interface Grounding: negative common ground Current limiting function: 30A Self-consumption: <1mA (12V), <3mA (24V) Working temperature: -40°C to +60°C Protections: Output Overvoltage, PV reversed polarity, Over-temperature, Output Short Circuit Size: 189.6mm x 116mm x 76mm Weight: 0.82kg Protection Rating: IP20 Multiple mounting holes for ease of installation Bluetooth App Specifications Brand TBB Power Voltage Description 12V, 24V & 48V DC (100V Maximum) Height Description 189.6mm Width 116mm Depth 76mm Weight 0.82kg Wattage 500W (12V) & 1000W (24V) Amps Description 30A Download solar mate sf solar charger controller datasheet 30 50

Read more less

TBB Power SolarMate SF100-50 solar charge controller with MPPT technology enables maximum energy tracking for solar charging. This technology allows the controller to track the maximum power point of an array quickly and accurately in any environment, obtain the maximum energy of solar panel in real time, and charge the battery at maximum current. The SF100 series controller has a built-in multi-stage battery charging algorithm, along with an MPPT algorithm that allows for wide voltage input ranges. This makes this controller suitable for charging various types of batteries, including Gel, AGM, Lithium, and traditional Lead-acid batteries. It has built in RS485 and CAN communication capabilities for system integration, as well as built in Bluetooth transmitter for monitoring and controlling from a smartphone or tablet via the Solar Mate app. The controller will also store data regarding historical events, daily power generation, monthly power generation, and total power generation. Maximum solar panel voltage: 100V Maximum solar panel power based on battery bank voltage: 800W (12V) / 1600W (24V) Battery Voltage: Fully automated operation 12V / 24V selection Communication port: RS485/RJ45 interface Grounding: negative common ground Current limiting function: 50A Self-consumption: <1mA (12V), <3mA (24V) Working temperature: -40°C to +60°C Protections: Output Overvoltage, PV reversed polarity, Over-temperature, Output Short Circuit Size: 189.6mm x 116mm x 76mm Weight: 0.82kg Protection Rating: IP20 Multiple mounting holes for ease of installation Bluetooth App Specifications Brand TBB Power Voltage Description 12V, 24V & 48V DC (100V Maximum) Height Description 189.6mm Width 116mm Depth 76mm Weight 0.82kg Wattage 800W (12V) & 1600W (24V) Amps Description 50A Download solar mate sf solar charger controller datasheet 30 50

Read more less

TBB Power M12 Inverter Pack containing: a Kinergier Mobile CM2.0L 2000W inverter / charger, a DM1230 30A DC-DC charger and one M12-100 105AH battery. The easy and scalable solution for Leisure Power and commercial vehicles. Inverter/Charger: TBB Power Kinergier Mobile 2000W bi-directional inverter-charger delivers high reliability, performance and industry leading efficiency. The CM2.0L inverter-charger is designed primarily for use in on board applications – providing AC power (230V) from 12V aux battery. Delivering high reliability, performance and industry leading efficiency for mission critical applications, the Kinergier Mobile is a market leading inverter-charger and the perfect choice to compose an on board or hybrid power solution to deploy 230V AC. With option of 2KW or 3KW (12V) the Kinergier series is a fully programmable inverter-charger making it both a flexible and scalable solution in many application types. The CM2.0L is ideal for in vehicle use such as commercial, emergency vehicles and motor homes where a compact but resilient inverter-charger is required. With reduced features from the rest of the Kinergier series the 2000W (CM2.0L) units are a cost effective but highly capable product that are easy to install and preconfigured for on board use. The Kinergier range features power control and power assist functions. This enables shared power between grid and inverter/battery to size down the generator rating and to start loads with high surge – so combining power from both. AEA (automatic energy allocation) also allows provision of limited AC shore power or from camp site – adjusting its charging current to avoid overload of the grid connection. The Kinergier Mobile CM2.0L delivers a clean, pure sine wave 230VAC output with high efficiency up to 93%. Transfer speed from Grid to inverter is UPS class at 2ms making it perfect for power back up applications. When the grid is lost or disconnected the load remains connected and power is provided directly from inverter. Programming of all the key features can be done easily via the TBB Link software connected to a PC or APP. Powerful in built charger provides fast charging of lithium batteries (Lifepo4) when connected to grid. The MCK remote panel connects to the CM2.0L units and displays basic information on the system status and battery voltage. *MCK Remote display sold separately. Bluetooth and APP provides information directly to a mobile device for monitoring and also allows for some basic configuration. Used with the TBB Power lithium modules such as the M12-400 (4800 Wh) creates a powerful, safe, reliable and intelligent auxiliary power system. CAN connection between elements including TBB solar mate controllers provides for intelligence and even remote monitoring via the TBB Fleet cloud base service. B2B DC-DC Charger: TBB DM series 30A charger is an in-vehicle charging solution which specified designed for on-board application such as RV, Marine, Utility Vehicle, Truck etc. Single output DM1230 is the booster charger only with charge current up to 30A for 12V systems. DM chargers are Euro-6 engine compatible, which is able to charge auxiliary battery properly and fully with much wider variable voltage output from engine. Battery: TBB Power 12V 100Ah lithium module is designed for in vehicle applications. The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market. The M12-100/H supports a high continuous discharge current of 150A which makes it perfect to handle heavy duty appliances like air-compressors or coffee machines. Using LiFePO4 cells, each module provides 1280 Watt Hour (WH) of energy with capability to parallel up to 8 units – delivering a total of 10240wh of energy storage if required. Each module weighs just under 12kg which makes them far lighter than a conventional AGM battery bank. 1.5C charging and discharging capability even under parallel configuration ensures the lithium modules can be fast charged and provide high discharge current to the inverter (1500W for every lithium module installed). The integrated shunt provides real time state of charge (SOC). As an example the Kinergier Mobile CM3.0L with integrated 180A charger can fully charge 4 modules (5120Wh) in a 150 minutes. CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle – this allows 100% depth of discharge (DOD) without compromising battery and system life. Specification Brand TBB Power Type 12V Inverter / Chargers Voltage Description 12V DC Wattage 2000W Amps Description 30A Capacity Description 105 Ah Style Lithium-Ion Contents CM2.0L 2000W Inverter Charger, DM1230 30A DC-DC Charger & 1 x M12-100 105AH Battery Download kinergier inverter charger datasheet m12 battery datasheet

Read more less

TBB Power M12 Inverter Pack containing: a Kinergier Mobile CM2.0L 2000W inverter / charger, a DM1260 60A DC-DC charger and two M12-100 105AH batteries. The easy and scalable solution for Leisure Power and commercial vehicles. Inverter/Charger: TBB Power Kinergier Mobile 2000W bi-directional inverter-charger delivers high reliability, performance and industry leading efficiency. The CM2.0L inverter-charger is designed primarily for use in on board applications – providing AC power (230V) from 12V aux battery. Delivering high reliability, performance and industry leading efficiency for mission critical applications, the Kinergier Mobile is a market leading inverter-charger and the perfect choice to compose an on board or hybrid power solution to deploy 230V AC. With option of 2KW or 3KW (12V) the Kinergier series is a fully programmable inverter-charger making it both a flexible and scalable solution in many application types. The CM2.0L is ideal for in vehicle use such as commercial, emergency vehicles and motor homes where a compact but resilient inverter-charger is required. With reduced features from the rest of the Kinergier series the 2000W (CM2.0L) units are a cost effective but highly capable product that are easy to install and preconfigured for on board use. The Kinergier range features power control and power assist functions. This enables shared power between grid and inverter/battery to size down the generator rating and to start loads with high surge – so combining power from both. AEA (automatic energy allocation) also allows provision of limited AC shore power or from camp site – adjusting its charging current to avoid overload of the grid connection. The Kinergier Mobile CM2.0L delivers a clean, pure sine wave 230VAC output with high efficiency up to 93%. Transfer speed from Grid to inverter is UPS class at 2ms making it perfect for power back up applications. When the grid is lost or disconnected the load remains connected and power is provided directly from inverter. Programming of all the key features can be done easily via the TBB Link software connected to a PC or APP. Powerful in built charger provides fast charging of lithium batteries (Lifepo4) when connected to grid. The MCK remote panel connects to the CM2.0L units and displays basic information on the system status and battery voltage. *MCK Remote display sold separately. Bluetooth and APP provides information directly to a mobile device for monitoring and also allows for some basic configuration. Used with the TBB Power lithium modules such as the M12-400 (4800 Wh) creates a powerful, safe, reliable and intelligent auxiliary power system. CAN connection between elements including TBB solar mate controllers provides for intelligence and even remote monitoring via the TBB Fleet cloud base service. B2B DC-DC Charger: TBB DM series 60A charger is an in-vehicle charging solution which specified designed for on-board application such as RV, Marine, Utility Vehicle, Truck etc. Single output DM1260 is the booster charger only with charge current up to 60A for 12V systems. DM chargers are Euro-6 engine compatible, which is able to charge auxiliary battery properly and fully with much wider variable voltage output from engine. Batteries: TBB Power 12V 100Ah lithium module is designed for in vehicle applications. The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market. The M12-100/H supports a high continuous discharge current of 150A which makes it perfect to handle heavy duty appliances like air-compressors or coffee machines. Using LiFePO4 cells, each module provides 1280 Watt Hour (WH) of energy with capability to parallel up to 8 units – delivering a total of 10240wh of energy storage if required. Each module weighs just under 12kg which makes them far lighter than a conventional AGM battery bank. 1.5C charging and discharging capability even under parallel configuration ensures the lithium modules can be fast charged and provide high discharge current to the inverter (1500W for every lithium module installed). The integrated shunt provides real time state of charge (SOC). As an example the Kinergier Mobile CM3.0L with integrated 180A charger can fully charge 4 modules (5120Wh) in a 150 minutes. CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle – this allows 100% depth of discharge (DOD) without compromising battery and system life. Specification Brand TBB Power Type 12V Inverter / Chargers Voltage Description 12V DC Wattage 2000W Amps Description 60A Capacity Description 2 x 105 Ah Style Lithium-Ion Contents CM2.0L 2000W Inverter Charger, DM1260 60A DC-DC Charger & 2 x M12-100 105AH Batteries Download kinergier inverter charger datasheet m12 battery datasheet ppt 3195 user manual

Read more less
