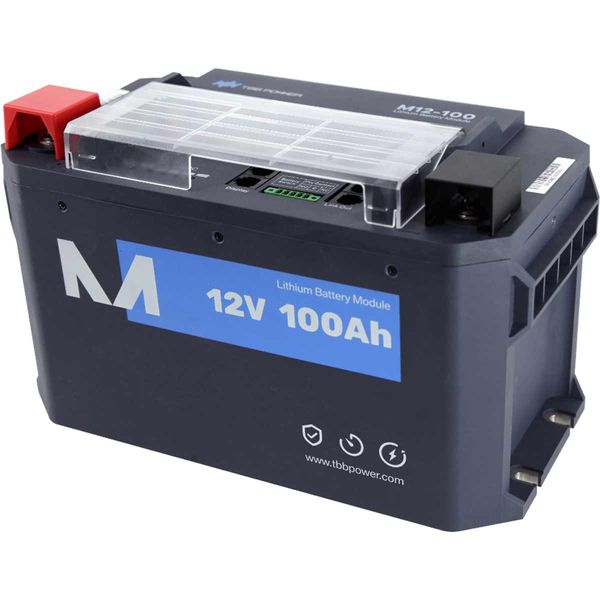

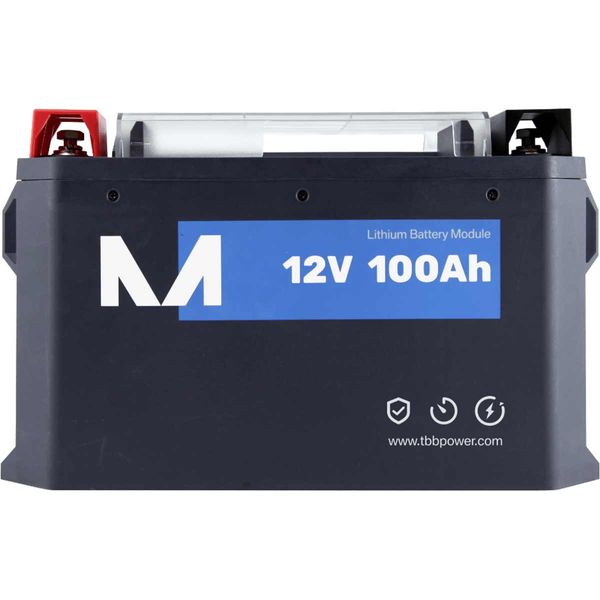

TBB Power 12V 100Ah lithium module is designed for in vehicle applications.
The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market.
The M12-100/H supports a high continuous discharge current of 150A which makes it perfect to handle heavy duty appliances like air-compressors or coffee machines.
Using LiFePO4 cells, each module provides 1280 Watt Hour (WH) of energy with capability to parallel up to 8 units – delivering a total of 10240wh of energy storage if required. Each module weighs just under 12kg which makes them far lighter than a conventional AGM battery bank.
1.5C charging and discharging capability even under parallel configuration ensures the lithium modules can be fast charged and provide high discharge current to the inverter (1500W for every lithium module installed). The integrated shunt provides real time state of charge (SOC). As an example the Kinergier Mobile CM3.0L with integrated 180A charger can fully charge 4 modules (5120Wh) in a 150 minutes.
CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle – this allows 100% depth of discharge (DOD) without compromising battery and system life.
Nominal Voltage: 12V DC
Nominal capacity: 100AH
Energy: 1.28KWh
Charging voltage @ 25°C: 14.2V
Max. Charging current @ 25°C: 100A per module (50A Recommended)
Discharge cut off voltage @ 25°C: 11.2V
Max. discharge current @ 25°C: 100A Continuous (150A for 30 Minutes)
Continuous discharge current @ 25°C: 100A
Operating temperature: Charging and discharging: 0°C to +55°C
Cycle Life: > 3000 at 100% DOD @ 25°C
Parallel capability: 8pcs (Call for advice on application >4)
Weight: 11.5kg
Comms: CAN and RS485
Certification: CE & UN38.3
Dimensions: 310mm x 165mm x 187mm
