TBB Power Kinergier Mobile 2000W bi-directional inverter-charger delivers high reliability, performance and industry leading efficiency.

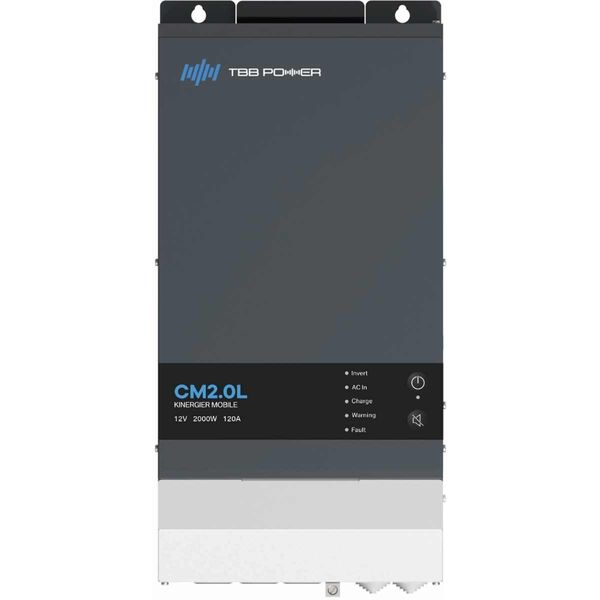

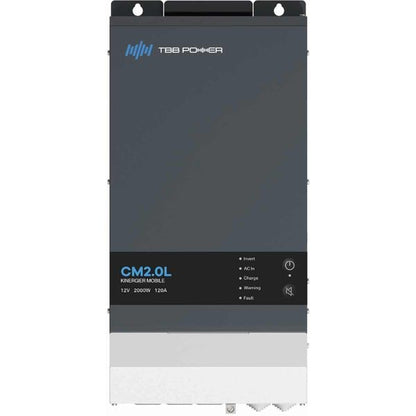

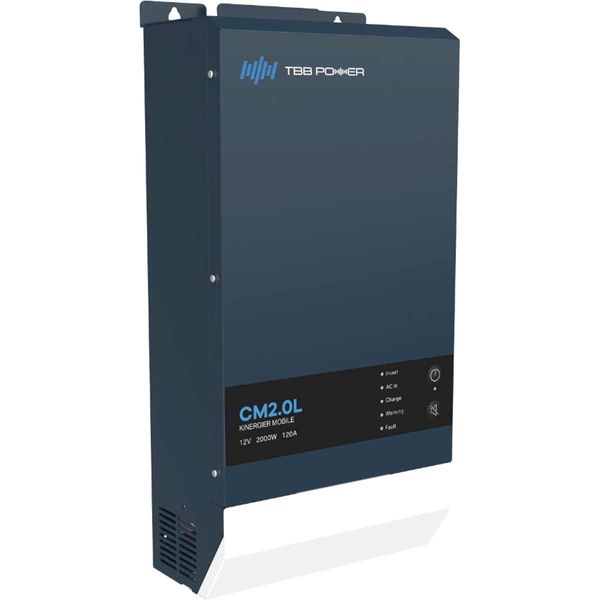

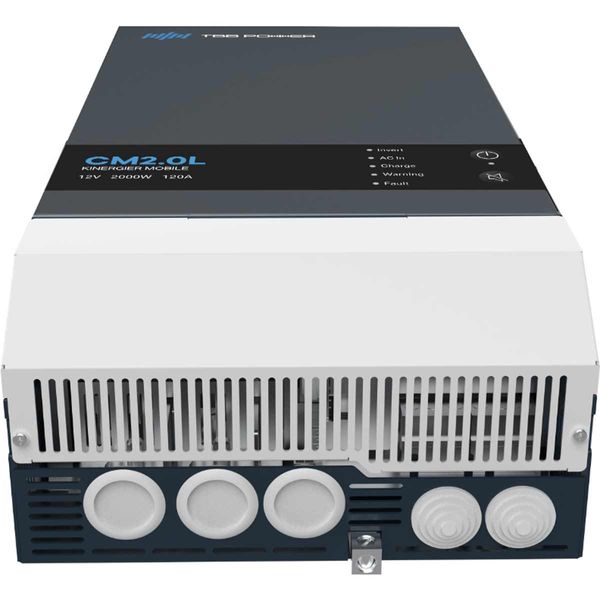

The CM2.0L inverter-charger is designed primarily for use in on board applications – providing AC power (230V) from 12V aux battery. Delivering high reliability, performance and industry leading efficiency for mission critical applications, the Kinergier Mobile is a market leading inverter-charger and the perfect choice to compose an on board or hybrid power solution to deploy 230V AC. With option of 2KW or 3KW (12V) the Kinergier series is a fully programmable inverter-charger making it both a flexible and scalable solution in many application types.
The CM2.0L is ideal for in vehicle use such as commercial, emergency vehicles and motor homes where a compact but resilient inverter-charger is required. With reduced features from the rest of the Kinergier series the 2000W (CM2.0L) units are a cost effective but highly capable product that are easy to install and preconfigured for on board use.
The Kinergier range features power control and power assist functions. This enables shared power between grid and inverter/battery to size down the generator rating and to start loads with high surge – so combining power from both. AEA (automatic energy allocation) also allows provision of limited AC shore power or from camp site – adjusting its charging current to avoid overload of the grid connection. The Kinergier Mobile CM2.0L delivers a clean, pure sine wave 230VAC output with high efficiency up to 93%. Transfer speed from Grid to inverter is UPS class at 2ms making it perfect for power back up applications. When the grid is lost or disconnected the load remains connected and power is provided directly from inverter. Programming of all the key features can be done easily via the TBB Link software connected to a PC or APP.
Powerful in built charger provides fast charging of lithium batteries (Lifepo4) when connected to grid.

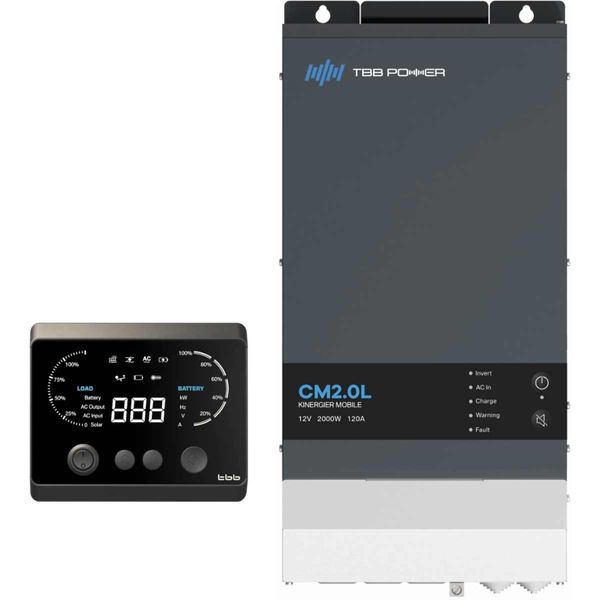

The MCK remote panel connects to the CM2.0L units and displays basic information on the system status and battery voltage.
*MCK Remote display sold separately.
Bluetooth and APP provides information directly to a mobile device for monitoring and also allows for some basic configuration.
Used with the TBB Power lithium modules such as the M12-400 (4800 Wh) creates a powerful, safe, reliable and intelligent auxiliary power system. CAN connection between elements including TBB solar mate controllers provides for intelligence and even remote monitoring via the TBB Fleet cloud base service.
Inverter
Nominal input battery voltage: 12V DC
Input voltage range: 10.5V - 17V DC
Output voltage and frequency: 230V AV (+/- 2%), 50 Hz (+/- 0.1%)
Continuous output power at 25°C: 2000W
Peak Power (30 min) at 25°C: 2200W
Continuous output power at 40°C: 1800W
Peak Power (10 sec): 4000W
Surge rating: 300% (2 seconds)
Efficiency: 93%
THD: 2%
Zero load power (power saving mode): 12W (3.5W)
Overload protection: auto disconnect with 3 times restart attempt
Charger
Nominal output voltage: 12V DC
Maximum output current (adjustable): 120A
AC input range : 175V AC – 264V AC
Battery types: AGM/GEL/Flooded/OpzV/LiFePO4
Slave charger for starter battery: 3A
Temperature compensatio: Yes
Other Data:
Transfer time: UPS mode 0ms (15ms in weakgrid mode)
Remote on-off: Yes
Transfer switch rating (50A): 32A (AC1)
Programmable relay: 2x
RS485 Port: For remote monitor (MCK with Bluetooth)
Dimensions: 510mm x 245mm x 135mm
Weight: 17kg
Standards: CE-EMC, CE-LVD, E-mark
Warranty: 5 years
Specification
| Brand |
TBB Power |
| Voltage Description |
12V DC |
| Height Description |
510mm |
| Width |
245mm |
| Depth |
135mm |
| Weight |
17kg |
| Wattage |
2000W |
| Application |
Motorhomes / camper vans, Mobile catering vehicles, Service vehicles, Utility vehicles, Ambulances |
| Amps Description |
120A |
