The Victron - VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against over voltage, under voltage and over temperature.
Description
The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against over voltage, under voltage and over temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy chained. Please see our LiFePO4 battery documentation for details.
The BMS will:
Shut down or disconnect loads in case of imminent cell under voltage.
Reduce charge current in case of imminent cell overvoltage or over temperature (VE.Bus products only, see below).
Shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature.
Protects 12V, 24V and 48V systems
The operating voltage range of the BMS: 9 to 70V DC. Communicates with all VE.Bus products The VE.Bus BMS connects to a MultiPlus, Quattro or Phoenix inverter with a standard RJ45 UTP cable.
Other products, without VE.Bus can be controlled as shown below:
Load Disconnect
The Load Disconnect output is normally high and becomes free floating in case of imminent cell under voltage. Maximum current: 2A.
The Load Disconnect output can be used to control
the remote on/off of a load, and/or
the remote on/off of an electronic load switch (Battery Protect)
Charge Disconnect
The Charge Disconnect output is normally high and becomes free floating in case of imminent cell over voltage or over temperature. Maximum current: 10mA.
The Charge Disconnect output can be used to control
the remote on/off of a charger and/or
a Cyrix-Li-Charge relay and/or
a Cyrix-Li-ct Battery Combiner
Pdf
A simple and low cost alternative to the VE.Bus BMS. The miniBMS can replace the VE.Bus BMS in several applications. It is however not suitable for use with VE.Bus MultiPlus and Quattro inverter/chargers: it has no VE.Bus interface.
Description
Input Voltage Range: 8-70VDC
Protection Category: IP20
Dimensions: H106 x W42 x D23mm
Weight: 0.1Kg
Warranty: 5 Years
A simple and low cost alternative to the VE.Bus BMS The miniBMS can replace the VE.Bus BMS in several applications. It is however not suitable for use with VE.Bus MultiPlus and Quattro inverter/chargers: it has no VE.Bus interface.
The miniBMS is intended for use with Victron Smart LiFePo4 batteries with M8 circular connectors. The miniBMS has two outputs, similar to the VE.Bus BMS.
Pdf

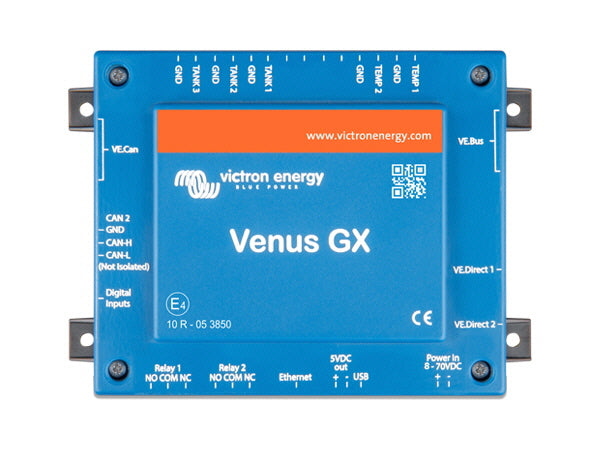

The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM).
The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM). To get an impression of the VRM Online Portal, visit https://vrm.victronenergy.com, and use the ‘Take a look inside’ button. The portal is free of charge.
In order to display any useful information, this panel must be used in conjunction with other Victron products. To provide battery state of charge information, a BMV-700 battery monitor must be connected. To display solar yield data, an MPPT charge controller must be connected. To show AC power information, a Phoenix inverter or Multiplus/Quattro must be connected. This panel must be used in conjunction with other Victron products if lithium smart batteries with integrated BMS and CAN communication are used.
Dimensions (h x w x d): 45 x 143 x 96mm
The Digital Multi Control panel (DMC) is a remote panel designed to work with all of Victron Energy's Multi & Quattro inverter/chargers (including the Multiplus range). The DMC can remotely turn the Multis or Quattros on or off (or set them to charger-only mode), display the status of the charger and inverter functions and set up to four different AC input current limits (plus one generator input).
The Digital Multi Control panel (DMC) is a remote panel designed to work with all of Victron Energy's Multi & Quattro inverter/chargers (including the Multiplus range). The DMC can remotely turn the Multis or Quattros on or off (or set them to charger-only mode), display the status of the charger and inverter functions and set up to four different AC input current limits (plus one generator input). Supplied with a metal bracket and screws for a discrete, flush mounted installation and no visible fixings. Note: An RJ45 UTP (Unscreened Twisted Pair) cable is required for installation (not included).
Features
Turn inverter/charger on, off or set to 'charger-only' operation
7-segment, blue LED display with auto-dimming function at night
Charger status LEDs indicating power and charge stage
Inverter status LEDs indicating power and alarm status
Adjustable AC shore current limit via rotary control knob (upper limit settable)
Adjustable AC input current limit for generator when using external transfer switch
Technical Information
Overall dimensions: 120 (W) x 65 (H) x 12 (D) mm
Depth required behind mounting face: 20mm min.
RJ45 socket orientation: Side entry (90° to face of panel)
The MK3-USB allows a large selection of Victron products to connect to a computer for configuration and firmware updates.
The MK3-USB allows the following products to connect to a computer for configuration and firmware updates:
Multi
MultiGrid
MultiPlus
MultiPlus-II
Quattro
Inverter/Charger settings in ECOmulti
EasySolar
EasyPlus
Inverters with a VE.Bus communication port.
Using the VE.Direct to Bluetooth Smart dongle you can display your BMV or MPPT information on iOS and Android devices, using the VictronConnect app. View information wirelessly such as battery status and solar panel power, plus other useful data.
The Victron Energy EasySolar-II combines a MPPT Solar Charge Controller, an inverter/charger in one enclosure. The product is easy to install, with a minimum of wiring.
Description
The EasySolar-II 48/5000 GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Features of the EasySolar-II 48/5000 GX - The all-in one solar power solution
The Victron EasySolar-II GX integrates the following elements:
A MultiPlus-II inverter/charger
A SmartSolar MPPT -Tr solar charge controller
A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device on the EasySolar-II includes:
A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
A USB port
An Ethernet port
A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Control over system
Want to have perfect control over your system from wherever you are whilst using your EasySolar-II 48/5000 GX, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50
The MK3-USB allows the EasySolar-II to connect to a computer for configuration and firmware updates.
Pdf
The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.
Description
The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input. The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.
Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.
Features:
Hybrid Inverter/Charger
The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.
Combination of an inverter, AC charger, and Solar MPPT
The inverter produces a perfect sine wave, and able to supply high powered appliances. It is also bi-directional, charging the battery when excess solar power or AC supply is available, or converting from the battery when it is needed.
Wide MPPT voltage range
80 – 450VDC, with a 120 VDC PV startup voltage.
Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
Display, Bluetooth and VictronConnect app
The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.
Extendable PV capacity, both AC-coupled and DC-coupled
The integrated 4kWp PV capacity can be extended by adding Solar Chargers to the system, for example our Smart Solar Charger range, including the Smart Solar RS models. When connected in a VE.Can network, all battery charging will operate synchronously and coordinated.
Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated Frequency Shift Power Control.
Communication ports
VE.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.
I/O Connections
Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.
Pdf
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Item Number:
Description
The EasySolar-II 24V/3000VA GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Features of the EasySolar-II 24/3000 GX - The all-in one solar power solution
The Victron EasySolar-II GX integrates the following elements:
A MultiPlus-II inverter/charger
A SmartSolar MPPT -Tr solar charge controller
A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device on the EasySolar-II includes:
A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
A USB port
An Ethernet port
A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Control over system
Want to have perfect control over your system from wherever you are whilst using your EasySolar-II 48/5000 GX, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50
The MK3-USB allows the EasySolar-II to connect to a computer for configuration and firmware updates.
For more info please click this link>>Pdf
