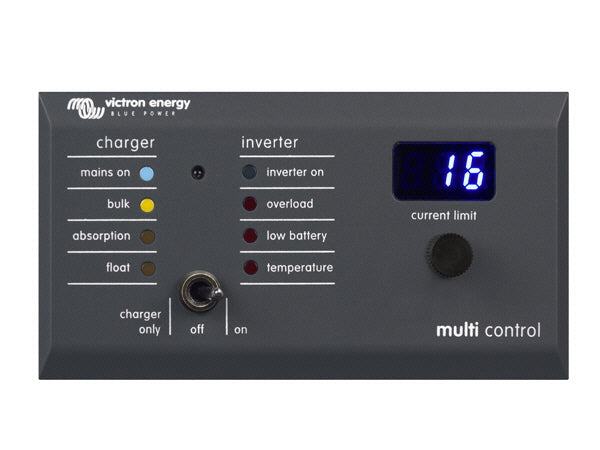

The Digital Multi Control panel (DMC) is a remote panel designed to work with all of Victron Energy's Multi & Quattro inverter/chargers (including the Multiplus range). The DMC can remotely turn the Multis or Quattros on or off (or set them to charger-only mode), display the status of the charger and inverter functions and set up to four different AC input current limits (plus one generator input).
The Digital Multi Control panel (DMC) is a remote panel designed to work with all of Victron Energy's Multi & Quattro inverter/chargers (including the Multiplus range). The DMC can remotely turn the Multis or Quattros on or off (or set them to charger-only mode), display the status of the charger and inverter functions and set up to four different AC input current limits (plus one generator input). Supplied with a metal bracket and screws for a discrete, flush mounted installation and no visible fixings. Note: An RJ45 UTP (Unscreened Twisted Pair) cable is required for installation (not included).
Features
- Turn inverter/charger on, off or set to 'charger-only' operation
- 7-segment, blue LED display with auto-dimming function at night
- Charger status LEDs indicating power and charge stage
- Inverter status LEDs indicating power and alarm status
- Adjustable AC shore current limit via rotary control knob (upper limit settable)
- Adjustable AC input current limit for generator when using external transfer switch
Technical Information
- Overall dimensions: 120 (W) x 65 (H) x 12 (D) mm
- Depth required behind mounting face: 20mm min.
- RJ45 socket orientation: Side entry (90° to face of panel)
