Scanstrut ROKK Wireless Sub Charger for 12 & 24 volt. This phone charger is built with factory fit in mind, Sub seamlessly integrates into your interior or exterior design.
It is engineered to bond underneath and wirelessly charge through all non-metallic materials, such as: GRP, fabric, leather, wood, carbon fibre & all leading marine traction products (e.g. SeaDek, MarineMat). Enabling your charging area to be completely flush with its surrounding environment and allowing for custom branding.
Unlimited Charge Possibilities - Each boat's requirement is different with integrated wireless charging onboard, whether a new build or a refit, Scanstrut's engineering team are on hand to advise you on your wireless charging installation. Whether your aim is integrated wireless charging at the helm, cockpit table, seating areas, bedrooms or even areas that may be stood on, it is all possible.
Designed for Designers - let your creativity run free and integrate wireless charging into new materials, fabrics and in high traffic areas of the boat that until now have been off-limits.
If your mobile phone is not compatible with wireless charging you can buy a patch to make it compatible, part number 715698 / 6-80667 for the iPhone patch & 715699 / 6-80666 for the micro USB patch.
Please Note: mobile phone not included.
Charger Outputs
1
Brand
Scanstrut
Voltage Description
10V - 30V DC
Model
SC-CW-07E
Height Description
Charging Plate: 2.5mm (0.1"), 17mm (0.67") overall
Depth
Panel: 3mm (0.1") maximum
Cut Out
64/65mm (2.5")
Wattage
Standby: < 0.03 W / Output Power: 5W (5V, 1A)
Approvals
QI, CE, FCC, ROHS Certified
Diameter Description
98mm (3.86") OD / 61mm (2.40") Thread OD
Amps Description
Input: 1.5A, Output: 1A
Scanstrut ROKK wireless charge receiver patch. Simply plug this patch in to your phone charging port, place it on the back of your phone, clip your case over the top and your phone is now ready for wireless charging. Can be charged on the ROKK wireless charger range and any other Qi-certified charging product.
This wireless charge receiver patch is suitable for the following:
Samsung:
- Galaxy J3
- Galaxy J6
- Galaxy J7
- Galaxy J8
- Galaxy S5
- Galaxy Note 2
- Galaxy Note 3
- Galaxy Note 4
Sony:
- Xperia E5
- Xperia Z5
- Xperia Z5 Compact
Huawei:
- Honor P9
- Honor P10
- Honor 7X
- Mate 8
- P8 Lite
- P10 Lite
LG:
- V10
- K10
Moto:
- G4
- G5
- G5 Plus
Nokia:
- 3
- 5
- 6
HTC:
- Desire 10
Also suitable for all other Type A Micro-USB phones.
Brand
Scanstrut
Model
SC-CW-PATCH-MU
The Thule Awning Omnmistor 5200 is the go-to motorhome awning UK and campervan owners who refuse to compromise. Sleek enough to complement your vehicle's design, tough enough to handle British weather, and so simple to operate you'll wonder how you ever managed without one.
Available in 8 sizes from 2.6m to 5.0m with Anthracite, White, or Anodised casings. Professional installation available at our Bristol workshop.
Awning design and look match the contemporary recreational vehicle designs and is better integrated on the vehicle sides.
Its design and look match the contemporary recreational vehicle designs and is better integrated on the vehicle sides
Projection up to 2.50 m to increase your personal space, protecting you from sun and rain
An optional rail is available which covers the gap under the awning. The rail has two functions: you can install a Thule tent or add a Thule LED Strip
Vertically lowering system to unfold support legs without danger of damaging the vehicle
User-friendly Quick-Lock system for easy setting and adjustment of the support legs
By setting the angle to what you want, the awning can be opened and closed even when the sliding door of your van is open
The unique Thule cassette adjustment system means perfect closing of the awning even after years of usage
Front profile with a drainage system to dispose of water and waste, which makes it easy to clean
A motor can be easily retrofit installed afterward on a manual Thule Omnistor 5200 awning
Available in different lengths, boxes, and fabric colors.
Technical Features
Mounting location
Side wall
Awning operating system
Manual
Retrofit motor
3.0m Onwards
Integrated tension arms
Standard on 4.0m>. Optional on 3.0 & 3.50m
Awning casette colour
White, Anodized or Anthracite
For more info and instructions please see in the links below
Manual Pdf
Thule Omnistor 5200 Size Chart
Thule Omnistor 5200 vehicle specific mounting adapters
he Sunshine Streamline Solar Mounts are an ideal way to fix your solar panels on the roof or deck of caravans, motorhomes and boats. The aluminium mounts can be safely bonded to the surface removing the need to drill holes and offer a sleek, aerodynamic finish.
Streamline Mounts are supplied in pairs 660mm long with grey end caps. Each Streamline aluminium profile can be cut to size if required.
The mounts act as a wind deflector and maintain the correct air gap between the solar panel and the roof top/deck. Their aluminium profiles provide a high quality mounting solution creating the ideal combination of functionality and appearance.
Easy installation, secure fit combined with sleek, stylish and aerodynamic finish for vehicle mounted solar systems.
Please Note: A pair of streamline mounts will add an extra 120mm to the overall installation dimensions.
Colour: SILVER
Sunshine 100W solar panel you could expect to generate around 29 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
DATA SHEET
Specifications
Maximum Power (Pmax): 100W
Maximum Power Current (Ipm): 5.62A
Maximum Power Voltage (Vpm): 17.8V
Short Circuit Current (Isc): 6.07A
Open Circuit Voltage (Voc): 21.30V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Maximum Series Fuse: 9A
Size: 510 x 1000 x 35mm
Weight: 7.3kg
Features
900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
High Performance Monocrystalline Cells
Factory fitted aluminium frame with pre-drilled mounting holes
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
PWM Solar Controller 10A - 12/24V
Dual Battery Controller 10A - 12/24V
MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Dual MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 07407221667
For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
PRODUCT CODE: SSP100SS
This RV Solar Panel from Sunshine Solar is a slimline 135W solar panel with integrated roof mounts, seamlessly fitted for an aesthetically pleasing look and an aerodynamic performance. Best of all having the mounts already pre-fitted means you do not have to source and fit the mounts yourself, saving money and time.
Specifications
Product Code. SRG135
Max Power. 135W ± 3%
Max Power Voltage. 20.9V
Max Power Current. 6.46A
Open Circuit Voltage. 24.5V
Short Circuit Current. 6.78A
Normal Operating Cell Temp. -45 to 80°C
Max System Voltage. DC1000V
Dimensions. 1265 x 590 x 55mm
Weight. 8.8kg
Features
Integrated Streamline Aluminium Roof Mounts
5m of twin-core insulated cable
High Performance Monocrystalline Cells
Factory fitted aluminium frame
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
10 Years Warranty
25 Years Service Life
Suitable Solar Charge Controllers
PWM Solar Controller 10A - 12/24V
Dual Battery Controller 10A - 12/24V
MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)
Dual MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)
For more info, please view the link below.
Data Sheet
Effective protection against insects. Aluminium coated sunscreen/night screen for blackout facility and privacy. Slim line design needing very little fixing space. Easy to install. Side tracks can be easily cut to suit window height. Measure window cut out + 70mm = external frame.
Thetford half Midi Prima Mk3 twin cavity built in LPG oven and grill.
PLEASE NOTE: This appliance requires a 12 volt power supply.
See install manual below
Brochure
• Full flame failure devices
• Oven 1.6kw
• 12V ignition
• Grill 1.5kw
• Charcoal Black
• Oven capacity 36Ltr
• Grill capacity 13Ltr
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Key Features
High-quality materials and components
Contemporary, home-like design
Optimal use of space
Superior cooking performance
Brand
Thetford
Type
Ovens & Grills
Voltage Description
12V DC
Model
Midi Prima Mk3
Oven Burner
1.6kW
Height Description
644mm
Width
444mm
Depth
450mm (17.7")
Weight
18kg
Material
Glass Doors
Colour
Black
Gas Burners
N/A
Lid
N/A
Grill Burner
1.5kW
Ignition
12v
Knobs
Nickle
Total Input
3.1kW
Capacity Description
36 Litres
Connections Description
5/16" Spigot
Brochure
Thetford Midi Prima 4 twin cavity built in LPG oven and grill.
PLEASE NOTE: This appliance requires a 12 volt power supply.
• Full flame failure devices
• Oven 1.6KW
• 12V ignition
• Grill 1.6KW
• Dimensions: Height 640mm x Width 495mm x Depth 460mm
• Oven capacity: 37 Litres
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
Key Features
12 Volt ignition
Charcoal Black
Full flame failure devices
Brand
Thetford
Type
Ovens & Grills
Model
Midi Prima Mk4
Oven Burner
1.6kW
Height Description
640mm
Width
495mm
Depth
460mm
Weight
16.5kg
Material
Glass Doors
Colour
Black
Gas Burners
N/A
Lid
N/A
Grill Burner
1.6kW
Ignition
12V
Knobs
Nickle
Total Input
3.2kW
Capacity Description
37 Litres
Connections Description
5/16" Spigot
Brochure
Installation Instructions
Manual
Duplex high-quality 12v combined oven and grill made with a contemporary design and superior cooking performance. An oven and grill combination in black that looks great and cooks beautifully too. Features include a double burner (one for the oven, one for the grill), reliable and simple controls, high quality components, simple to install.
Gas inlet connection - 5/16” spigot.
Key Features
Flame failure device on valves
Oven shelf
Multifunctional pan
Detachable handle and pan trivet
High-quality materials and components
Optimal use of space
Superior cooking performance
Brand
Thetford
Type
Ovens & Grills
Voltage Description
12V DC
Model
Duplex 12V
Oven Burner
1.5kW
Height Description
438mm
Width
445mm
Depth
490mm
Weight
13.5 Kg
Colour
Black
Grill Burner
1.6kW
Ignition
12V
Knobs
Nickel
Capacity Description
36 Litres
Input
3.1 kW
OVEN GRILL IM AM 700 and 520 Series EN
Spare Part List N435.B

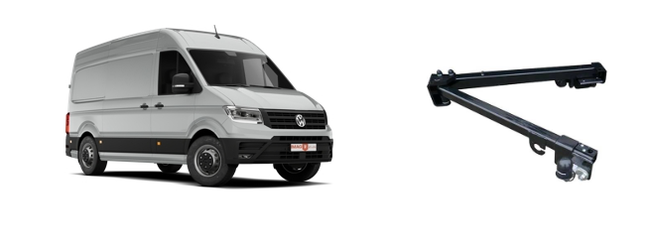

Memo Van-Swing Swivel
The Memo Van-Swing has a smart hinge pivoting construction, with which you can easily turn the bike carrier away from the rear doors, even if there are bikes on it.
This means that the luggage compartment of your Motorhome / Van is always easily accessible. The Van-Swing is suitable for almost every standard bike carrier for the towbar. It can carry a total of 60 kg, in most cases sufficient for your bike carrier and two bikes.
Locking Pin:
The swing has a locking pin that allows you to lock the carrier when closed, to prevent it swinging open when moving.
Mounting on a flange ball:
The Van-Swing is mounted on the existing towbar with a flange ball and fits directly on most brands of towbars. This construction offers an easy solution for your campervan and gives the Van-Swing more load capacity. The Van-Swing may not fit (directly) on your towbar, for some variants, we have solutions available. Get in contact for the right solution.
European type approval
The Van-Swing has a European-type approval. You are guaranteed to be safe on the road.
Note: The van swing is not suitable for towing trailer loads.
Video
Brand
Memo Europe
Type
Mounting Kits
Width
Width: 960 mm. Width from the centre of the campervan: 900 mm
Weight
Payload: 60 kg (including bicycle carrier). Own weight: 22 kg
Material
Powder-coated steel
Colour
Black
Windscreen darkening blind for Fiat Ducato 250/290
This double-pleated windscreen blind was specially designed for Fiat Ducato and similar models, such as the Peugeot Boxer and Citroën Jumper models from July 2006 onwards. Enjoy greater privacy and maintain comfortable temperatures by keeping out heat or cold. The Dometic FP 210 windscreen darkening blind is easy to install and suitable for left- and right-hand-drive vehicles. It also fits the new Fiat Ducato Series 8 models equipped with mechanical or electronic central rear-view mirrors.
Double-pleated honeycomb material for optimised insulation and maximum robustness
Simple, comfortable, stepless handling ensures privacy protection
Effective darkening thanks to 100 % light-tight material
Specially developed for vehicles with central rear mirror
Perfect finish – looks like an integrated solution
Not suitable for vehicles with folding beds, parcel shelves, head-up displays or optionally installed A-pillar airbags
Suitable for vehicles with rain or camera sensor boxes
SKU number
9104124796
Model
FP210
Model on label
FP 210
Scope of delivery
FP210 in box
Product Description
Windscreen darkening blind for Fiat Ducato 250/290
Dimensions product height, [mm]
900
Dimensions product width, [mm]
1616
Dimensions ordered width, [mm]
1616
Dimensions ordered height, [mm]
900
Net weight, [kg]
4.40
Dometic FP210 - Installation and Operating Manual EMEA16
Dometic FP200, FP210, FP220, FP300 - Drill Template
