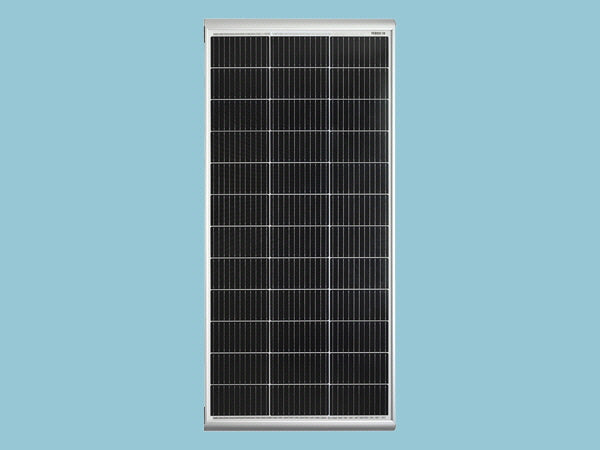

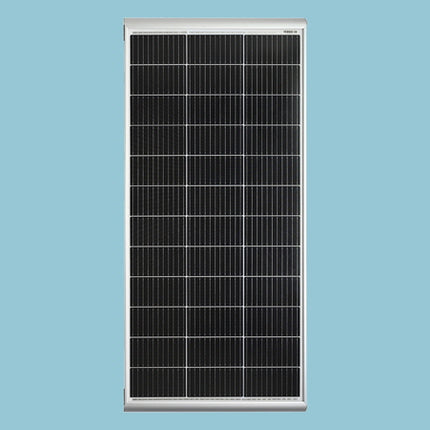

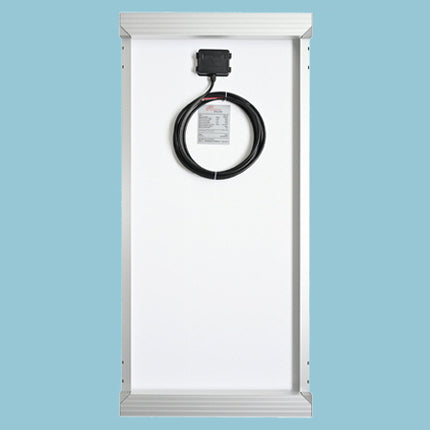

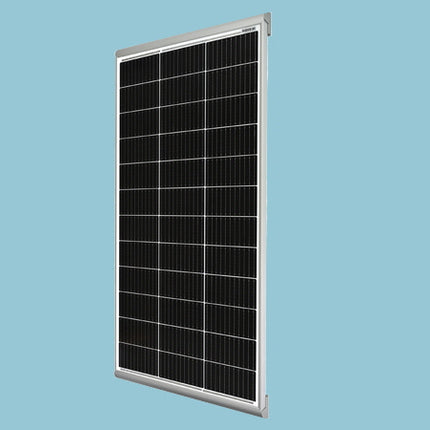

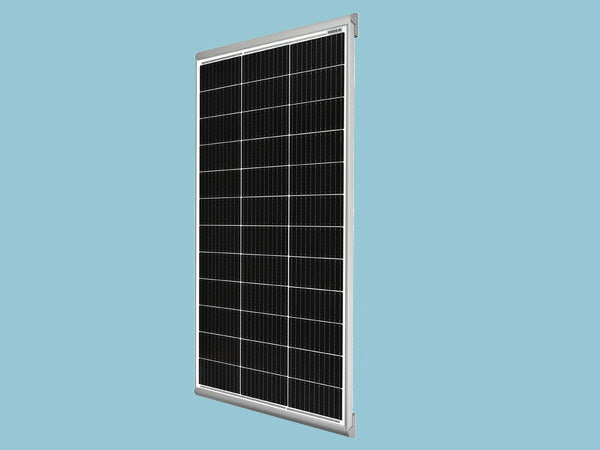

135W RV SUNSHINE SOLAR PANEL - INTEGRATED MOUNTS

This RV Solar Panel from Sunshine Solar is a slimline 135W solar panel with integrated roof mounts, seamlessly fitted for an aesthetically pleasing look and an aerodynamic performance. Best of all having the mounts already pre-fitted means you do not have to source and fit the mounts yourself, saving money and time.

Specifications

• Product Code. SRG135
• Max Power. 135W ± 3%
• Max Power Voltage. 20.9V
• Max Power Current. 6.46A
• Open Circuit Voltage. 24.5V
• Short Circuit Current. 6.78A
• Normal Operating Cell Temp. -45 to 80°C
• Max System Voltage. DC1000V
• Dimensions. 1265 x 590 x 55mm
• Weight. 8.8kg

Features

• Integrated Streamline Aluminium Roof Mounts

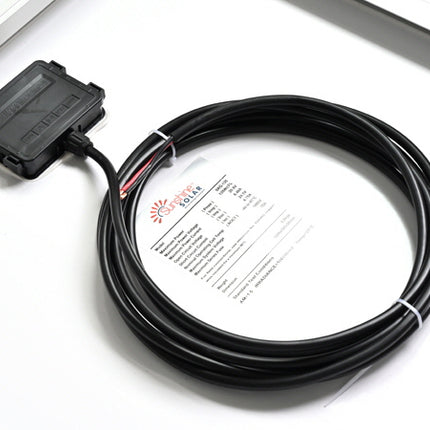

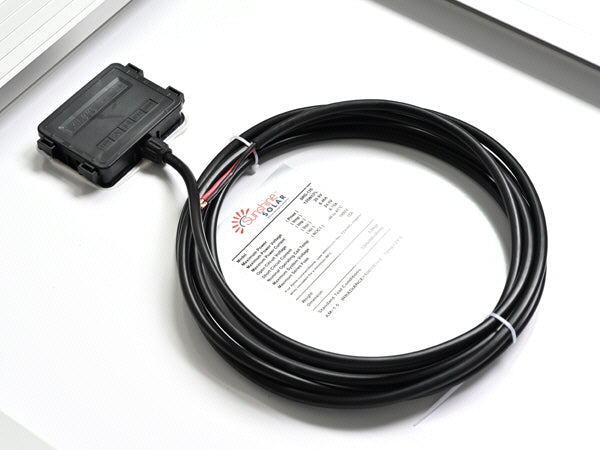

• 5m of twin-core insulated cable
• High Performance Monocrystalline Cells
• Factory fitted aluminium frame
• Multiple pieces can be connected to acquire higher power
• Suitable for charging all types of 12 volt batteries
• Fitted with bypass diodes to minimise the effect of shading
• Completely weatherproof

Guaranteed Performance

• 10 Years Warranty
• 25 Years Service Life

Suitable Solar Charge Controllers

• PWM Solar Controller 10A - 12/24V
• Dual Battery Controller 10A - 12/24V
• MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)
• Dual MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)

For more info, please view the link below.

• Data Sheet
