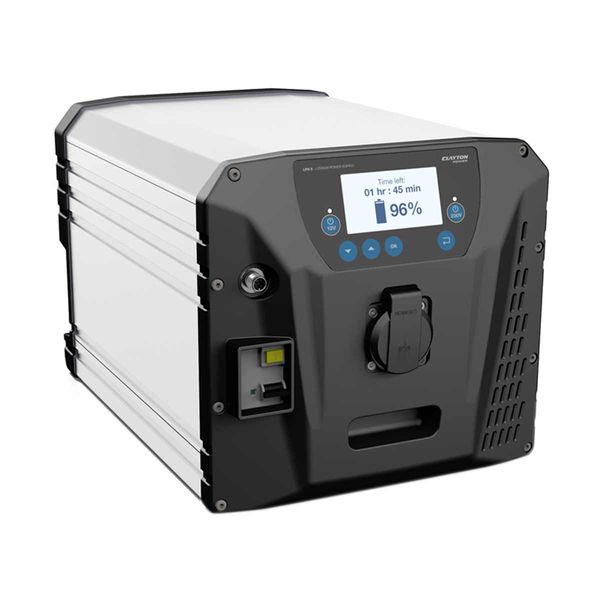

The Ultimate Van Charging & Camping Power Solution

A powerful and compact Lithium Power Supply (LPS) built to provide power to 230V AC and 12V DC appliances without the complexities of additional equipment. This LPS2 1512-100 SE model has an output of 1500W and autonomy/capacity of 1kWh, appropriate for light, heating, charging of batteries and PC. This Lithium Power Supply offers flexible charging options. The built-in booster allows regeneration with 300W from any alternator. Connected to mains, the built-in intelligent charger regenerates with 550W. The lithium battery capacity of 1kWh means that you can run an application with a consumption of 1000W in one hour, 500W for two hours and 250W for four hours. The battery can handle 2000 cycles - which is usually equivalent to 10 years of use. For the LPS II remote control (supplied separately), see product code CP-RL1802. This remote allows the user to view state of charge, status and active jump start function. For the LPS II mounting bracket (supplied separately), see product code CP-AL2001. 230 V/50 Hz output - Peak: 2600 W - Power: 1500 W 12 VDC output - 60 Seconds: 270 A - Continuously: 180 A Built-in Li-Ion Battery - Capacity: 1320 Wh (100 Ah) - Efficient energy: 1kWh Charging - Alternator: 300W - Mains: 550W Brand Clayton Power Type Power Supply Units Model CL2204 Height Description 256mm Width 277mm Depth 409mm Weight 22.5kg Output 230 V/50 Hz Output: Peak: 2600 W, Power: 1500 W Wattage Charging: Alternator: 300 W, Mains: 550 W Operating Temperature -20°C - 50°C Amps Description 12V Output: 60 Seconds: 270 A, Continously: 180 A Capacity Description Built-in Li-Ion Battery: 1320 Wh (100 Ah) Country of Origin Denmark Downloads: LPS II Installation Guide Manual and Safety Instructions LPS II Operating LPS II with Remote

Read more less

A powerful and compact Lithium Power Supply (LPS) built to provide power to 230V AC and 12V DC appliances without the complexities of additional equipment. The LPS II 2000 model has a built-in 1kWh lithium-ion battery, 230V sine wave inverter, booster (charging from alternator), 400W MPPT charge controller (charging from solar panels), intelligent charger (charging from mains), relays etc. This Lithium Power Supply offers flexible charging options. The built-in booster allows regeneration with 500W from any alternator. Connected to mains, the built-in intelligent charger regenerates with 750W. Connect solar panels directly - the built-in solar charge controller also allows regeneration from the sun with 400W. The lithium battery capacity of 1kWh means that you can run an application with a consumption of 1000W in one hour, 500W for two hours and 250W for four hours. The battery can handle 2000 cycles - which is usually equivalent to 10 years of use. For the LPS II remote control (supplied separately), see product code CP-RL1802. This remote allows the user to view state of charge, status and active jump start function. For the LPS II mounting bracket (supplied separately), see product code CP-AL2001. 230 V/50 Hz output - Peak: 3000W - Power: 2000W 12 V DC output - 60 Seconds: 270 A - Continuously: 180 A Built-in Li-Ion Battery - Capacity: 1320 Wh (100 Ah) - Efficient energy: 1kWh Charging Alternator: 500W / SC: 1000W Solar panels: 400W Mains: 750W Brand Clayton Power Type Power Supply Units Model CL2205 Height Description 256mm Width 277mm Depth 409mm Weight 22.5kg Output 230 V/50 Hz Output: Peak: 3000 W, Power: 2000 W Wattage Charging: Alternator: 500 W / SC: 1000 W, Mains: 750 W, Solar Panels: 400 W Operating Temperature -20°C - 50°C Amps Description 12V Output: 60 Seconds: 270 A, Continously: 180 A Capacity Description Built-in Li-Ion Battery: 1320 Wh (100 Ah) Country of Origin Denmark   Downloads LPS II Installation Guide Manual and Safety Instructions LPS II Operating LPS II with Remote

Read more less

A powerful and compact Lithium Power Supply (LPS) built to provide power to 230V AC and 12V DC appliances without the complexities of additional equipment. The LPS II 2500 model has a built-in 1kWh lithium-ion battery, 230V sine wave inverter, booster (charging from alternator), 400W MPPT charge controller (charging from solar panels), intelligent charger (charging from mains), relays etc. This Lithium Power Supply offers flexible charging options. The built-in booster allows regeneration with 500W from any alternator. Connected to mains, the built-in intelligent charger regenerates with 750W. Connect solar panels directly - the built-in solar charge controller also allows regeneration from the sun with 400W. The lithium battery capacity of 1kWh means that you can run an application with a consumption of 1000W in one hour, 500W for two hours and 250W for four hours. The battery can handle 2000 cycles - which is usually equivalent to 10 years of use. For the LPS II remote control (supplied separately), see product code CP-RL1802. This remote allows the user to view state of charge, status and active jump start function. For the LPS II mounting bracket (supplied separately), see product code CP-AL2001. 230 V/50 Hz output - Peak: 4000W - Power: 2500W 12 VDC output - 60 Seconds: 270 A - Continuously: 180 A Built-in Li-Ion Battery - Capacity: 1320 Wh (100 Ah) - Efficient energy: 1kWh Charging Alternator: 500W / SC: 1000W Solar panels: 400W Mains: 750W Brand Clayton Power Type Power Supply Units Model CL2112 Height Description 256mm Width 277mm Depth 409mm Weight 23.5kg Output 230 V/50 Hz Output: Peak: 4000 W, Power: 2500 W Wattage Charging: Alternator: 500 W / SC: 1000 W, Mains: 750 W, Solar Panels: 400 W Operating Temperature -20°C - 50°C Amps Description 12V Output: 60 Seconds: 270 A, Continously: 180 A Capacity Description Built-in Li-Ion Battery: 1320 Wh (100 Ah) Country of Origin Denmark   LPS II Installation Guide Manual and Safety Instructions LPS II Operating LPS II with Remote

Read more less

A powerful and compact Lithium Power Supply (LPS) built to provide power to 230V AC and 12V DC appliances without the complexities of additional equipment. The LPS II 3000 model has a built-in 2kWh lithium-ion battery, 230V sine wave inverter, booster (charging from alternator), 400W MPPT charge controller (charging from solar panels), intelligent charger (charging from mains), relays etc. This Lithium Power Supply offers flexible charging options. The built-in booster allows regeneration with 500W from any alternator. Connected to mains, the built-in intelligent charger regenerates with 750W. Connect solar panels directly - the built-in solar charge controller also allows regeneration from the sun with 400W. For the LPS II remote control (supplied separately), see product code CP-RL1802. This remote allows the user to view state of charge, status and active jump start function. For the LPS II mounting bracket (supplied separately), see product code CP-AL2001. 230 V/50 Hz output - Peak: 5000W - Power: 3000W 12 VDC output - 60 Seconds: 350 A - Continuously: 180 A Built-in Li-Ion Battery - Capacity: 2160 Wh (160 Ah) - Efficient energy: 2kWh Charging Alternator: 500W / SC: 1000W Solar panels: 400W Mains: 750W Brand Clayton Power Type Power Supply Units Model CL2113 Height Description 256mm Width 277mm Depth 409mm Weight 27.5kg Output 230 V/50 Hz Output: Peak: 5000 W, Power: 3000 W Wattage Charging: Alternator: 500 W / SC: 1000 W, Mains: 750 W, Solar Panels: 400 W Operating Temperature -20°C - 50°C Amps Description 12V Output: 60 Seconds: 350 A, Continously: 180 A Capacity Description Built-in Li-Ion Battery: 2160 Wh (160 Ah) Country of Origin Denmark Downloads LPS II Installation Guide Manual and Safety Instructions LPS II Operating LPS II with Remote

Read more less

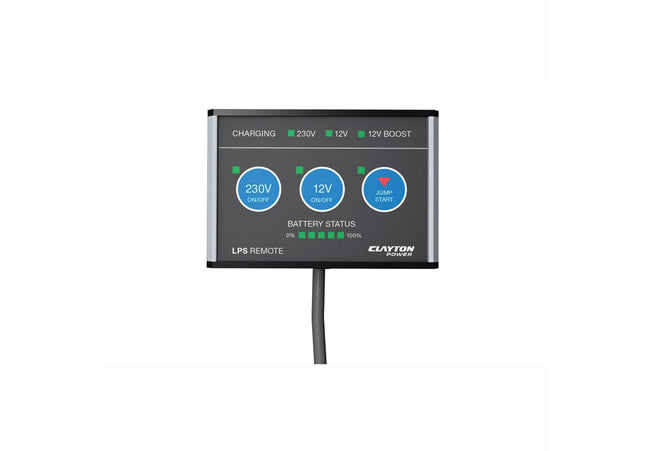

LPS II Lithium-Ion Battery Remote Clayton Power   Connection Instructions Remote Control Guide Plug and go - You´ve got the power! Push Button Remote for the 1 and 2 kWh Li-Ion batteries, allowing you to view state of charge, status and active jump start function. Model No. LPS II Remote / RL1802 Width 75 mm Height 50 mm Depth 15 mm Connections 6m Cable

Read more less

The Clayton Power 600W Supercharge DC-DC Converter is a high-quality power conversion device designed to convert 12V DC power to 24V DC power, with a maximum output power of 600W. The converter is compact and easy to install, making it ideal for use in a wide range of applications where a stable and reliable power supply is required for 24V DC devices. It also features a user-friendly interface that allows for easy control and monitoring of the device's status. The CD1801 DC-DC converter is designed to work with a range of power sources, including lead-acid batteries, lithium-ion batteries, and other DC power sources. It is optimized to work with the Clayton Power Lithium Power Supply II devices and can efficiently convert the DC power from the battery to the voltage level required by the equipment being powered. Together, the Clayton Lithium Power Supply II and the CD1801 DC-DC converter provide a complete power solution that is ideal for mobile applications such as recreational vehicles, boats, and service vehicles. Electrical characteristics Supply voltage: 10.9 V - 32 V Input current: 0-45 A Output voltage: 14.4 V or 28.8 V Output current: 0-40 A Brand Clayton Power Type Battery Chargers Model CD1802 Height Description 40mm Width 110.5mm Depth 222mm Weight 620g Country of Origin Denmark Downloads Manual DC DC Converter

Read more less

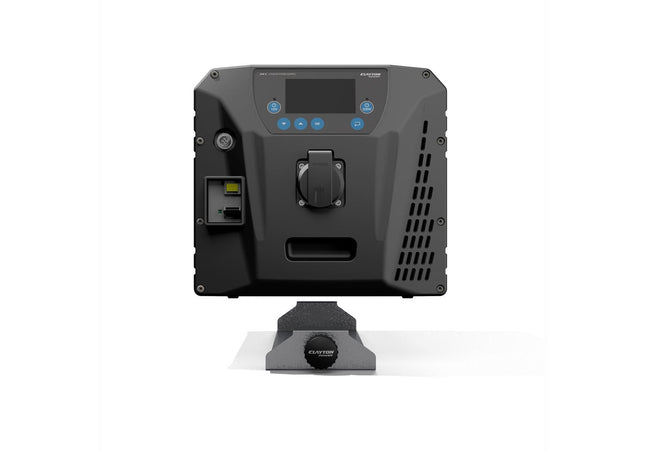

LPS II Lithium-Ion Battery Mounting Bracket Clayton Power   Plug and go - You´ve got the power! Mounting Bracket for the 1 and 2 kWh Li-Ion batteries, not included in the kits as standard. Model No. AL2001

Read more less

Clayton Power 5 m cable set for alternator AL2101   Kit Contents Red Cable 16mm², 4.10m, Ø 8mm - Ø 8mm   Red Cable 16mm², 0.90m, Ø 8mm - Ø 6mm   Black Cable 16mm², 0.90m, Ø 8mm - Ø 8mm   Black Cable 16mm², 4.10m, Ø 8mm - Ø 8mm   Mega Fuse Holder 027-400500 Mega Fuse 60 amp 027-400300 Blue Cable 1mm², 5.00m, Micro Fuse holder, Ø 4mm 027-400800 Mini Fuse Holder 027-400900 10 amp Micro Fuse   10 amp Mini Fuse

Read more less
