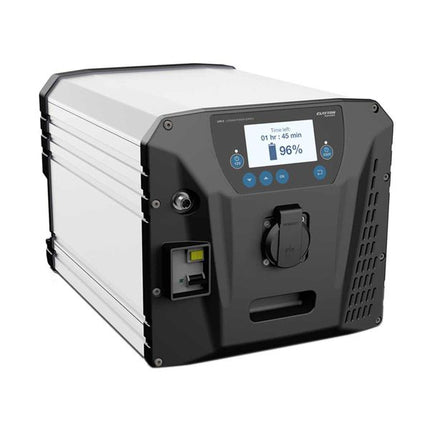

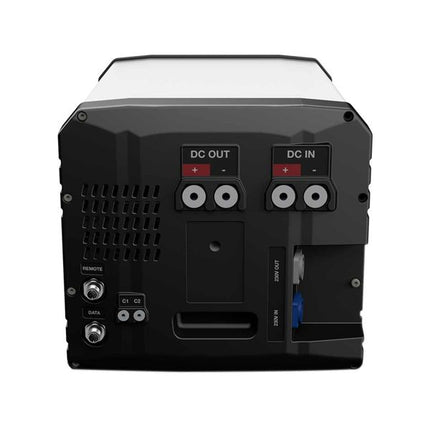

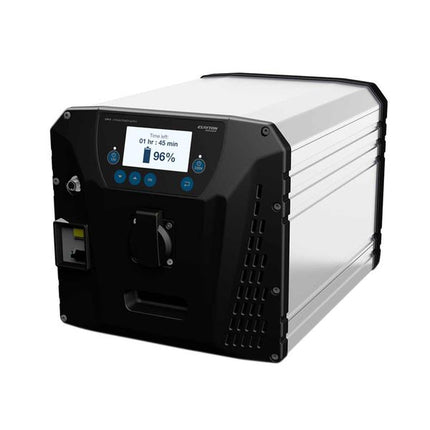

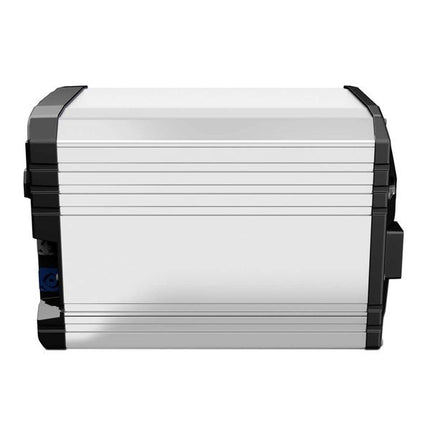

A powerful and compact Lithium Power Supply (LPS) built to provide power to 230V AC and 12V DC appliances without the complexities of additional equipment.
This LPS2 1512-100 SE model has an output of 1500W and autonomy/capacity of 1kWh, appropriate for light, heating, charging of batteries and PC.
This Lithium Power Supply offers flexible charging options. The built-in booster allows regeneration with 300W from any alternator. Connected to mains, the built-in intelligent charger regenerates with 550W.
The lithium battery capacity of 1kWh means that you can run an application with a consumption of 1000W in one hour, 500W for two hours and 250W for four hours. The battery can handle 2000 cycles - which is usually equivalent to 10 years of use.
For the LPS II remote control (supplied separately), see product code CP-RL1802. This remote allows the user to view state of charge, status and active jump start function.
For the LPS II mounting bracket (supplied separately), see product code CP-AL2001.
230 V/50 Hz output
- Peak: 2600 W
- Power: 1500 W
12 VDC output
- 60 Seconds: 270 A
- Continuously: 180 A
Built-in Li-Ion Battery
- Capacity: 1320 Wh (100 Ah)
- Efficient energy: 1kWh
Charging
- Alternator: 300W
- Mains: 550W
| Brand |
Clayton Power |
| Type |
Power Supply Units |
| Model |
CL2204 |
| Height Description |
256mm |
| Width |
277mm |
| Depth |
409mm |
| Weight |
22.5kg |
| Output |
230 V/50 Hz Output: Peak: 2600 W, Power: 1500 W |
| Wattage |
Charging: Alternator: 300 W, Mains: 550 W |
| Operating Temperature |
-20°C - 50°C |
| Amps Description |
12V Output: 60 Seconds: 270 A, Continously: 180 A |
| Capacity Description |
Built-in Li-Ion Battery: 1320 Wh (100 Ah) |
| Country of Origin |
Denmark |
Downloads:
LPS II Installation Guide
Manual and Safety Instructions LPS II
Operating LPS II with Remote
