This Solar Power Caravan & Motorhome Kit includes a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups
With this 150 Watt solar power kit you could expect to generate around 41 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
Solar Panel Specifications
High Efficiency Monocrystalline Cells
Maximum Power (Pmax): 150W
Maximum Power Current (Ipm): 8.31A
Maximum Power Voltage (Vpm): 18.1V
Short Circuit Current (Isc): 8.66A
Open Circuit Voltage (Voc): 22.4V
Norminal Operating Cell Temp. (NOCT): -45 to 80??C
Maximum System Voltage: DC1000V
Size: 1475mm x 670mm x 35mm
Weight: 11.20kg
Kit Features
1 x Sunshine Solar Panels 150W 12V
1 x Solar Battery Controller 20A - 12V/24V
2 x 6m Single Core Cable 4mm
1 x Waterproof Cable Entry Cover
6 x ABS Moulded Corner Brackets
MC4 Connectors
With this 150 Watt solar power kit you could expect to generate around 50 amps per day during the summer months supplementing the 12V leisure battery power in boats etc.
SPECS
Maximum Power (Pmax): 150W
Maximum Power Current (Ipm): 7.58A
Maximum Power Voltage (Vpm): 19.8V
Short Circuit Current (Isc): 8.09A
Open Circuit Voltage (Voc): 23.4V
Norminal Operating Cell Temp. (NOCT): -45 to 80??C
Maximum System Voltage: DC600V
Maximum Series Fuse: 9A
Size: 1510 x 670 x 2mm
Weight: 5.5kg
FEATURES
20?? flexibility
Coated surface which can be walked on in deck shoes.
Highly efficient monocrystalline cells
Can be conveniently placed on curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
IN THE KIT
1 x Solar Panel 150W 12V Monocrystalline
1 x Single Battery Controller 20A - 12V/24V - with Display
2 x 6m 4mm Single Core Cable
1 x Waterproof Cable Entry Cover
MCA Connectors
This 120W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. This kit features a Slimline Solar Panel so that even with the narrowest of spaces you can still accommodate our most popular 120W Solar Panel. With the 120 Watt solar power kit you could expect to generate around 31 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.
Need More Power?...... Upgrade to an MPPT controller above for 10-30% eXtra Power
Area and Fitting Information :
Fitted ABS Corner Mounts will add 120mm to the overall length and width of the solar panel .
Fitted Streamline Mounts will add 120mm to the overall length of the solar panel.
The width of this solar panel is 580mm the Streamline Mounts are 660mm therefore you may prefer to cut them down for a more aesthetically pleasing look.
Kit Performance - Summertime
Standard Controller: 31A per day - (10-30% more with MPPT Controller)

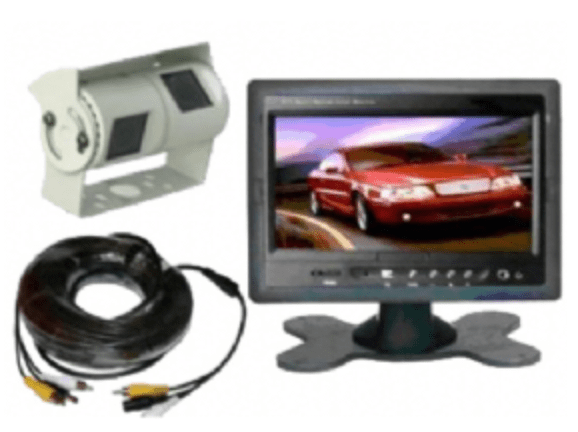

The advantage of this system is that you can aim one camera down at the rear bumper and have it powered from the reversing lights, so that this lens would act as your reversing camera.
The other camera would be aimed straight outwards, or if you are towing a trailer, it can be aimed to keep an eye on the trailer and be powered from a switch on the dashboard of the vehicle.
This camera could be on whenever you wanted it on and could give you permanent rear vision when you are on the move.
Comes with white camera, 20 metres of cable with two video and one power lead.
SPECIFICATIONS:
Waterproof cameras with IR function for night vision
Ip rating: Ip66
Image sensors: 1/3" Sony Colour CCD
TV system: PAL
Effective Pixels: 512/582
Sensing area: 4.9mm x 3.7mm
Resolution (TV lines): 520
Min illumination (Lua/F1.2) 0
Horizontal Sync Frequency (KHZ) 1/50~1/10,000
Vertical Sync Frequency (HZ) 15.625
Video output: 1Vp-p, 75Ohm
BLC: Auto
S/N Ratio: Better than 48dB
Lens: F=2.2mm
Lens Angle: 150 Deg./90 Deg.
Current Consumption: 290 mA
Power supply: 12v DC
Operating Temperature: -20~+80 Deg C (RH95%Max)
Dimensions: 75mm X 43mm X 57mm
7" TFT-LCD colour monitor
Screen size: 7 inches (16:9)
Overall size: (W) 175mm, (H) 125mm, (D) 19mm
Resolution degree: 480(W) X RGB X 234(H)
System: PAL
Video: Two-way video input, V1/V2 switchable
Audio: One-way audio input
Rearview: AV2 is for rearview camera input
Choose your colour for camera housing....Black or White

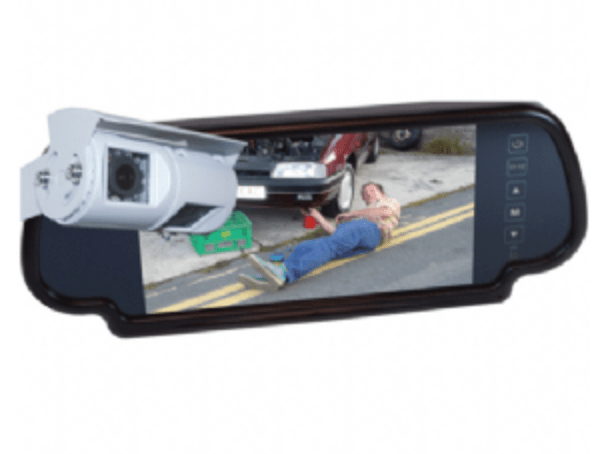

The advantage of this system is that you can aim one camera down at the rear bumper and have it powered from the reversing lights, so that this lens would act as your reversing camera.
The other camera would be aimed straight outwards, or if you are towing a trailer, it can be aimed to keep an eye on the trailer and be powered from a switch on the dashboard of the vehicle.
This camera could be on whenever you wanted it on and could give you permanent rear vision when you are on the move.
Comes with white or black camera, 20 metres of cable with two video and one power lead.
SPECIFICATIONS:
Waterproof cameras with IR function for night vision
Ip rating: Ip66
Image sensors: 1/3" Sony Colour CCD
TV system: PAL
Effective Pixels: 512/582
Sensing area: 4.9mm x 3.7mm
Resolution (TV lines): 520
Min illumination (Lua/F1.2) 0
Horizontal Sync Frequency (KHZ) 1/50~1/10,000
Vertical Sync Frequency (HZ) 15.625
Video output: 1Vp-p, 75Ohm
BLC: Auto
S/N Ratio: Better than 48dB
Lens: F=2.2mm
Lens Angle: 150 Deg./90 Deg.
Current Consumption: 290 mA
Power supply: 12v DC
Operating Temperature: -20~+80 Deg C (RH95%Max)
Dimensions: 75mm X 43mm X 57mm
7" TFT-LCD colour mirror monitor
Screen size: 7 inches (16:9)
Overall size: (W) 250mm, (H) 108mm, (D) 22mm
Resolution degree: 800(W) X RGB X 480(H)
System: PAL
Video: Two-way video input, V1/V2 switchable
Rearview: AV2 is for rear view camera input
Power: 12v DC
Comes with a 7" TFT Colour monitor that can be flush mounted or mounted on its own adjustable stand,
a heavy duty Rear View Colour Camera(White) with LED night vision, and 20 metres of video/power cable.
The colour monitor has 2 video inputs and comes with a remote control.
Screen size: 7 inches (16:9)
Overall size: (W) 175mm, (H) 125mm, (D) 19mm
System: PAL
Resolution: 480(W) X RGB X 234(H)
Power requirement: 12 v
Audio input: One audio input
The Camera is waterproof and is ideal for fitting high up on the rear of a motorhome or truck. It has 18 LEDs for good clear night vision.
TV system: PAL
Lens angle: 120 degrees
Resolution: 380TV/420TV Line
Image Sensor: 0V 1/3 inch colour CMOS
Effective Pixels: 512x582 pixels
Min illumination: 2.0 LUX (0 LUX/LEDS ON)
Power requirement: DC 9~15v, 150mA

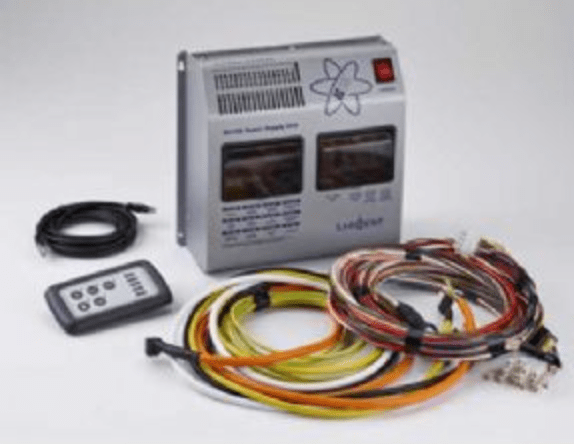

Complete EC155/EC50 Kit
The EC155 / EC50 Electrical Kit is specifically designed for customers that are building their own motorhome or caravan conversion.
The kit contains a compact EC155 power supply unit and an EC50 control panel that is connected via a 5 metre length control lead.
The DIY harness simply plugs into the EC155 unit and provides the available 230V and 12V inputs and outputs for you to terminate into.
