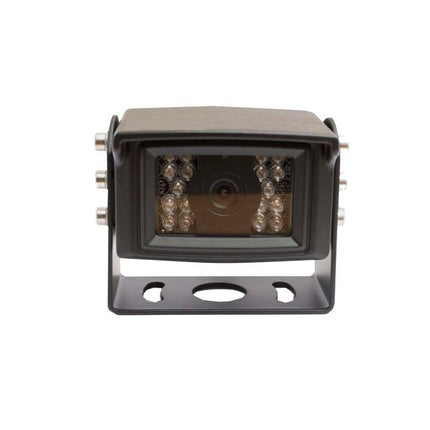

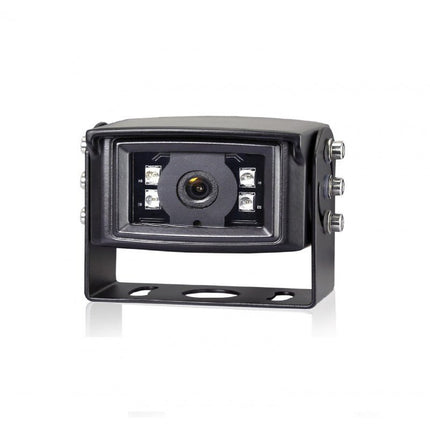

This black night vision exterior mounted camera has a light sensor which automatically activates its infrared illumination as the evening draws in.
The wide 120° daylight view and an impressive 92° night time view means this camera will cover you in all conditions
Features
- IP69 Tested waterproof and weather resistant rear view/reverse camera with infrared
- Suitable for external use
- Automatically detects when its dark and switches to night vision mode
- Infrared distance: 15m
- 18 infrared LED lights
- Mirrors the image behind the vehicle as if it were a rear view mirror with the ability to switch views to a normal CCTV view
- 20M Extension cable included in the box
Specification
| Product |
Black Rear View Reversing Camera with IR |
| Camera Lens |
Pixelplus 1/3” Colour CMOS PC1089 |
| TV System |
PAL |
| Resolution: |
728 x 488 pixels |
| Sensing Area |
4.6228 mm x 3.6112 mm |
| Scanning System |
2:1 Interlace |
| Sync. System |
Internal |
| Minimum Illumination: |
0.1 Lux (day), 0 Lux (with IR) |
| Microphone |
Yes |
| Video Output |
1.0 vp-p, 75 Ohm |
| Gamma Consumption: |
0.45/td> |
| AGC |
Auto |
| S/N Ratio: |
Better than 48 dB |
| White Balance |
Auto |
| Electronic Shutter: |
1/50 Sec.-1/100000 Sec. (PAL) |
| BLC |
Auto |
| Power Consumption |
Day: 12V / 55mA, 24V / 40mA; Night: 12V / 120mA, 24V / 75mA |
| Power Supply |
12V (8~32V available) |
| Connection |
RCA / 4 PIN |
| Operating Temperature |
-20°C~70°C, RH 95% Max. |
| Storage Temperature |
-40°C~80°C,RH95% Max. |
| Lens: |
2.8mm |
| Lens Angle: |
120° |
