Rooftop air conditioner RTA-2500L black
Create the desired climate in your camping vehicle with the Mestic roof air conditioner RTA-2500L. The roof air conditioner not only cools, but also heats in combination with the integrated heat pump. Simply set the temperature between 16 °C and 31 °C.
Environmentally friendly refrigerant
Cool, heat or ventilate the camper or caravan with the Mestic roof air conditioner RTA-2500L. With a cooling power of 2500 W and a heating power of 2750 W, this air conditioner is suitable for vehicles up to 8 m long. You easily set the caravan air conditioner between 16 °C and 31 °C. Much of the housing is made of polypropylene, a very strong and lightweight material. In addition, the roof air conditioner is compact in size. This leaves enough space on the roof to fit a solar panel or roof box. The refrigerant used in this air conditioner is the very environmentally friendly and efficient R290 gas. This gas has a GWP (Global Warming Potential) of only 3, which is significantly lower than other refrigerants.
Main benefits
Cools, heats and ventilates
Cooling capacity: 2500 W
Heating capacity: 2750 W
Setting range: 16 °C to 31 °C
Polypropylene housing reduces weight
Adjustable air flow: controls volume to the left and right
Installation dimensions: 40 x 40 cm (even possible from 38 x 38 cm)
Dimensions: 96 x 58.5 x 25.9 cm (lxwxh)
Adjustable airflow volume
Want to keep your vehicle cool while sleeping without the cool airflow directed at you? It can! The airflow of the Mestic roof air conditioner RTA-2500L can be adjusted left and right separately. You can also choose to only use the ventilation modes at night. Thanks to the handy timer function, you decide how long you leave the air conditioner on. Do you usually sleep lightly? The already very quiet air conditioner gets even quieter in sleep mode. And if that's not enough, the caravan air conditioner even features atmospheric LED lighting. Set all this easily via the touchscreen display of the indoor unit, the included remote control or your smartphone in combination with the Mestic app.
Cooling, heating, ventilating: the Mestic roof air conditioner RTA-2500L can do it all! With the Mestic app, you have full control over the climate in your caravan or camper. Adjustable from 16 °C to 31 °C, environmentally friendly refrigerant, with polypropylene housing, adjustable airflow and more.
Installation Manual
Specifications
Article number
1517860
Connection voltage
230 V | 50 Hz
Number of ventilation levels
3
Dimensions (lxwxh)
96 x 58,5 x 25,9 cm
Width indoor unit
67 cm
Width outdoor unit
96 cm
Depth indoor unit
52,3 cm
Depth outdoor unit
58,5 cm
Display
Touchscreen display
EAN-code
8712757479955
Suitable for vehicles up to
8 m
Weight
36 kg
Height indoor unit
5 cm
Height outdoor unit
25,9 cm
Including remote control
Yes
Adjustable temperature range
16 - 31 °C
Colour
Black
Cooling power
2500 W | 8530 BTU/h
Refrigerant
R290 (GWP 3)
Airflow
In volume adjustable to the left and right side
Air flow capacity
350 m³/h
Night mode
Yes
Power consumption (cooling/heating)
4,3 A (950 W) / 4,4 A (965 W)
Timer
Yes
Filter
HEPA filter
Heating power
2750 W | 9383 BTU/h
Operating temperature
-5 °C to 46 °C
The Cubo Breeze® V2 Campervan Awning is crafted for adventurers seeking versatile space, breathability, and an effortless set-up whilst on the go.
Its ingeniously designed layout offers generous room, creating a homey extension to your vehicle, whether you’re setting up for an overnight stay, relaxing with a book, sharing a meal with friends, or simply enjoying the fresh air, the Cubo Breeze V2 Campervan Awning is the perfect shelter.
The Cubo Breeze V2 Campervan Awning now comes with dual doors on the tunnel for easy entry to your vehicle without the worry of bringing mud into your awning, as well as peak canopy pole at the front of the Awning which provides adequate shelter for opening and closing the main door.
Made from OLTECH® REPRO 150D fabric - repurposed single-use plastic bottles – the Cubo Breeze V2 is a sustainable alternative to most Campervan Awnings on the market. The Cubo Breeze V2 also utilises OLPRO’s Breeze technology, ensuring a quick pitch time of just 10 minutes with its multi-point inflation beams.
The Cubo Breeze® v2 features OLPRO’s AQUABARRIER™ & TERRAGRIP™ systems, offering unparalleled protection from water ingress & stability no matter the pitch.
AQUABARRIER™ is OLPRO’s new zip system, a four-tiered approach to keeping water out of your awning. With AQUABARRIER™, you can camp with confidence, knowing that your gear is protected from water ingress, even in the most challenging conditions.
TERRAGRIP™ is OLPRO’s new customisable pegging system. Offering best in class stability, TERRAGRIP™ is a game-changer for anyone who loves camping. Born from the need to improve the performance of flysheets, TERRAGRIP™ is designed to give you more control over your awning, ensuring it stays secure and taut, no matter the weather or terrain.
The awning features dual beading on the tunnel (4mm & 6mm) to fit standard awning rails (fixed or roll out) and can be used on your sliding door or your tailgate/barn doors.
The versatile design of the Cubo Breeze V2 Campervan Awning makes it ideally suited for both tailgate and side door configurations, ensuring a seamless and adaptable outdoor experience for any adventure.
The Cubo Breeze® V2 Campervan Awning features:
Dual doors on the tunnel
Tension strap on the tunnel
Dual beading on the tunnel (4mm & 6mm)
AQUABARRIER Zip System
TERRAGRIP Pegging system
Tunnel throw-over straps
Sewn-in Groundsheet
Ventilation Panels
Peak canopy pole on the front of the awning for adequate shelter
PVC windows
Pegs included
Bright guy lines included
Manual pump included
Large carry bag
Repair kit included
Spare beam included
Made from/with:
OLTECH® REPRO 150D – a sustainable material that is made from repurposed single-use plastic bottles.
OLPRO’s Breeze® technology – reinforced TPU Beams
5000mm H/H
Specification:
Will Fit: All vehicles between a height of 190cm and 250cm
Colours Available: Charcoal, Blue & Grey, Orange & Black, Light Grey & Lime
Height (cm): 220cm (86.6")
Length (cm): 310cm (122.0")
Width (cm): 310cm (122.0")
Packed Dimensions (cm): 82cm x 37cm x 37cm (32.28" x 14.56" x 14.56")
Weight (kg): 18kg
Hydrostatic Head: 5,000mm H/H
Material: OLTECH REPRO 150D
Inflatable Beams: Reinforced TPU Beams
Awning Beading: 4mm & 6mm
Sewn-in Groundsheet: Yes
Pitching Time: 10 Minutes
Number of Doors: 2
Number of Windows: 4
Bedroom Inner: No
Standing Room: Yes
What's Included? Manual Pump, Pegs, Guy Ropes, Storm Straps, Tunnel Throw Over Straps, Carry Bag, Repair Kit
Please note: This is not a stock item and will take 21days from date of order to be received
Maxxair - Skymaxx LX Lid Assembly 11-00205I For SkyMaxx LX & Plus
Installation kit for fitting the 57-litre Wheel Arch Water Tank
Kit contents:
6 x M8 x 12mm socket button head stainless steel
6 x M8 x 25mm washer stainless steel
2 x 50mm x 55mm x 30mm angle bracket
4 x 150mm x 90mm x 60mm angle bracket
Brand
Wydale Plastics
Model
WAKF57
Country of Origin
United Kingdom
A robust 57-litre water storage tank tailored for vans and pickups.
Designed with practicality in mind, this tank features 11x M8 inserts moulded directly into its structure, facilitating effortless mounting and installation.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T57WBK5
Height Description
500mm
Width
355mm
Depth
750mm
Weight
6.5kg
Colour
Black
Outlet
1/2" BSP
Capacity Description
57 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T57WBK5
Fresh design, superior energy efficiency: this smart compressor-cooled refrigerator provides 44L of cool storage. Its elegant frameless door, incorporating a black front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 4.4 l freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing.
General Features
3-in-1 cooling solution: fridge, freezer or both at the same time
Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent)
Frameless door with black front panel and full-width handle
Beveled rear side for maximal utilisation of space on board
Reversible door hinge - can be fitted left or right as required
Dual function locks can also act as vents for your fridge
Standard or flush-mount installation frame available as accessory
Dimensions (DxHxW) 510 x 525 x 380mm
Weight 17kg
Suitable For
Volkswagen T6
Replaces
Dometic CRE 50 9600003193
Brand
Dometic
Type
Integrated Fridges
Voltage Description
12V - 24V DC
Model
NRX0050E
Height Description
525mm
Width
380mm
Depth
510mm
Weight
17kg
Colour
Black
Freezer Capacity
4.4 Litres
Fridge Capacity
46 Litres
Wattage
40W
Approvals
TÜV/GS
Consumption
1.1 A/hr +20°C ambient temp, 1.7 A/hr at +32°C ambient temp
Application
Motorhome, Caravan, Boat
Series
CoolMatic
Amps Description
5A
Capacity Description
46 Litres (12.1 US Gallons)
Energy Supply
Compressor 12-24V
Country of Origin
Germany
Contents
Refrigerator, Drain Elbow, Short Operating Manual, Installation Manual
Superseded with the
https://laevp.co.uk/products/truma-monocontrol-crash-safe-gas-regulator-8mm?utm_source=copyToPasteBoard&utm_medium=product-links&utm_content=web
MonoControl CS from Truma is a safety gas pressure regulator for caravans and motorhomes.
The gas pressure regulator ensures a uniform output pressure of 30 mbar with a permissible inlet pressure range of 0.3 to 16 bar.
The integrated crash sensor (CS) interrupts the flow of gas in the event of an accident with directly acting deceleration of 4.0 g ± 1.0 g.
The regulator with safety valve is a single-stage gas pressure regulator. If the gas pressure regulator is not working properly, for example due to dirt or other foreign material on the valve, the safety valve opens and blows off to a pressure of 110 mbar.
Please note:
Using the MonoControl CS in closed rooms (e.g. at home), on boats or in EX Zone 0 (e.g. tankers) is prohibited.
The national regulations must be observed if there is a possibility of it being used in mobile homes. Its use in mobile homes is prohibited in Germany.
An automatic PRV (Pressure Relief Valve) safety device integrated in the MonoControl CS with limited flow protects the connected consumers against impermissibly high pressure. As soon as an impermissibly high pressure arises on the output side, the PRV opens and blows out the overpressure into the air. The PRV closes automatically after the pressure is reduced.
MonoControl CS must not be used for commercial purposes.
- Gas type: Liquefied gas (propane / butane)
- Admission pressure: 0.3 - 16 bar
- Output pressure: 30 mbar
- Regulator capacity: 1.5 kg/h
- Regulator inlet: Male thread M20 x 1.5 (G.13)
- Regulator outlet: Olive screw connection 8mm
- Horizontal triggering value: 4.0 g ± 1.0 g
- Operating temperature: -20 °C to +50 °C
Recommended tightening torque:
- 3 – 5 Nm for union nut M20 x 1.5 (G.13)
- 14 – 19 Nm for olive screw connection 8mm
Key Features
Easy to see if the crash sensor has been triggered and easy to reset
Lightweight and quick to install
5 Year manufacturer warranty
Brand
Truma
Type
Gas Regulators
Flow Rate Description
Max. 1.5 kg/h
Inlet Pressure
0.3 to 16 bar
Outlet Pressure
30 mbar
Approvals
CE 0085
Inlet Connection
Male thread M20 x 1.5 (G.13)
Outlet Connection
Olive screw connection 8mm
Fuel
LPG
Country of Origin
Germany
Downloads
Operating Instructions Truma MonoControl CS
Designed for the installation on the A-Frame
Ideal for e-bikes with a load capacity up to 60 kg
Easy to load thanks to lowered platform
Lockable bike holders with a key to secure and lock your bikes on the carrier
Completely tiltable with bikes on for full access to storage space
Adjustable tilt-stop system for one-hand handling and protection of the car
Lockable platform: prevents your bikes from moving during transport, it locks manually
Carriers can be extended up to 3 bikes. Set for 3rd bike is sold separately.
Technical Specs
Compatibility: Caravan
Mounting Location: Caravan A Frame
Load Cap: 2-3
Max Weight: 30kg
Max Weight Capacity: 60g
Total Width: 130cm
Height: 85cm
Depth: 57cm
Weight: 9.7kg
3rd Rail Frame Holder - Model Number : 306577
Stable and solid attachment to the rear wall of a motorhome or caravan Load capacity up to 50 kg Lockable platforms: prevents your bikes from moving during transport, it locks manually the best position for your bikes using the easy-to-adjust rails that slide from left to right like holders with optional locksets all pre-installed fixation points and rails (except Hymer)Carrier can be extended up to 3 bikes. The set for 3rd bike is sold separately technical.
Product Specifications
Compatibility: Motorhomes /. Caravans
Mounting Locations: Rear Wall
Load Capacity For Bikes: 2-3
Max Bike Weight: 19Kg
Max Bike Capacity: 50kg
E-Bike Capability: N/A
Sliding Rail Depth: N/A
Lockable Platform: Read Manual
Total Width: 126cm
Height: Standard 80-150cm / Short Vers 40-70cm
Depth: Standard 65 cm, Short Vers 68cm
Weight: Standard 8.2 kg, Short Vers 7.9kg
The Vector tap series from Reich is a modern range of taps that are elegant in appearance and extremely lightweight. These taps have been specifically designed to have a more household appearance than the usual styles found in Caravans/Motorhomes. The Vector S is for use in kitchen areas and can be swivelled through a 120° arc. This tap is complete with 250mm long - push fit 12mm nozzles. Base diameter is 33mm. This range is used by certain UK Caravan/Motorhome manufacturers. Tap is delivered with Micro-switch.
Connections Description
ø 12mm
Brand
Reich
Type
Mixer Tap
Height
199mm
Length
159mm
Diameter Description
33mm

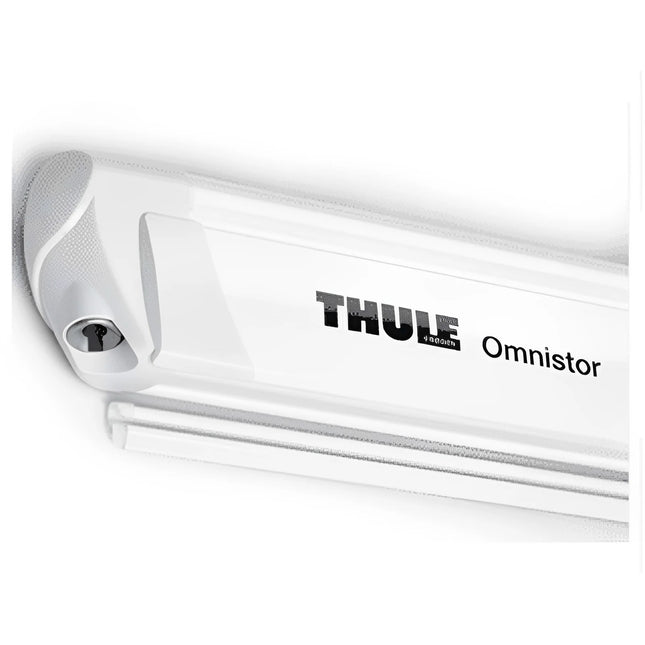

Thule provides quality solutions and products that make your touring or camping experience effortless and enjoyable! Thule Omnistor Awnings are high-quality units that are designed to extend your outside living space. Thule has introduced a range of brackets and adaptors to safely secure your Thule Omnistor Awning to either: the sidewall, the caravan rail or the roof of your vehicle.
Suitable: For 4200, 4900 , 5200 Awnings
