The SRGH135 is a glass free monocrystalline solar module fitted into a black aluminium frame. Only weighing approximately half that of a rigid glass solar panel, makes it perfect where weight restrictions are required. The high strength design and impact resistance prevents deformation caused by heat and load and defends against hail, whilst the innovative super insulation and honeycomb structure enhances heat dissipation and energy conversion efficiency. With this Sunshine 135W solar panel you could expect to generate around 32 amps per day when used in conjunction with a PWM solar charge controller and around 45 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed. Specifications Product Code. SRGH135 Max Power. 135W ± 3% Max Power Voltage. 20.9V Max Power Current. 6.46A Open Circuit Voltage. 24.5V Short Circuit Current. 6.78A Normal Operating Cell Temp. -20 to 75°C Max System Voltage. DC1000V Dimensions. 1275 x 620 x 11mm Weight. 3.70kg Features 3m of twin-core insulated cable High Performance Monocrystalline Cells Factory fitted aluminium frame with pre-drilled mounting holes Multiple pieces can be connected to acquire higher power Suitable for charging all types of 12 volt batteries Fitted with bypass diode Completely weatherproof Guaranteed Performance 10 Years Warranty 20 Years Service Life Suitable Solar Charge Controllers PWM Solar Controller 10A - 12/24V Dual Battery Controller 10A - 12/24V MPPT Single Solar Controller 10A - 12/24V (10% - 30% more power generation) MPPT Dual Solar Controller 10A - 12/24V (10% - 30% more power generation) Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical. Save Money.....on a selection of Add-on items when you purchase them with this product.

Read more less

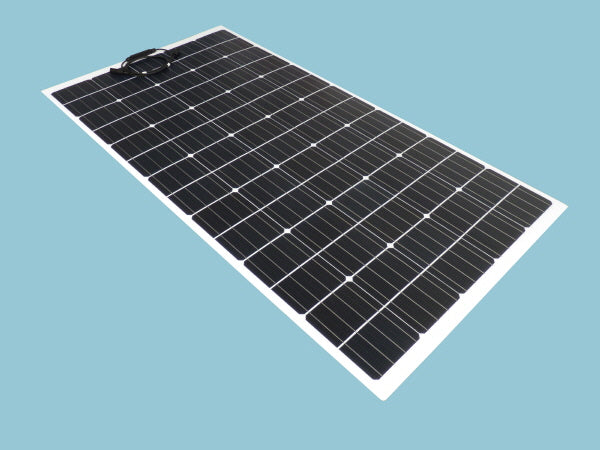

This 150W Sunshine Solar RV Flexible ETFE Panel boasts ultra pure silicon delivering optimal power conversion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes the flexible ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option. The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.  The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance. With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an  MPPT Solar Controller during the summer months.   Solar Panel Specifications Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 7.18A Maximum Power Voltage (Vpm): 20.9V Short Circuit Current (Isc): 7.54A Open Circuit Voltage (Voc): 24.5V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC600V Size: 1110 x 710 x 2mm Weight: 2.8 kg   Features Six fixing eyelets ETFE rough scratch resistant surface which can be walked on in deck shoes. Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) Three Year Manufacturers Warranty 5 Year Manufacturers Warranty Please view this Document for more info.

Read more less

This Sunshine Solar Flexible ETFE 150W 12V boasts ultra pure silicon delivering optimal power conversion. A solid copper foundation adds massive strength and prevents corrosion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes the ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option. The Sunshine Flexible ETFE 150W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller. If you are looking for maximum yield from your solar panel for a 12 volt battery systems the 150W Flexible Solar Panel will provide the answer. With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an MPPT Solar Controller during the summer months. Solar Panel Specifications Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.33A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 9.08A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC600V Size: 1220 x 670 x 4mm Weight:.4.10 kg Features 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes. Aluminium Substrate Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) 5 Year Manufacturers Warranty

Read more less

This Sunshine Solar Flexible ETFE 100W 12V boasts ultra pure silicon delivering optimal power conversion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.   The Sunshine Flexible ETFE 150W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller. If you are looking for maximum yield from your solar panel for  a 12 volt battery systems the 150W Flexible Solar Panel will provide the answer. With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an  MPPT Solar Controller during the summer months.   Solar Panel Specifications Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.33A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 9.08A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC600V Size: 1450 x 540 x 4mm Weight: 2.45 kg Features 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes. Aluminium Substrate Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) One Year Manufacturers Warranty   Please view this Document for more info.

Read more less

With this 150 Watt solar power kit you could expect to generate around 50 amps per day during the summer months supplementing the 12V leisure battery power in boats etc. SPECS Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 7.58A Maximum Power Voltage (Vpm): 19.8V Short Circuit Current (Isc): 8.09A Open Circuit Voltage (Voc): 23.4V Norminal Operating Cell Temp. (NOCT): -45 to 80??C Maximum System Voltage: DC600V Maximum Series Fuse: 9A Size: 1510 x 670 x 2mm Weight: 5.5kg FEATURES 20?? flexibility Coated surface which can be walked on in deck shoes. Highly efficient monocrystalline cells Can be conveniently placed on curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) IN THE KIT 1 x Solar Panel 150W 12V Monocrystalline 1 x Single Battery Controller 20A - 12V/24V - with Display 2 x 6m 4mm Single Core Cable 1 x Waterproof Cable Entry Cover MCA Connectors

Read more less

This Solar Power Caravan & Motorhome Kit includes a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups With this 150 Watt solar power kit you could expect to generate around 41 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.  Solar Panel Specifications High Efficiency Monocrystalline Cells Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.31A Maximum Power Voltage (Vpm): 18.1V Short Circuit Current (Isc): 8.66A Open Circuit Voltage (Voc): 22.4V Norminal Operating Cell Temp. (NOCT): -45 to 80??C Maximum System Voltage: DC1000V Size: 1475mm x 670mm x 35mm Weight: 11.20kg Kit Features 1 x Sunshine Solar Panels 150W 12V 1 x Solar Battery Controller 20A - 12V/24V 2 x 6m Single Core Cable 4mm 1 x Waterproof Cable Entry Cover 6 x ABS Moulded Corner Brackets MC4 Connectors

Read more less

This 150W Sunshine Flexible Solar Caravan Motorhome & Boat Kit offers outstanding performance and great value for money. With this 150 Watt solar power kit you could expect to generate around 38 amps with the standard PWM controller supplied with this kit. With an MPPT controller upgade this increases to 50 amps per day during the summer months supplementing the 12V leisure battery power in boats caravan, campervan etc. The Sunshine Flexible ETFE 150W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller. If you are looking for maximum yield from your solar panel for a 12 volt battery systems the 150W Flexible Solar Panel will provide the answer. With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an MPPT Solar Controller during the summer months. Solar Panel Specifications Brand. Sunshine Solar Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.33A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 9.08A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC600V Size: 1220 x 670 x 4mm Weight:.4.10 kg Features 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes. Aluminium Substrate Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) 5 Year Manufacturers Warranty Data Sheet

Read more less

This 150W Sunshine Flexible Solar Caravan Motorhome & Boat Kit offers outstanding performance and great value for money. With this 150 Watt solar power kit you could expect to generate around 38 amps with the standard PWM controller supplied with this kit. With an MPPT controller upgade this increases to 50 amps per day during the summer months supplementing the 12V leisure battery power in boats caravan, campervan etc. The Sunshine Flexible ETFE 150W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller. If you are looking for maximum yield from your solar panel for  a 12 volt battery systems the 150W Flexible Solar Panel will provide the answer. With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an  MPPT Solar Controller during the summer months.   Solar Panel Specifications Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.33A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 9.08A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC600V Size: 1450 x 540 x 4mm Weight: 2.45 kg Features 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes. Aluminium Substrate Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) One Year Manufacturers Warranty   Data Sheet

Read more less

This 150W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. This kit features a Slimline Solar Panel so that even with the narrowest of spaces you can still accommodate our most popular 150W Solar Panel. With the 150 Watt solar power kit you could expect to generate around 40 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups. Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter. Please note: The Bluetooth Adapter is only compatible with the MPPT Dual Controller DuoRacer (Upgrade). If you are upgrading to the MPPT Single Controller this has Bluetooth capabilities built-in, so for easy system monitoring you will just need to download the free APP and you are ready to go. Need More Power?...... Upgrade to an MPPT controller above for 10-30% eXtra Power Area and Fitting Information : Fitted ABS Corner Mounts will add 120mm to the overall length and width of the solar panel . Kit Performance - Summertime Standard Controller: 40A per day - (10-30% more with MPPT Controller)

Read more less

This 150W Sunshine Solar RV Flexible Solar Kit offers outstanding performance and great value for money. With this 150 Watt solar power kit you could expect to generate around 36 amps with the standard PWM controller supplied with this kit. With an MPPT controller upgrade this increases to 50 amps per day during the summer months supplementing the 12V leisure battery power in boats caravan, campervan etc. The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.  The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance. With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an  MPPT Solar Controller during the summer months.   Solar Panel Specifications Brand. Sunshine Solar Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 7.18A Maximum Power Voltage (Vpm): 20.9V Short Circuit Current (Isc): 7.54A Open Circuit Voltage (Voc): 24.5V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC600V Size: 1110 x 770 x 2mm Weight: 2.8 kg   Features Six fixing eyelets ETFE rough scratch resistant surface which can be walked on in deck shoes. Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) Three Year Manufacturers Warranty

Read more less

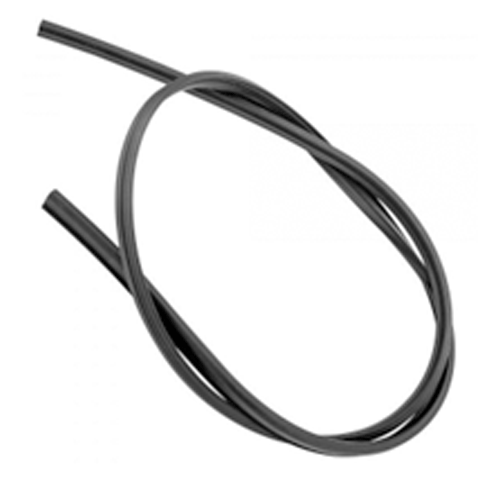

RUBBER GASKET TO CONVERT A ROOFLIGHT 'WITH 150 SQ CM PERMANENT VENTILATION' INTO A 'WITHOUT VENTILATION' VERSION. OR TO REPLACE EXISTING RUBBER GASKET. ONLY SUITABLE FOR MPK MODELS 49P/49PL VISION STAR M PRO 2
