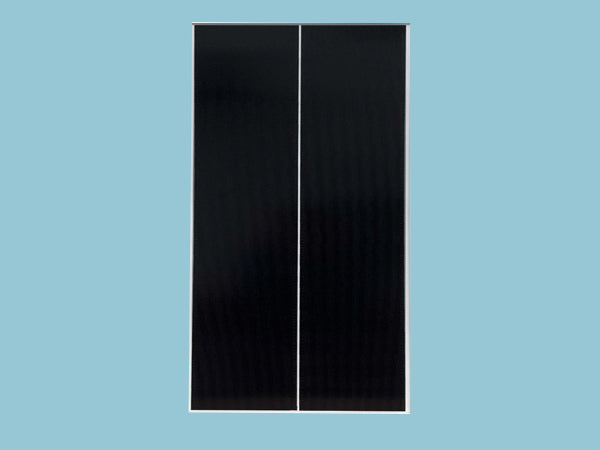

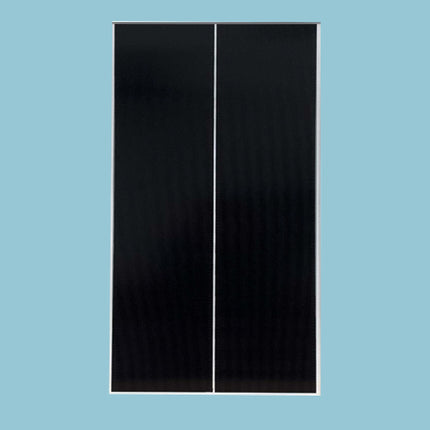

135W Sunshine Lightweight Solar Panel - Glass Free
135W Sunshine Lightweight Solar Panel - Glass Free
Couldn't load pickup availability
The SRGH135 is a glass free monocrystalline solar module fitted into a black aluminium frame. Only weighing approximately half that of a rigid glass solar panel, makes it perfect where weight restrictions are required. The high strength design and impact resistance prevents deformation caused by heat and load and defends against hail, whilst the innovative super insulation and honeycomb structure enhances heat dissipation and energy conversion efficiency.
With this Sunshine 135W solar panel you could expect to generate around 32 amps per day when used in conjunction with a PWM solar charge controller and around 45 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
- Product Code. SRGH135
- Max Power. 135W ± 3%
- Max Power Voltage. 20.9V
- Max Power Current. 6.46A
- Open Circuit Voltage. 24.5V
- Short Circuit Current. 6.78A
- Normal Operating Cell Temp. -20 to 75°C
- Max System Voltage. DC1000V
- Dimensions. 1275 x 620 x 11mm
- Weight. 3.70kg
Features
- 3m of twin-core insulated cable
- High Performance Monocrystalline Cells
- Factory fitted aluminium frame with pre-drilled mounting holes
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12 volt batteries
- Fitted with bypass diode
- Completely weatherproof
Guaranteed Performance
- 10 Years Warranty
- 20 Years Service Life
Suitable Solar Charge Controllers
- PWM Solar Controller 10A - 12/24V
- Dual Battery Controller 10A - 12/24V
- MPPT Single Solar Controller 10A - 12/24V (10% - 30% more power generation)
- MPPT Dual Solar Controller 10A - 12/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical.
