| The advantage of this system is that you can aim one camera down at the rear bumper and have it powered from the reversing lights, so that this lens would act as your reversing camera. |
| The other camera would be aimed straight outwards, or if you are towing a trailer, it can be aimed to keep an eye on the trailer and be powered from a switch on the dashboard of the vehicle. |
| This camera could be on whenever you wanted it on and could give you permanent rear vision when you are on the move. |

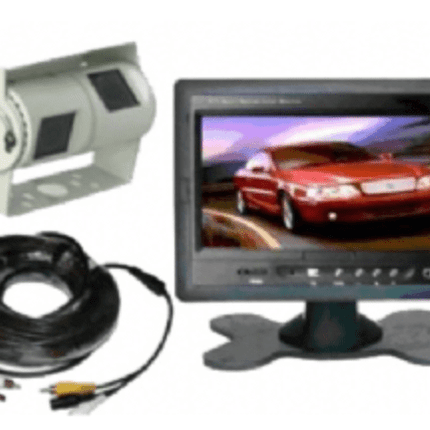

| Comes with white camera, 20 metres of cable with two video and one power lead. |
| SPECIFICATIONS: |
| Waterproof cameras with IR function for night vision |
| Ip rating: Ip66 |
| Image sensors: 1/3" Sony Colour CCD |
| TV system: PAL |
| Effective Pixels: 512/582 |
| Sensing area: 4.9mm x 3.7mm |
| Resolution (TV lines): 520 |
| Min illumination (Lua/F1.2) 0 |
| Horizontal Sync Frequency (KHZ) 1/50~1/10,000 |
| Vertical Sync Frequency (HZ) 15.625 |
| Video output: 1Vp-p, 75Ohm |
| BLC: Auto |
| S/N Ratio: Better than 48dB |
| Lens: F=2.2mm |
| Lens Angle: 150 Deg./90 Deg. |
| Current Consumption: 290 mA |
| Power supply: 12v DC |
| Operating Temperature: -20~+80 Deg C (RH95%Max) |
| Dimensions: 75mm X 43mm X 57mm |
|
| 7" TFT-LCD colour monitor |
| Screen size: 7 inches (16:9) |
| Overall size: (W) 175mm, (H) 125mm, (D) 19mm |
| Resolution degree: 480(W) X RGB X 234(H) |
| System: PAL |
| Video: Two-way video input, V1/V2 switchable |
| Audio: One-way audio input |
| Rearview: AV2 is for rearview camera input |
