The compact Dometic 9722 hob and sink combination has the sink on the right hand side and the two hob burners on the left hand side. It comes complete with two heat-resistant safety glass lids that can provide extra work space when closed, and an easy-to-clean enamelled pan support and safety ignition system. The Dometic MO 9722L is supplied with sink waste and rubber seal.
Brand
Dometic
Type
Hob & Sink Unit
Model
9722
Shape Description
Rectangular
Height Description
179mm
Width
760mm
Depth
325mm
Weight
6.0kg
Material
Stainless Steel and Glass
Colour
Black and Silver
Cut Out
270 x 220 x 130mm
Gas Burners
2
Ignition
Piezo
Knobs
Black and Silver
Total Input
2.9kW
Wattage
1.8 kW (x1), 1 kW (x1)
NOTE: Tap is available separately.
Warm white light with the light starkness
60-70 power LEDs per meter
Power consumption 340-380mA per meter
Working voltage 12 VDC
Suitable for outdoor usage: waterproof IP65
Can also be used inside the vehicle to create more light
Can be shortened each 5 cm to fit the right length
Comes with high-quality 3M tape on the back to stick to most standard surfaces
Available in 4, 5, or 6m strips, can be shortened each 5cm
White light, starkness up to 300 Lumen
1-meter connection cable included
Mounting rails required for 5200 & 6200/6300/9200
For the installation of LED lights on roof awnings Thule Omnistor 6300/6200/9200.
Features:
An aluminium profile fits into the opening of the bottom of the awning cassette
The LED light can be used both when the awning is opened or closed
Water storage tank engineered specifically for vans and pickups.
Constructed from WRAS approved polyethylene, this 100-litre tank ensures the safe storage of potable water, meeting stringent quality standards for peace of mind.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T100WBK5
Height Description
680mm
Width
260mm
Depth
1100mm
Weight
11kg
Colour
Black
Outlet
1/2" BSP
Capacity Description
100 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T100WBK5
Adapter for the installation of a 4200 awning going on to a VW T5/T6 van with a original fixed roof or elevating roof.
POP TOP Conversions
Not suitable for vans with multi-rail.
Please click the PDF link for further information and installation instructions.
Avon Leisure batteries make sure there’s power where there are no sockets: whether it’s on the road in a camper van or on a yacht at sea. They can always be relied on to provide the perfect mobile energy supply, when it’s simply not possible or practical to plug into the mains.
Measurements
Width 175mm x Length 266mm x Height 220mm
Approx Weight
20.7 kg
Other Specifications
Voltage: 12
Ah: 75
Terminal Layout
Fitments
Ideal solution for caravan boat motorhome or leisure purpose
A rubber that ensures that the gap between the vehicle and the wall awning is sealed when using a flat adapter.
Suitable for the wall-mouunted awning. Thule Omnistor series 5 & 8 Width 8cm
Available in cut length of 4.0m or 30mtr roll.
Retrofit installation by replacing the gearbox of a manual
Thule Omnistor 5200 awning 12V DC motor with a manual override mechanism allows you to open the awning without any effort.
Control is made with a switch through a one-touch commandMotor stops automatically when the awning is fully opened or closed.
Comes with a relay in order to prevent the awning can be operated while driving Integrated manual override with a hand crank in case of power failure.
Only 1 kg additional weight and 3cm additional length compared to a manual awning
Different colors are available to match the different awning colors.
Please click the >Pdf for more info.

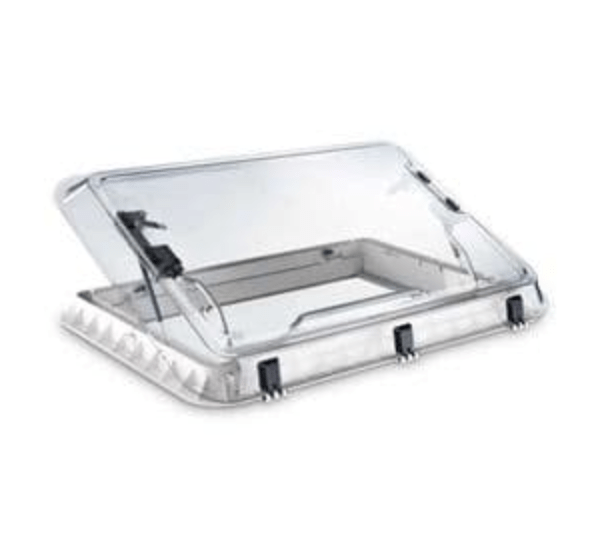

This large tilting roof window will allow fresh air and sunlight in while keeping insects out! Separately adjustable fly and darkening screens give you added control.
Item Specification
Dimensions product depth 790 mm
Dimensions product width 1080 mm
Net weight 11 kg
Cut out height 655.00 mm
Cut out width 960.00 mm
Opening angle max 55.00
Positions fixed 3
Pneumatic springs for easy opening
Separately adjustable darkening and fly screens
Forced ventilation
Double acrylic glazing
Documentation & Downloads
Dometic Heki2 - Installation and Operating Manual EMEA16
Dometic Heki2 - Figures EMEA
This control box can be installed as an option with any of the Thule 12v steps it automatically opens the step when the door is opened and retracts the step when the door is closed
Automatic retraction of any Thule 12V entry step when starting the engine
The connection selector switch can be set to auto mode so the step automatically opens and closes with the caravan door, or open mode so the step stays open when you're stationary for a long period of time
Thule Part No 308812

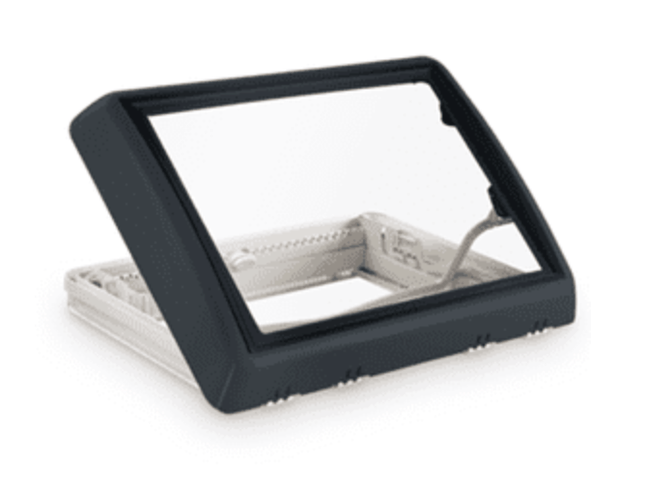

Easy Operation, one hand use tinted Dome with strong UV-filter Flat Double Glazed Dome (only 80mm o.r.)Can be opened to 70?? angle up to 150cm?? of permanent ventilation even when blind is closed its in standard 400 x 400mm aperture size of dome: 490 x 470mmInterior Frame with pleated blind and not insulated frame for enhanced insulation and improved noise reductionInner Frame: 565 x 530 x 35mm.
