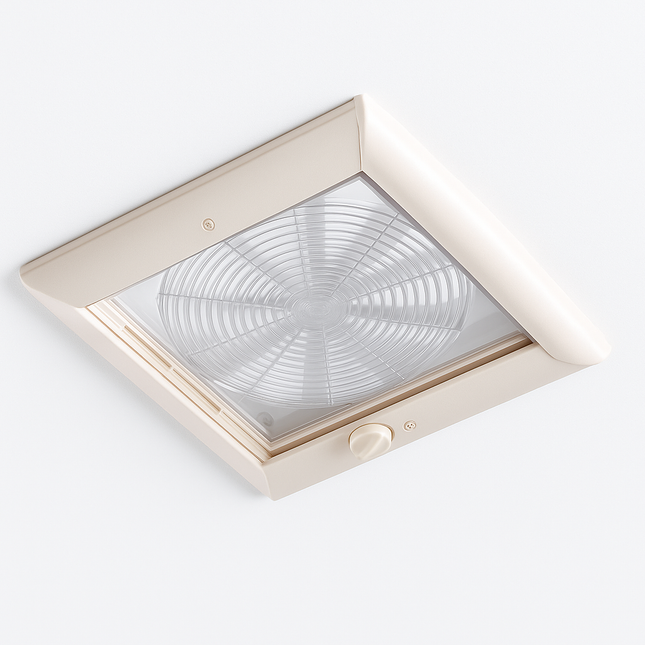

Easy installation without drilling
The roof light is mounted with special clamps so that it is not necessary to drill through the roof, except to create the opening itself
Aperture size: 400mm x 400mm
Exterior dimensions: 459mm x 472mm
Roof thickness: 25-60mm
Aerodynamic shape
All materials are made of impact and weather-resistant plastics
Adjustable ventilator speed
In addition to 12 ventilation speeds, the Thule Vent has an energy-saving function, a boost function and a safety mechanism to guard against excess voltage, incorrect connection and blockage
Compatibility
Motorhomes/Caravans
Colour
White
Weight
4.5 kg
Model number
200063
Installation Manual PDF
Zadi Barrel & Keys. Various sets available.
Set of 1 Barrell & 2 Keys,Set of 4 Barrell & 2 Keys,Set of 5 Barrell & 2 Keys,Set of 6 Barrell & 2 Keys,Set of 7 Barrell & 2 Keys,Set of 8 Barrell & 2 Keys
Caravan Motorhome Door Locks
Check Zadi keys specifications via this PDF LINK <CLICK HERE
Thule 4200
The best wall-mounted awning for compact vans and motorhomes
Sleek design to obtain the best integration on the motorhome
or compact van through new, vehicle specific end cap shapes
(automotive / standard)
Perfect clamping force support leg
Improved storage of the support legs in the lead rail
Flat adapter delivered as standard. Special adapters
for wall mounting need to be ordered separately
Patented roller tube support for better fabric tension
and reduced wrinkling of the fabric
Easy roller tube adjustment: perfect closing of
the cassette on the side opposite to the gear
The oval support legs are dropped out vertically
to reduce the risk of damaging the vehicle wall
Suitable for a slim and round design
Lightest of its category: 17.5 kg for 2.60 m awning
Awning lengths from 4.00 m and more have a
Thule Tension Rafter G2 supplied as standard
Integrated anti-rattling solutions
Contemporary look
2.60 & 3.0m supplied with Automotive end caps
3.50m> supplied with standard end caps
Anti-rattle clips are designed to keep road noise down and end users happy!
Completely redesigned support legs for better slip resistance.
Technical Specification
Awning Lengths & Roll-Out Length
2.60 x 2.00m
3.00 x 2.50m
3.50 x 2.50m
4.00 x 2.50m
4.50 x 2.50m
Application: Caravan, Motorhome & Vans
Fitting Location: Side Wall
Fabric Finish: Mystic Grey
Box Colors: White, Anodised & Anthracite
Please see additional info in the links below
Instruction / Size Chart
Lifting system Electric Bed
Engineered to lift and / or lower in the rear garage, above the dinette or driver’s seat
High-performing gear motor with optional integrated encoder
The device fits completely under the bed frame and offers maximum fitting flexibility
Complete bed lifting system is ready for installation (comes with or without the bed frame)
Includes manual emergency system
Heavy-duty steel and aluminum construction
Available with an advanced control system to manage different positions
Technical specifications may change depending on customer request
Available with wall-mounted supports
Smart Bed Manuals
Smart Bed Universal Kit Oem Installation Manual (EU)
Smart Electric Bed (A)
Includes all components required: motor unit, stabilization rails, shafts, fixing plates and 4 m belts
Adapts to standard measurements up to a maximum of 2.000 × 1.600 mm
Includes a Lifty handle for manual use

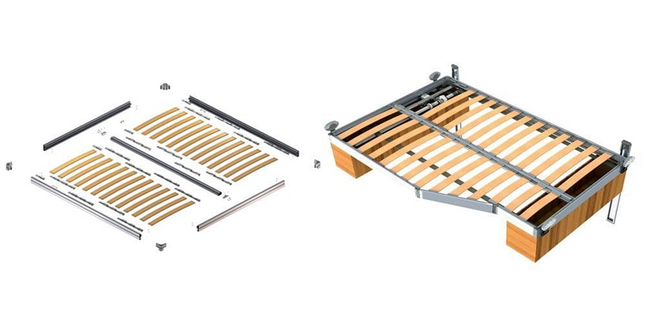

Smart Frame (B)
Allows you to create a custom bed frame for your unique vehicle space
Includes standard wooden slats and slat holders that can be cut to size
Smart Accessory (C)
Attaches the smart bed frame (B) to the bed lifting system (A)
Stroke Range 300 to 1.500 mm
Static Load Lift 250 kg
Brand
Lippert
Type
Bedframe
Width
1.300 mm
Length
2.000 mm
Weight
23kg (boxed)
The Smart Bed Lifting system can bear a total maximum weight of 362 kg
Provides a customized bed solution for each unique vehicle layout
A mechanical kit including motor unit, adaptable to standard measurements up to a maximum of 2000mm x 1600mm. Each lifting kit includes guides, shafts, fixing plates and belts (length up to 4000mm).
The kit is supplied with a crank so it can be used manually in the event of an emergency. This kit is to be used in conjunction with Bed Frame Kit 40300 and the 40304 brackets.
For more info, please view the PDF links below
Smart Bed Manuals
Smart Bed Universal Kit Oem Installation Manual (EU)
Product Component
12600-M000 Standard
Specification Sheet
TI-360: Topline Bedlifting Plus Programming Limit Positions (EU)
THIS KIT IS TO BE USED IN CONJUNCTION WITH BED FRAME KIT Z2002 AND BRACKETS KIT Z2001.
Ensures an optimal tensioned awning fabric for a better wind resistance
Very easy to install: open your awning, place the rafter into the awning, and slightly roll up the awning fabric until the rafter is blocked
The rafter is made from durable materials such as anodized aluminium profiles in combination with high-impact plastics.
2.0m rafters fit at the end only
2.00m Wall = 4200|4900|5003|5200 2.60m
2.00m Roof = 6002|6200|6300 2.60m
2.50m Wall = 4200|4900|5003|5200 3.0-5.0m
2.50m Roof = 6002|6200|6300 3.0-5.0m
2.50m 1200=1200 3.0-5.5m
2.75m Wall=8000 4.0-6.0m
3.00m Roof=9200 4.0-6.0m.

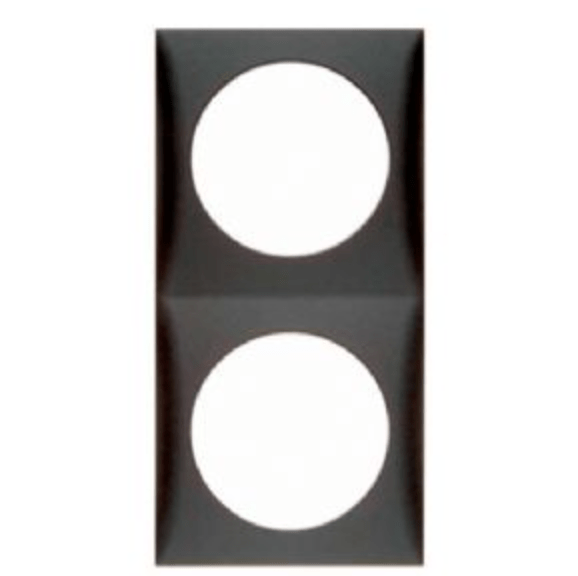

Frame to be fitted to Berker Integro sockets and switches Single Dimensions: 59.5mm x 59.5mm
Double Dimensions: 59.5mm x 119mm
Triple Dimensions: 59.5mm x 178.5mm
2 bikes, not extendable
Distance between rails of 20 cm for an easier load of the bikes
Lockable platform: prevents your bikes from moving during transport, it locks manually
Either mounted on the left or the right rear door. Doors can be opened with bikes on
Bike holders with optional locks
For more info please download the link below.
User manual
Technical specifications
Compatibility
Vans
Mounting location
Rear door
Load capacity for bikes
2
Max bike weight
19 kg
Max weight capacity
35 kg
Lockable platform
Manual
Total width
126 cm
Height
80 - 150 cm
Depth
55cm
Weight
7.2kg
Fits all Thule Omnistor awnings
The fabric slides into the awning lead rail
Length min: 1.00m - max: 4.80m
All panels can be rolled up and are fixed with a side release buckle
Made of micro-aired screen fabric, a transparent and light screen fabric
Tech Info Size Guide
TECHNICAL SPECIFICATIONS
Compatibility
Caravans, Motorhomes and Vans
Materials
Micro-aired screen fabric
Stable and solid attachment to the rear wall of a motorhome or caravan Load capacity up to 50kg lockable platforms: prevents your bikes from moving during transport, it locks manually the best position for your bikes using the easy-to-adjust rails that slide from left to right like holders with optional locksets all pre-installed fixation points and rails (except Hymer)Carrier can be extended up to 3 bikes. The set for 3rd bike is sold separately technical.
Product Specifications
Compatibility: Motorhomes /. Caravans
Mounting Locations: Rear Wall
Load Capacity For Bikes: 2-3
Max Bike Weight: 19Kg
Max Bike Capacity: 50kg
E-Bike Capability: N/A
Sliding Rail Depth: N/A
Lockable Platform: Read Manual
Total Width: 126cm
Height: Standard 80-150cm / Short Vers 40-70cm
Depth: Standard 65 cm, Short Vers 68cm
Weight: Standard 8.2 kg, Short Vers 7.9kg

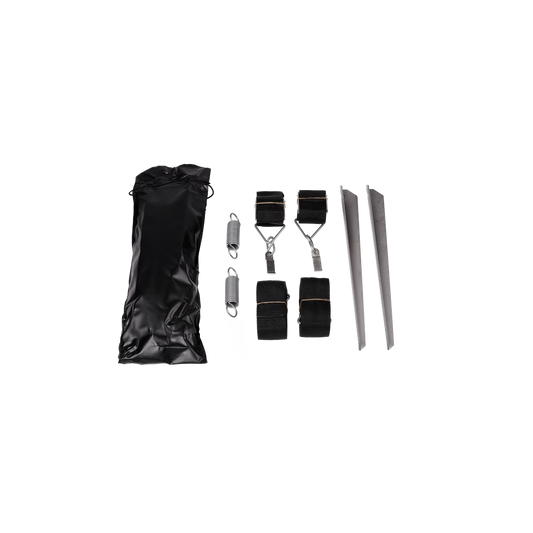

Consists of 2 black straps (both 3m), installation material, and supports

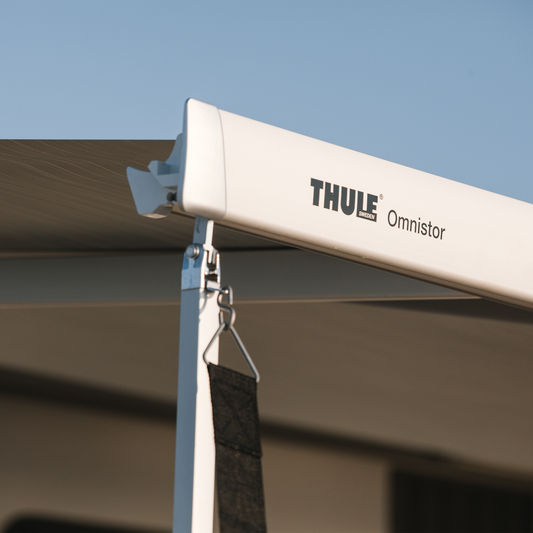

Attached to the support legs of Thule Omnistor awnings in order to prevent damage to the awning fabric
Can also be used for Thule Omnistor Caravan Style and 2000
Storage bag supplied
