The Victron MPPT controller will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement, of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and a large number of cells wired in series to produce 36 volts on the other.
To fully exploit the potential of the MPPT controller, the array voltage should be substantially higher than the battery voltage. The MPPT controller is the solution of choice for higher power systems because of the lowest overall system cost due to smaller cable cross sectional areas. It will also harvest substantially more power when the solar cell temperature is low (below 45°C), or very high (above 75°C), or when irradiance is very low.
Features - of the BlueSolar MPPT 75V/15A Solar Charge Controller.
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
Real-time data display options
- Color Control GX or other GX devices:
BatteryLife: intelligent battery management by load shedding.
For more info please click this link>> Pdf
The Victron MPPT controller will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement, of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and a large number of cells wired in series to produce 36 volts on the other.
To fully exploit the potential of the MPPT controller, the array voltage should be substantially higher than the battery voltage. The MPPT controller is the solution of choice for higher power systems because of the lowest overall system cost due to smaller cable cross-sectional areas. It will also harvest substantially more power when the solar cell temperature is low (below 45°C), or very high (above 75°C), or when irradiance is very low.
Features - of the BlueSolar MPPT 75V/10A Solar Charge Controller.
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
Real-time data display options
- Color Control GX or other GX devices:
BatteryLife: intelligent battery management by load shedding.
For more info please click this link>> Pdf
Liquid crystal display. For status monitoring and set-up
External Temperature sensor included
2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and the service battery of a boat or mobile home.
Protections. Protected against reverse polarity connection of the solar panels and/or battery
Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS).
Two 5 Volt USB outputs. Maximum current of the two outputs combined: 2A
For more info please click this link>> Pdf
The new MPPT Control is mounted in the familiar BMV-700 series housing, maintaining a consistent and professional look to your panels and systems monitoring equipment. To easily mount the MPPT Control on a wall, instead of flush mounted in a panel, use one of our wall mount enclosures. See the related products slider below.
Features
View live status information, including solar watts, battery voltage, charge current, load current and more.
View historical information
A. All-time values
B. 30-day historical values
MPPT setup
For more info please click this link>> Pdf
Victron BlueSolar PWM Light Charge Controller 48V 10ALoad output with low battery voltage disconnect function. Lighting control function, one timer only. Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting. Three stage battery charging (bulk, absorption, float), not programmable. Load output protected against over load and short circuit. Protected against reverse polarity connection of the solar array and/or battery. Day/night timing options: see manual for details.
For more info please click this link>> Pdf
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 30A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 20A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 20A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
For more info please download this link>> Pdf
Features of the - Victron BlueSolar PWM Pro Charge Controller 12/24V 5A
The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:
With help of a computer and software
With the dedicated BlueSolar Pro Remote Panel (see features below)
Features
Lighting control function, fully programmable.
Three stage battery charging (bulk, absorption, float), fully programmable.
Integrated battery monitor function (Remote Panel needed to display state of charge).
Load output with low voltage disconnect and manual control (default setting).
Optional external temperature sensor. – Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options
See Remote Panel manual for details.
Features of the - Victron BlueSolar PWM Light Charge Controller 12/24V 10A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.
For more info please downlowd this link>>
Victron BlueSolar PWM Light Charge Controller 12/24V 5A
Load output with low battery voltage disconnect function.
Lighting control function, one timer only.
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
Three stage battery charging (bulk, absorption, float), not programmable.
Load output protected against over load and short circuit.
Protected against reverse polarity connection of the solar array and/or battery.
Day/night timing options: see manual for details.

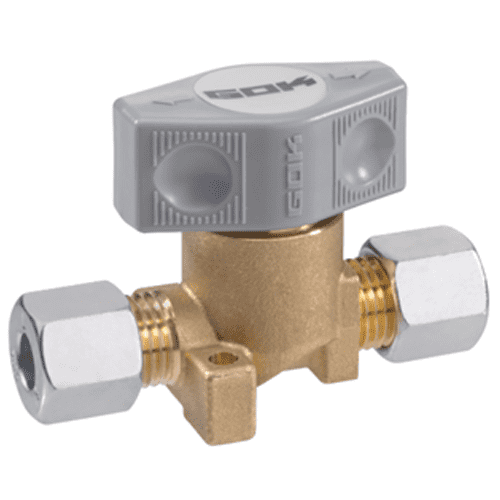

Quick-acting stop valve type DSV with mounting bracket.
With coupling nut type M and olive type D-MS
Compression fitting x compression fitting
Includes symbol stickers
Activation element: twist grip
Low pressure loss thanks to optimised function
Mounting bracket for safe assembly
Maximum admissible pressure: PS 5 bar
