Victron Orion voltage dropper designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output.
The output voltage of this model can be adjusted between 10 volts and 15 volts DC. This voltage converter is suitable for use on most electrical items on board boats, motorhomes and other automotive applications, including charging a 12V battery on a 24V system.
The converter features a remote on-off connector switch enabling it to be operated with a low power switch or by the engine run/stop switch. It can also be connected in parallel with up to 4 other Orion converters to increase the output current.
These droppers are easy to install with no special tools needed. Victron Energy Orion 24/12-25 DC-DC converters are very efficient, running at 96% efficiency due to the use of active rectification (also known as synchronous rectification).
Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).
For more information please click the link below:
Additional Information
Features of the - Victron Orion-Tr 48/12V 9A (110W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 32-70V
Under voltage shut down: 28V
Under voltage restart: 30V
Nominal output voltage: 12,2V
Output voltage adjust range: 12-15V
Cont. output current at nominal output voltage and 40°C: 9A
Maximum output current (10 s) at nominal output voltage: 12.5A
Short circuit output current: 27A
Cont. output power at 25°C: 110W
Efficiency: 87%
Off load current: < 50mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions hxwxd: 100 x 113 x 47 mm
Weight: 0.42 kg
PRODUCT CODE: ORI481210110
For more information please click the link below:
Additional Information
Features of the - Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 25°C: 5A
Maximum output current (10 s) at nominal output voltage: 6.3A
Short circuit output current: 30A
Cont. output power at 25°C: 120W
Efficiency: 87%
Off load current: < 60mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 100 x 113 x 47 mm
Weight: 0.42 kg
For more information, please click the link below:
Orion-Tr 48/24V 5A (120W) Isolated DC-DC Converter Additional Information

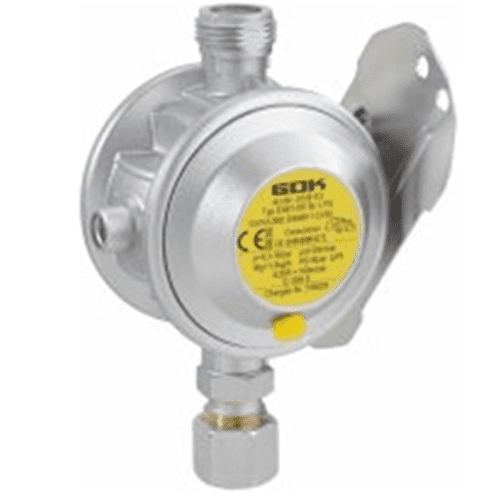

GOK Straight Regulator - 10mm outlet
Caramatic BasicOne without test point
Capacity stage 3, type EN61-DS with overpressure safety device S2SR
Without pressure gauge
30mbar M20x1.5 M x compr.fit. 8 OR 10, S2SR FKM
For connection to gas cylinders with a high pressure hose assembly to regulate the pressure to the nominal pressure of the gas equipment.
Consisting of: low pressure regulator with integrated safety device against overpressure and wall bracket
The Blue Smart IP65 Charger 6V/12V 1.1A is the new professional battery charger with built-in bluetooth from Victron. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Specifications
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Features of the - Victron Blue Smart IP65 Battery Charger 6V/12V 1.1A UK
The battery is charged, smartly… to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance… and a longer life.
Recovery of deeply-discharged ‘dead’ batteries
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Connect the battery with ease
The charger comes with both crocodile clips and M8 eyelets – making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
Features
Water, dust and chemical resistant
Seven-step smart charge algorithm
Recovery of fully discharged ‘dead’ batteries
Automatic power supply function
Severe cold performance: down to -30°C
Several other battery life enhancing features
Low power mode to charge smaller batteries
Li-ion battery mode
Setup and configure, readout of voltage and current by Bluetooth Smart
UK type plug
The carry case for the IP65 charger is one of those indispensable accessories. It protects your charger from the knocks and bangs of workshop life. It allows tidy storage, too – cables never get tangled …or lost; everything is in one place; and if you use an IP65 charger in your work – it gives a professional appearance. Compartments accommodate the charger, its input/output cables; plus the battery-clamp/eyelet cable options. (Charger and accessories not included)
Specifications
Smart and professional; this new snap shut carry case provides protective stowage and easy transport for your Blue Smart IP65 charger, and its accessories.
Compartments accommodate the charger, its input/output cables; plus the battery-clamp/eyelet cable options.
Compatible with:
BPC Chargers 12/25 and 24/13 - 345 x 520 x 130mm
A 73.5cm x 51cm navy pillowcase for Duvalay standard pillows. The pillowcase is crafted using premium-quality polycotton fabric to guarantee exceptional durability and longevity.
The fabric is carefully chosen to provide a soft and luxurious feel against skin, while also being highly breathable for enhanced comfort throughout the night.
The pillowcase is machine washable and can be tumble dried and ironed on a low temperature.
Key Features
Size: 73.5cm x 51cm, perfect fit for Duvalay standard pillows
Premium-quality polycotton fabric for exceptional durability
Soft and luxurious feel against the skin
Highly breathable for enhanced comfort
Easy to clean: Machine washable, tumble dry and low-temperature ironing
Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 25°C: 5A
Maximum output current (10 s) at nominal output voltage: 6.3A
Short circuit output current: 30A
Cont. output power at 25°C: 120W
Efficiency: 87%
Off load current: < 60mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 100 x 113 x 47 mm
Weight: 0.42 kg
For more information, please click the link below:
Orion -Tr 24/48V-2.5A (120W) Isolated DC-DC Converter
Victron Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 25°C: 5A
Maximum output current (10 s) at nominal output voltage: 6.3A
Short circuit output current: 30A
Cont. output power at 25°C: 120W
Efficiency: 87%
Off load current: < 60mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions h-w-d: 100 x 113 x 47 mm
Weight: 0.42 kg
For more info,Please Click The Link Below:
Orion -Tr 24/24V-5A (120W) Isolated DC-DC Converter Additional Informaiton
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Specifications
Input voltage range (1): 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 12,2V
Output voltage adjust range: 10-15V
Cont. output current at nominal output voltage and 25°C: 9A
Maximum output current (10 s) at nominal output voltage: 12.5A
Short circuit output current: 39A
Cont. output power at 25°C: 110W
Efficiency: 85%
Off load current: < 40mA
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
DC connection: Screw terminals
Maximum cable cross-section: 16 mm²
Dimensions hxwxd: 100 x 113 x 47 mm
Weight: 0.42 kg
PRODUCT CODE: ORI241210110
For more information, please click the link below:
Orion-Tr 24/12V-9A (110W) Isolated DC-DC converter
Features of the - Victron Energy Orion 12/24-10A DC-DC IP20 - Non Isolated
Models: 12 to 24 Volt
Input voltage range (V): 9-18
Output voltage (V): 20-30 Adjustable
Continuous output current (A): 10
Dimensions hxwxd in mm: 45 x 90 x 125
Weight kg: 0.4
Remote on-off connector.
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.
PRODUCT CODE: ORI122410020
For more information Please click the Link below:
Orion 12/24-10A DC-DC IP20 - Non Isolated Additional Information
