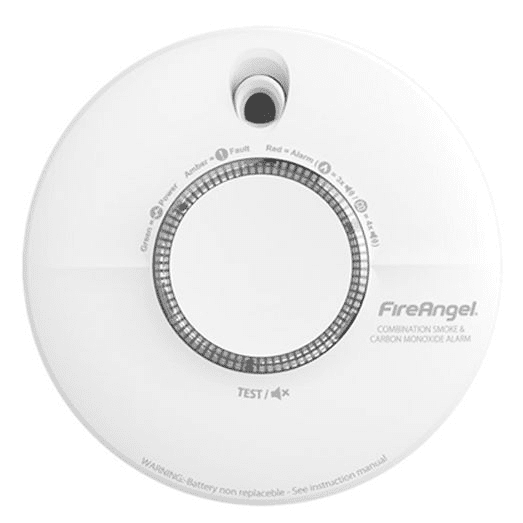

Combination Smoke and Carbon Monoxide Alarm
10 Year Sealed Lithium Battery
The SCB10-R combination alarm has been designed to protect against fire and CO
It has clear indicators and alerts to allow you to see which is present when the alarm sounds
10 Year Sealed for life battery
3 Year warranty
Designed for wall or ceiling mounting with simple installation
Equipped with test and hush button
30 day low battery warning
LED light to indicate power and alarm mode
Loud 85 decibel alarm
EN 14604:2005+AC:2008
EN 50291-1:2018
Dimensions - 134mm (diameter) x 39.4mm(depth)
Supply voltage - 3V DC
Thermoptek Smoke Alarm
10 Year Lifetime Battery
The FireAngel ST-622 Smoke Alarm has been designed to make
protecting your home simple, with easy install and testing and
rigorous testing by independent parties, such as BSI Kitemark,
to ensure quality and longevity.
Thermoptek Multi-Sensor technology as used by over 90% of the UK Fire and Rescue Services
10 year sealed for life lithium battery
Large central button - Test / Smart Silencerp to be silence
Easy to install with automatic battery engagement on base plate
Smart Silence - allows the alarm to be silenced for up to 10 minutes in the event of a known false alarm. During these 10 minutes if additional smoke is detected the alarm will sound
Sleep Easy - allows a low battery chirp to be silenced for 8 hours, this function can be used up to 10 times
Dimensions 130mm (diameter) x 34mm (depth)
MPPT charge controller is made for charging two batteries at the same time in a solar system. This controller supports multiple battery types, including Sealed, Gel, Flooded, LiFePO4 (with intergrated BMS).
MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by the MT4-BT remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional eBox-Bluetooth Adapter.
Features
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency
Bluetooth (BT10 Bluetooth Dongle required)
Wired Remote Monitoring (MT4_BT display required)
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation (BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
100% charging and discharging in operation environmental temperature range.
Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
Specifications
Max Rated Charging Current: 12 amps
Max Rated Load Current: 12 amps
Rated Solar Charge Power: 165 Watts @ 12V
Max Input Solar Voltage: 50V
Self Consumption: 8-16mA
System Voltage: 12V
Battery Selection: Sealed, Gel, Flooded, LiFePO4
Max PV Wire Size: 4mm²
Dimensions: 147 × 74 × 40 mm
This Sunshine Solar Controller features the latest MPPT charge regulation for reliable and economical battery charge control along with a Bluetooth Adapter for setting and monitoring your solar power system. MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
This Solar Charge Controller comes with a Bluetooth Adapter that allows basic reprogramming such as battery type selection along with full monitoring of the solar panel power and state of charge of your battery bank via an iOS / android app or desktop computer. The app also allows control over the load very useful for setting timers for lighting applications.
This series of controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance and gives all-round electronic protection, including overcharging and over-discharge protection to minimise damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system.
Solar Controller Features
Product Codes: TRIRON2210N and BLE-RJ45-D
MPPT function
Bluetooth (with included adapter)
Compatible with lead acid & lithium-ion batteries
5VDC dual USB outputs
Built in display
Optional 2m wired remote display
Microprocessor controller pulse width modulation (PWM) charging
Overload protection
Overcharge protection
Short circuit protection
Lightning protection
Reverse discharge protection
Reverse polarity connection protection
Under voltage protection
Rated battery voltage 12/24vdc
RJ45 communication port for optional remote meter
Solar Controller Specifications
Max Rated Charging Current: 20 amps
Max Rated Load Current: 20 amps
Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
Max. PV Array Power: 780W / 12V - 1560W/24V
Max Input Voltage: 100Vdc
MPPT Efficiency: 99.5%
Self Consumption: ≤14mA/12V - ≤15mA/12V
System Voltage: 12V/24V Auto-set
Working Temperature: -35° to +55°
Battery Selection: Gel, Sealed, Flooded, Lithium-ion
Enclosure: IP30
Temperature Compensation: -30mV/°C/12V @ 25°C
Control Mode: MPPT Charging
Max PV Wire Size: 6mm²
Dimensions: 150mm x 216mm x 56.7mm
Weight: 0.92kg
Please download the links below for more info
Doc1
Doc2
The GoMate is a negative-ground, flush mount solar charge controller, designed for an aesthetically clean and integrated look on Caravan, Boats & Motorhomes. The GoMate adopts a highly efficient PWM charging mode and is equipped with a special LCD to show the real-time operating status of the system.
*Earn Double Reward Points on all Often Purchased Together items*
The GoMate is a negative-ground, flush mount solar charge controller, designed for an aesthetically clean and integrated look on Caravan, Boats & Motorhomes. The GoMate adopts a highly efficient PWM charging mode and is equipped with a special LCD display to show the real-time operating status of the system.This charge controller is fully automatic and provides simple usage patterns to users.
Features
Flush mounted and embedded installation design
High quality and low failure rate components (ST/IR) to ensure the product lifetime
3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
Battery type: Sealed, Gel, Flooded, and User
Real-time energy statistics feature
Battery temperature compensation feature
Digital LCD monitor for informative display of operational parameters and fault messages
Voltage drop and temperature compensation sampling interface design
RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
Multiple communication peripherals
Rated charging current at working temperature without de-rating
Extensive electronic protections
Monitor and set the parameters via PC software or APP
Mechanical Parameters
Dimension: (L×W×H) 178.5×105.5×48.3mm
Mounting dimension: 166.5×93.5mm
Mounting hole size: Φ5mm
Terminal: 16mm2 /6AWG
Recommended cable: 10mm2 /8AWG
Net Weight: 0.31kg
Doc1
DuoRacer MPPT charge controller is made for charging two batteries at the same time in a solar system. This controller supports multiple battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the required.
MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional Bluetooth Adapter.
Description
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional Bluetooth Adapter.
Features
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
Bluetooth (Bluetooth Adapter required)
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation (BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
BATT1 type can be set via LED/LCD.
Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
100% charging and discharging in operation environmental temperature range.
LED and LCD display units selectable.
Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
① Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).
② Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).
NOTE: the BATT1 and BATT2 must be at the same voltage level.
Specifications
Max Rated Charging Current: 30 amps
Rated Solar Charge Power: 390 Watts @ 12V - 780 Watts @ 24V
Max Input Voltage: 100V(At min. operating environment temp.) 92V(At 25℃ environment temp.)
Max. conversion efficiency: 98%
Self Consumption: 26mA/12V;15mA/24V 19mA/12V;10mA/24V(Low-power mode)
System Voltage: 12V/24V Auto-set
Battery Selection: Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn
Enclosure: IP33
Max PV Wire Size: 10mm²
Dimensions: 247.2 × 165 × 68.5 mm
Doc1
DuoRacer MPPT charge controller is made for charging two batteries at the same time in a solar system. This controller supports multiple battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the required.
MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional Bluetooth Adapter.
Features
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional Bluetooth Adapter.
Features
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
Bluetooth (Bluetooth Adapter required)
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation (BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
BATT1 type can be set via LED/LCD.
Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
100% charging and discharging in operation environmental temperature range.
LED and LCD display units selectable.
Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
① Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).
② Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).
NOTE: the BATT1 and BATT2 must be at the same voltage level.
Specifications
Max Rated Charging Current: 20 amps
Max Rated Load Current: 20 amps
Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
Max Input Voltage: 100V (at min. operating environment temp) 46V (At 25℃ environment temp.)
Max. conversion efficiency: 97.5%
Self Consumption: 12mA/12V;8mA/24V - 4mA/12V;3mA/24V (Low-power mode)
System Voltage: 12V/24V Auto-set
Battery Selection: Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn
Enclosure: IP33
Max PV Wire Size: 4mm²
Dimensions: 243.7 × 158 × 63 mm
Doc1
DuoRacer MPPT charge controller is made for charging two batteries at the same time in a solar system. This controller supports multiple battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the required.
MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.
The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional Bluetooth Adapter.
Features
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
Bluetooth (Bluetooth Adapter required)
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation (BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
BATT1 type can be set via LED/LCD.
Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
100% charging and discharging in operation environmental temperature range.
LED and LCD display units selectable.
Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
① Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).
② Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).
NOTE: the BATT1 and BATT2 must be at the same voltage level.
Specifications
Max Rated Charging Current: 10 amps
Max Rated Load Current: 10 amps
Rated Solar Charge Power: 130 Watts @ 12V - 260 Watts @ 24V
Max Input Voltage: 60V (at min. operating environment temp) 46V (At 25℃ environment temp.)
Max. conversion efficiency: 97.4%
Self Consumption: 12mA/12V;8mA/24V - 4mA/12V;3mA/24V (Low-power mode)
System Voltage: 12V/24V Auto-set
Battery Selection: Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn
Enclosure: IP33
Max PV Wire Size: 4mm²
Dimensions: 227.2 × 143 × 58.1 mm
Weight: 0.8kg
Please Download the link below for more info
Doc1
Sunshine Solar panel mounts are an ideal way to fix your solar panels on the roof or deck of caravans, motor homes and boats. This set of 6 ABS solar mounts can be safely bonded to the surface removing the need to drill holes.
This set of four universal solar panel corner mounts can be used with any aluminium framed solar panel and have a lateral length of 150mm.
The mounts act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck. The plastic mounts profiles provide a high quality mounting solution creating the ideal combination of functionality and appearance.
Important note: When calculating the space required to fit a solar panel with these plastic mounts you will need to add 120mm to both the width and length of the solar panel dimensions. Example: Solar Panel dimensions = 1000mm x 500mm - minimum flat area needed = 1120mm x 620mm.
Available in Black or White
Contents:
Sunshine 4 Plastic Corner Mounts
Sunshine 2 Plastic Side Mounts
ABS Waterproof Cable Entry Cover
Please download the link below for the installation guide
Doc1
Sunshine Solar panel mounts are an ideal way to fix your solar panels on the roof or deck of caravans, motor homes and boats. This set of 6 ABS solar mounts can be safely bonded to the surface removing the need to drill holes.
This set of four universal solar panel corner mounts can be used with any aluminium framed solar panel and have a lateral length of 150mm.
The mounts act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck. The plastic mounts profiles provide a high quality mounting solution creating the ideal combination of functionality and appearance.
Important note: When calculating the space required to fit a solar panel with these plastic mounts you will need to add 120mm to both the width and length of the solar panel dimensions. Example: Solar Panel dimensions = 1000mm x 500mm - minimum flat area needed = 1120mm x 620mm.
Contents:
Sunshine 4 Plastic Corner Mounts (Black or White)
Please download the link below for the installation guide
Doc1
Sunshine Solar panel mounts are an ideal way to fix your solar panels on the roof or deck of caravans, motor homes and boats. This set of 6 ABS solar mounts can be safely bonded to the surface removing the need to drill holes.
This set of six universal solar panel corner mounts and sides can be used with any aluminium-framed solar panel and have a lateral length of 150mm.
The mounts act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck. The plastic mounts profiles provide a high quality mounting solution creating the ideal combination of functionality and appearance.
Important note: When calculating the space required to fit a solar panel with these plastic mounts you will need to add 120mm to both the width and length of the solar panel dimensions.Example: Solar Panel dimensions = 1000mm x 500mm - minimum flat area needed = 1120mm x 620mm.
Contents:
Sunshine 2 Plastic Side Mounts
Sunshine 4 Plastic Corner Mounts
Please download the link below for the installation guide
Doc1
