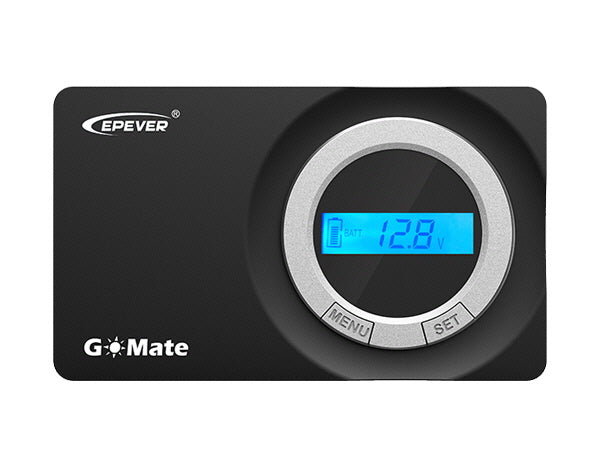

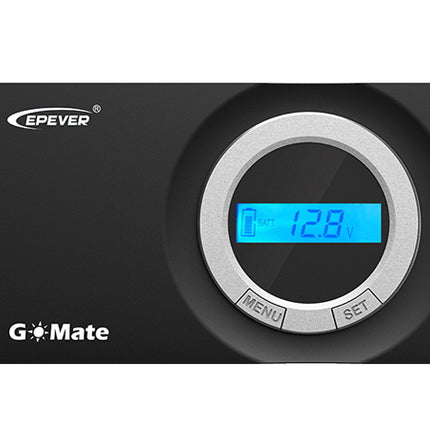

The GoMate is a negative-ground, flush mount solar charge controller, designed for an aesthetically clean and integrated look on Caravan, Boats & Motorhomes. The GoMate adopts a highly efficient PWM charging mode and is equipped with a special LCD display to show the real-time operating status of the system.This charge controller is fully automatic and provides simple usage patterns to users.
Features
- Flush mounted and embedded installation design
- High quality and low failure rate components (ST/IR) to ensure the product lifetime
- 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
- Battery type: Sealed, Gel, Flooded, and User
- Real-time energy statistics feature
- Battery temperature compensation feature
- Digital LCD monitor for informative display of operational parameters and fault messages
- Voltage drop and temperature compensation sampling interface design
- RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
- Multiple communication peripherals
- Rated charging current at working temperature without de-rating
- Extensive electronic protections
- Monitor and set the parameters via PC software or APP
Mechanical Parameters
Dimension: (L×W×H) 178.5×105.5×48.3mm
Mounting dimension: 166.5×93.5mm
Mounting hole size: Φ5mm
Terminal: 16mm2 /6AWG
Recommended cable: 10mm2 /8AWG
Net Weight: 0.31kg
