Elegant security handle made of solid anodised aluminium with 30mm diameter and 2mm thickness. When closed back on to the door, it works as an anti-theft device and prevents accidental opening when travelling.
It also serves as a useful handle to make entering and exiting the vehicle easier. It adapts on to all doors when opening both to the right or to the left. Complete with key lock and safety release handle, installation brackets, screws and internal counter-brackets.
Brand
Fiamma
Rubber elbow & clips. Alde rubber connectors are made from EPDM rubber, tested and used in central heating systems for over a decade. Compatible with the 22mm aluminium heating circuit, tube can be fitted to the rubber by hand. Always ensure there is at least 30mm of tube inside the rubber connector, and a fitted spring clip, for the heating circuit to be watertight. Reference/Manufacturer Number: 1900-523.
Brand
Alde
The 4071 Leak Detector is intended for in-line installation, and should be connected into the gas system close to the outlet side of the regulator. It provides an instant visible check on gas soundness from the outlet side to each installed appliance, a leaking system being positively indicated by bubbles appearing in the glass-sighting chamber. The Boat Safety Scheme and the new British Standard both recommend that one be fitted in an installation.
Compression Fitting Size
8mm
Thread Connection
Compression
Thread Gender
Male
Brand
Alde
Height Description
90mm (3.54")
Width
60mm
Depth
30mm
Material
Copper
Primary Construction
Copper
Pressure Rating
Max Operating: 29.4 PSI (2 Bar)
Capacity Description
12kW

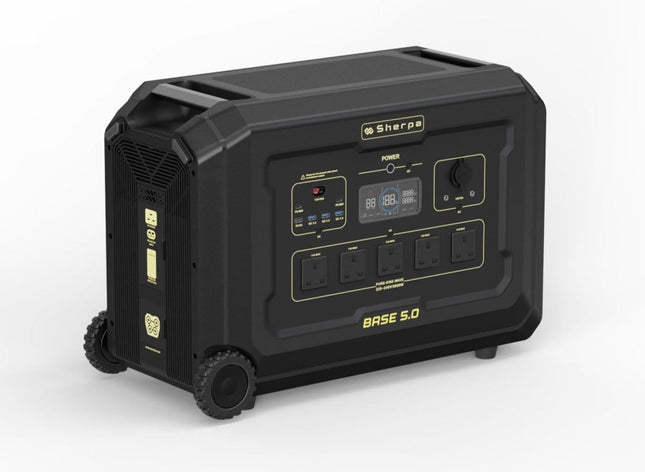

The BASE 5.0 is a user-friendly, high-performing portable power station, designed to revolutionise power accessibility. This 5000 watt solar generator is equipped to accept significant solar and hybrid renewable inputs, allowing you to keep it charged and deliver clean and efficient power to your essential appliances. Designed for scalable capacity, this solar generator 5000 watts is built both for off-grid and home backup use. The easy link up system allows you to add up to 15 extra battery units for serious energy storage!
The BASE 5.0 Portable Power Station incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 5040Wh, expandable up to a massive 80,640Wh by linking fifteen BASE 5.0-EB extra batteries, the BASE 5.0 has a significant energy reserve, offering extended periods of uninterrupted power supply. Its in-built power management means you can simultaneously charge by multiple sources while using your connected devices. With safety in mind, the BASE 5.0 Battery Management System (BMS) has multiple in-built protection features, preventing overheating, overload, and short-circuit. These limit excessive power draw, overcharge and deep discharge to preserve the longevity of the battery. With short circuit protection and temperature control, you can confidently use this Power Station, knowing that your safety is taken care of.
The BASE 5.0 is equipped with a 5kW pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has a Backup Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut.
Boasting 15 power output ports, this 5000w solar generator enables you to charge and power multiple devices simultaneously:
AC OUTPUT: AC Sockets x 5 (220V-240V/50Hz) perfect for running high-power mains appliances
DC OUTPUT: Multiple smart-charge ports that self-regulate power to your devices: USB-A Port x 4, USB-C Port x 2, DC 5525 Port x 2, Aux Car Port x 1 and 30A Anderson Output x 1, allowing you to charge and power smartphones, tablets, cameras, laptops, diesel heater, DC fridge, and other devices with DC power inputs.
The BASE 5.0 offers advanced charging capabilities and flexible options to recharge the unit quickly. It supports three charging methods for added convenience: AC Charging: approximately 2.3 hours from 0% to 100% state of charge from a standard wall outlet. Solar and hybrid Renewable Charging: approximately 2.4h from 0% to 100% charge capability. Harness the power of the sun and recharge your power station using compatible solar panels (sold separately). The high-efficiency MPPT charge controller converts solar, wind (DC), or hydroelectric (DC) input, allowing you to go completely off-grid and enjoy the planet's free energy. Onboard Charging: Trickle charge via the vehicle's 12V socket while travelling around.
Items included: 1 x BASE 5.0 1 x AC Charging Cable 1 x Car Charging Cable 1 x MC4 Solar Charging Cable (LSMC4-Anderson) 1 x Anderson to Anderson Cable 1 x Anderson to 7909 Cable 1 x Anderson to Car Charge Cable
OverviewThe SunFold 220 is a robust and efficient Portable Solar Panel, designed for ease of use and durability. It uses the latest cell technology to deliver that extra 10% of power from the sunlight. Featuring rugged construction, high-efficiency monocrystalline HPBC cells, and universal MC4 output for fast and safe connection to your Sherpa Power Station or compatible devices.Performance and FeaturesHPBC High-Efficiency Solar Cells: Up to 25% cell efficiency for more power, even in partial sun.Rugged & Weather-Resistant: Integrated carbon fibre and ETFE polymer panel meets IP67 standard with reinforced outer shell and magnetic locking catch for reliable field use. Tough canvas and precision stitching can withstand rugged outdoor use.Portable Foldable Design: Quick setup with rigid kickstands, integrated rear pouch, and compact folding dimensions for easy storage and transport.Universal Compatibility: MC-4 connector with included 6-way adapter (DC5521, Anderson, XT60) for pairing with Sherpa PEAK, BASE, and PRO power stations.OutputDC OUTPUT:1.5 metres of hardwired MC4 terminated cable, allowing you to link easily to the standard solar connector cables.MC4 to 6-way multi connector adapter provides options to charge commonly used devices and portable power stations:Anderson PP30 30A, DC7909, DC6530, DC35135, DC5521, XT60 Female
General Information
The SunFold 220 features a storage pouch to keep the output cable and any adapters.Ingress Protection rating of 67 and is made with fireproof materials.Standard 2-year Warranty for peace of mind.Dimensions: Unfolded Size: 2220 × 610 × 27mmFolded Size: 597 × 610 × 42mmWeight: 5.3Kg
Applications
Leisure and Hobby (campervan, glamping, off-grid events, marine) Professional Use (DIY, skilled trades, film production, contractors, medical equipment) Off-Grid Living
What's in the Box
1 x SunFold 220 220W Portable Solar Panel1 x 6-in-1 multi-adapter cableUser Manual
OverviewThe SunFold 300 is a robust and efficient Portable Solar Panel, designed for ease of use and durability. It uses the latest cell technology to deliver that extra 10% of power from the sunlight. Featuring rugged construction, high-efficiency monocrystalline HPBC cells, and universal MC4 output for fast and safe connection to your Sherpa Power Station or compatible devices.Performance and FeaturesHPBC High-Efficiency Solar Cells: Up to 25% cell efficiency for more power, even in partial sun.Rugged & Weather-Resistant: Integrated carbon fibre and ETFE polymer panel meets IP67 standard with reinforced outer shell and magnetic locking catch for reliable field use. Tough canvas and precision stitching can withstand rugged outdoor use.Portable Foldable Design: Quick setup with rigid kickstands, integrated rear pouch, and compact folding dimensions for easy storage and transport.Universal Compatibility: MC-4 connector with included 6-way adapter (DC5521, Anderson, XT60) for pairing with Sherpa PEAK, BASE, and PRO power stations.OutputDC OUTPUT:1.5 metres of hardwired MC4 terminated cable, allowing you to link easily to the standard solar connector cables.MC4 to 6-way multi connector adapter provides options to charge commonly used devices and portable power stations:Anderson PP30, DC7909, DC6530, DC35135, DC5521, XT60 Female
General Information
The SunFold 300 features a storage pouch to keep the output cable and any adapters.Ingress Protection rating of 67 and is made with fireproof materials.Standard 2-year Warranty for peace of mind.Dimensions: Unfolded Size: 2338 × 794 × 27mmFolded Size: 627 × 794 × 42mmWeight: 9Kg
Applications
Leisure and Hobby (campervan, glamping, off-grid events, marine) Professional Use (DIY, skilled trades, film production, contractors, medical equipment) Off-Grid Living
What's in the Box
1 x SunFold 300 300W Portable Solar Panel1 x 6-in-1 multi-adapter cableUser Manual

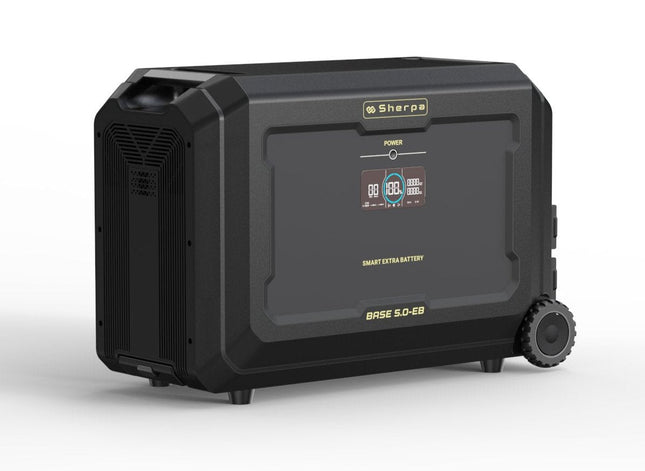

The BASE 5.0-EB is a user-friendly, high capacity Smart Expansion Battery, designed to add energystorage capacity to your system. Equipped to accept significant solar and hybrid renewable inputs,you can charge your devices and deliver clean and efficient power. Designed for large expandablecapacity, the BASE 5.0-EB is built for off-grid living and home backup use. The easy link upsystem allows you to combine up to 15 units for massive energy storage!
The BASE 5.0-EB Portable Extra Battery incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 5048Wh, expandable up to a massive 80,640Wh by linking fifteen to the BASE 5.0, the system offers a significant energy reserve for extended periods of uninterrupted power. The BASE 5.0-EB safeguards overheating and low charge. These limit deep discharge to preserve the longevity of the battery.
The BASE 5.0-EB has two link ports to add an Extra Battery and a BASE 5.0 host unit. Thisallows charge and discharge power sharing once the linked units have balanced.
The BASE 5.0-EB will only charge when linked to the BASE 5.0 host.AC Charging: approximately 3.5 hours from 0% to 100% when connected to a BASE 5.0 host unit, plugged into mains or maximum solar input. The host unit will feed charge to the BASE 5.0-EB via the link cable, whichever method of charge you use.
Items included:1 x BASE 5.0-EB1 x 50 cm Link CableUser Manual

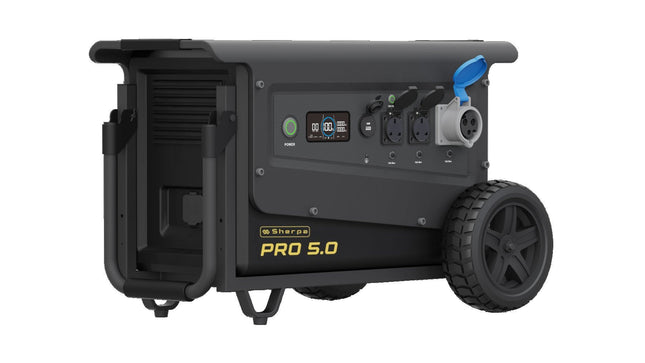

The PRO 5.0 is a rugged, user-friendly and high-performing Portable Power Station, designed to supply your outdoor power needs as the greener alternative to petrol and diesel generators. Equipped to accept significant solar and hybrid renewable inputs, you can keep your devices charged and deliver clean and efficient power to keep your essential appliances running smoothly in all weather conditions. Designed for scalable capacity, the PRO 5.0 is built both for off-grid and home backup use. The easy link up system allows you to add up to 15 extra battery units for serious energy storage!
The PRO 5.0 Portable Power Station incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 5048Wh, expandable up to a massive 80,640Wh by linking fifteen PRO 5.0-EB extra batteries, the PRO 5.0 has a significant energy reserve, offering extended periods of uninterrupted power supply. Its in-built power management means you can simultaneously charge by multiple sources while using your connected devices. With safety in mind, the PRO 5.0 Battery Management System (BMS) has multiple in-built protection features, to prevent overheating, overload, and short-circuit. These limit excessive power draw, overcharge and deep discharge to preserve the longevity of the battery. With short circuit protection and temperature control, you can confidently use this Power Station, knowing that your safety is taken care of. The PRO 5.0 is equipped with a 5kW pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has a Backup Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut.
5 power output ports including:AC OUTPUT: 32A CEE form Socket x 1 (220V-240V/50Hz) perfect for running high-power mains appliances outdoors.AC OUTPUT: 16A AC Sockets x 2 (220V-240V/50Hz) perfect for running high-power mains appliances.DC OUTPUT: USB-A Port x 1, USB-C Port x 1 allowing you to charge and power smartphones, tablets, cameras, laptops and other USB powered devices.
The PRO 5.0 Portable Power Station offers advanced charging capabilities and flexible options to recharge the unit quickly. It supports four charging methods for added convenience:AC Charging: approximately 2.3 hours from 0% to 100% on standard charge mode or 5h on half charge mode (select as desired).Solar and hybrid Renewable Charging: approximately 2.4h from 0% to 100% charge capability. The high-efficiency MPPT charge controller converts solar, wind (DC), or hydroelectric (DC) input, allowing you to go completely off-grid and enjoy the planet's free energy.Onboard Charging: Trickle charge via the vehicle's 12V socket while travelling around.Generator Charging: just over 3h from 0-100%. A smart back-up generator can be linked to the PRO 5.0 that automatically starts up when the battery level falls below 20%. It will charge the PRO 5.0 up to 90% before auto shut-off.
Items included:1 x PRO 5.01 x AC Charging Cable1 x MC4 Solar Charging Cable (LSMC4-Anderson)User Manual

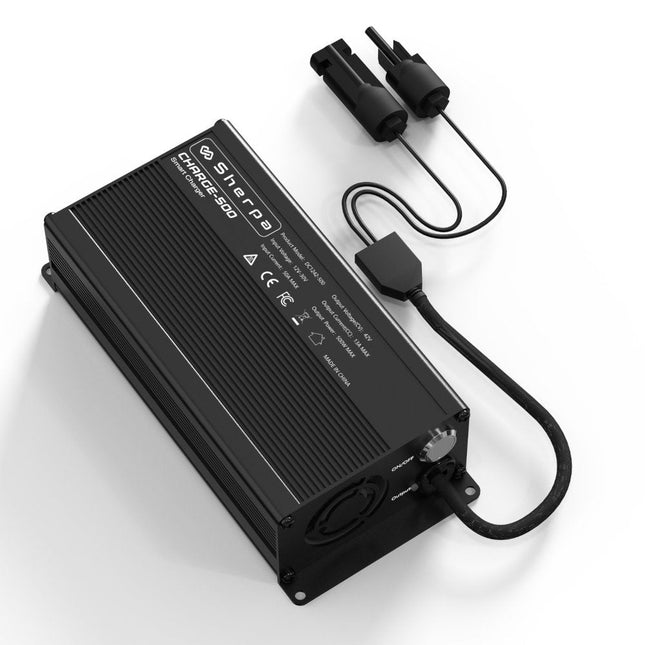

The CHARGE-500 is a user-friendly, fast DC to DC Smart Charger, designed to charge your system while on the go. It is simple to install and has automatic voltage detection that enables it to function only when the engine is running to prevent any vehicle battery drain. The CHARGE-500 is built for road users with onboard power systems that cannot be charged easily from mains or solar.It can however, work with solar in a hybrid setup.Functions information:The CHARGE-500 Smart Charger incorporates an intelligent DC voltage detection system that can be set to your requirements from 12V to 30V. It will work on with combustion engine systems form cars to commercial trucks and the kit is install ready from the box. No separate wake up signal is required as it can automatically detect the voltage from your vehicle battery when it increases on engine start. If the solar input is inadequate, you can be confident the Sherpa CHARGE-500 will keep your onboard power unit topped up while you drive.
