Description

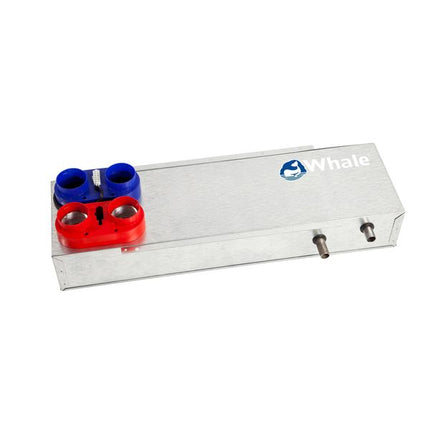

The Whale® 4.3s (4.3kW) space heater is a compact underfloor gas and electric blown air space heater designed for caravan and motorhome applications (it is not suitable for static caravans).
The heater features a boost setting which varies the heat output depending on the temperature of the vehicle. It continually checks the temperature to establish the best settings to use.
Nominal heat input is 2.9kW on gas and 2.6kW on mains electric. This model can use 2.9kW gas and up to 1.3kW electric simultaneously to provide the best available output.
The Whale® 4.3s space heater is designed to be operated by either the Whale Space Heater Control Panel, the Whale Duo Control Panel or by the Whale iVan® Touchscreen Control Panel.
The heater is designed to be installed with a ducted hot air system, and must not be used in conjunction with any other system.
Please note, this Whale® 4.3s heater DOES NOT have a reset button.
All Whale gas products must be installed by a Qualified Gas Engineer in accordance with the installation instructions and BS EN 1949-2011.
All work must be carried out by a competent person as defined by BS7671 PART2.
Key Features
Boost setting to vary heat output depending on vehicle temperature
Nominal heat input of 2.9kW on gas
Nominal heat input of 2.6kW on mains electric
Can use 2.9kW gas and up to 1.3kW electric simultaneously
Can be operated by Whale Space Heater Control Panel, Duo Control Panel or Whale iVan® Touchscreen Control Panel
| Replaces |
W-SH4412IB |
| Brand |
Whale |
| Type |
Blown Air Heaters |
| Voltage Description |
12V DC |
| Height Description |
185mm |
| Width |
313.5mm |
| Depth |
820m |
| Weight |
10.9kg |
| Colour |
Silver |
| Wattage |
650 / 1300 / 2600W |
| Diameter Description |
Hot air duct: 60mm ID / Flue: 22mm ID |
| Fuel |
Butane/Propane 28-30mbar - CAT I3B/P (30) |
| Amps Description |
11.5 Amps (Max.) |
| Input |
Nominal Heat on Gas: 2.9kW / Electric: 2.6kW |
| Gas Consumption |
220g/hr |
| Country of Origin |
United Kingdom |
Downloads
Installation and Operation Manual Gas and Electric 4.3S 4.3kW
