Sunshine Pure Sine Wave Inverters are suited for sensitive electronic equipment, allowing motors to run faster, quieter and cooler, preventing computer crashes, noises & glitches in monitors, TV, game consoles etc. Convert DC power from your battery into AC power enabling use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with crocodile clips or Cigar socket connection for easy connectivity to your battery.
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances.FEATURES
Soft Start
Single AC Universal outlet
Battery Cables with Croc Clips - 800mm Long
Cigar Socket Connection
Over-temperature protection
Low battery voltage alarm
Low battery voltage shutdown
High battery voltage shutdown
Overload protection, short circuit protection, polarity reverse connection protection
Specifications
300W pure sine wave power inverter
Output waveform: pure sine wave inverter
Continuous power: 300watt
Surge power: 600Watt
Input voltage: 10-15V DC
Output volt: 230
Frequency: 50Hz
Efficiency: >85%
Dimension (L*W*H): 152*152*55mm
Weight: 935g
If you are looking for a portable solar power solution look no further than the Sunshine Compact range with unrivalled performance. Unlike other similar folding solar kits that have the solar regulator stuck on the back of the solar panel exposed to the elements and too far away from the battery to effectively monitor the state of charge, the Compact range's solar regulator is positioned in the dry close to the battery for maximum performance and reliability.
he Sunshine Compact 80W Solar Power Kit benefits from a foldable design. The kit comes complete with everything needed for quick easy setup and safe charging of 12 volt batteries of all types. Perfect for Caravans & Motorhomes when running on battery power only.The Sunshine Folding Power Kit comprises of two robust 40W solar panels linked together by cables and hinges, attached to each panel is a foldable stand. The charge regulator supplied insures the battery is protected from overcharge and over-discharge at all times.With a Sunshine Compact - Portable Solar Panel Kit 80W 12V you could expect to generate around 23 amps per day during the summer months.Features
2 x Sunshine Solar Panel Monocrystalline 40 Watt 12 Volt
1 x Sunshine Charge Regulator 12V - 7AMP
1 x 5M Extension Cable - Croc Clips to SS Connector
Integrated stand
Solar Panel Specifications
High Performance Bosch Monocrystalline Cells
Peak power (Pmax): 80Wp
Power tolerance range(%): ±3%
Open circuit voltage / Voc(V): 21.6
Max.power voltage / Vmp(V): 17.5
Short circuit current / Isc(A): 4.94
Max.power current / Imp(A): 4.58
Max.system voltage(V): 600V DC
Folded Dimensions (mm): 505 x 550 x 60
Weight(kg): 9.0
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output

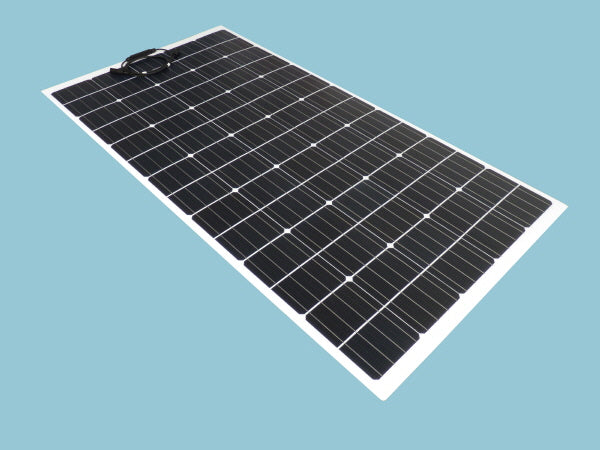

This Sunshine Solar Flexible ETFE 200W 12V boasts ultra pure silicon delivering optimal power conversion. A solid copper foundation adds massive strength and prevents corrosion. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes the ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.
Description
The Sunshine Flexible ETFE 200W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller.
If you are looking for maximum yield from your solar panel for a 12 volt battery systems the 200W Flexible Solar Panel will provide the answer.
With a Sunshine Flexible 200W 12V solar panel you could expect to generate around 67 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
Maximum Power (Pmax): 200W
Maximum Power Current (Ipm): 11.1A
Maximum Power Voltage (Vpm): 18V
Short Circuit Current (Isc): 11.9A
Open Circuit Voltage (Voc): 21.6V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC600V
Size: 1320 x 810 x 4mm
Weight:.5.60 kg
Features
3° flexibility or 3cm per 1m of panel length
ETFE rough scratch resistant surface which can be walked on in deck shoes.
Aluminium Substrate
Highly efficient monocrystalline cells
Can be conveniently placed on slightly curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
One Year Manufacturers Warranty.
Please Click PDF to View More Info On The Installation and Maintenance Of This Product.

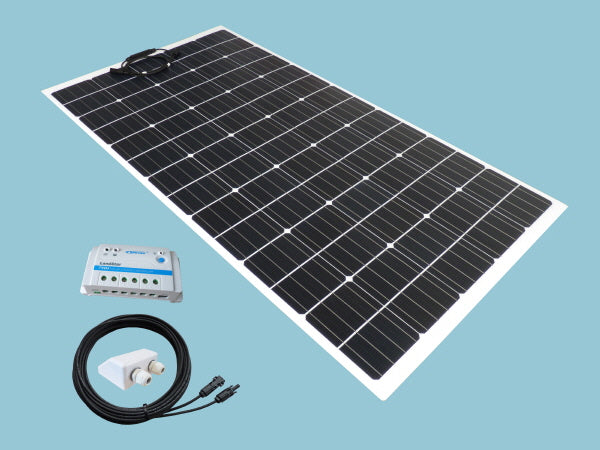

With a 200W 12V Sunshine Solar Flexible ETFE Range Kit you could expect to generate around 56 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 200W Kit that equates to around 67 amps per day with an MPPT solar controller during the summer months.
This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.Solar Panel Specifications
High Efficiency Monocrystalline Cells
Maximum Power (Pmax): 200W
Maximum Power Current (Ipm): 11.1A
Maximum Power Voltage (Vpm): 18.00V
Short Circuit Current (Isc): 11.9A
Open Circuit Voltage (Voc): 21.6V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC600V
Size: 1600 x 830 x 4mm
Kit Features
1 x 200W 12V Sunshine Solar Flexible ETFE Range
1 x Solar Battery Controller 20A - 12V/24V
1 x 6m Extension Cable & Connectors
1 x ABS Cable Entry Cover
Solar Performance Guarantee
1 Year Manufacturers Warranty
This 200W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 200 Watt solar power kit you could expect to generate around 56 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
his 200W Sunshine Solar Caravan Motorhome Kit includes an MPPT single battery charge controller for one battery bank as standard with the option to upgrade to an MPPT dual battery controller for optimised battery charging of two battery banks.
Solar Panel Specifications
High Efficiency Monocrystalline Cells
Maximum Power (Pmax): 200W
Maximum Power Current (Ipm): 11.1A
Maximum Power Voltage (Vpm): 18V
Short Circuit Current (Isc): 11.9A
Open Circuit Voltage (Voc): 21.6V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Maximum Series Fuse: 9A
Size: 1335 x 986 x 35mm
Weight: 14kg
Kit Contents
1 x Sunshine Solar Panels 200W 12V
1 x MPPT Single Battery Controller 20A - 12V/24V (Upgrade available)
1 x 6m Extension Cable & Connectors
2 x Set Of Plastic Corner Mounts - White or Black
2 x Sets Of Plastic Side Mounts - White or Black
1 x ABS Cable Entry Cover
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
With a 185W Sunshine Solar Caravan & Motorhome Kit you could expect to generate around 52 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 185W Kit that equates to around 62 amps per day with an MPPT solar controller during the summer months.
This 185W Sunshine Solar Caravan & Motorhome Kit includes a single battery charge controller for one battery bank as standard with the option to upgrade to a dual battery controller for optimised battery charging of two battery banks. Our MPPT versions are perfect for those customers wishing to maximise the solar power generated.
Specifications
Product Code. SSP185MS
Max Power. 185W ± 3%
Max Power Voltage. 18V
Max Power Current. 10.3A
Open Circuit Voltage. 21.6V
Short Circuit Current. 11.2A
Nominal Operating Cell Temp. -45 to 80°C
Max System Voltage. DC600V
Dimensions. 1470 x 660 x 35mm
Weight: 11.2kg
Features
900mm of 4mm single-core cable fitted with MC Type 4 Connectors
High Performance Monocrystalline Cells
Factory fitted aluminium frame with pre-drilled mounting holes
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
PWM Solar Controller 20A - 12/24V
Dual Battery Controller 20A - 12/24V
MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
Dual MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
With a 160W Sunshine Solar Caravan & Motorhome Kit you could expect to generate around 44 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 160W Kit that equates to around 53 amps per day with an MPPT solar controller during the summer months.
This 160W Sunshine Solar Caravan & Motorhome Kit includes a single battery charge controller for one battery bank as standard with the option to upgrade to a dual battery controller for optimised battery charging of two battery banks. Our MPPT versions are perfect for those customers wishing to maximise the solar power generated.
Solar Panel Specifications
High Efficiency Monocrystalline Cells
Maximum Power (Pmax): 160W
Maximum Power Current (Ipm): 8.31A
Maximum Power Voltage (Vpm): 18.1V
Short Circuit Current (Isc): 8.66A
Open Circuit Voltage (Voc): 22.4V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 1470mm x 669mm x 35mm
Weight: 11.20kg
Kit Contents
1 x Sunshine Solar Panels 160W 12V
1 x Single Battery Controller 20A - 12V/24V (upgrade available)
1 x 6m Extension Cable & Connectors
1 x Set Of Plastic Corner Mounts - White or Black
1 x Set Of Plastic Side Mounts - White or Black
1 x ABS Cable Entry Cover
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Don't forget the add-ons to compliment this kit such as the Remote Meter, not only does this give the customer valuable data about the overall performance of their solar panel it also gives them info on the battery state of charge and makes setting up the system easier.
Important note: The solar panel needs a flat area of 1590mm x 789mm these dimensions include the corner mounts supplied with the kit.

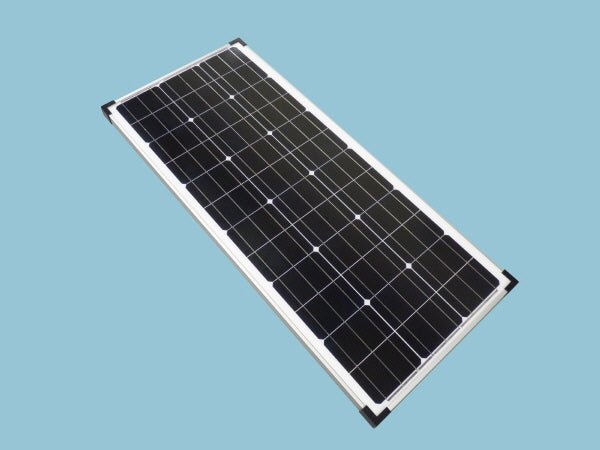

The Sunshine Solar panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 100-watt solar panel include supplementing the leisure battery power in caravans, motorhomes, and boats.
Description
With a Sunshine 100W solar panel you could expect to generate around 29 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
Maximum Power (Pmax): 100W
Maximum Power Current (Ipm): 5.62A
Maximum Power Voltage (Vpm): 17.8V
Short Circuit Current (Isc): 6.07A
Open Circuit Voltage (Voc): 21.30V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Maximum Series Fuse: 9A
Size: 540 x 1200 x 35mm
Weight: 7.3kg
Features
900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
High Performance Monocrystalline Cells
Factory fitted aluminium frame with pre-drilled mounting holes
Multiple pieces can be connected to acquire higher power
Suitable for charging all types of 12 volt batteries
Fitted with bypass diodes to minimise the effect of shading
Completely weatherproof
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
PWM Solar Controller 10A - 12/24V
Dual Battery Controller 10A - 12/24V
MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
Dual MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation)
For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
Please view this Document for more info..

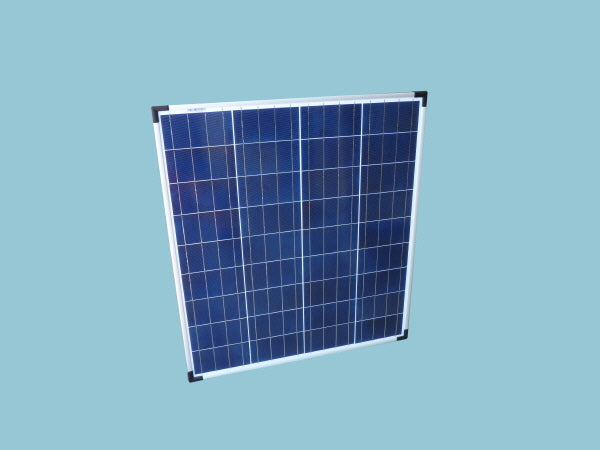

With this 80 Watt solar panel you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc.
Solar Panel Specifications
High-Efficiency Polycrystalline Cells
Maximum Power (Pmax): 80W
Maximum Power Current (Ipm): 4.49A
Maximum Power Voltage (Vpm): 17.8V
Short Circuit Current (Isc): 4.85A
Open Circuit Voltage (Voc): 21.3V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 670 x 770 x 35mm
Weight: 5.69kg
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
YBX5000 Silver High Performance SMF Batteries
YBX5100 12V 75Ah 710A Yuasa Silver High Performance Battery
Capacity at 20-hour Rate (Ah): 75Cold Cranking Performance (Amps) EN1: 710
Up to 50,000 engine starts
For vehicles with high power demands
Maximum plates for superior starting power
Rollover proof lid for extra safety
Ideal for cold weather climates
Premium choice for superior power & performance
Yuasa YBX® conventional automotive batteries are:
Original equipment (OE) quality, performance & specification
Fully maintenance free
Supplied charged & ready to fit
Designed with enhanced safety features including integrated flame arrestor & carrying handles
Tech Spec
Case TypeLB3Voltage12VCapacity at 20-hour Rate (Ah)75Cold Cranking Performance (Amps) EN1710Mean Weight with Acid (kg)17.3Cell Layout0TerminalT1Recommended Charge Rate (Amps)4HandlesYesEnd-VentingYesState of Charge IndicatorYesWater LossW4Charge RetentionC2VibrationV3EnduranceE1Terminal TypeT1Length (mm)278Width (mm)175Height (mm)175NCC ClassN/AFeature RangeYBX5000 Silver High Performance SMF Batteries
Diagrams
Layout
Container Feature
Terminal Type
The A-series line up has carefully selected materials to improve bass response and high frequencies, whilst delivering Pioneer’s famous Open & Smooth sound concept, all in an easy to install package. Specific models also include a custom fit adaptor for quick and easy installation.
(Available on back-order.)
