The 12V/30A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition. This model has 3 positive outputs and a common negative output, allowing 3 independent batteries (or banks) to be charged simultaneously.
n output reduces)
Cooling method: Fan-assisted
Mains connection: BS1363 UK 3-pin plug on 1.5m cable
Battery connection: Screw clamp terminals for max. 13mm2 cable (note: output cables and connections not included)
Ingress Protection rating: IP22
Body material: Aluminium (blue RAL5012)
Mounting holes: (download Enclosure dimensions below for full details)
Weight: 1.3kg
Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
For more info please download this link>>Pdf
The 30A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition. This model has 1 positive output and a UK plug.
This smart, multi-stage charger operates at up to 93% efficiency and generates up to 4x less heat than some other comparable chargers. When the battery is fully charged and has not been used for 24 hours, storage mode kicks in and power consumption drops to less than 0.5W. Cooling is achieved by a near-silent fan and the unit is fully protected against over-temperature, short circuit and reverse polarity.
Built-in Bluetooth allows you to monitor the status of your charger via any Android or Apple device or laptop and all settings of the charger can be configured with the VictronConnect app.
Suitable for all lead acid batteries (particularly leisure or 'deep-cycle' batteries) and Lithium-ion batteries used in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles
Recommended for batteries with a capacity in the range of 150 - 250Ah (or up to around 300Ah in total if charging multiple batteries).
Features of the - Blue Smart IP22 Charger 12V/30A - 1 Output - UK Plug
6-stage adaptive charging (Test - Bulk - Absorption - Recondition - Float - Storage)
High efficiency and low heat generation
Charges all lead-acid batteries (flooded, AGM, Gel) and Lithium-Ion batteries
NIGHT and LOW setting - reduces to 50% nominal output and no-fan for silent operation
Near-silent fan
Over-temperature protection
Short-circuit protection for DC output Reverse polarity protection for AC input (ATO blade fuse)
Green LED to indicate Power ON
Yellow LED for charge status indication (Bulk-fast blinking / Absorption-slow blinking / Float-solid / Storage-off)
Screw terminals for connection
Can be used as a power supply when no battery is connected
Charger reduces output current at high temp rather than shut-down
Setup, configuration and monitoring by Bluetooth connection
5 year manufacturer's warranty
Specification
Input voltage rating: 180 - 265V AC
Output voltage (Absorption/Float/Storage): 14.2-14.7/13.5-13.8/13.2-13.5 VDC
Max. charge current: 30A
NIGHT or LOW charge current: 15A
No. charging stages: 6 (adaptive)
'No load' power consumption: 0.5W
Operating temperature: -20ºC to +50ºC (full rated output up to +30ºC, then output reduces)
Cooling method: Fan-assisted
Mains connection: BS1363 UK 3-pin plug on 1.5m cable
Battery connection: Screw clamp terminals for max. 13mm2 cable (note: output cables and connections not included)
Ingress Protection rating: IP22
Body material: Aluminium (blue RAL5012)
Mounting holes: (download Enclosure dimensions below for full details)
Weight: 1.3kg
Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
For more info please download this link>>Pdf
The 20A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition. This model has 3 positive outputs and a common negative output, allowing 3 independent batteries (or banks) to be charged simultaneously.
This smart, multi-stage charger operates at up to 93% efficiency and generates up to 4x less heat than some other comparable chargers. When the battery is fully charged and has not been used for 24 hours, storage mode kicks in and power consumption drops to less than 0.5W. Cooling is achieved by a near-silent fan and the unit is fully protected against over-temperature, short circuit and reverse polarity.
Built-in Bluetooth allows you to monitor the status of your charger via any Android or Apple device or laptop and all settings of the charger can be configured with the VictronConnect app.
Suitable for all lead acid batteries (particularly leisure or 'deep-cycle' batteries) and Lithium-ion batteries used in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles
Recommended for batteries with a capacity in the range of 75 - 120Ah
Features of the - Blue Smart IP22 Charger 12V/20A - 3 Outputs - UK Plug
6-stage adaptive charging (Test - Bulk - Absorption - Recondition - Float - Storage)
High efficiency and low heat generation
Charges all lead-acid batteries (flooded, AGM, Gel) and Lithium-Ion batteries
NIGHT and LOW setting - reduces to 50% nominal output and no-fan for silent operation Near-silent fan
Over-temperature protection
Short-circuit protection for DC output
Reverse polarity protection for AC input (ATO blade fuse)
Green LED to indicate Power ON
Yellow LED for charge status indication (Bulk-fast blinking / Absorption-slow blinking / Float-solid / Storage-off)
Screw terminals for connection
Can be used as a power supply when no battery is connected
Charger reduces output current at high temp rather than shut-down
Setup, configuration and monitoring by Bluetooth connection
5 year manufacturer's warranty
Specification
Input voltage rating: 180 - 265V AC
Output voltage (Absorption/Float/Storage): 14.2-14.7/13.5-13.8/13.2-13.5 VDC
Max. charge current: 20A
NIGHT or LOW charge current: 10A
No. charging stages: 6 (adaptive)
No. outputs: 1
Minimum battery capacity: 75Ah
'No load' power consumption: 0.5W
Operating temperature: -20ºC to +50ºC (full rated output up to +30ºC, then output reduces)
Cooling method: Fan-assisted
Mains connection: BS1363 UK 3-pin plug on 1.5m cable
Battery connection: Screw clamp terminals for max. 13mm2 cable (note: output cables and connections not included)
Ingress Protection rating: IP22
Body material: Aluminium (blue RAL5012)
Mounting holes: (download Enclosure dimensions below for full details)
Weight: 1.3kg
Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
For more info please download this link>> Pdf

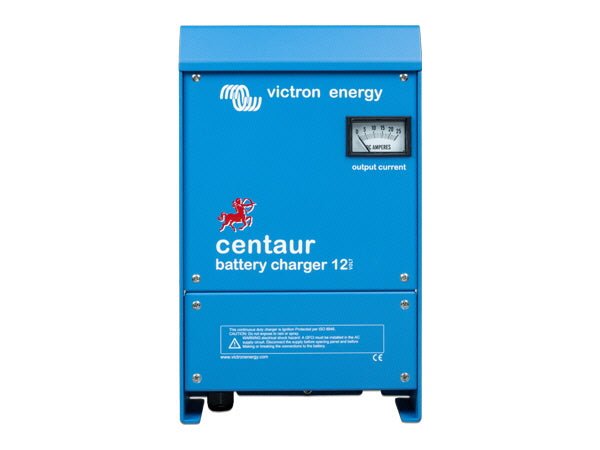

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.
Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
The range spans 12V and 24V models from 16A through to 100A.
Features of the - Victron Energy Centaur Battery Charger 12V/20A (3)
Quality without compromise
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Recommended battery capacity (Ah): 80 - 200
Dimensions: 355x215x110mm
Weight: 3.8kg
For more info please download this link>>Pdf

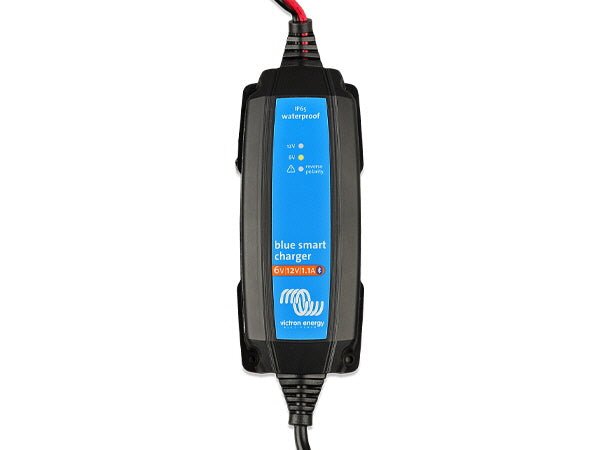

The Blue Smart IP65 Charger 6V/12V 1.1A is the new professional battery charger with built-in bluetooth from Victron. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Specifications
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Features of the - Victron Blue Smart IP65 Battery Charger 6V/12V 1.1A UK
The battery is charged, smartly… to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance… and a longer life.
Recovery of deeply-discharged ‘dead’ batteries
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Connect the battery with ease
The charger comes with both crocodile clips and M8 eyelets – making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
Features
Water, dust and chemical resistant
Seven-step smart charge algorithm
Recovery of fully discharged ‘dead’ batteries
Automatic power supply function
Severe cold performance: down to -30°C
Several other battery life enhancing features
Low power mode to charge smaller batteries
Li-ion battery mode
Setup and configure, readout of voltage and current by Bluetooth Smart
UK type plug
The 20A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor controlled ‘adaptive’ charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition.
This smart, multi-stage charger operates at up to 93% efficiency and generates up to 4x less heat than some other comparable chargers. When the battery is fully charged and has not been used for 24 hours, storage mode kicks in and power consumption drops to less than 0.5W. Cooling is achieved by a near-silent fan and the unit is fully protected against over-temperature, short circuit and reverse polarity.
Built-in Bluetooth allows you to monitor the status of your charger via any Android or Apple device or laptop and all settings of the charger can be configured with the VictronConnect app.
Suitable for all lead acid batteries (particularly leisure or 'deep-cycle' batteries) and Lithium-ion batteries used in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles
Recommended for batteries with a capacity in the range of 75 - 120Ah
Features
6-stage adaptive charging (Test - Bulk - Absorption - Recondition - Float - Storage)
High efficiency and low heat generation
Charges all lead-acid batteries (flooded, AGM, Gel) and Lithium-Ion batteries
NIGHT and LOW setting - reduces to 50% nominal output and no-fan for silent operation Near-silent fan
Over-temperature protection
Short-circuit protection for DC output
Reverse polarity protection for AC input (ATO blade fuse)
Green LED to indicate Power ON
Yellow LED for charge status indication (Bulk-fast blinking / Absorption-slow blinking / Float-solid / Storage-off)
Screw terminals for connection
Can be used as a power supply when no battery is connected
Charger reduces output current at high temp rather than shut-down
Setup, configuration and monitoring by Bluetooth connection
5 year manufacturer's warranty
Specification
Input voltage rating: 180 - 265V AC
Output voltage (Absorption/Float/Storage): 14.2-14.7/13.5-13.8/13.2-13.5 VDC
Max. charge current: 20A
NIGHT or LOW charge current: 10A
No. charging stages: 6 (adaptive)
No. outputs: 1
Minimum battery capacity: 75Ah
'No load' power consumption: 0.5W
Operating temperature: -20ºC to +50ºC (full rated output up to +30ºC, then output reduces)
Cooling method: Fan-assisted
Mains connection: BS1363 UK 3-pin plug on 1.5m cable
Battery connection: Screw clamp terminals for max. 13mm2 cable (note: output cables and connections not included)
Ingress Protection rating: IP22
Body material: Aluminium (blue RAL5012)
Mounting holes: (download Enclosure dimensions below for full details)
Weight: 1.3kg
Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
For more info please download this link>>Pdf
