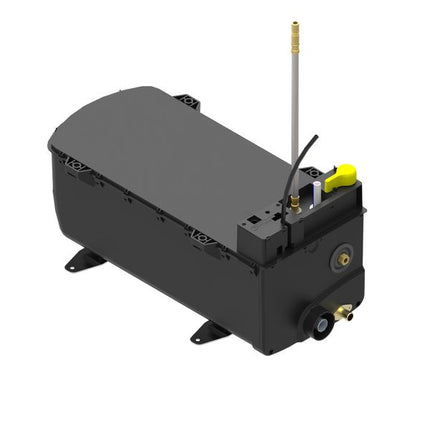

Onboard Gas and Electric Water Heater with Whale® Water Heater Control Panel.
Kit includes:
• 8-Litre Water Heater with Fixing Feet
• Control Panel
• 1 x 3.5M Cable
• 1 x 1.25M Flue
• 3 x Flue Brackets
• 1 x End Flue Bracket
Specs:
• Capacity: 8 Litre
• Pressure Relief Valve Setting: 3.0 Bar
• Maximum Water Inlet Pressure: 1.9 Bar
• Gas Type: Butane/Propane 30mbar CAT I3B/P (30)
• Heat Input (Gross): 285kW
• Gas Connection: 8mm compression fitting
• Current Consumption (12V. d.c): 0.48 Amps//(0.03 Amps on Standby)
• Electricity Supply: 12V d.c. + 230V a.c. 50Hz
• Electric Lowest Eco Setting: 750W
• Electric Highest Setting: 1500W
• Maximum Current Consumption (12V. d.c.): 0.48 Amps//(0.03 Amps on Standby)
• Maximum Current Consumption (230V): 6.5 Amps
NOTE: All Whale Water Heaters must be installed and serviced by a fully qualified gas engineer in accordance with the appropriate installation instructions
Key Features
Easy to access - Integrated Pressure Relief Drain Valve
Winter protection - User-activated frost protection mode
External gas connections - No cut outs required
Underside flue connector
8 litre capacity water tank
Easy mounting option - Integrated secure mounting bosses
Robust design
Lightweight - Only 5.4kg
Superior insulation - Custom expanded polystyrene means water stays hotter for longer
| Brand |
Whale |
| Type |
12 & 230 Volt |
| Voltage Description |
12V & 230V |

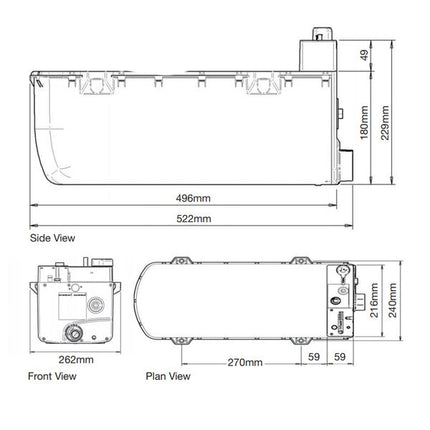

| Height Description |
229mm |
| Width |
262mm |
| Length |
522mm |
| Fuel |
Butane/Propane 30mbar + 230Volt |
| Capacity Description |
8 Litres (2.1 US Gallons) |
Downloads
Expanse Onboard Water Heater Data Sheet
