Description

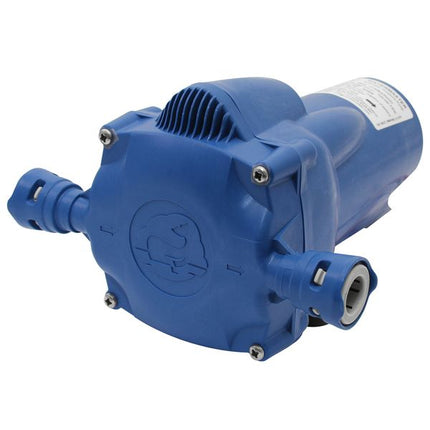

The Whale Water master gives a smooth consistent flow and can run dry without causing damage. It is self-priming up to 3 metres and is suitable for 2 outlets (2gpm) or 3 to 4 outlets (3gpm). A fully sealed protective motor housing and completely integrated switch means the pump is well protected. Included in the box: 1 x Strainer,1 x Screw kit, 2 x 1/2” threaded connectors, 2 x 1/2” barbed connectors. 12 volt. Available in 2 and 3 gallons per minute versions.
| Accumulator Recommended |
Yes |
| Maximum Recommended Head |
Maximum Discharge Head: 20 Metres (66 Feet) |
| Self Primes up to |
3 Metres (9.8 Feet) |
| Wire Size |
Minimum Wire Size: 1.5mm² (16 AWG) |
| Inlet Outlet |
Fittings for 15mm Whale Female Quick Connect, 13mm (1/2") ID Hose & 1/2" NPT |
| Brand |
Whale |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
P2 FW0814 |
| Height Description |
125mm (4.9") |
| Width |
179mm (7") |
| Length |
209mm (8-1/4") |
| Fuse |
5A |
| Flow Rate Description |
8 LPM (2.2 US GPM) |
| Approvals |
EMC Compliant, CE Marked |
| Amps Description |
4A |
| Supplied With |
Strainer |
| Cut Out Pressure Description |
30 PSI / 2 Bar |
| Warranty |
2 Years |
| Country of Origin |
United Kingdom |
Downloads
Information Sheet
Installation Instructions
