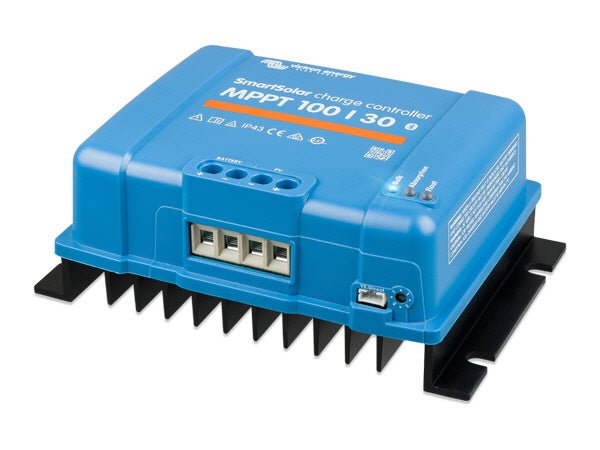

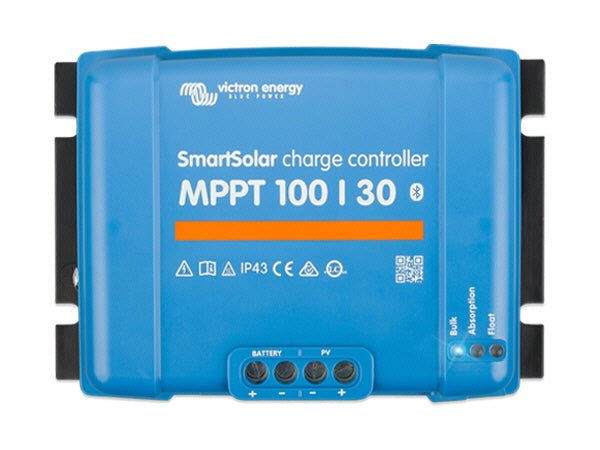

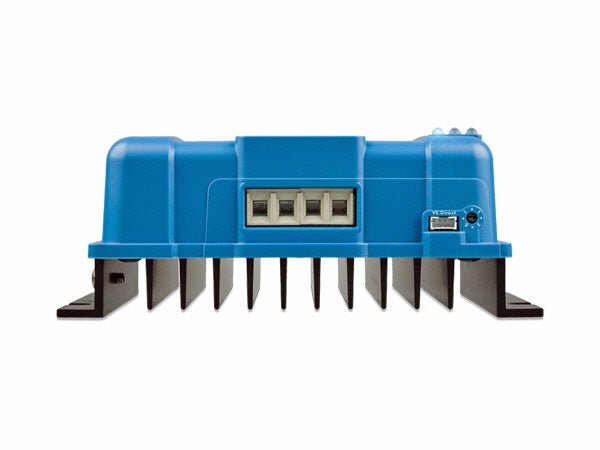

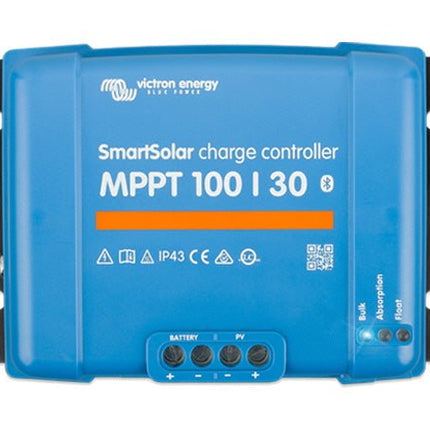

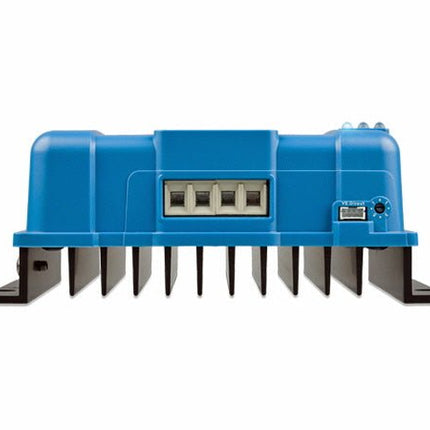

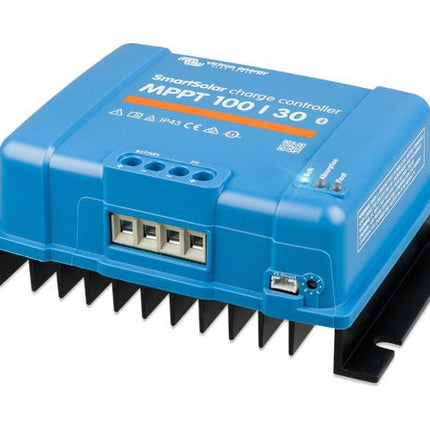

Victron Energy Smart Solar MPPT 100V/30A - (12/24V)

Victron Energy Smart Solar MPPT 100V/30A - (12/24V)

Regular price £242.71
Regular price Sale price £242.71
Sale Sold out
Tax included. Shipping calculated at checkout.


These ultra-fast, Maximum Power Point Tracking (MPPT), solar charge controllers are Bluetooth accessible via either built in Bluetooth or the Victron Energy Bluetooth dongle. Utilising the free VictronConnect app many parameters can be viewed and set, such as battery voltage, solar history, load output, flexible battery charge algorithms plus day/night timing and light dimming options. These advanced MPPTs also include Advanced Maximum Power Point Detection in case of partial shading conditions.

Specification Summary


  • Battery voltage: 12/24V Auto Select
  • Rated charge current: 30A
  • Nominal PV power, 12V: 440W
  • Nominal PV power, 24V: 880W
  • Max. PV short circuit current: 35A
  • PV open circuit voltage: 100V

Features

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature. Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more Smart Solar Charge Controllers.
