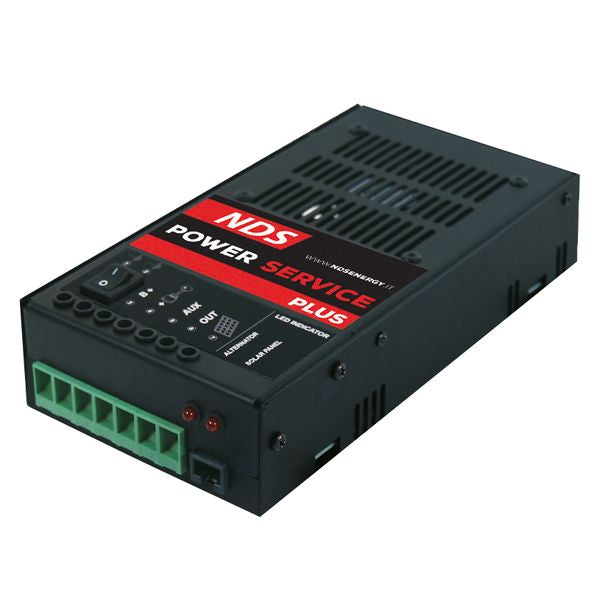

An intelligent charging management station that takes care of batteries using inputs from alternator and solar panels. Rather than fitting separate charge regulating devices to deal with different power sources, the Power Service Plus is a priority switching device, and is basically a B-B charger and solar regulator in one. A simple solution to help avoid conflicts caused by different sources trying to charge one battery at the same time.
• Alternator input: 12V 110A
• Nominal output voltage (V, DC): 12
| Nominal PV Power |
250W |
| Brand |
NDS |
| Voltage Description |
12V DC Output |
| Model |
PLUS40 |
| Maximum Output Current [A] |
40A (Alt), 20A (solar) |
| Optional Remote Panel |
Yes |
| Additonal Float Charge Output |
Yes |
| Charge Characteristic |
Automatic |
| Height Description |
52mm (2.05") |
| Width |
225mm |
| Depth |
135mm (5.3") |
| Weight |
0.8 kg |
| Output |
1 Output |
| Application |
FLA, SLA, AGM, GEL, LiFePO4 Batteries |
| Capacity Description |
Recommended Battery Capacity: 200 - 400 Ah |
| External Temperature Sensor |
No |
| Warranty |
2 Years |
