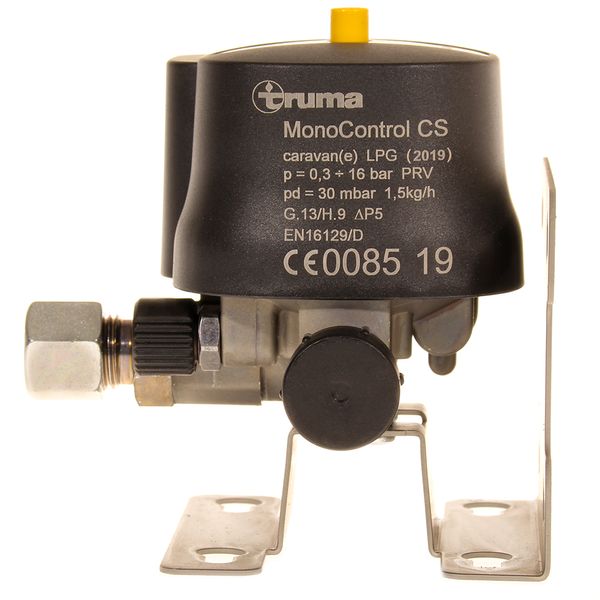

Truma gas pressure regulator with crash sensor for one cylinder. The new generation of MonoControl CS safety gas pressure regulators is suitable for one gas cylinder. The integrated crash sensor stops the flow of gas immediately in the event of an accident. This prevents gas escaping if the gas installation is damaged. 40% less weight than the previous model. User friendly - if the crash sensor is triggered, this can be seen on the yellow button; simply press the reset button on the device. (52412-01).
Technical data:
- Propane/Butane
- Regulator capacity: max. 1.5 kg/h.
- Regulator inlet: Male thread M20 x 1.5 (G.13)
- Regulator outlet: Olive screw connection 10 or 8mm (H.9)
- Crash sensor triggering value: 3.5g +/- 0.5g
- Dimensions: 106 x 101 x 102mm (H x W x D)
- Weight: 500g.
PLEASE NOTE: Gas appliances should only be installed by a Gas Safe registered installer and in accordance with the manufacturers' instructions.
| Brand |
Truma |
| Type |
Gas Regulators |
| Height Description |
106mm |
| Width |
101mm |
| Depth |
102mm (4") |
| Weight |
500g |
| Flow Rate Description |
1.5 kg/h |
| Inlet Pressure |
0.3 to 16 bar |
| Outlet Pressure |
30 mbar |
| Inlet Connection |
M20 |
| Outlet Connection |
10mm or 8mm |
| Fuel |
LPG |
