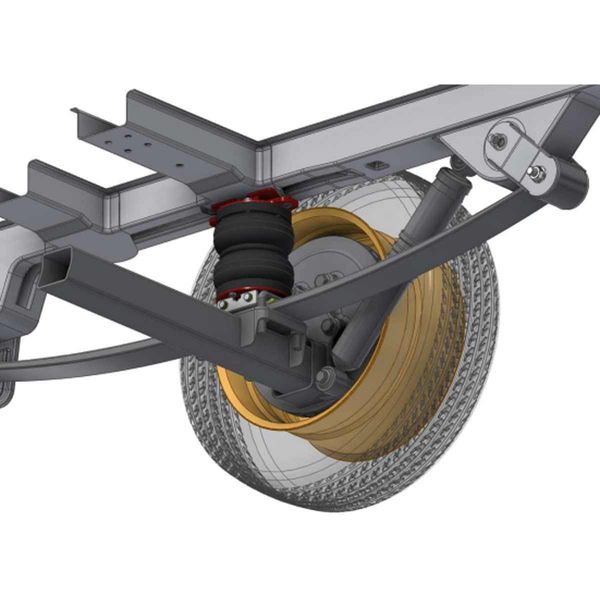

The Top-Drive System Semi-Air solution for light commercial vehicles is air springs that are applied to the rear axle, interposed between the axle and the chassis with the aim of minimising the vibrations due to the impact of the limit switch buffer, an inevitable phenomenon when the vehicle is near the load limit.
The compressor plus option offers full control, allowing each side to be inflated and deflated independently for comfort throughout.
Top-Drive - Standard Air Suspension with Compressor Plus
This is the best selling product, suited to most general requirements. The Standard air springs are designed to withstand an average and not too heavy useful load. This feature makes the air springs extremely versatile and robust and is the main choice for those entering the world of air springs.
In some cases, where the vehicle load is not excessive, but sporadically reaches the maximum allowed, it is the most suitable and suggested solution, offering a more balanced choice to a specific need. The standard air suspension solves the problem of loading vehicles and frees the user from an otherwise complicated choice, allowing them to focus more on their work.
Features:
- Double Convolute Leaf Spring 6"
- ISO 9001:2015 Certified Management System
- Strong and universal air spring, no need for a rebound pad inside.
- Recommended for light and medium load but suitable for all vehicles.
- Very quick to install, good for composite leaf spring.
- Suitable for FIAT Ducato X250 to X290 chassis cabs.

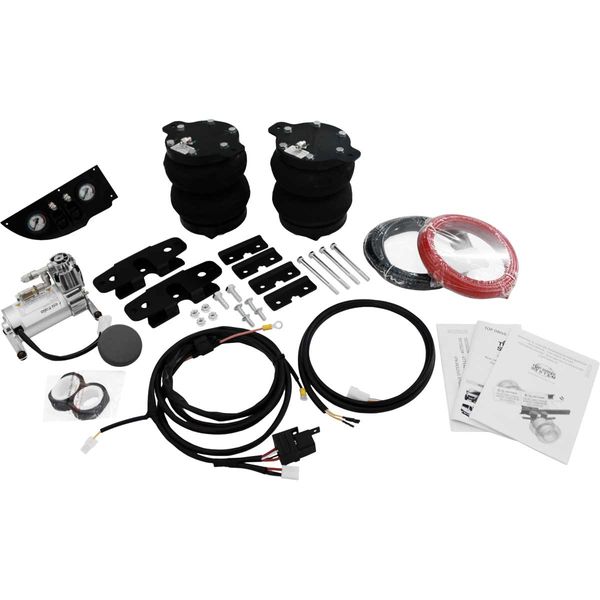

Contents:

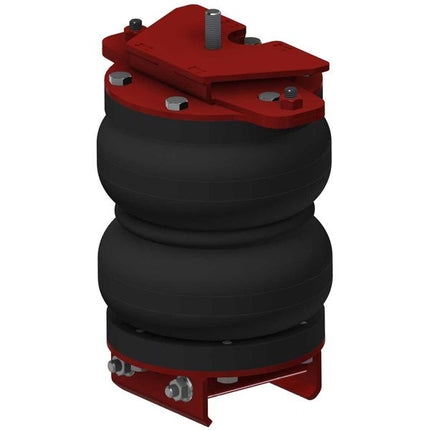

- Pre assembled air springs (left and right)
- Vehicle-specific harware kit (2x locking plates, 2x M10 screws, 4x M8 round screws and 2x grommets)
- Hose set (6m red pipe and 6m black pipe)
- Compressor +
- Dashboard panel
- Reference and lot number stickers
- Pressure range stickers
- Cable ties x 20
- Mounting instructions
Specification
| Dimensions |
Distance between fixing hole centres: 118.5mm |
| Brand |
Top-Drive |
| Height Description |
174.5mm |
| Temperature Range |
-35°C to +70°C |
| Diameter Description |
OD: 148.4mm |
| Country of Origin |
Italy |
