Product Description

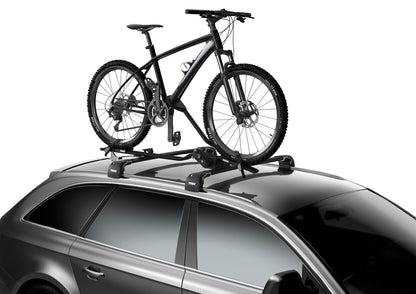

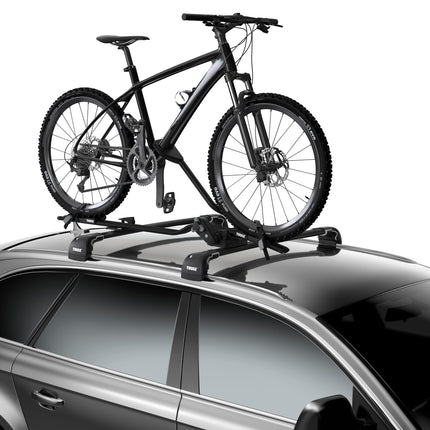

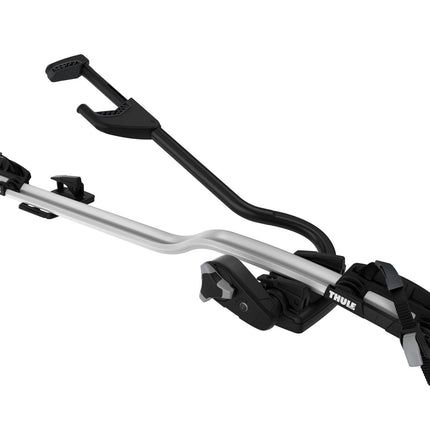

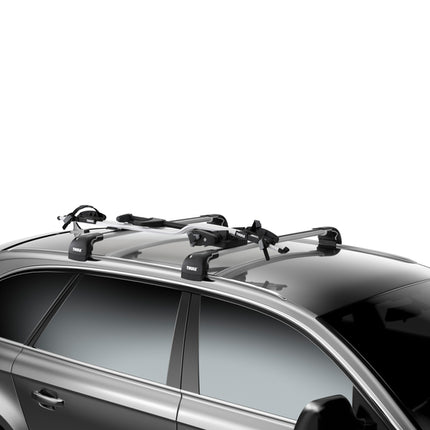

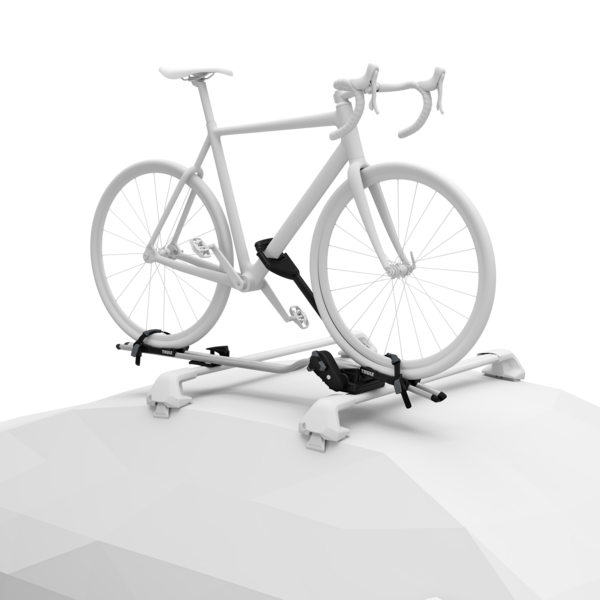

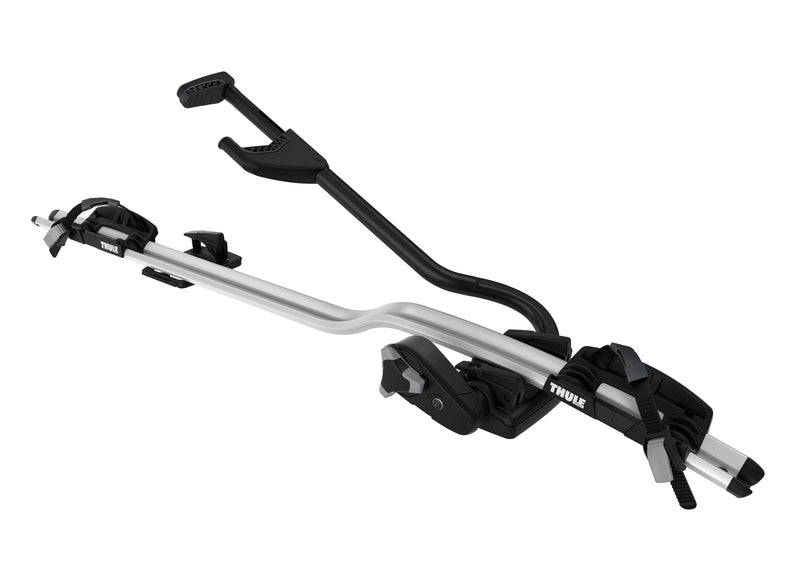

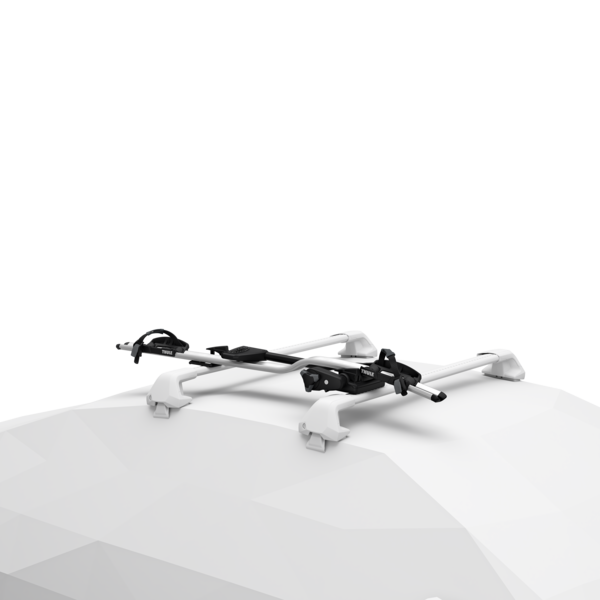

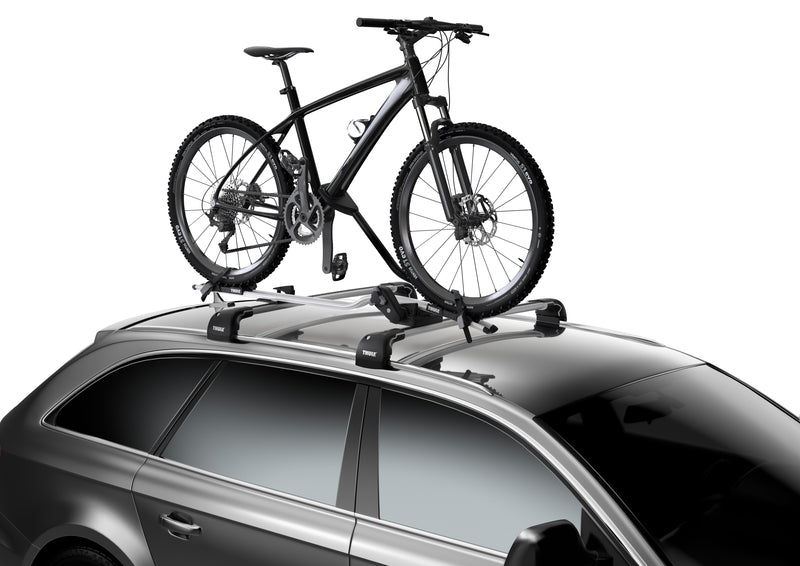

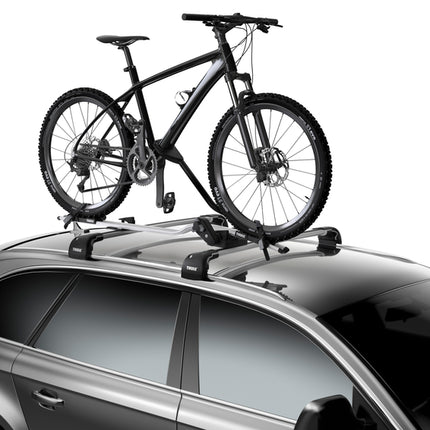

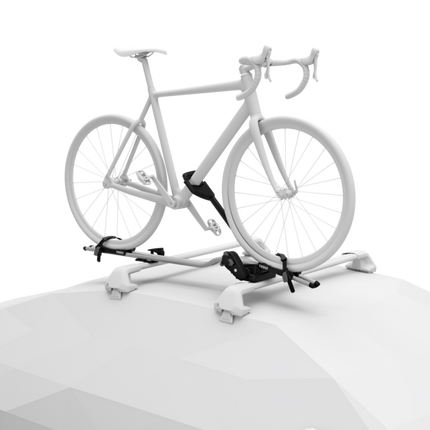

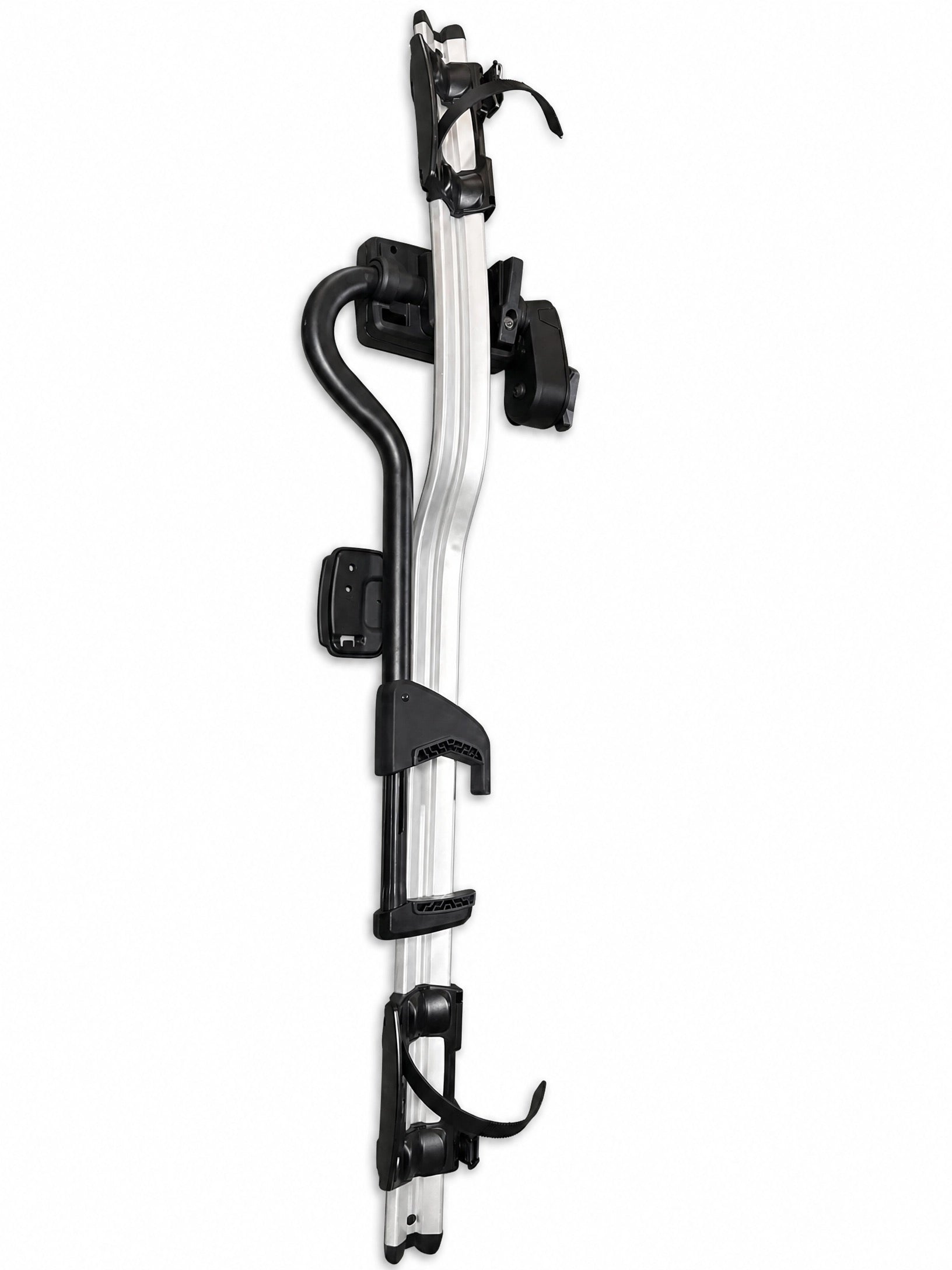

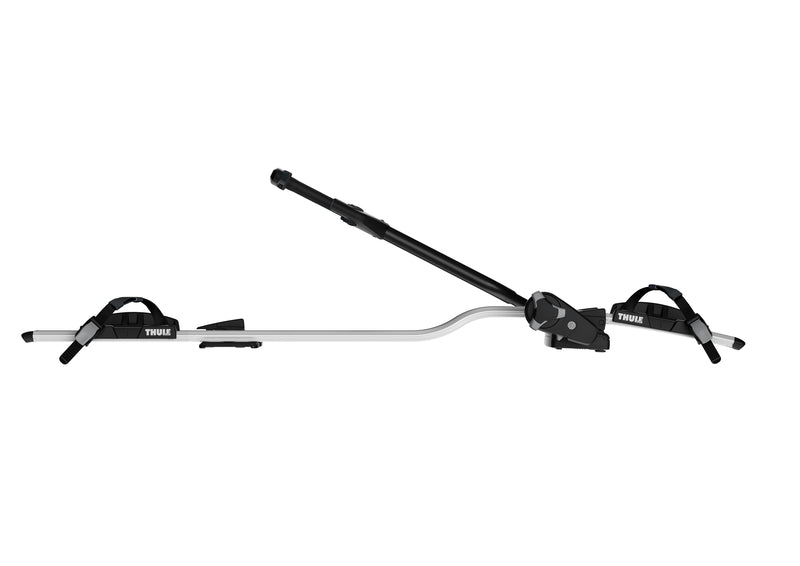

An upright bike rack for the quickest, most convenient mounting – for bikes up to 20 kg. Quick and easy loading of the bike thanks to the uniquely designed frame holder and wheel tray. The torque limiter dial sends a clear signal once the bike is secured correctly. The smartly designed wheel holders firmly fix the wheels with diagonal quick-release wheel straps, preventing any wobbling during transport. Mount and secure the bike from either side of the car thanks to easy, tool-free switching of the bike carrier from one side to the other.
All features
- Upright bike rack for the quickest, most convenient mounting – for bikes up to 20 kg.
- Automatically positions your bike when you secure it, thanks to the uniquely designed frame holder and wheel tray

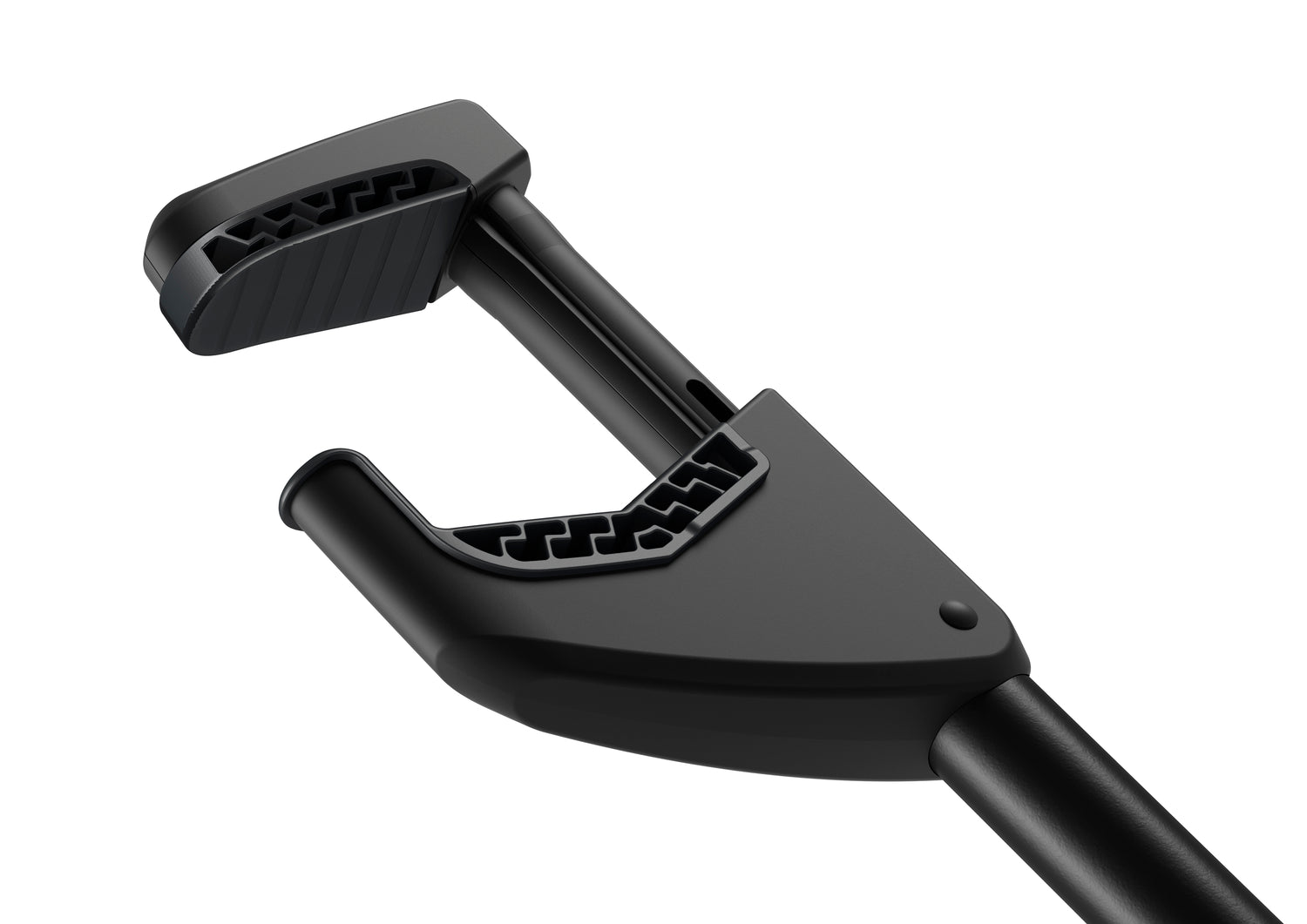

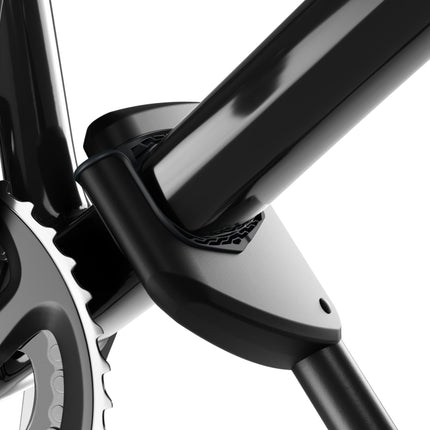

- Pressure is spread via large, soft claw pads that adapt to your bike’s frame tubes – minimizing the risk of frame damage

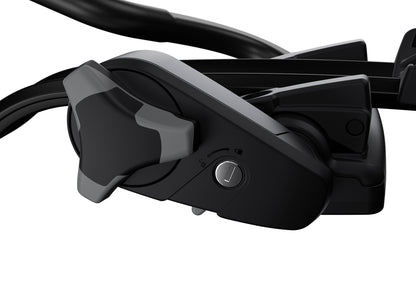

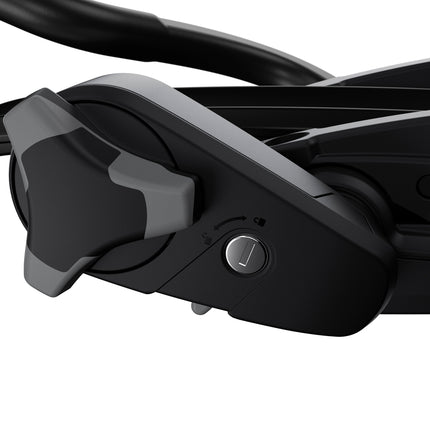

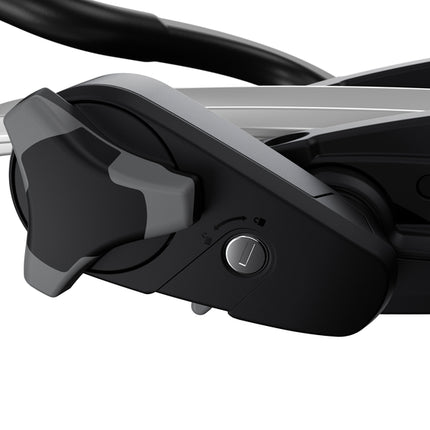

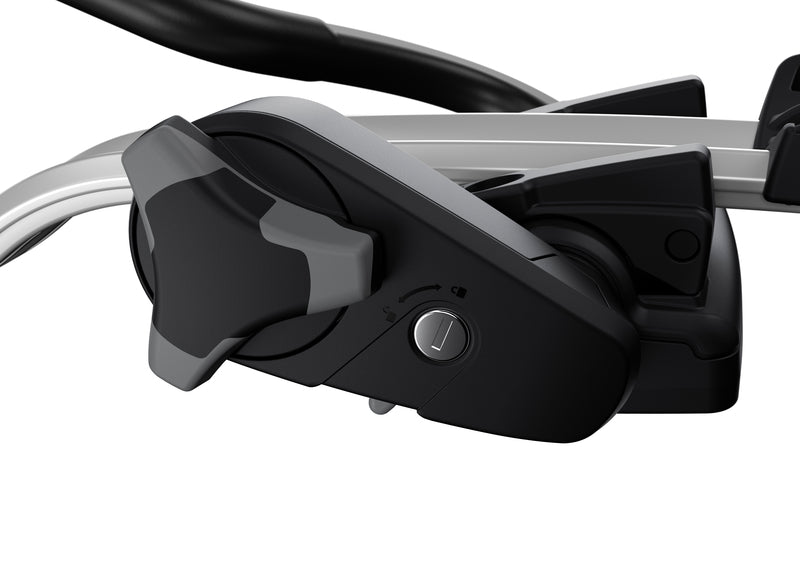

- Quick and easy bike securing – the torque limiter dial controls the force going into the bike frame with a clear sign of correct mounting

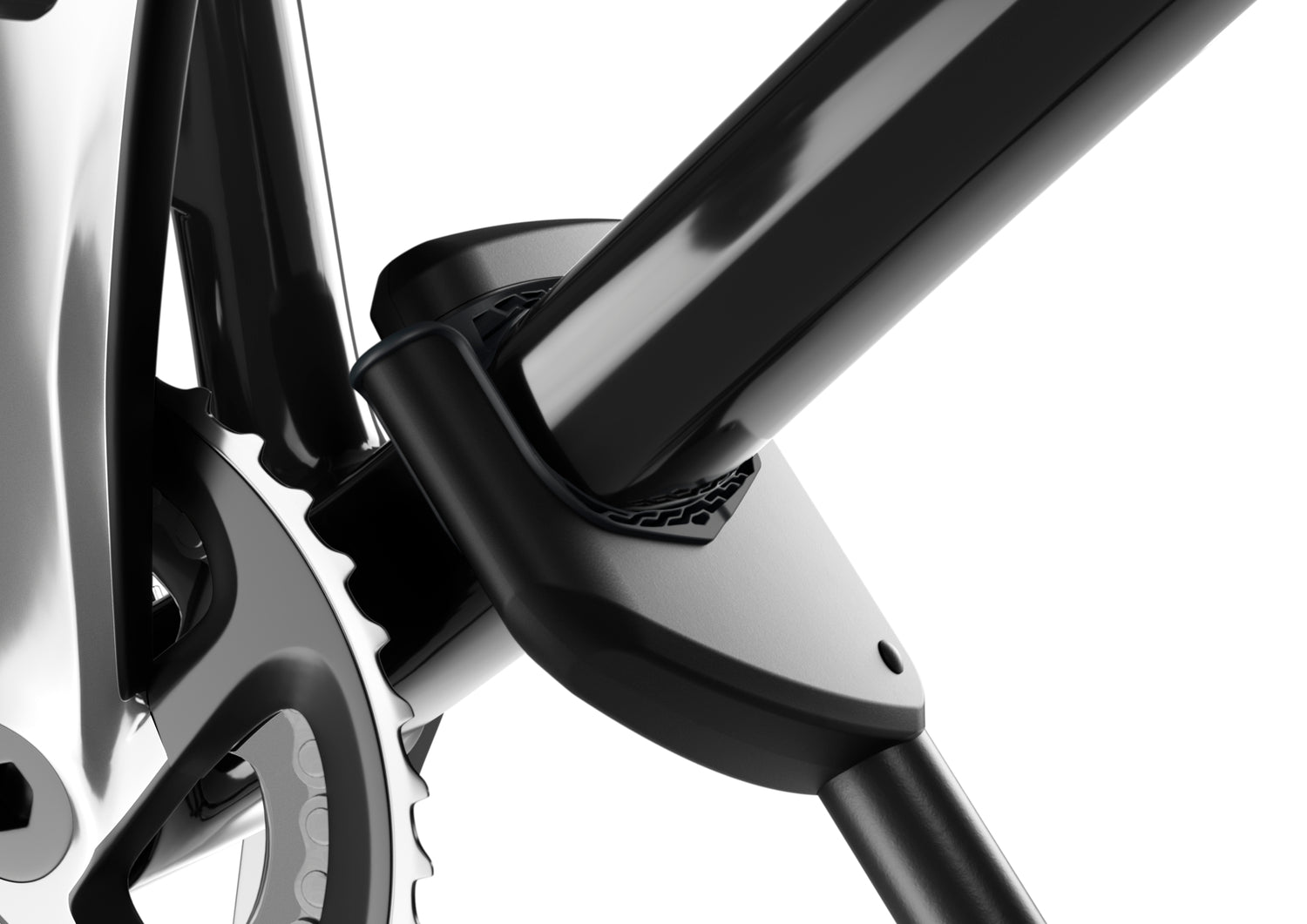

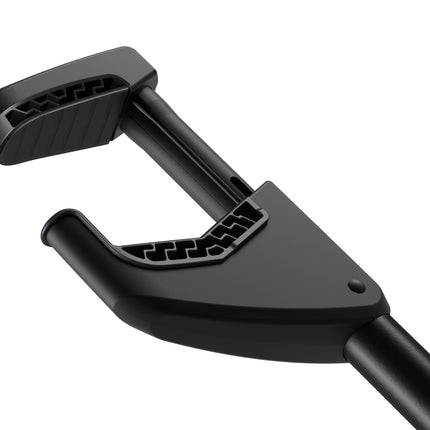

- Safe mounting – your bike is prevented from falling thanks to the claw’s extended lower jaw

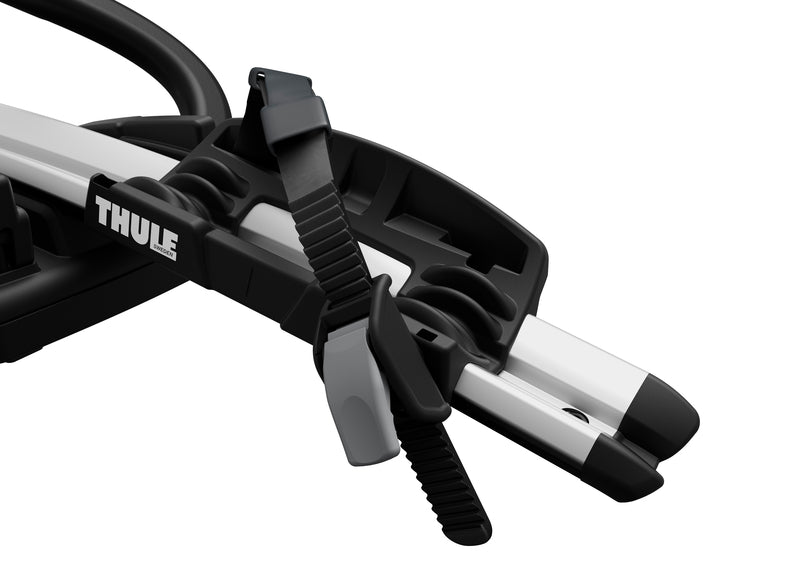

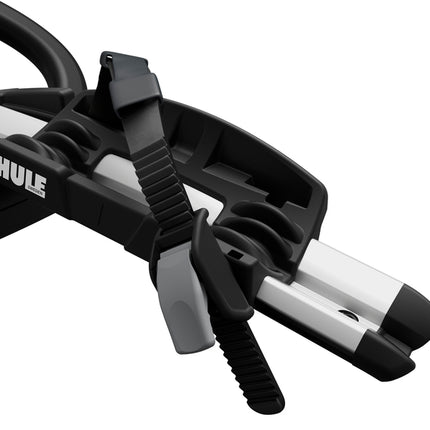

- Stable wheels – firmly fixed in smartly designed wheel holders with diagonal quick-release wheel straps

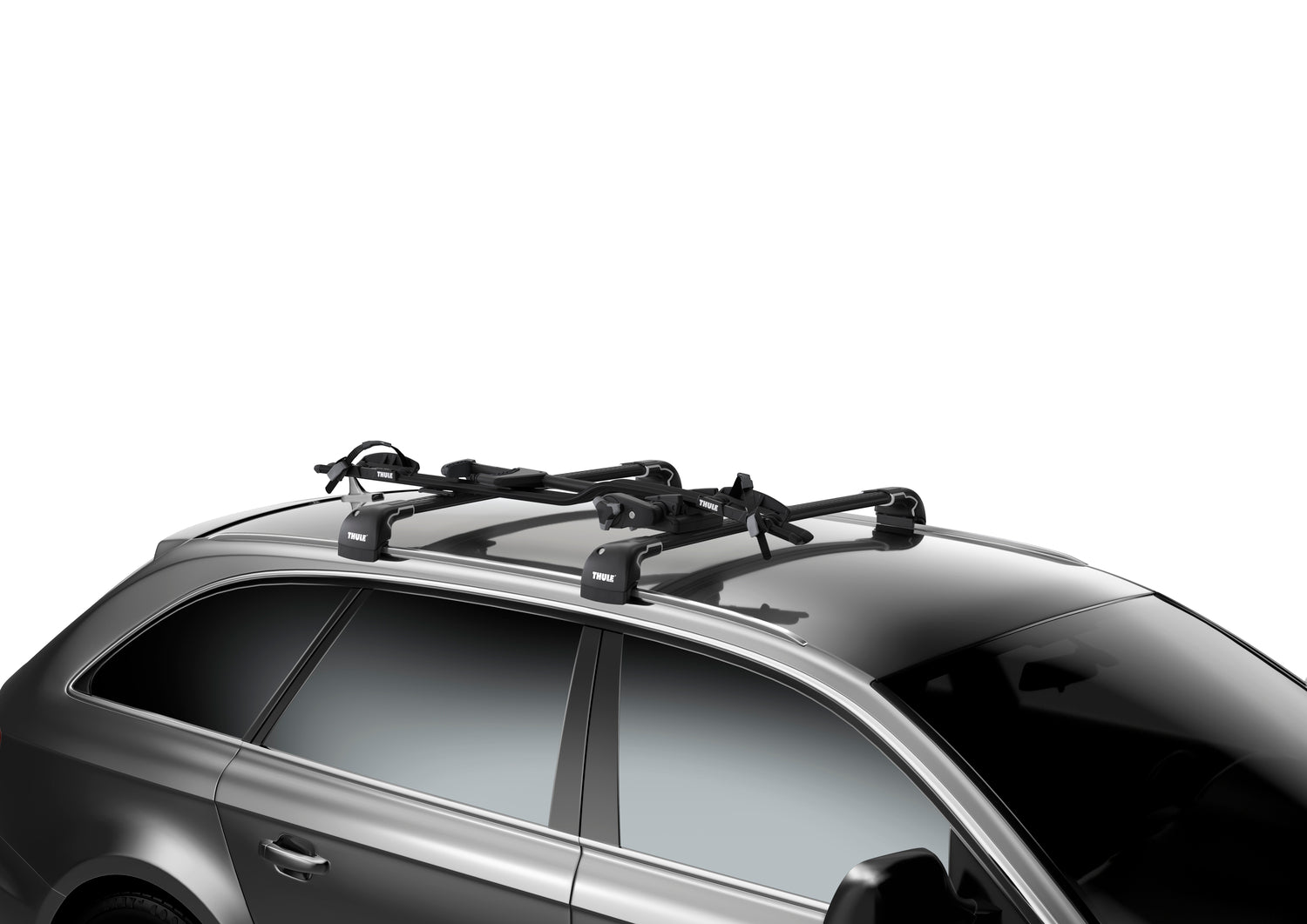

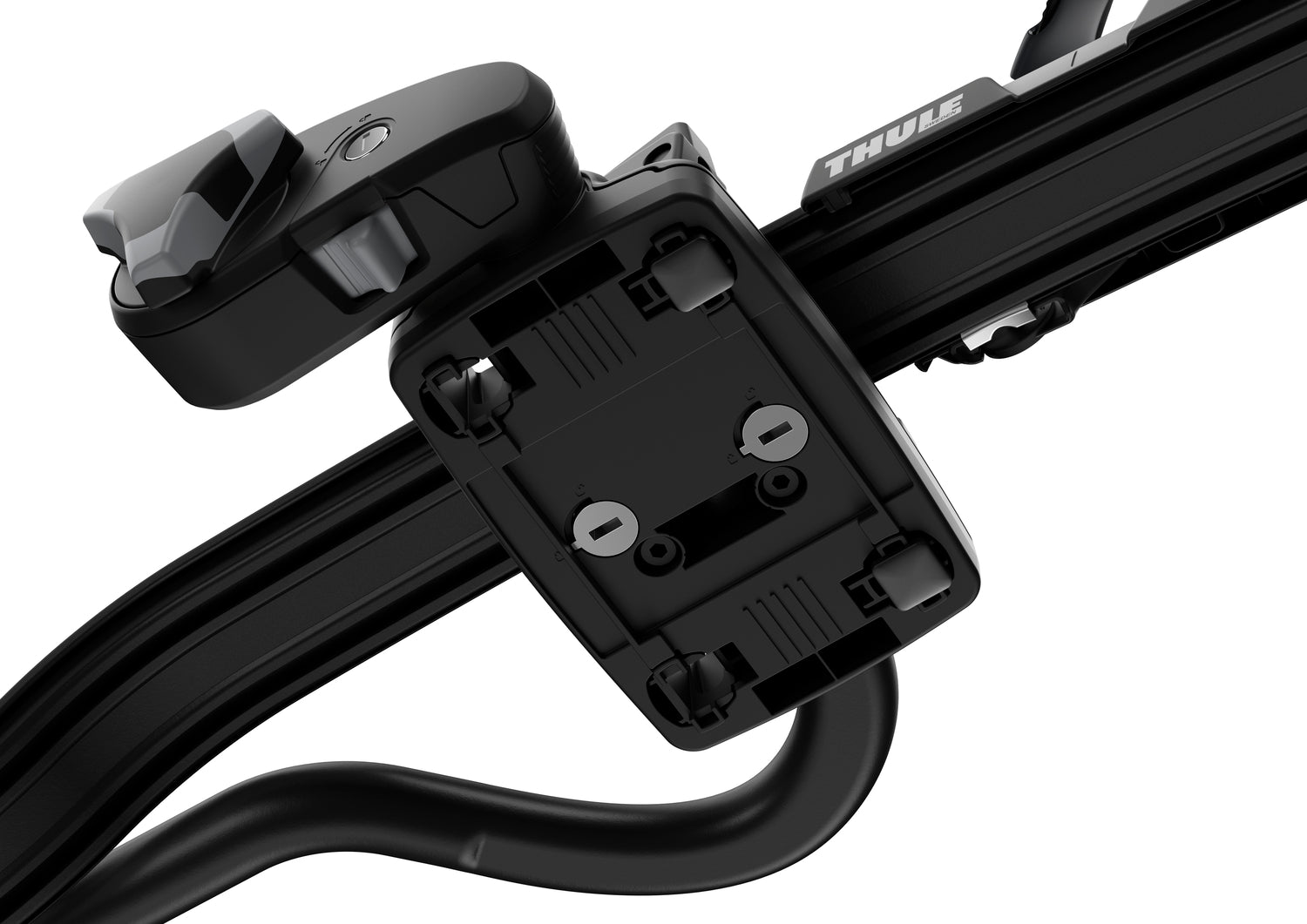

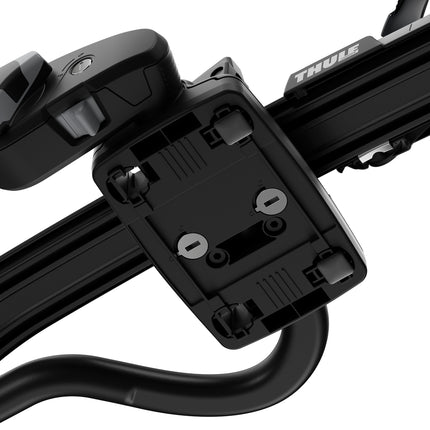

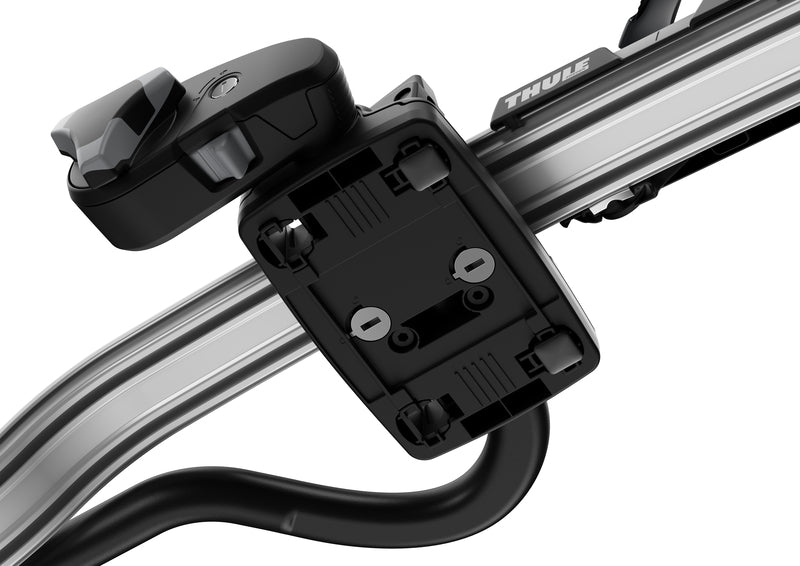

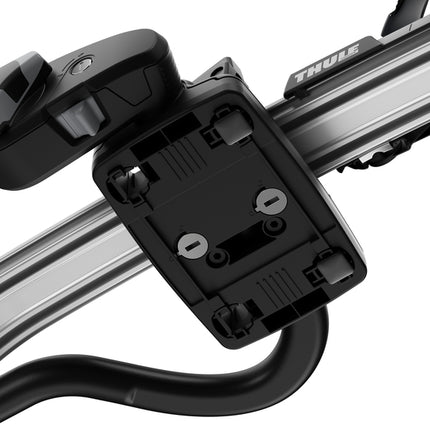

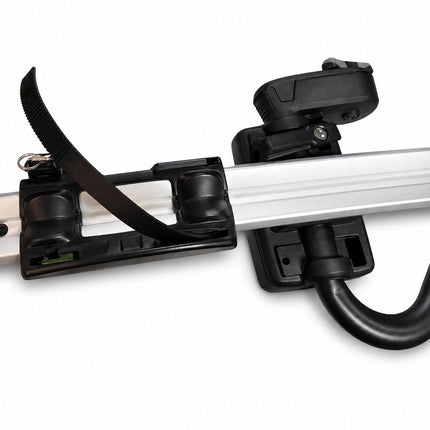

- Easy, tool-free interface for switching the bike rack from one side of your car to the other
- Pre-assembled, no tools required
- Locks the bike to the bike rack and the bike rack to the roof racks (locks included)
Technical specifications
| Load capacity |
20 kg |
| Weight |
4.2 kg |
| Fits round frame dimensions |
22 - 80 mm |
| max tyre width |
3" |
| Max wheel size (diameter) |
16 - 29" |
| Max wheelbase |
1235 mm |
| Thru axle-compatible |
Yes |
| Carbon frame compatible |
Adapter/s required: Thule Carbon Frame Protector
|
| Fits roof racks with 20 x 20 mm T-tracks |
Yes |
| Fits roof racks with 24 x 30 mm T-tracks |
Adapter/s required: Thule T-track Adapter 889-1
|
| Fits Thule Wingbar Evo |
Yes |
| Fits Thule WingBar Edge |
Yes |
| Fits Thule WingBar |
Yes |
| Fits Thule ProBar Evo |
Yes |
| Fits Thule SquareBar Evo |
Adapter/s required: Thule ProRide SquareBar Adapter |
| Fits Thule SlideBar |
Yes |
| One Key System compatible |
Yes
|
| Colour |
Black |
| Model number |
598002 |
| Units per pallet |
25 |
