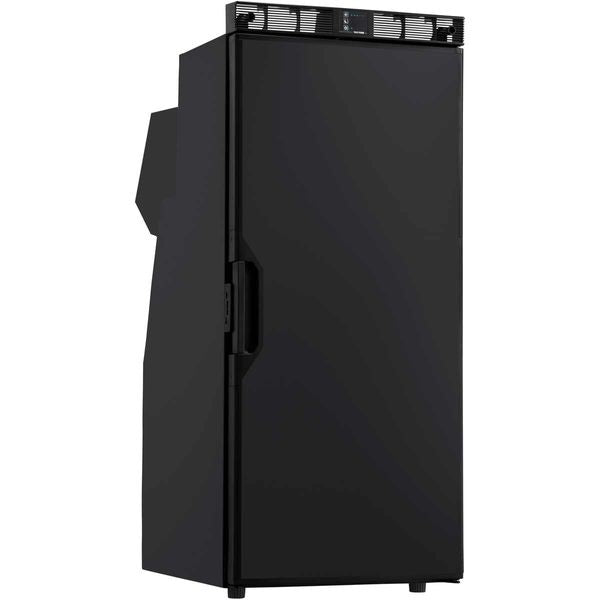

The Thetford T1090-E is a compact 975(H) x 418(W) x 486mm(D) fridge specially developed for the campervan chassis.
This T1090-E OE model (updated from its predecessors T2090 and T109) has been updated with a capacitive touch screen, a new door handle and fresh ice grey interior. Please note, this OE version comes without the décor panel to allow convertors to choose their own colourways. For the decorative black door panel, see product code 69233027.

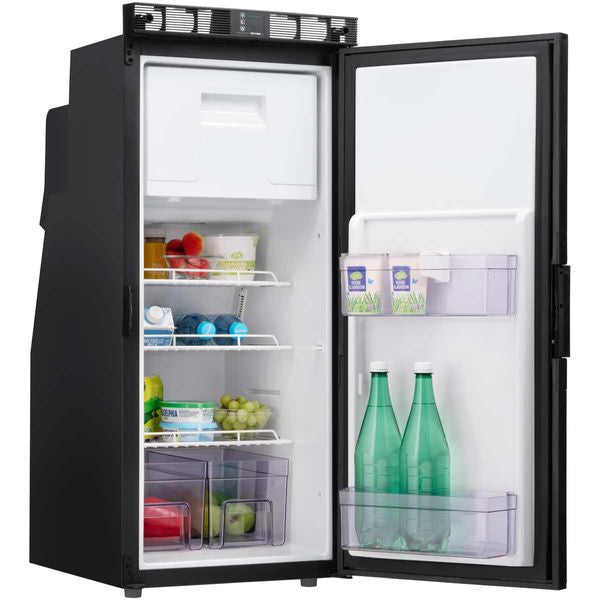

The fridge provides a generous 84 litre capacity which is made up of a 6.1 litre freezer compartment and fridge space with three shelves, two salad crispers and two inner door balconies allowing for bottles to be stood in the upright position.
Other features include Automatic Temperature Control (ATC) which chooses the most efficient fridge cooling power and the fridge is also CI-BUS connectivity ready.
- Average ampere usage: 28.3 Ah/24h (According IEC62552-2020 part 3)
- Climate class (Day mode): ST (18°C - 38°C)
- Climate class (Night mode): N (16°C - 32°C)
- Days on 2 x 95Ah battery*: 3.5 days
- Display: Capacitive touch
- Door panel: Matte black
- Door shape: Flat framed
- Door type hinging: Right hinge
- Energy consumption: 339Wh/24h
- Main dimensions: 975(h) x 418(w) x 486(d)mm (including protruding door handle of 11mm)
- Net weight: 21.1 kg
- Recommended built-in depth: 506mm
- Total volume: 84L
- Volume frozen food compartment: 6L
*Some batteries are not suited for a complete drain and may damage batteries. Calculation is based on (2x) 50 useable amps.
